Staubli Multi Contact - 1500V in-line fuse 10A/15A/20A
Staubli Multi Contact - 1500V in-line fuse 10A/15A/20A
Regular price
$59.99
Sale price
$59.99
Regular price
Shipping calculated at checkout.
Available in stock (44)
Couldn't load pickup availability
Limited time offer
Get $20 off when you spend $1,000 or more! Learn more
Description
Description
- Description
- Applications
- Specifications
- Datasheet
- Reviews

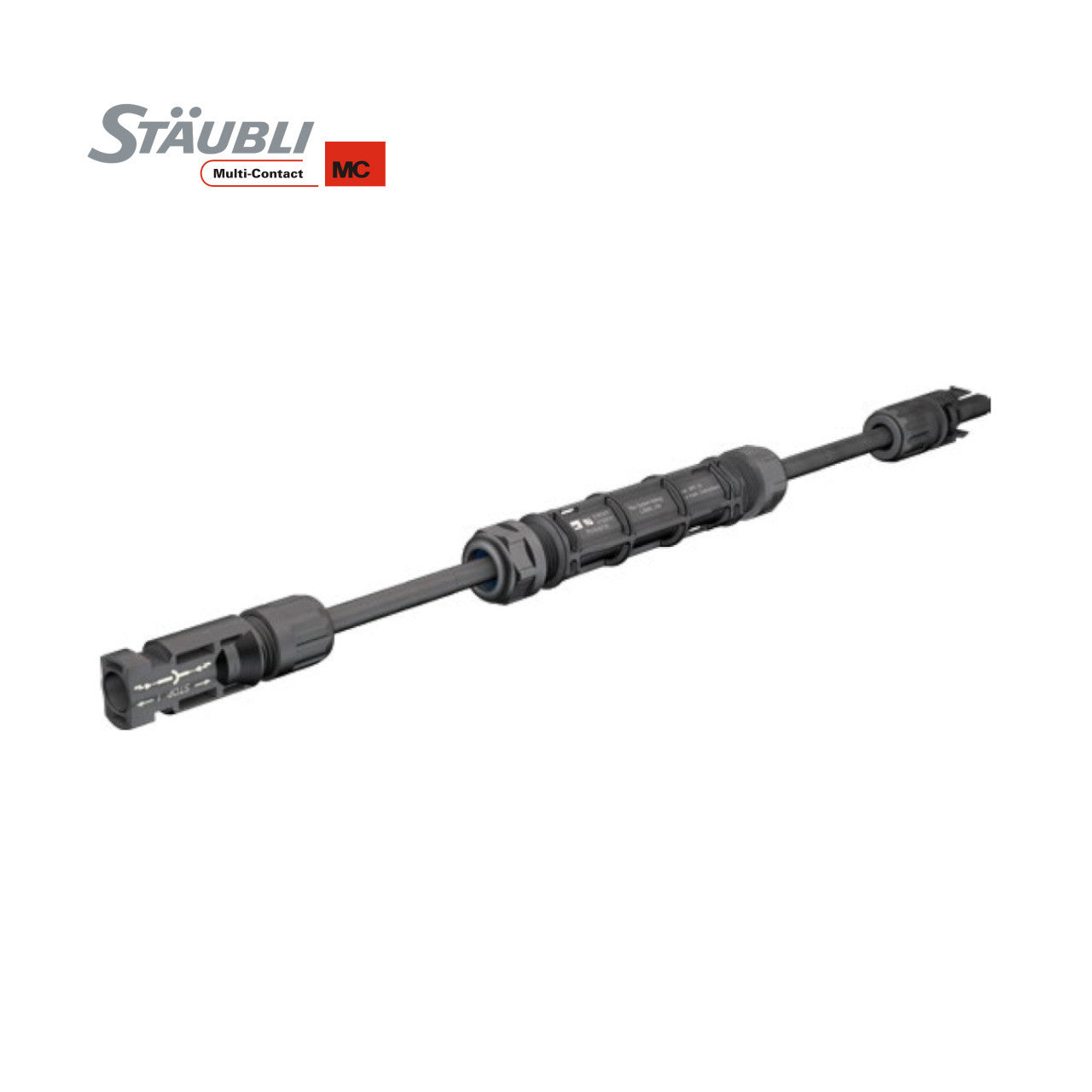

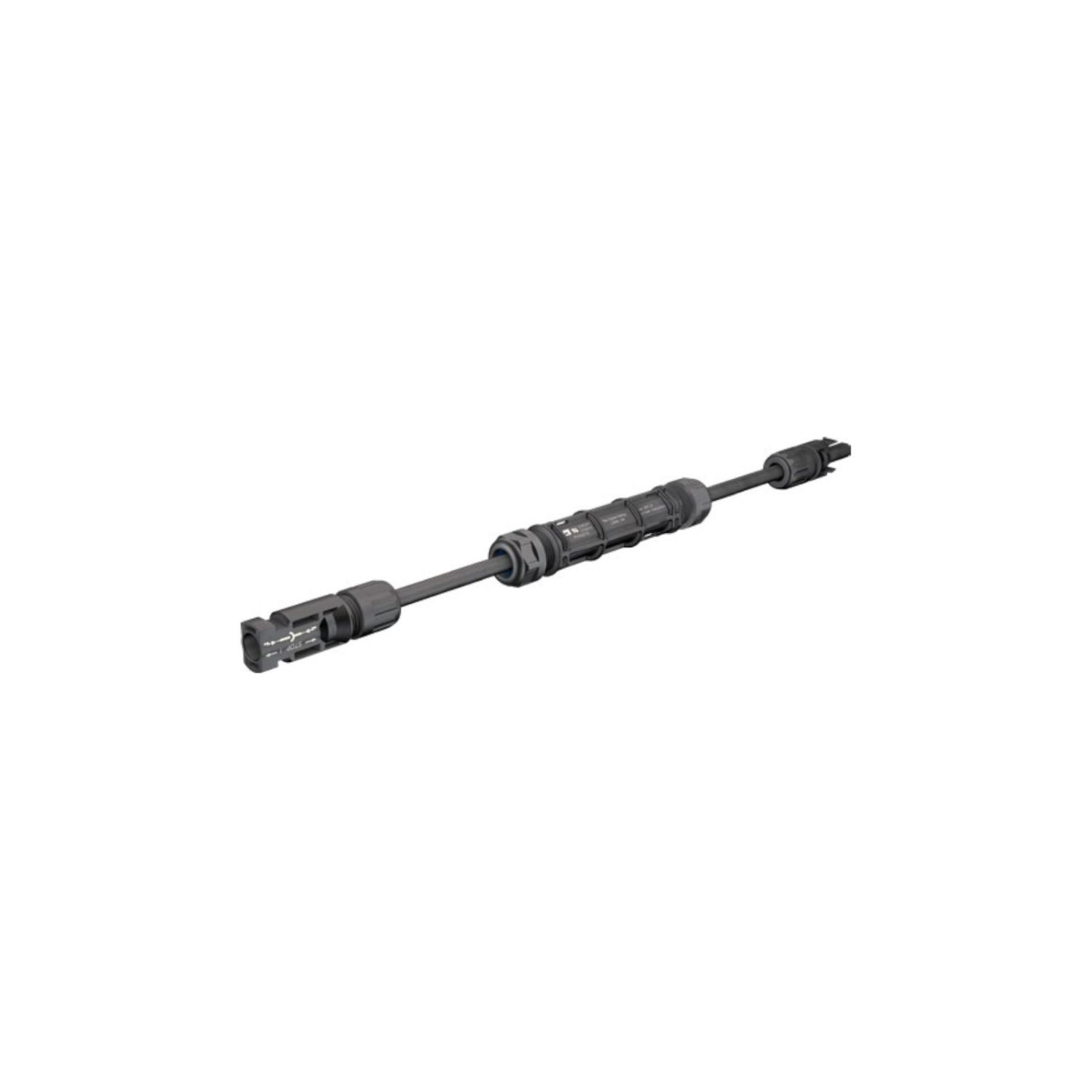

The in-line fuse PV-K/ILF with a crimping connection guarantees a long-lasting, stable connection in comparison to conventional clip-in clamps:
- Minimal energy loss, low heat generation
- Robust housing, safety class IP68
- Cable cross section 10 AWG/6 mm²
- Cable cTÜVus certified
- Length: 55 cm (1500 V)
- Marine
- RV's
- Caravans
- Off-Grid Systems
- Tiny Houses
- Cabins
| Technical Data | Details |
|---|---|
| Connector system | MC4 |
| Rated current fuse | 1500 V: 15 A |
| Rated voltage fuse | 1500 V (55 cm) |
| Insulation test voltage | 6600 V |
| Ambient temperature | -40 °C...+50 °C (UL9703) |
| Upper limiting temperature | 105 °C |
| Contact resistance of plug connectors | ≤0.25 mΩ |
| Contact material | Copper alloy, tin-plated |
| Insulation material | PC/PA/PA + GF |
| Flame class | UL94-V0 |
| UL-recognized components in accordance with UL 9703 | E474445 |
