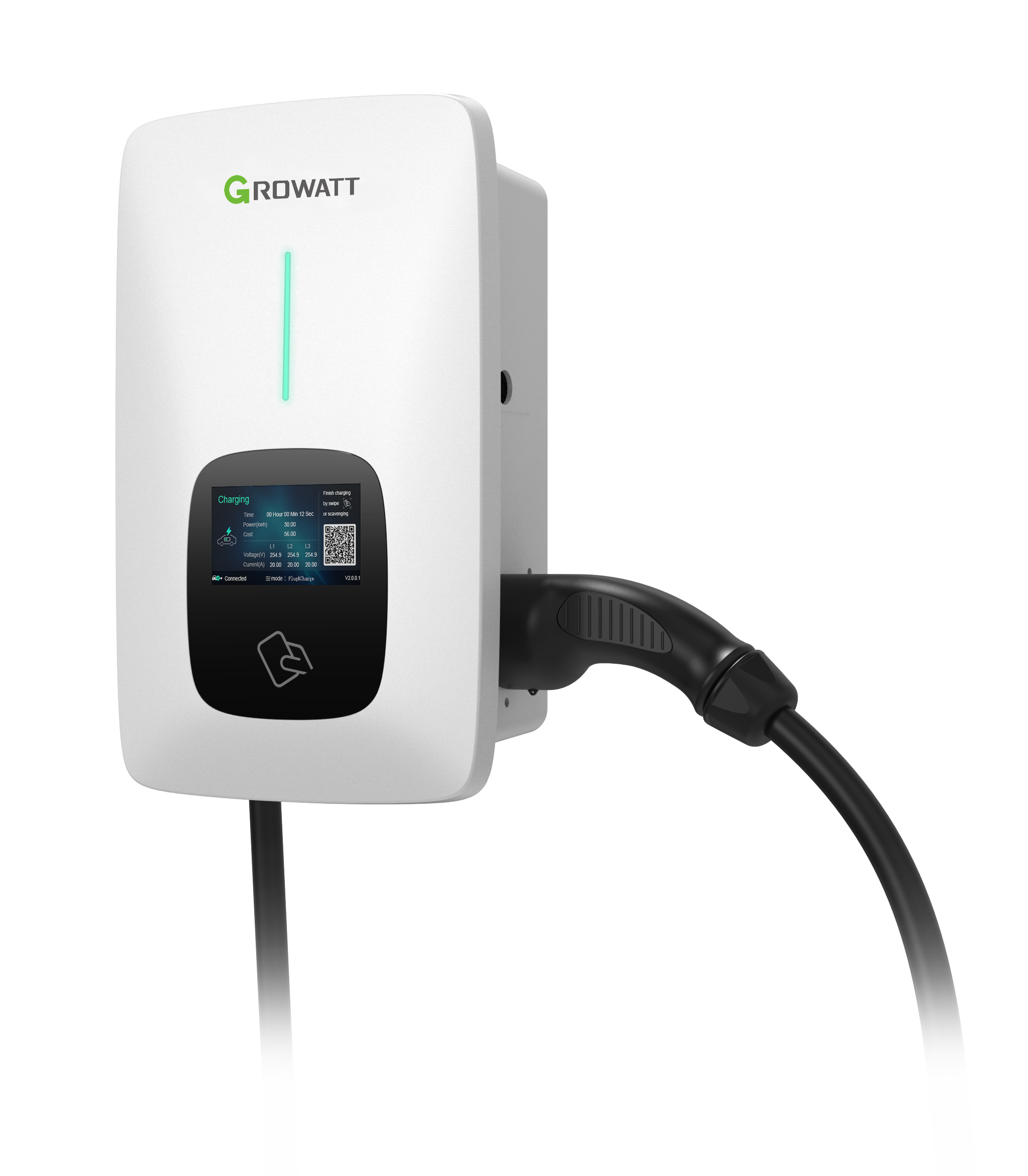

THOR 7-12 AS-P-US EV Charger by Growatt
THOR 7-12 AS-P-US EV Charger by Growatt
Available in stock (198)
- Description
- Includes
- Specifications
- FAQ
- Downloads
- Reviews
General Features:
- Compatibility: Works with all branded electric vehicles (EVs) and can be integrated into both existing and newly installed photovoltaic (PV) systems.
- Renewable Energy Use: Enables charging of EVs with 100% renewable energy through surplus solar power.
- Smart Control and Scheduling: Offers app-based smart control and scheduling features.
- Design: IP65 rated, suitable for both indoor and outdoor use.
- Power Options: Available in 7kW, 9.6kW, and 12kW versions, with maximum output currents of 32A, 40A, and 50A, respectively.
- Charging and Connectivity: Utilizes a Type 1 charging interface and offers options for Wi-Fi and 4G connectivity.
- Safety and Protection: Includes comprehensive safety features like over/under voltage protection, overload protection, short circuit protection, earth leakage protection, and more.
Leading Features:
- Smart Management: Remote control, monitoring, and firmware upgrades are available through OTA technology.
- Extreme Safety: Offers a broad range of protection features to ensure safe and reliable operation.
- Flexibility: The chargers are compatible with all branded EVs and support various activation methods including Plug and Play, Mobile APP, and RFID Card.
- Communication: Provides flexible communication options through LAN, Wi-Fi, or optional 4G module.
Working Modes:
- Fast Mode: For maximum power charging, ideal when in a hurry.
- Off-Peak Mode: Automatically charges the EV during off-peak times to reduce electricity costs.
- PV Linkage Mode: Utilizes surplus solar power for charging, promoting solar energy use and cost savings.
- Manual Boost and Smart Boost: Offers additional control over charging times and power, especially useful for urgent charging needs or to ensure a set amount of charge within a specific timeframe.
- Load Balancing: Adjusts charging power based on home power consumption to prevent overloading.
How to Build a Charging Station:
For those interested in establishing a charging station using THOR DC EV chargers, the process involves utilizing a card writer, ISAM card, and RFID card for user management and payment processing. The system allows for customizable billing policies and offers an online platform for managing RFID cards and charging tariffs.
The THOR series provides a versatile, safe, and efficient solution for EV charging, catering to both residential and commercial needs. With its emphasis on renewable energy use and smart management features, it aligns well with growing demands for sustainable transportation solutions.
- 1x THOR EV Charger
Technical Specifications
| Specification | Details |
|---|---|
| Max. Output Power | 7kW, 9.6kW, 12kW |
| Max. Output Current | 32A, 40A, 50A |
| Input Voltage | 240V |
| Input Frequency | 50/60Hz |
| Output Voltage | 240V |
| Charging Interface Type | Type 1 |
| Connection Type | Plug |
| Cable Length | 23ft (7m) |
| Number of Connections | 1 |
| Protection Degree | NEMA 4X (IP65) |
| Operating Temperature | -22℉ to +122℉ (-30°C to +50°C) |
| Relative Humidity | 5% to 95% non-condensing |
| Maximum Altitude | < 6561.7ft (2000m) |
| Cooling Method | Forced air cooling |
| Standby Power Consumption | <8W |
| Dimensions (W/H/D) | 246/382/154 mm (9.68/15.0/6.06 in) |
| Weight | <9.5kg (20.9lbs) |
| Warranty | 3 years |
The THOR EV Chargers are available in three maximum output power configurations: 7kW, 9.6kW, and 12kW, catering to different charging needs and speeds.
Yes, the THOR EV Chargers are compatible with all branded electric vehicles, making them highly versatile for various users.
With an IP65 rating, the THOR EV Charger is designed for both indoor and outdoor use, offering flexibility in installation locations.
Yes, it features app-based smart control and scheduling, allowing users to manage charging times and monitor the charging process efficiently.
The charger includes comprehensive safety features like over/under voltage protection, overload protection, short circuit protection, and earth leakage protection.
Yes, it can charge electric vehicles with 100% renewable energy by utilizing surplus solar power, promoting the use of clean energy.
The THOR EV Charger comes with a 3-year warranty, providing users with peace of mind and assurance in its reliability and performance.
It utilizes a Type 1 charging interface and includes a 23ft (7m) cable, ensuring convenient connectivity for most parking scenarios.
The charger can operate within a temperature range of -22℉ to +122℉ (-30°C to +50°C), ensuring functionality across various climates.
