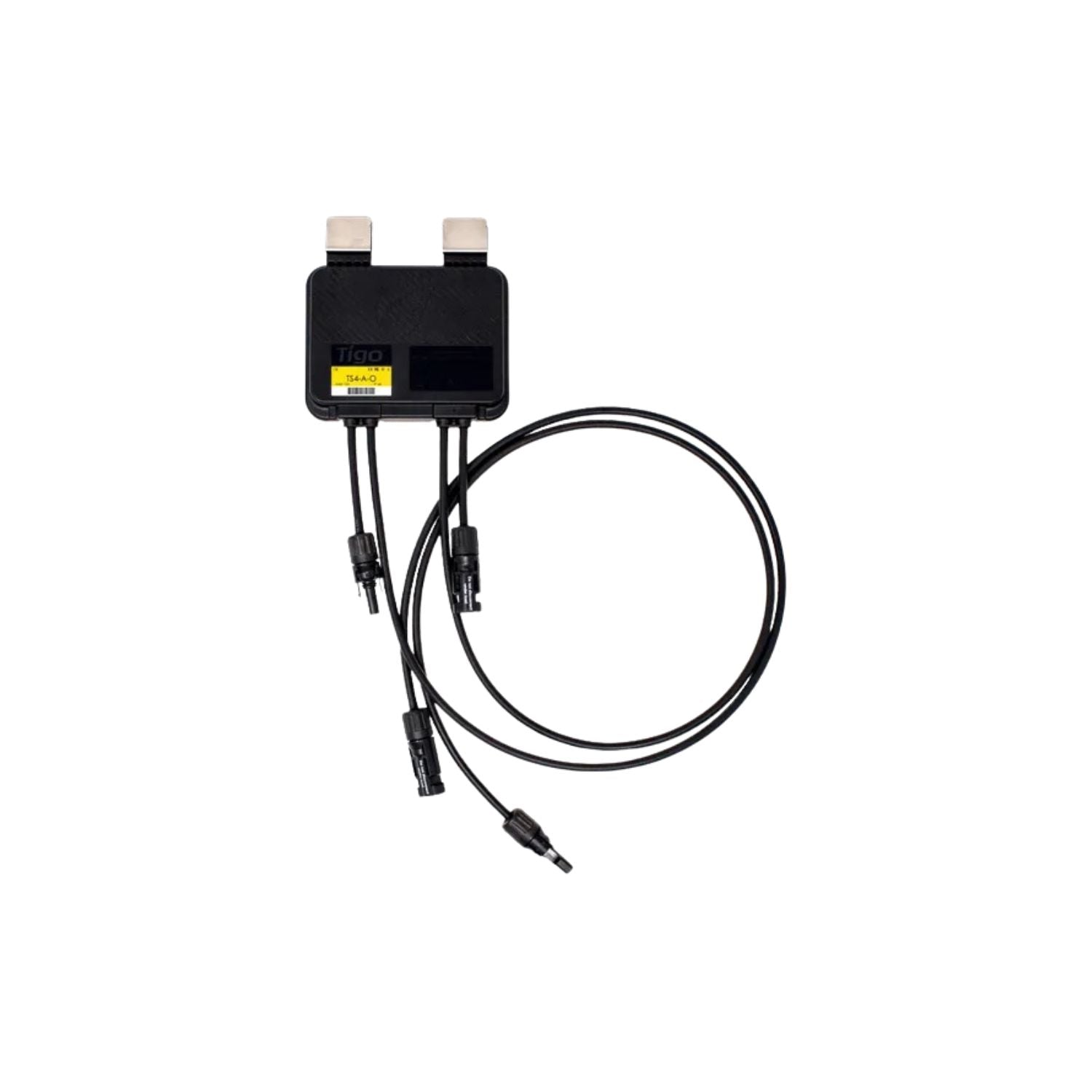

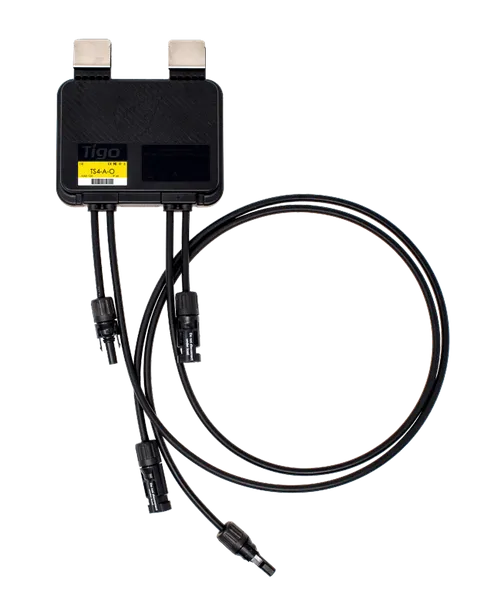

Tigo - TS4-A-O-Optimizer Module

Tigo - TS4-A-O-Optimizer Module

$79.99 CAD
$99.99 CAD $79.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • Suitable for up to 700W solar modules
  • The higher performance optimizer with Predictive IV Technology (PIV)
  • The ONLY optimizer with selective deployment
  • Includes the benefits of Safety & Monitoring
  • Meets US NEC rapid shutdown requirements
  • Optimizes right out of the box
  • Shade and age tolerance to maximize lifetime yield
  • Works wirelessly with the TAP & CCA
  • 25-year warranty
View full details



  • Description
  • Includes
  • Specifications
  • Datasheet
  • User Manual
  • Reviews

Optimization is a Flex MLPE function available as an integrated modular junction box base (TS4-O) or as an add-on unit (TS4-A-O). Design using unequal string lengths, mixed orientations, or areas of mismatch. Install in shaded areas with a reduced setback ratio. In addition to optimization, the TS4-A-O enables module level monitoring, and rapid shutdown in compliance with NEC 2014, 2017, 2020.

Functions:

  • Optimization
  • Monitoring
  • Rapid Shutdown
  • 1 x Tigo - TS4-A-O-Optimizer Module

Technical Specifications


Model PV Voltage
Height/width/depth 138.4 x 139.7 x 22.9mm
(5.4 x 5.5 x 0.9in)
Weight 520g (1.15lbs)
Operating temperature -40 – 70°C (-40 – 158°F)
Maximum elevation 2000m (6560ft)
Maximum current 15A
Maximum power 700W
Electrical
Maximum input voltage
(VOC at lowest temperature)		 80V
Input voltage range 16 – 80V1
Maximum input current (IMP) 15A
Maximum power 700W
Recommended fuse rating 20A
Conductor AWG 12
Rapid shutdown time limit ≤30s
PVRSE controlled conductors ≤240VA, ≤8A, ≤30VDC
Operational Output (connected to inverter)
Maximum output current  IDCU MAX
Maximum output voltage VDCU MAX
Connections2
Input (from module) cable length 0.12/0.62m
Output (to string) cable length 1.2m
Connectors MC4, EVO2
Environmental
Storage temperature range -40 – 85°C (-40 – 185°F)
Protection rating IP68, NEMA 3R
Relative humidity 0 – 100%
VMOD MAX of the connected panel = TS4-A-O VDCU MAX 2 Contact Sales for different options. Minimum order quantities may apply



Download Datasheet (PDF)
Download User Manual (PDF)
