ROCKSOLAR Black Diamond 200W 12V Rigid Monocrystalline Solar Panel

ROCKSOLAR Black Diamond 200W 12V Rigid Monocrystalline Solar Panel

Prix habituel $249.99 CAD
Prix habituel $399.99 CAD Prix soldé $249.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • Power & Efficiency: 200W monocrystalline, 800-1000 Wh daily.
  • Optimal in Low Light: Bypass diodes reduce shadow power drop.
  • Durability: Corrosion-resistant frame, advanced encapsulation.

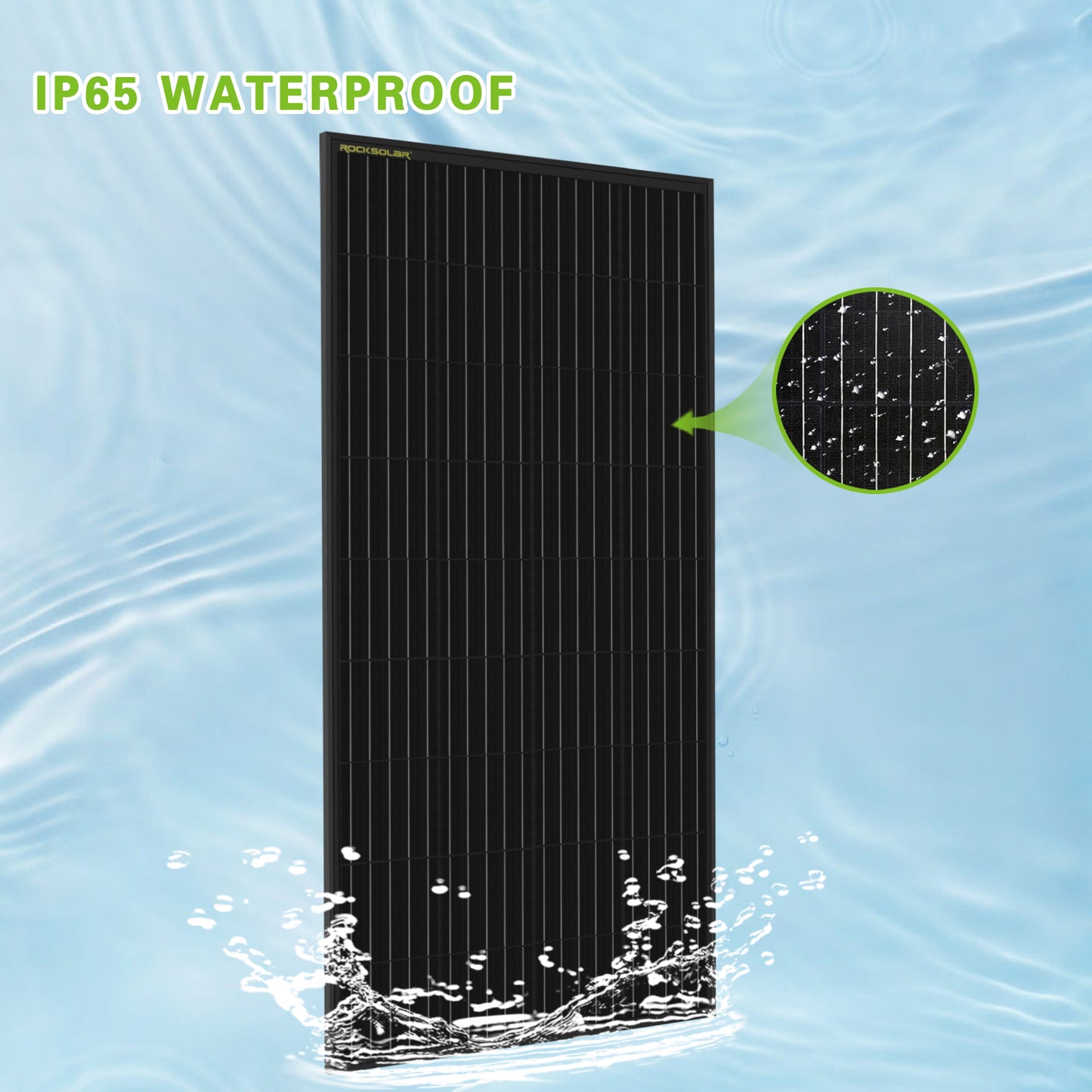

  • Weatherproof: Glass-laminated, IP65-rated; endures -20°C to +50°C.
  • Easy Installation: Pre-drilled holes for quick mounting.
  • Compatibility: Perfect with 12V 60A MPPT Charge Controllers.
  • Applications: Versatile for RVs, camping, boats, homes, fieldwork, and more.
  • Eco-Friendly: Sustainable energy source, eco-conscious choice.
  • Warranty: 10 years, ensuring 90% output.
Shipping

Free
Local Shipping

Warranty

10-year Hassle Free
Warranty

Support

Lifetime Customer
Support

Afficher tous les détails
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Introducing the ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel, a high-performance and eco-friendly solution for your energy needs. Designed with durability in mind, this solar panel features a rigid, weather-resistant aluminum frame and anti-reflective tempered glass to ensure maximum efficiency. The monocrystalline cells provide excellent performance, even in low-light conditions, making it a reliable energy source for off-grid living, camping, or emergency backup power. Easy to install and compatible with a wide range of applications, the ROCKSOLAR 200W 12V Solar Panel will help you harness the power of the sun and reduce your carbon footprint.

Product Features

  • High-efficiency monocrystalline cells: These solar cells offer excellent performance in low light conditions and higher energy output compared to polycrystalline cells.
  • 200W power output: This solar panel provides 200 watts of power, making it suitable for various applications such as RVs, boats, cabins, and off-grid systems.
  • 12V system compatibility: The solar panel is designed to work with 12V battery systems, making it ideal for use in remote or off-grid locations.

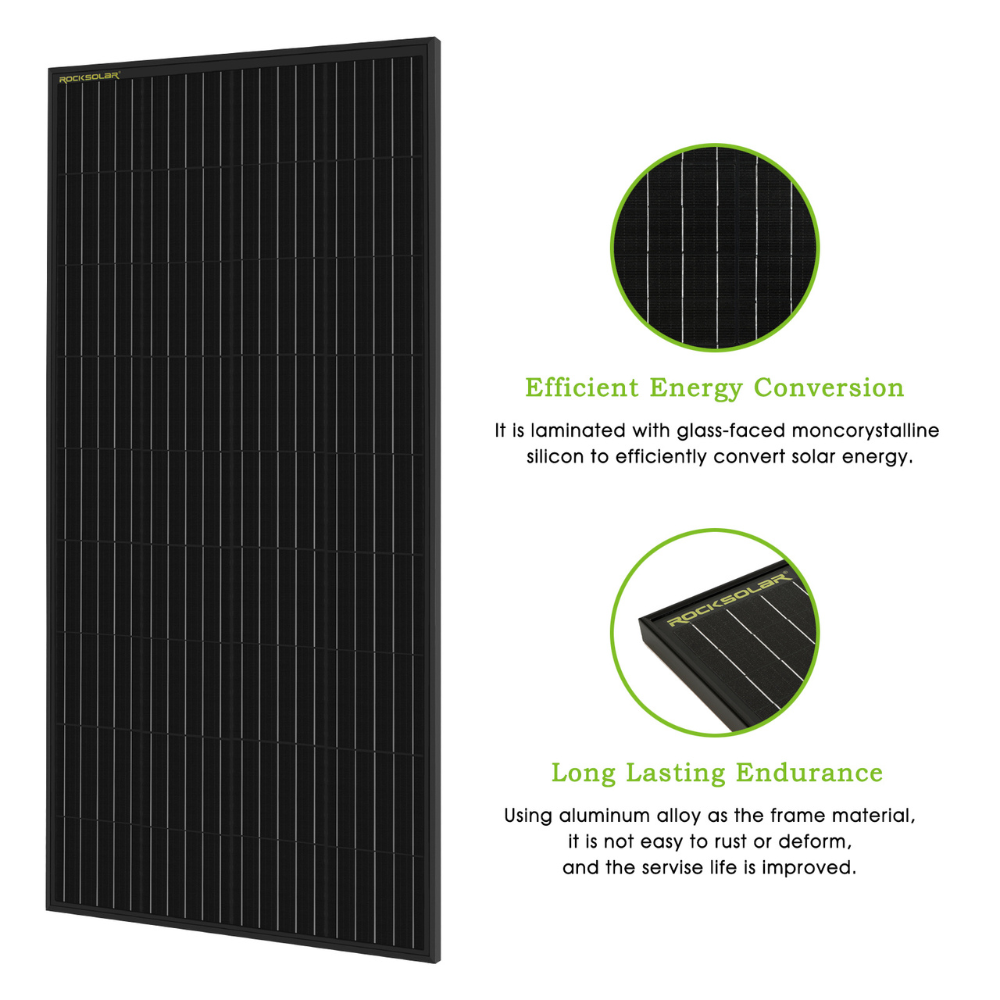

  • Rigid aluminum frame: The panel features a durable, corrosion-resistant aluminum frame that ensures long-lasting performance and easy mounting.
  • Weather-resistant design: The solar panel is built to withstand harsh environmental conditions, including heavy rain, snow, and strong winds.
  • High light transmittance glass: The panel features a high-quality, low-iron tempered glass that offers high light transmittance and improved energy output.
  • Pre-drilled mounting holes: The panel comes with pre-drilled holes for easy mounting and installation.
  • Bypass diodes: Integrated bypass diodes minimize the impact of shading on the panel's performance, ensuring consistent energy output.

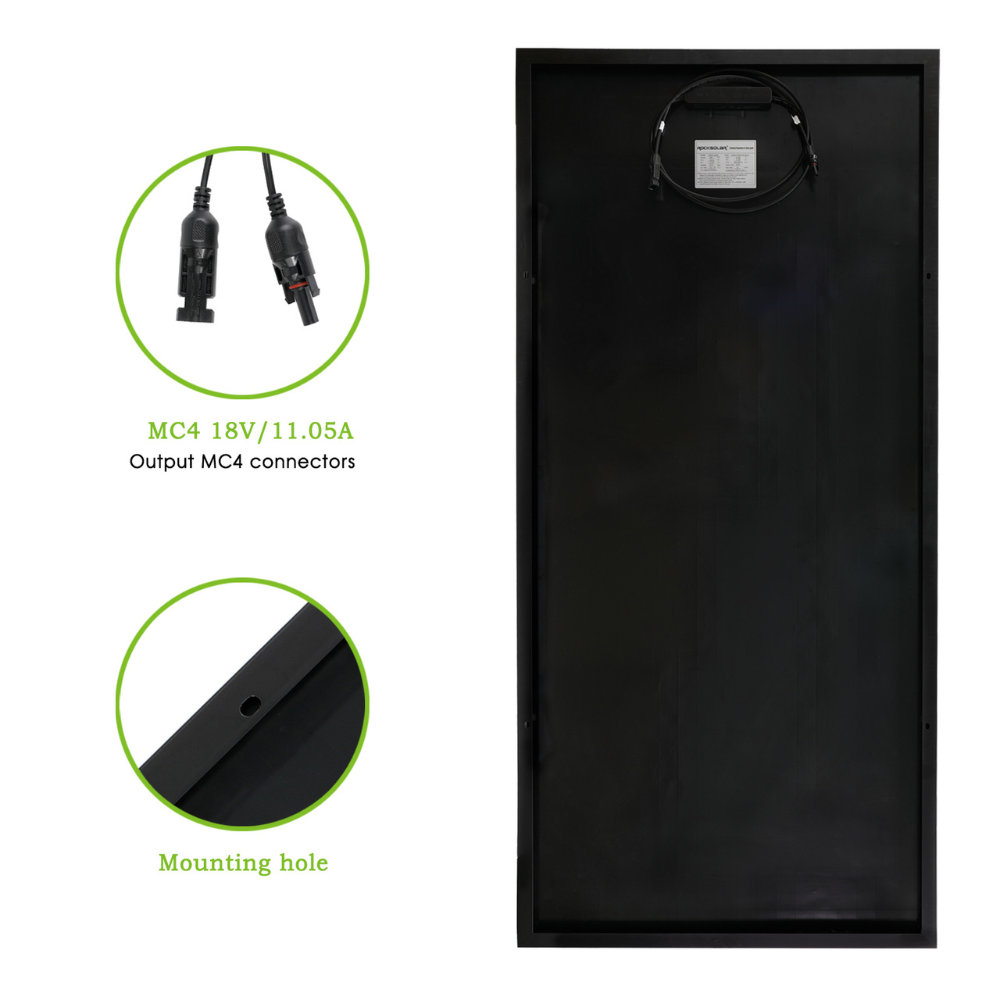

  • MC4 connectors: The solar panel is equipped with industry-standard MC4 connectors for easy and secure connections to your solar system.
  • Long service life: Over 25 year service life and 10 year Manufacturer warranty.
  • Easy installation: The solar panel can be easily installed on various mounting systems, including roof, ground, and pole mounts.
  • Eco-friendly power source: Harnessing solar energy is a clean, sustainable, and environmentally friendly way to generate electricity.





    • 1 x ROCKSOLAR Black Diamond 200W 12V Monocrystalline Rigid Solar Panel
    • 1 x MC4 Connectors
    • 1 x User Manual for the Rigid Solar Panel

    Technical Specifications


    ROCKSOLAR Black Diamond 200W 12V Monocrystalline Rigid Solar Panel Specification Details
    Panel Type Monocrystalline
    Power Output 200W
    System Voltage 12V

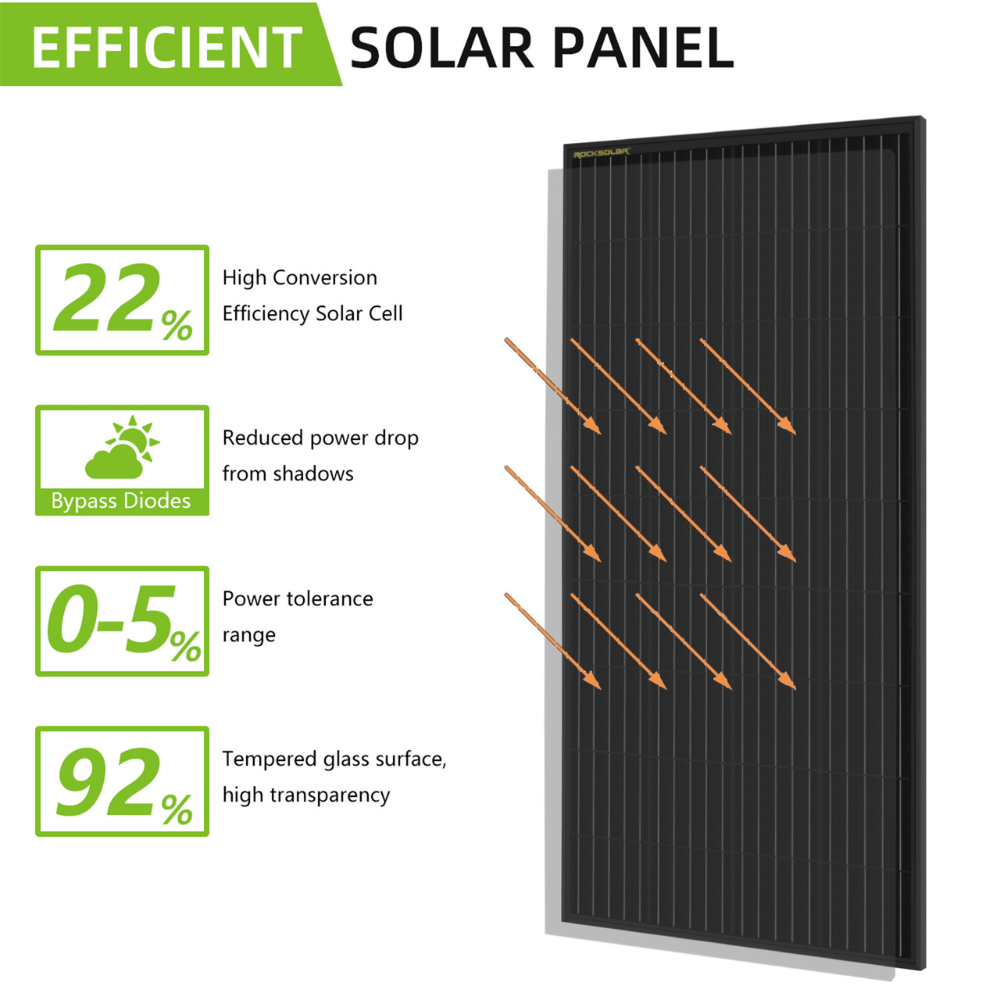

    Cell Efficiency 20-22%
    Frame Material Aluminum

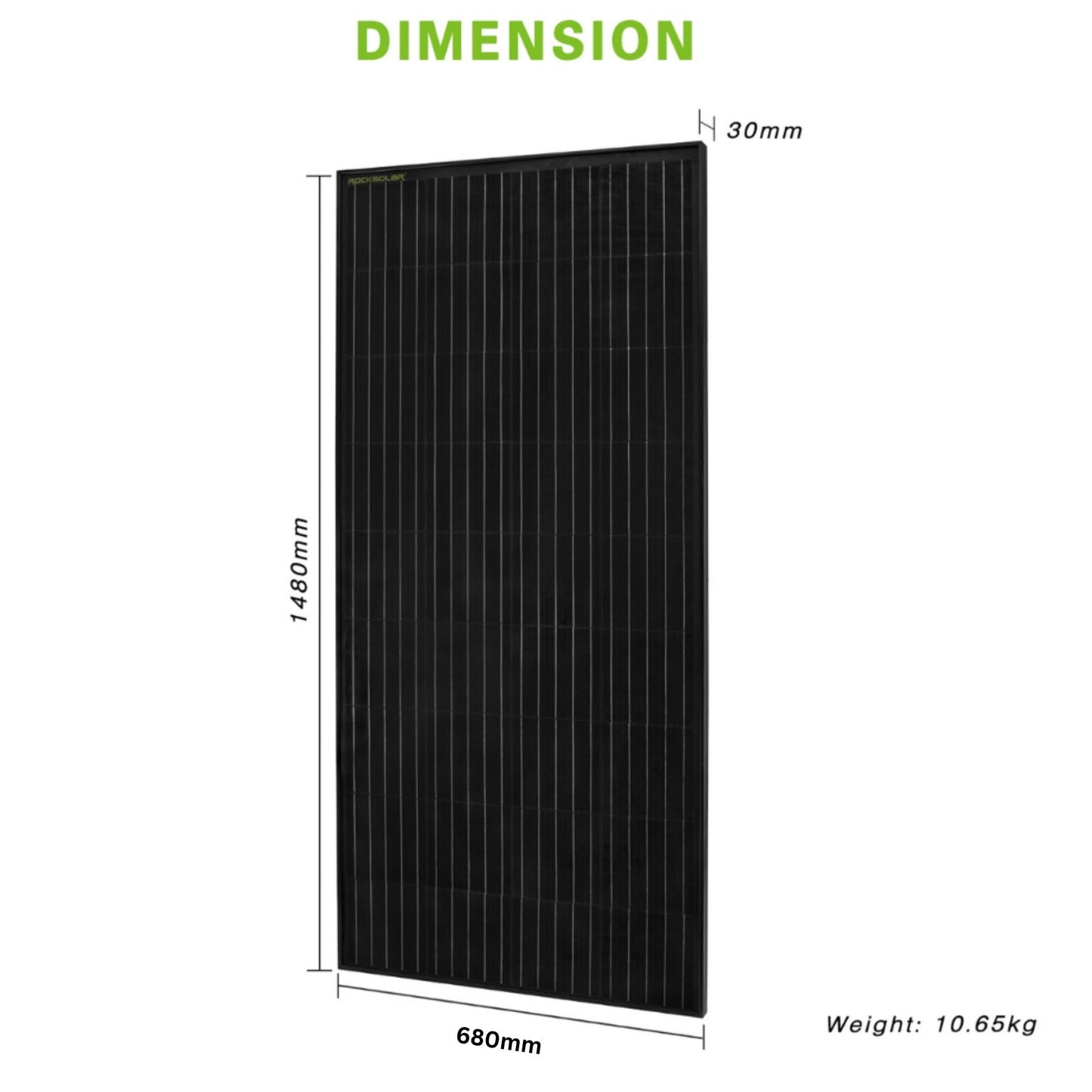

    Dimensions  1480mm x 680mmX30mm
    Weight approx. 25-30 lbs
    Operating Temperature -40°C to +85°C
    Waterproof Rating IP65
    Front Glass High light transmittance, low-iron tempered glass
    Bypass Diodes Integrated
    Connectors MC4
    Cable Length Varies depending on the brand (approx. 3-6 ft)
    Mounting Hole Locations Pre-drilled
    Service Life 25 years or more
    Warranty 10 years


    Monocrystalline solar panels are made from a single crystal structure, which allows for higher efficiency and a sleeker appearance. Polycrystalline panels are made from multiple crystal structures, resulting in lower efficiency and a more textured appearance.

    The daily power output depends on the sunlight hours and the angle of the panel. On average, a 200W solar panel may produce 800-1000Wh of electricity per day.

    No, this panel is designed for 12V systems. However, you can connect two 12V panels in series to charge a 24V battery system.

    Regularly clean the panel's surface with water and a soft cloth to remove dust and dirt. Also, ensure the mounting hardware is secure and check for any damage or wear.

    Yes, the solar panel can be used in portable setups like on RVs, boats, and camping trips, but you'll need the appropriate mounting equipment.

    You can connect solar panels in series (positive to negative) to increase voltage or parallel (positive to positive, negative to negative) to increase amperage, depending on your system requirements.

    Typically, solar panels do not include a charge controller. You will need to purchase one separately to regulate the voltage and current from the panel to your battery system.

    Yes, the 200W 12V solar panel is suitable for off-grid applications like cabins, remote homes, and other isolated locations.

    The panel can be mounted using various mounting systems, including roof, ground, and pole mounts. Ensure the mounting hardware is appropriate for your specific setup and location.



    Customer Reviews

    Based on 30 reviews
    80%
    (24)
    17%
    (5)
    0%
    (0)
    0%
    (0)
    3%
    (1)
    D
    David Pritchett
    Never recieved

    Never recieved my order

    M
    Mia Z.
    Reliable Solar Solution

    The ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel is a reliable solar solution. It's built to last and provides consistent power for my off-grid lifestyle.

    L
    Liam F.
    Reliable Off-Grid Power

    The ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel provides reliable off-grid power for my RV. I can enjoy camping with all the necessary amenities.

    L
    Liam L.
    Highly Efficient

    The ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel is highly efficient, even in low light conditions. It maximizes energy output and is perfect for my off-grid setup.

    E
    Emma T.
    Great Value for Money

    The ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel offers great value for money. It's a reliable and efficient solar panel at an affordable price.
