10 KW Split Phase 120/240Vac Premium Off-Grid Solar System (120V/240V 100AMP)
10 KW Split Phase 120/240Vac Premium Off-Grid Solar System (120V/240V 100AMP)
- All-Inclusive Solar Power Kit: Features a 10kW inverter, four 5kWh batteries, and a robust 12000W solar panel array, offering a comprehensive solution for home energy needs.
- Enhanced Energy Storage: Boasts a total energy storage of 20kWh with four high-capacity 5kWh batteries, providing reliable power backup.
- Superior Solar Collection: The 12000W solar array, composed of 27x 440W high-efficiency panels, maximizes solar energy capture and conversion.
- Panel Dimension: 1722X1134X30mm.
- Advanced Inverter Technology: The 10kW inverter ensures efficient power conversion and seamless integration with both lithium and lead-acid batteries.
- Scalable Storage Options: Modular battery design allows for easy system expansion to meet increasing energy demands.
- Long-lasting Components: Constructed with durability in mind, all kit components are designed to endure various environmental conditions.
- User-friendly Installation: Comes with complete installation gear, making setup adaptable to different mounting environments.
- Intelligent System Management: WIFI/GPRS connectivity provides advanced monitoring and control capabilities.(WIFI Module Included)
- Guaranteed System Longevity: The solar panels and batteries offer extended service life, supported by comprehensive warranties for peace of mind.
- Sustainable Energy Production: Leveraging solar power reduces dependence on non-renewable energy sources, contributing to environmental conservation.
- Customizable Energy Solutions: Flexibility to add more solar panels or batteries as needed, ensuring the system grows with your energy requirements.
- Adaptable to All Environments: Designed to operate effectively in a wide range of weather conditions, ensuring consistent performance year-round.
Fast, Trackable
Delivery
10-Year Hassle-Free
Warranty
Lifetime Customer
Support
Impossible de charger la disponibilité du service de retrait
- Description
- Includes
- Specifications
- FAQ
- Downloads
- Reviews
Introducing the Advanced Home Solar Storage Kit - 20kWh Energy Storage with 10kW hybrid Inverter + 12000W Solar Array, a premium off grid solar energy systems for 120V/240V 100AMP house, cottage, and cabin. This all-encompassing kit features GROWATT's SPH 10000TL-HU-US, a 10kW hybrid inverter known for its seamless energy integration and intelligent power management, alongside four 5kWh batteries for a total energy storage of 20kWh, and a robust 12000W solar panel array comprised of 27 high-efficiency 440W Bifacial panels.
Key Highlights:

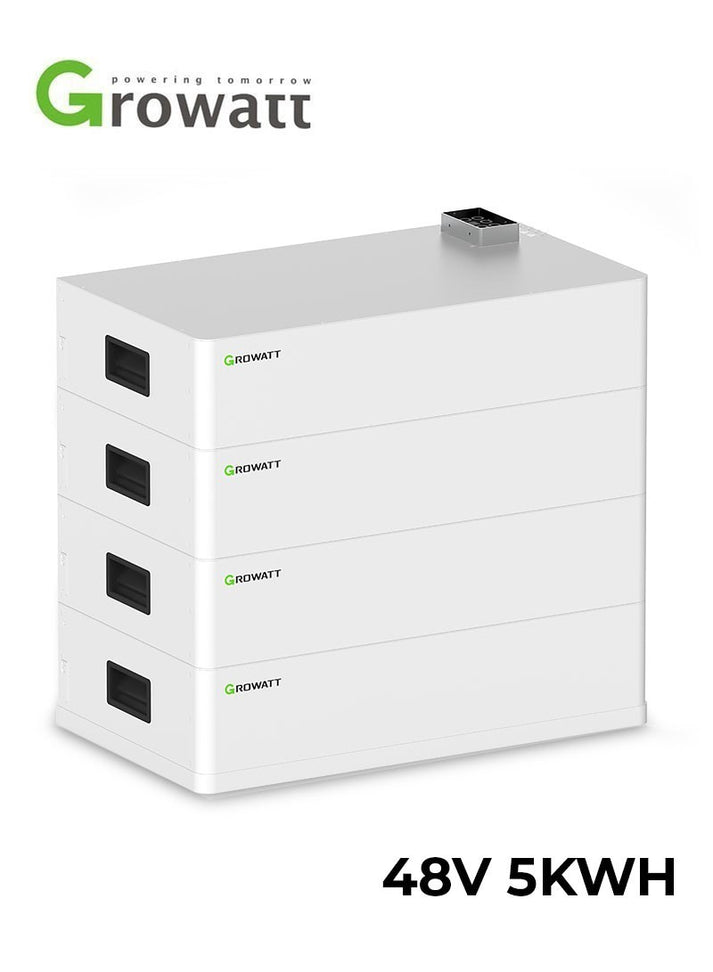

Growatt AXE 5.0L-C1 5kWh Battery (x4):
- Modular 5kWh capacity, expandable in parallel for up to 400kWh
- Cobalt-free LiFePO4 battery cells for safety and longevity

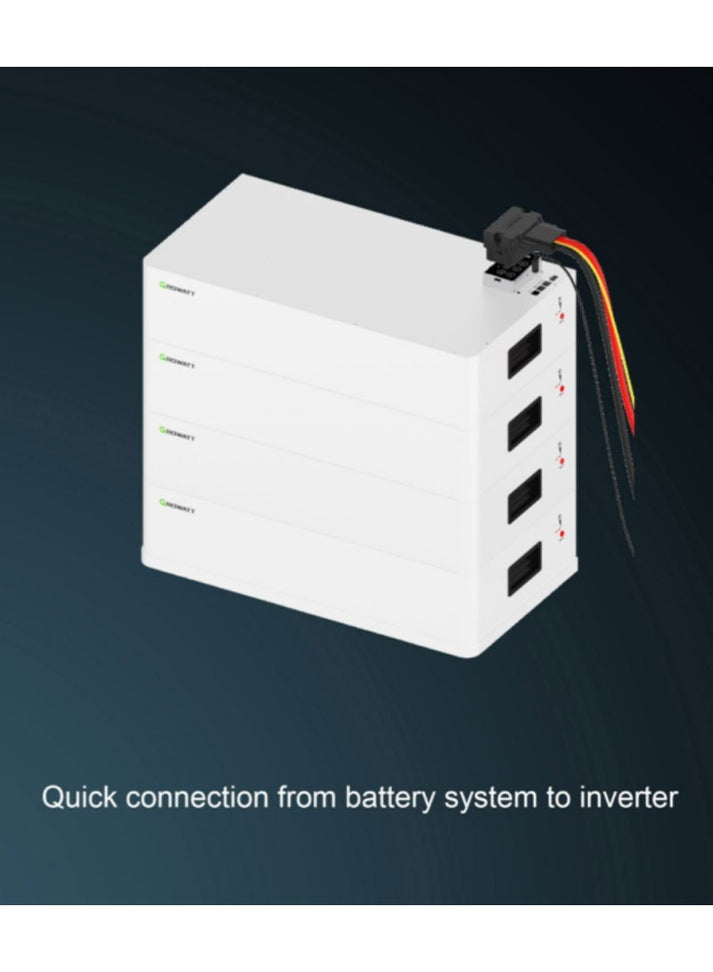

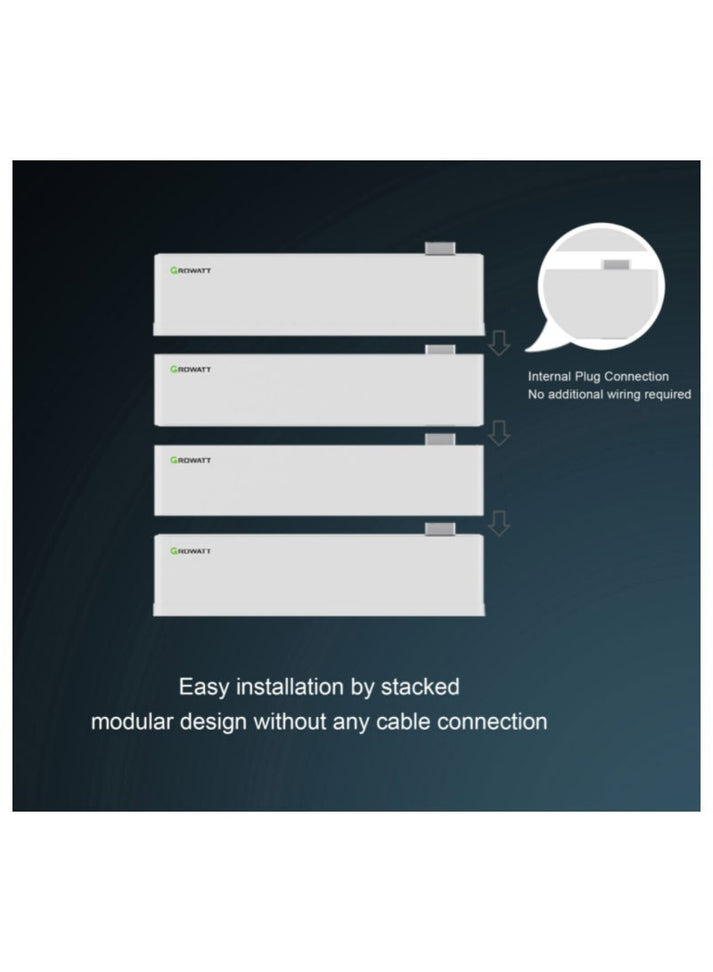

- Quick, cable-free stacking installation
- Remote management for firmware updates and diagnostics
- Integrated BMS for real-time monitoring and protection
- 10-year warranty ensuring peace of mind

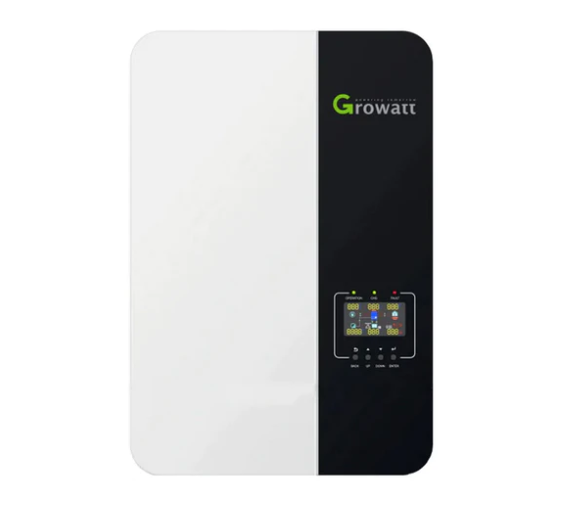

Growatt SPH 10000TL-HU-US 10KW Hybrid Inverter:
- UPS function, 10ms transition
- 1.5 DC/AC Ratio with 3 MPPTs
- Up to 200A charging/discharging current
- Support DC-coupled, AC-coupled, AC-retrofit applications
- Type II Surge protection for DC and AC sides
- Support charge from diesel generator
- Support up to 6 units in parallel
- Support form a 220V or 208V three-phase system.
440W Bifacial Monocrystalline Solar Panel (x27):
- High-efficiency monocrystalline cells for superior performance
- 440W power output per panel with a total array power of 12000W
- Durable aluminum frame and anti-reflective glass for weather resistance
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact on performance
- Over 30 years of service life with a 12-year manufacturer warranty
- Eco-friendly power generation to reduce carbon footprint
With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy the assurance of a reliable power supply. Experience the combined benefits of modern solar technology and battery storage in one seamless package.
- 1 x Growatt SPH 10000TL-HU-US 10KW Hybrid Inverter
- 27 x ROCKSOLAR 440W Bifacial Monocrystalline Solar Panels
- 4 x Growatt AXE 5.0L-C1 5kWh Battery
- 1 x Set of Mounting Rock for 27 Solar Panels ( Optional. Please consult sales for more information)
- 1 x Wifi Module Included
- 3 x Set of 40 Ft 10 Awg Cables for Solar Panel to Inverter Connection
- 1 x Set of 10 Ft 10 Awg Cable for Solar Panel to Inverter Connection
- 1 x Set of 10 Ft 1 AWG Cables for Battery to Inverter Connection
- 3 x 600V 20A DC circuit breakers
- 1 x Circuit Breaker Box
- 1 x User Manual for the Inverter
- 1 x User Manual for the Battery
- 1 x User Manual for the Solar Panels
Technical Specifications

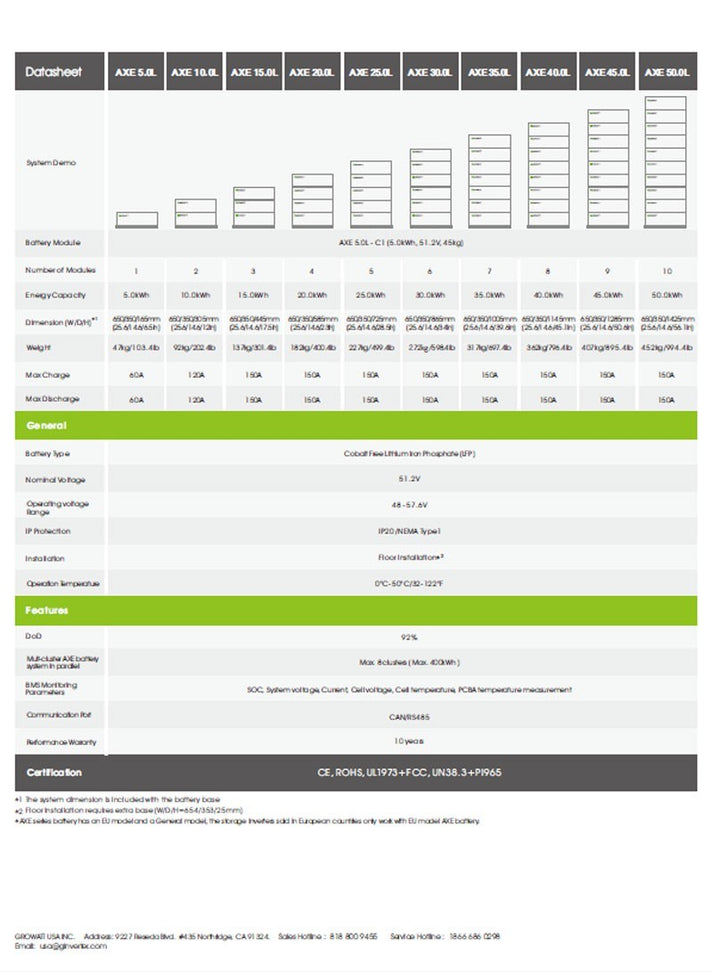

| Growatt AXE 5.0L-C1 5kWh Battery | Details |
|---|---|
| Model | Growatt AXE 5.0L-C1 |
| Energy Capacity | 5.0kWh |
| Max Charge/Discharge Power | 3kWh |
| Max Charge/Discharge Current | 60A |
| Dimensions | 650 x 350 x 165mm (W x D x H) |
| Weight | 42kg |
| Nominal Voltage | 51.2V |
| Warranty | 10 years |
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
| Operating Voltage Range | 48 - 57.6V |
| Installation | Floor installation |
| Operation Temperature | 0°C-50°C/32-122°F |
| DoD | 92% |
| Parallel Capability | Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh) |
| Communication Port | CAN/RS485 |
| Performance Warranty | 10 years |
| Certification | CE, ROHS, UL1973+FCC, UN38.3 + IP65 |
| Growatt 0Kw Hybrid inverter SPH 10000TL-HU-US | Details |
|---|---|
| Battery Voltage | 40-60VDC |
| Battery Type | Lithium/Lead-acid |
| Inverter Output (Rated Power) | 10KW |
| Surge Rating | 20KW |
| Waveform | Pure sine wave/ same as input (bypass mode) |
| Warranty | 10 Years |
| Output Frequency | 50Hz/60Hz +/-0.5 Hz |
| Inverter Efficiency (Peak) | 97.5% |
| Transfer Time | 10ms |
| Solar Charger (Maximum PV Charge Current) | 60A |
| Maximum PV Array Power | 15000W |
| AC Input Voltage | 240VAC |
| Max. Charging Current | 200A |
| Protection Degree | IP20 |
| Dimensions (W/H/D) | 360/650/225mm |
| Weight | 50kg |
| Operating Environment (Temperature Range) | -25°C to 60°C |
| Warranty | Complies with UL STD.1741, CSA STD CSA C22.2 No.107.1 |
| 440W Bifacial Solar Panel | Details |
|---|---|
| Panel Type | Monocrystalline N type Topcon Bifacial |
| Power Output | 440W |
| Maximum Power Voltage | 32.98V |
| Cell Efficiency | 22.57% |
| Frame Material | Aluminum |
| Dimensions | 1722mm x 1134mmX30mm |
| Weight | approx. 25-30 lbs |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 30 years or more |
| Warranty | 12 years |
The kit includes a 10kW inverter, four 5kWh batteries for a total of 20kWh energy storage, and a solar panel array capable of producing 72000W-84000W of power daily.
Yes, this kit is designed for both off-grid and on-grid functionality, offering unparalleled versatility for various living situations and energy needs.
Absolutely, the kit's modular nature allows for easy expansion. Additional batteries and solar panels can be integrated to enhance the system's storage capacity and power generation, respectively.
Maintenance needs are minimal, primarily involving regular checks to ensure component functionality and cleaning the solar panels to maintain optimal energy production.
The 10kW inverter utilizes intelligent power management to allocate solar energy effectively between immediate use and storage, supplementing with grid power as necessary to ensure a constant energy supply.
Yes, the system supports optional WIFI/GPRS connectivity, allowing for remote monitoring and management. This feature enables you to oversee and adjust your energy usage conveniently from any location.
Each component of the kit is backed by its own warranty, providing comprehensive protection and assurance for your investment over the long term.
While the kit is designed for user-friendly installation, it is recommended that installation be carried out by professionals to ensure the system's optimal performance and safety.
