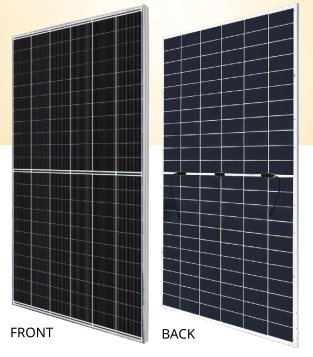

Canadian Solar 705W N-Type Bifacial TOPCon Solar panel 31Pcs/Pallet (Made in USA)

Canadian Solar 705W N-Type Bifacial TOPCon Solar panel 31Pcs/Pallet (Made in USA)

$11,539.99 CAD
$22,999.99 CAD $11,539.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • 705W high-power output
    Delivers excellent power density per module, reducing BOS costs and improving system-level efficiency.
  • N-type bifacial TOPCon technology
    Advanced cell design provides higher efficiency, lower degradation, and increased lifetime energy yield.
  • Up to 23.0% module efficiency
    Converts more sunlight into usable power, ideal for space-optimized commercial and utility installations.
  • Bifacial energy generation
    Captures additional energy from the rear side using reflected light, increasing total system output.
  • Low temperature coefficient (Pmax −0.29%/°C)
    Maintains stronger performance in high-temperature environments compared to conventional modules.
  • Heavy-duty mechanical strength
    Rated for 5400 Pa snow load and 2400 Pa wind load, suitable for harsh weather conditions.
  • Dual-glass construction
    Improves durability, fire resistance, and long-term reliability for utility-scale deployments.
  • 1500V system compatibility
    Enables longer strings and lower balance-of-system costs for large PV arrays.
  • Certified to global standards
    Complies with UL and IEC safety and performance certifications for international project use.
  • Long-term warranty protection
    Backed by a 12-year product warranty and a 30-year linear power performance warranty.

Demande de commande en gros

Vous souhaitez commander en gros ? Nous proposons des prix compétitifs et des conditions flexibles pour les commandes importantes.

Demander un devis groupé
Afficher tous les détails





  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

The Canadian Solar TOPBiHiKu7 CS7N-705TB-AG is a high-performance, 705W N-type bifacial TOPCon solar module engineered for utility-scale and large commercial photovoltaic projects. With advanced N-type cell technology and bifacial energy gain, this module delivers higher lifetime energy yield and lower degradation compared to conventional P-type panels.

Built for demanding environments, the CS7N-705TB-AG supports 5400 Pa snow load and 2400 Pa wind load, features dual glass construction, and offers excellent performance in hot climates thanks to its low temperature coefficient.

Product Highlights

  • 705W rated output (STC)
  • N-type bifacial TOPCon cell technology
  • Module efficiency up to 23.0%
  • Up to 80% bifaciality for increased rear-side energy yield
  • Low temperature coefficient: Pmax −0.29% / °C
  • Heavy-duty mechanical strength: 5400 Pa snow / 2400 Pa wind
  • Dual-glass design for enhanced durability
  • 12-year product warranty
  • 30-year linear power performance warranty
  • 31× Canadian Solar CS7N-705TB-AG Module: 705W bifacial TOPCon solar panel.
  • Integrated Junction Box: IP68 rated with 3 bypass diodes.
  • Factory-attached Cables & Connectors: MC4-compatible or T6 series.
  • Documentation: Manufacturer datasheet and installation guidance.

Technical Specifications – CS7N-705TB-AG (705W)


Specification Details
Manufacturer Canadian Solar (CSI Solar Co., Ltd.)
Model CS7N-705TB-AG
Cell Technology N-type Bifacial TOPCon
Rated Power (Pmax) 705 W
Module Efficiency ≈ 23.0%
Power Tolerance 0 ~ +10 W
Optimum Operating Voltage (Vmp) ≈ 41.7 V
Optimum Operating Current (Imp) ≈ 16.90 A
Open Circuit Voltage (Voc) ≈ 49.5 V
Short Circuit Current (Isc) ≈ 18.10 A
Maximum System Voltage 1500 V (IEC / UL)
Maximum Series Fuse Rating 25 A
Operating Temperature -40°C to +85°C
Temperature Coefficient (Pmax) -0.29 % / °C
Temperature Coefficient (Voc) -0.25 % / °C
Temperature Coefficient (Isc) +0.05 % / °C
Nominal Module Operating Temperature (NMOT) 41 ± 3°C
Mechanical Load Snow: 5400 Pa / Wind: 2400 Pa
Dimensions (L × W × H) 2384 × 1303 × 35 mm (93.9 × 51.3 × 1.38 in)
Weight 37.9 kg (83.6 lbs)
Front / Back Glass 2.0 mm heat-strengthened glass (dual glass)
Frame Anodized aluminum alloy
Junction Box IP68, 3 bypass diodes
Output Cables 6.0 mm² (IEC) / 10 AWG (UL)
Warranty 12-Year Product / 30-Year Linear Power Warranty

Yes. The CS7N-705TB-AG is a bifacial module capable of generating additional energy from reflected light on the rear side.

This 705W module is designed for utility-scale and large commercial solar installations requiring high power density and long-term reliability.

With a low Pmax temperature coefficient of −0.29%/°C, the module maintains higher output in high-temperature environments.

Canadian Solar provides a 12-year product warranty and a 30-year linear power performance warranty.

Download Datasheet (PDF)
Download Installation Manual (PDF)
