JA Solar JAM54D41-440/LB 440W N-Type Double Glass Bifacial Solar Panel

JA Solar 440W N-Type Double-Glass Bifacial Solar Panel

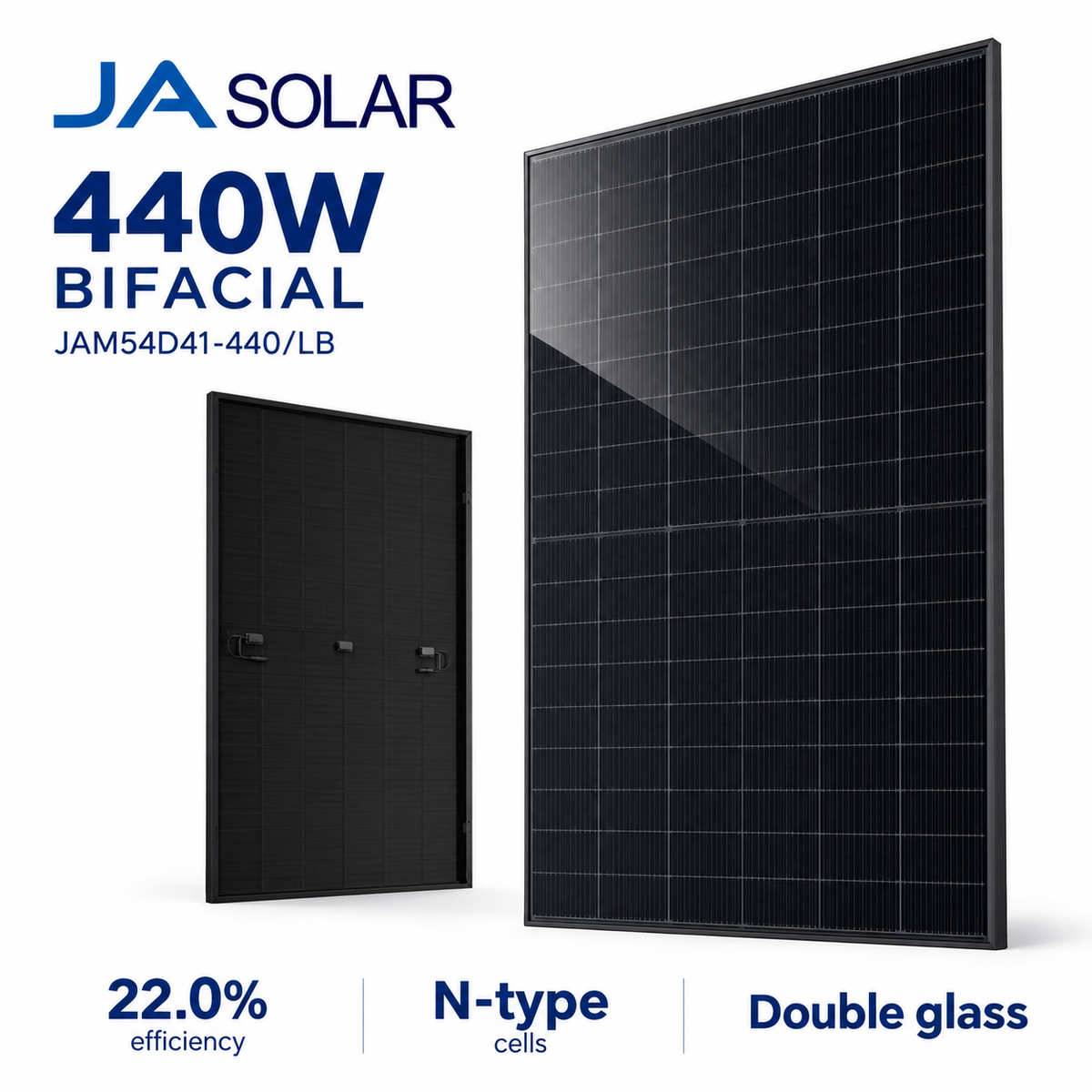

The JA Solar JAM54D41-440/LB from the DeepBlue 4.0 Pro series combines a black module design with n-type Bycium+ cells and double-glass construction. Rated at 440W with 22.0% module efficiency under standard test conditions, it is a practical choice for residential rooftops and ground-mounted solar arrays.

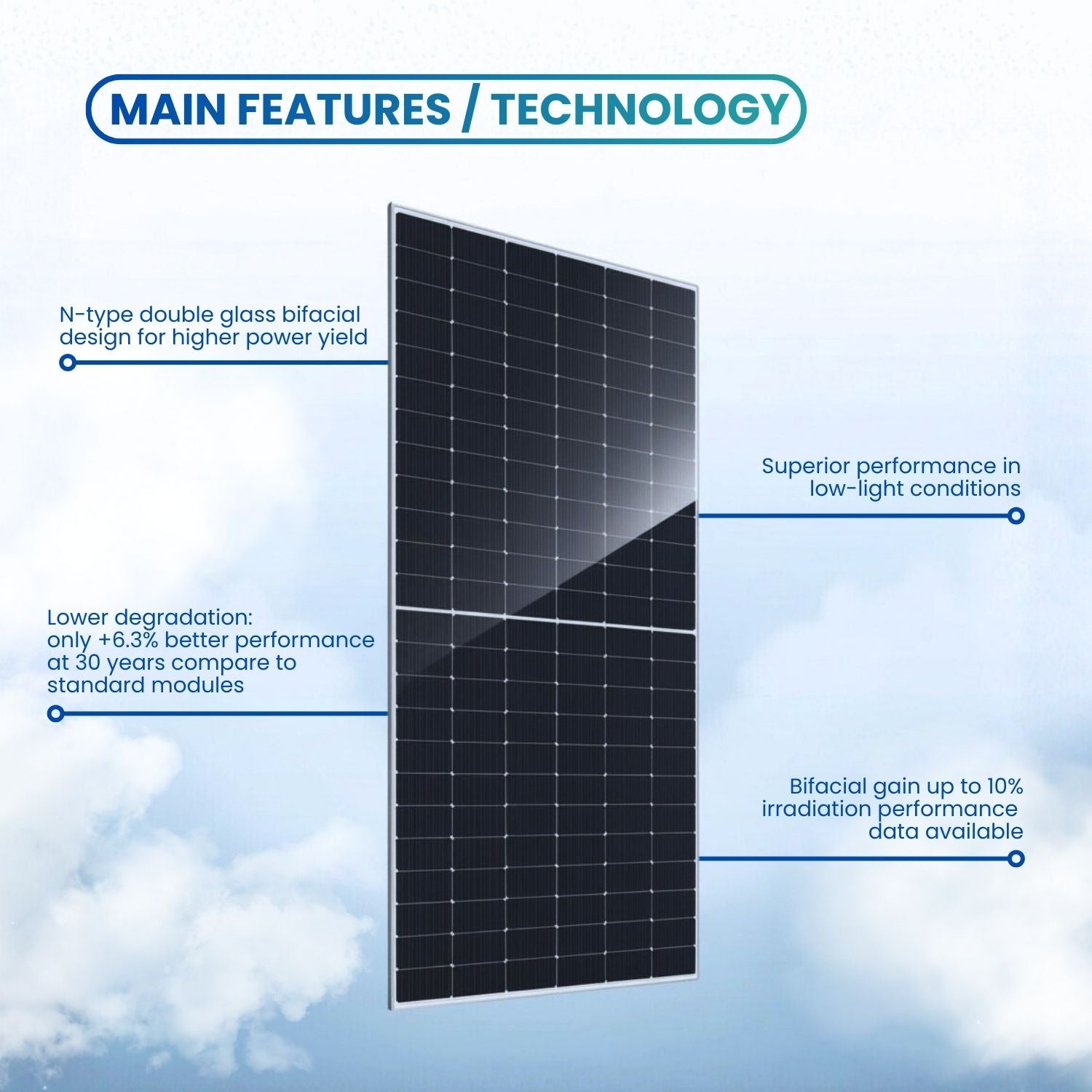

Key benefits

• N-type cell technology: 108 monocrystalline half-cells with 16-busbar technology, designed for low light-induced degradation and improved low-irradiance response.
• Bifacial generation: the rear side can capture reflected sunlight to contribute additional power. Actual gain depends on surface reflectivity, mounting height, shading and installation design.
• Double-glass construction: 1.6mm front glass and 1.6mm rear glass, with an IP68 junction box and three bypass diodes.

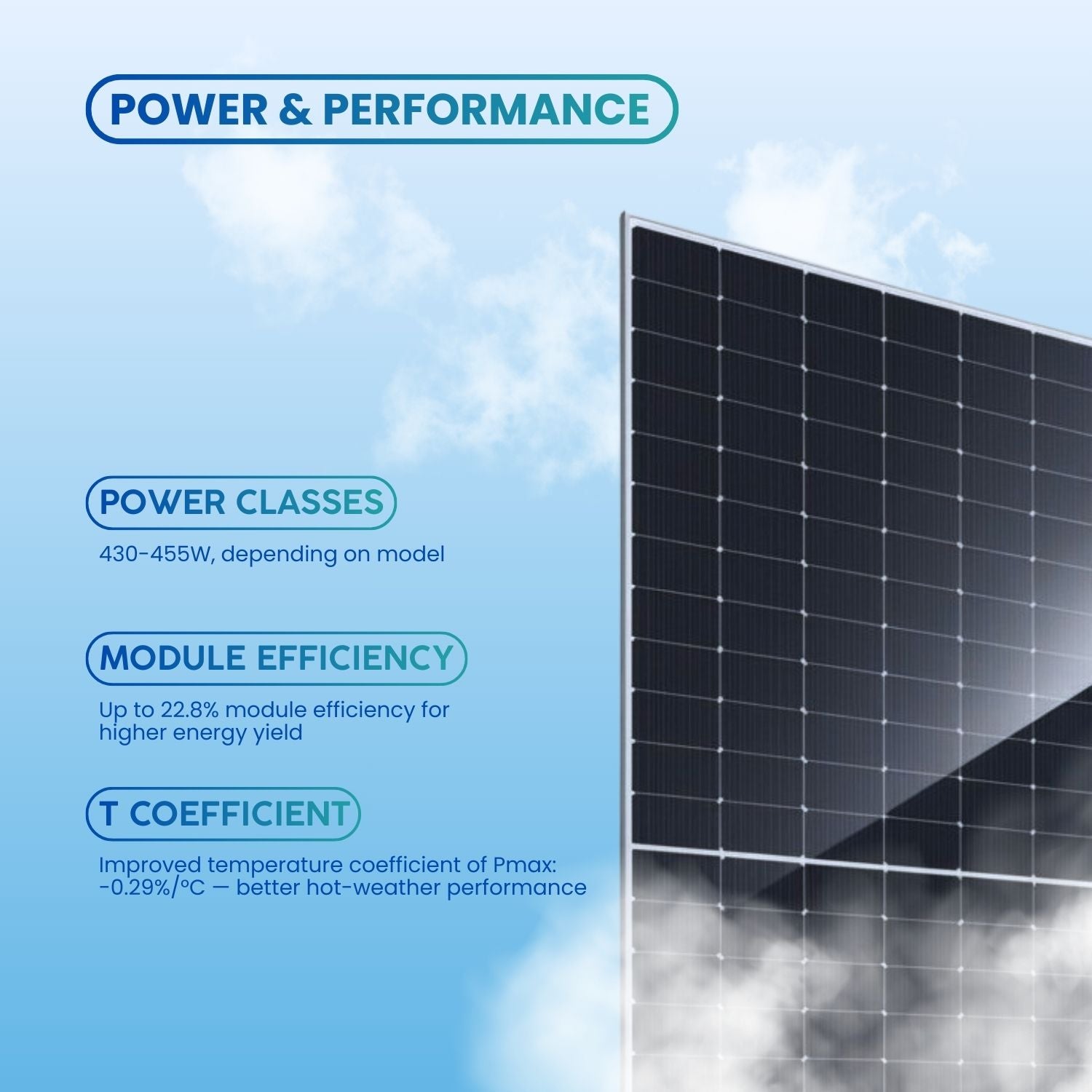

• Temperature performance: a maximum-power temperature coefficient of -0.290%/°C.
• Long-term manufacturer warranty: 15-year product warranty and 30-year linear power output warranty, subject to JA Solar's warranty terms.

440W model electrical specifications

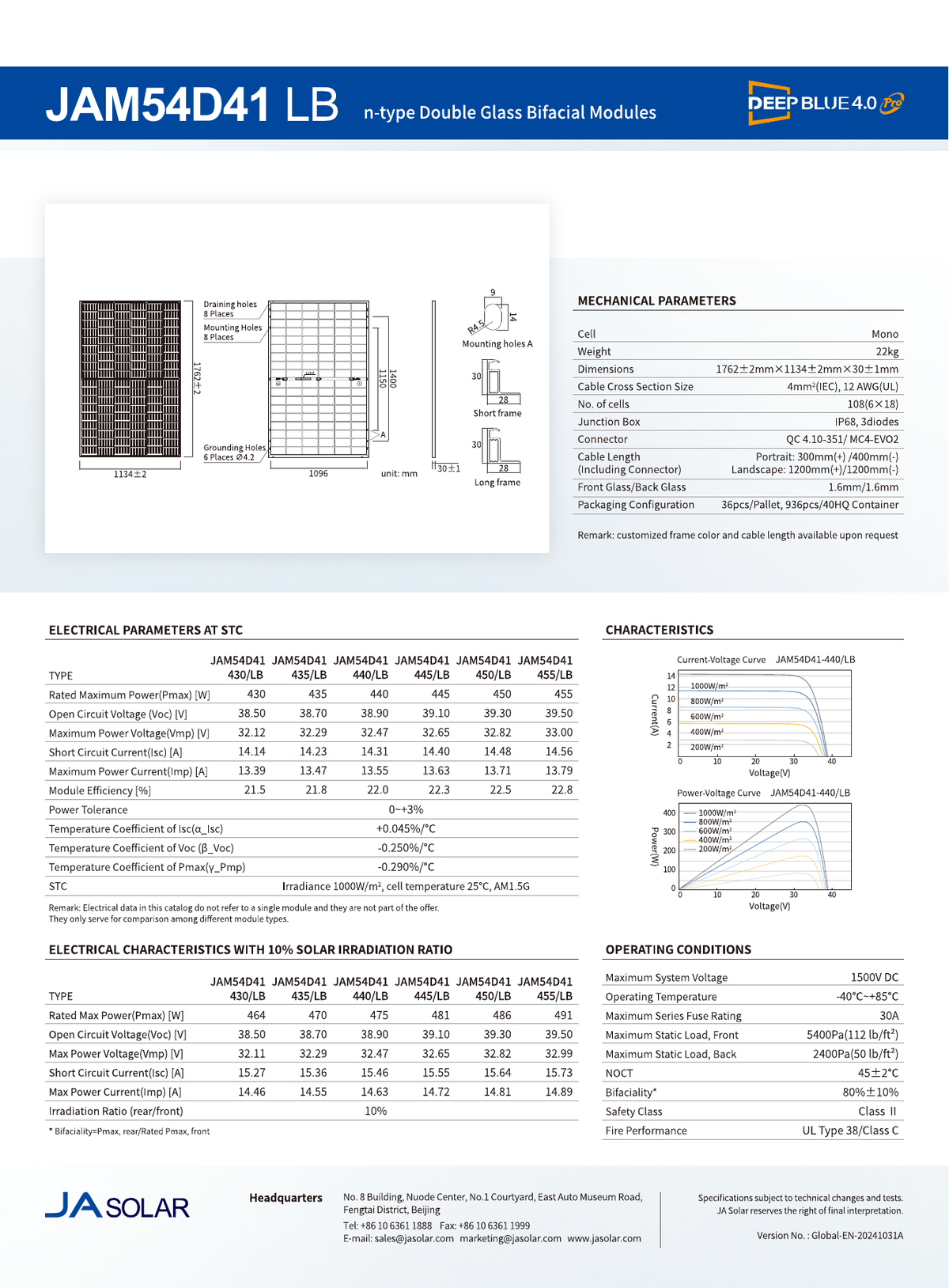

Electrical ratings above are at standard test conditions (STC): 1000W/m² irradiance, 25°C cell temperature and AM1.5G spectrum. Actual output varies with operating conditions. This listing is for the 440W model; the manufacturer datasheet covers the wider 430-455W series.

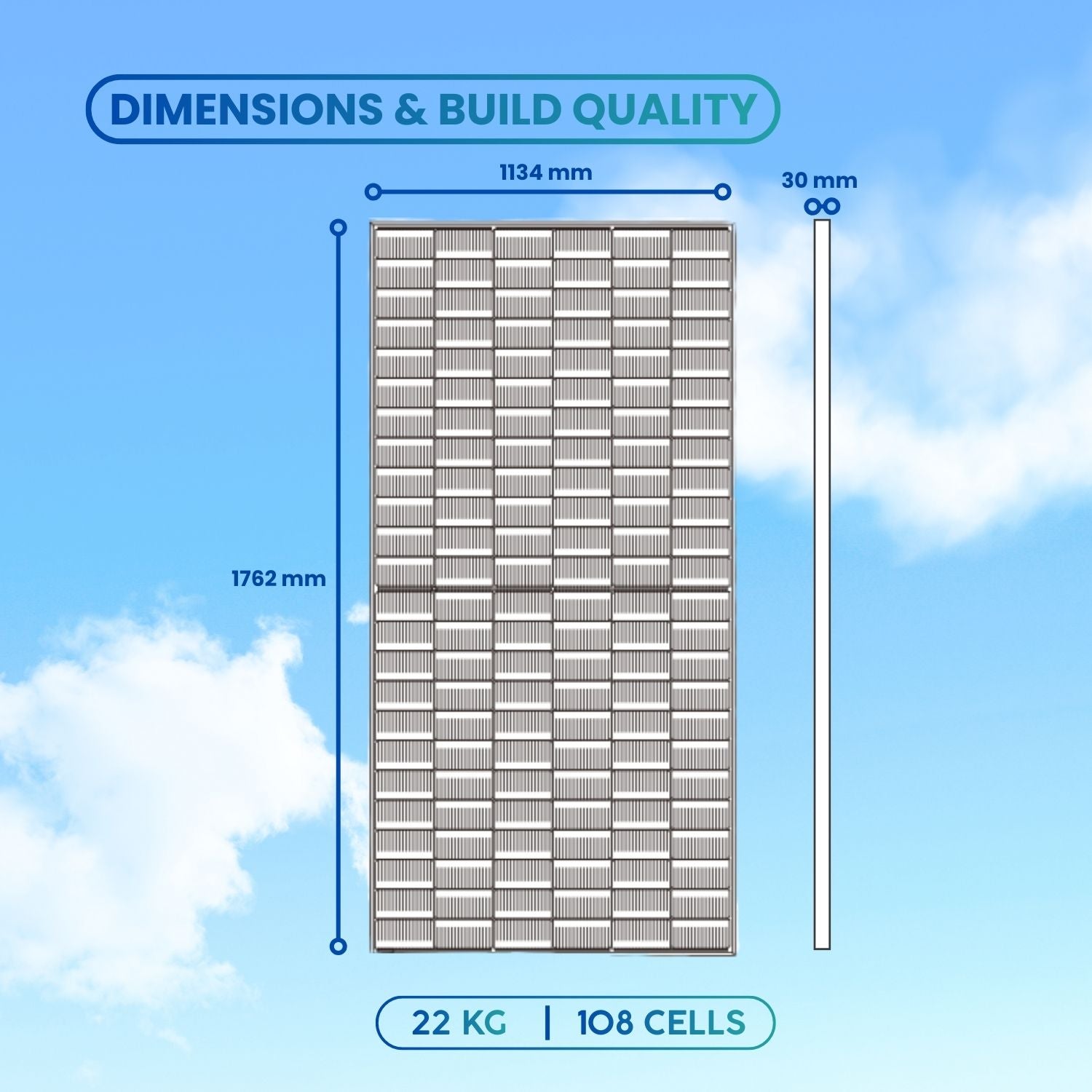

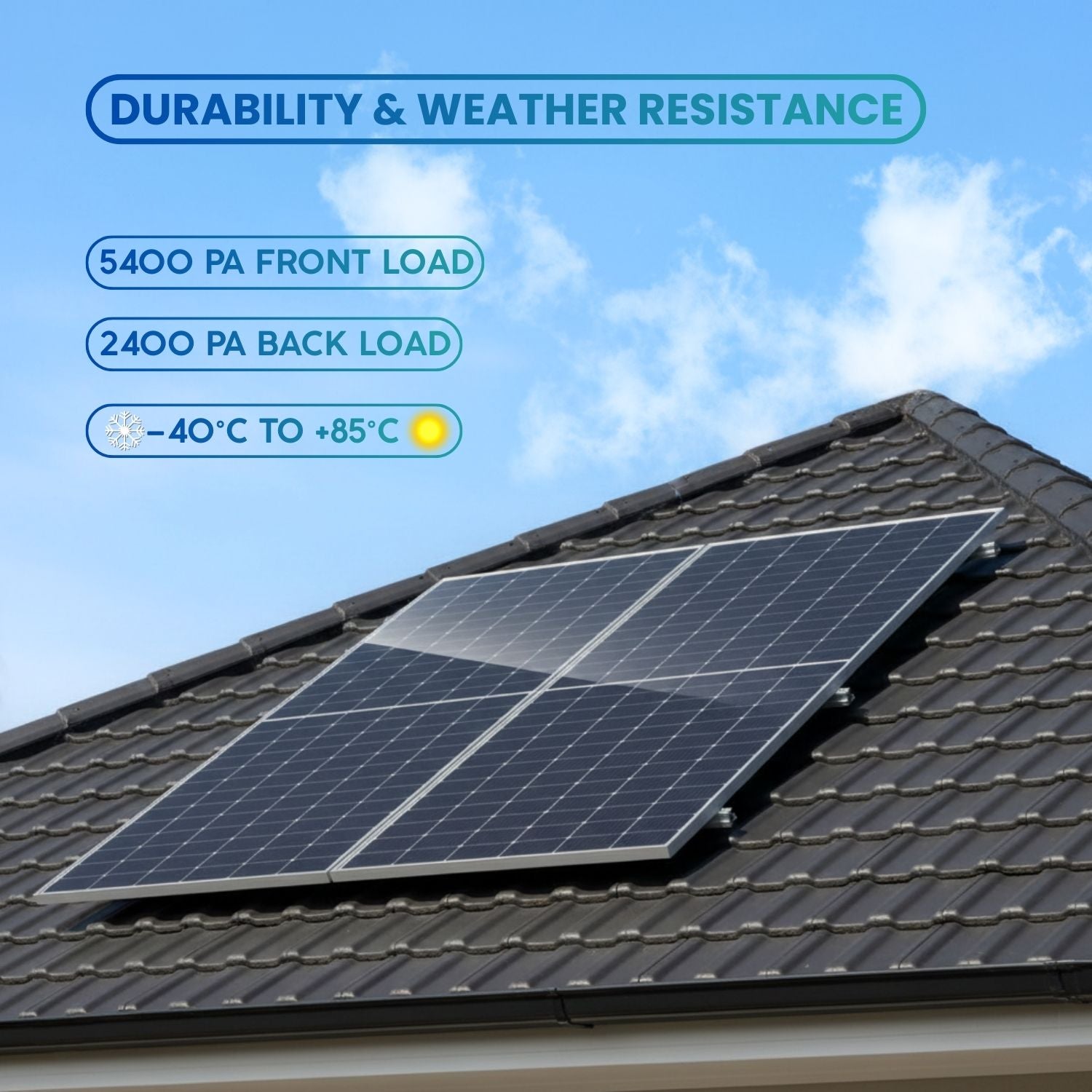

Dimensions, construction and operating ratings

Understanding bifacial output

Bifaciality describes rear-side power relative to front-side rated power under comparable illumination; it is not a guaranteed percentage increase in energy production. For the 440W model, JA Solar lists 475W in its example with a 10% rear-to-front irradiation ratio. This is a specified test scenario, not the panel's front-side nameplate rating or a guaranteed field output.

Warranty and certifications

The datasheet specifies a 15-year product warranty and a 30-year linear power output warranty. Its performance warranty curve allows 1% degradation in the first year and 0.4% annually thereafter, reaching 87.4% of original rated power at year 30. Manufacturer warranty terms apply.

Listed module certifications: IEC 61215, IEC 61730, UL 61215 and UL 61730.

Plan your installation

Match the array design to your inverter or charge controller's voltage and current limits, including cold-weather open-circuit voltage and potential bifacial current gain. Mounting and site conditions must meet the manufacturer's installation requirements. Contact ROCKSOLAR for system compatibility, mounting guidance or project quantities.
