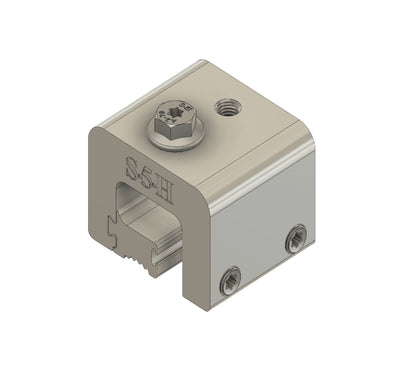

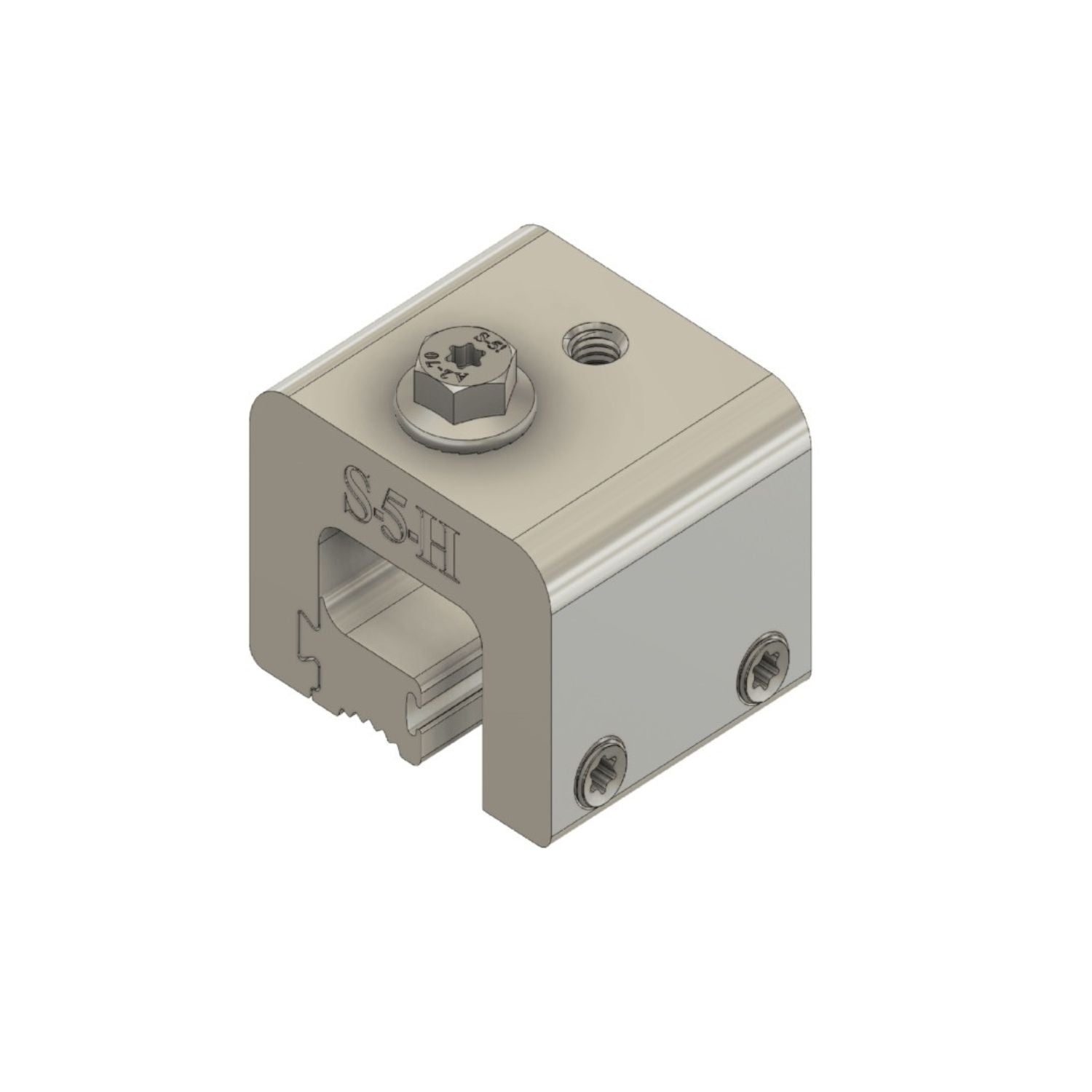

S-5-H™ Clamp

S-5-H™ Clamp Specifications:

• For standing seam panels with horizontal seam orientation (single-folded)
• Accommodates roof panels with a horizontal seam not fully closed
• Two-piece design allows for easy attachment anywhere along seam length
• Insert allows clamp to fit over wider horizontal seams up to .75” (19 mm)
• Used with snow retention and other heavy-duty applications
• Two T-30 Torx round-point setscrews (Torx bit tip provided)
• One M8 bolt included

S-5-H™ Clamp Mini Specifications:

• For standing seam panels with horizontal seam orientation (single-folded)
• Accommodates roof panels with a horizontal seam that is not fully closed
• Two-piece design allows attachment anywhere along length of seam
• Insert allows clamp to fit over wider horizontal seams up to .75” (19 mm)
• Smaller than the standard S-5-H
• One T-30 Torx round-point setscrew (Torx bit tip provided)
• No M8 bolt included

Documentation

• Installation Instructions - Download
• Brochure - Download
