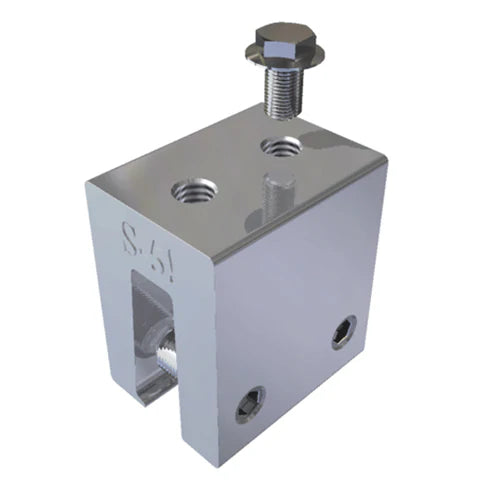

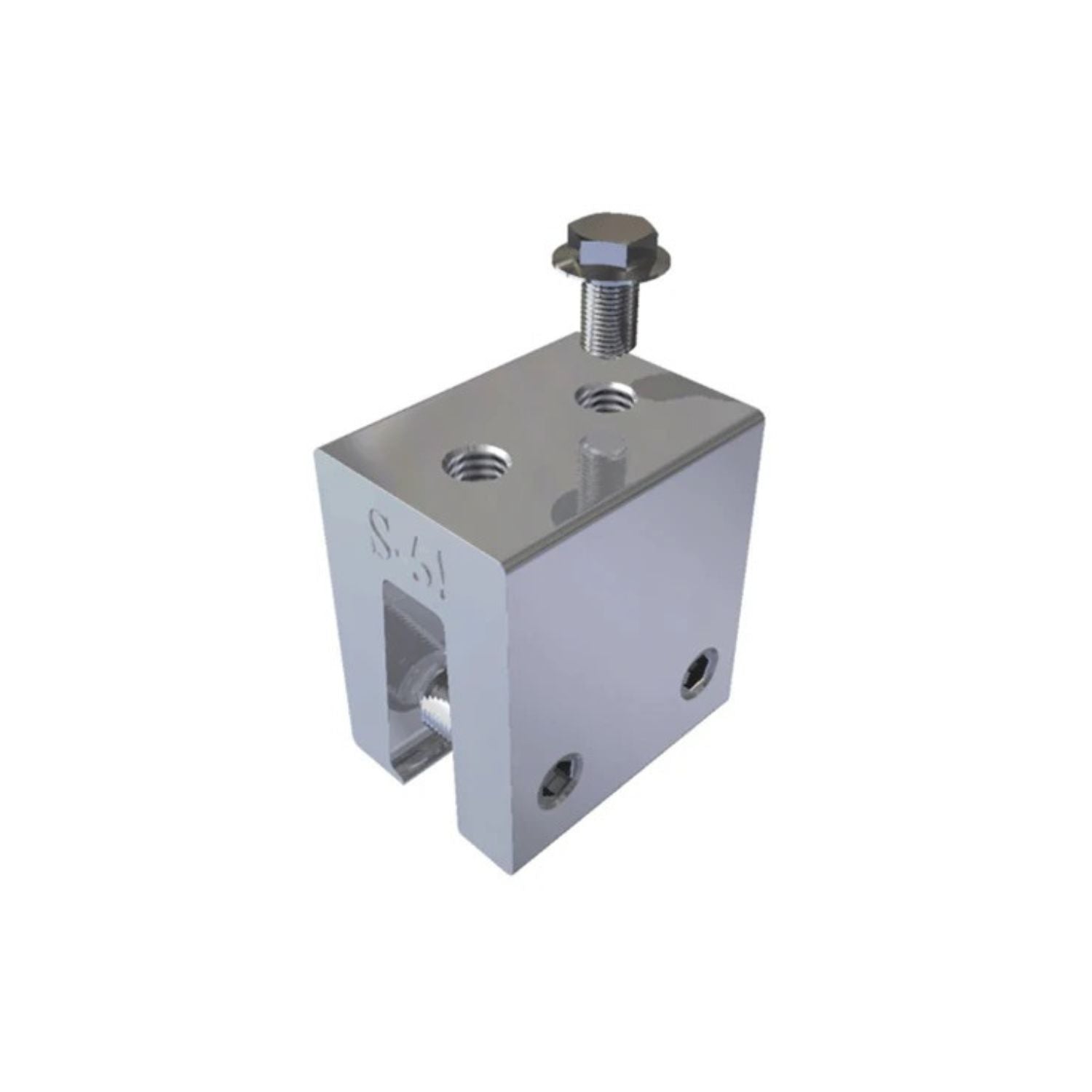

S-5-N 1.5™ Clamp

S-5-N 1.5™ Specifications:

• Designed for use on 1.5” (38 mm) nail strip metal roof profiles
• Angled wall with nose permits the clamp to fully engage the triangular-shaped profiles, providing the best holding strength possible
• Heavy-duty applications like snow retention
• Two T-30 Torx round-point setscrews (Torx bit tip provided)
• One M8 bolt included

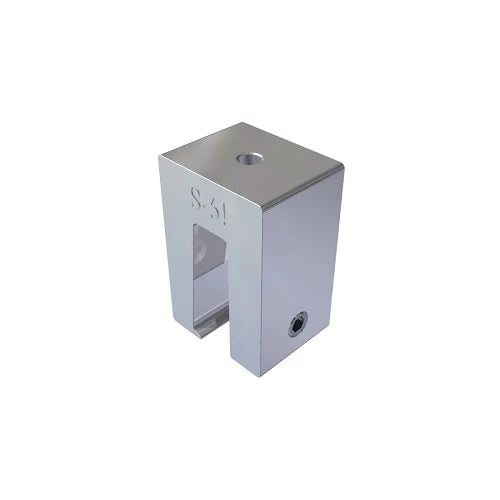

S-5-N 1.5™ Mini Specifications:

• Designed for use on 1.5” (38 mm) nail strip metal roof profiles
• Angled wall with nose permits the clamp to engage the triangular-shaped profiles during the installation process
• For light and medium-duty applications, such as solar and other utilities
  Smaller than the standard S-5-N 1.5
• One T-30 Torx round-point setscrew (Torx bit tip provided)
• No M8 bolt included

Documentation

• Installation Instructions - Download
• Brochure - Download
