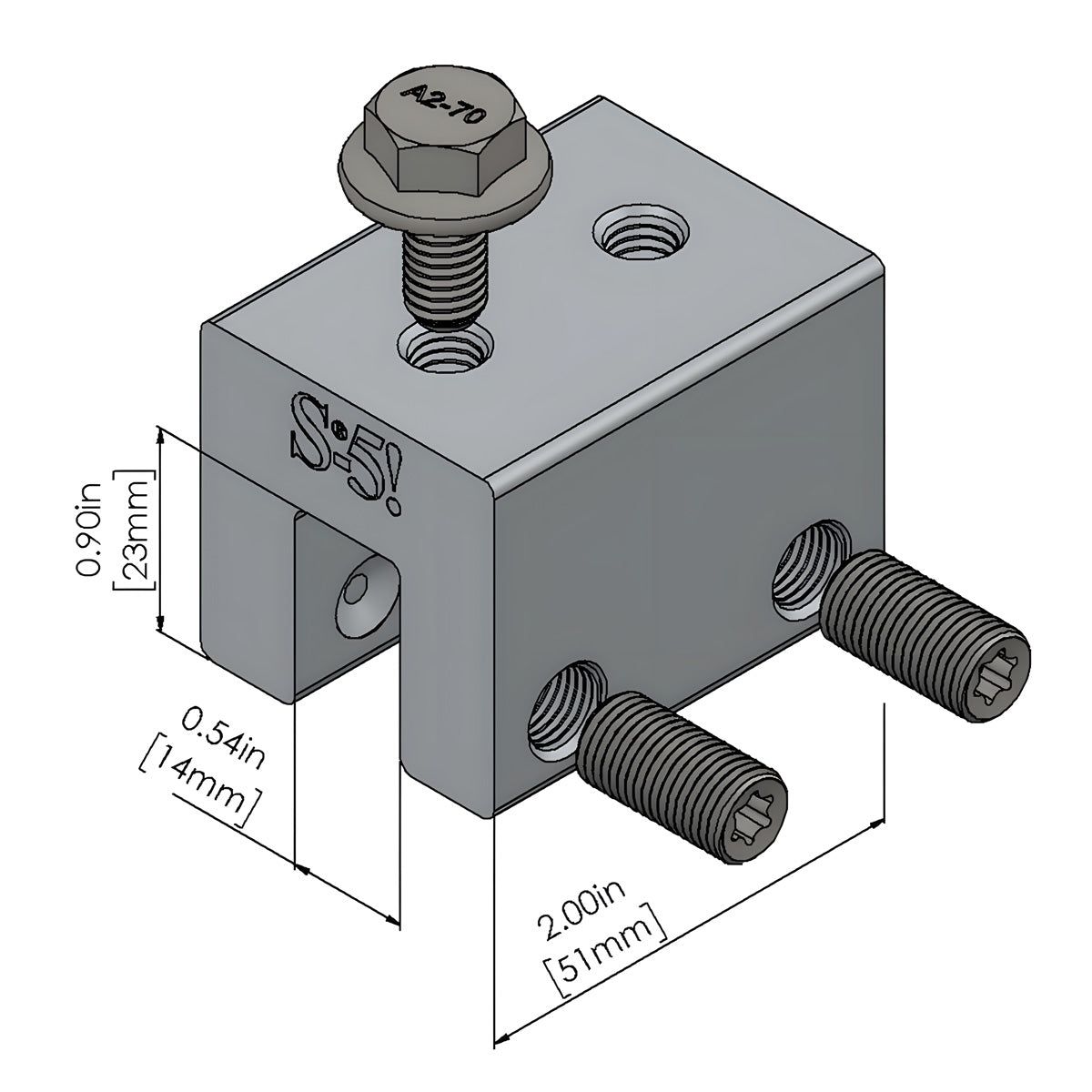

S-5-S™ Clamp Specifications:

• Use on vertical snap-together profiles
• Use on single-folded with horizontal projection ≤ 0.54” (13 mm)
• Use for heavy-duty applications, such as snow retention
• Two T-30 Torx round-point setscrews (Torx bit tip provided)
• One M8 bolt included
• Also available in stainless - call for pricing

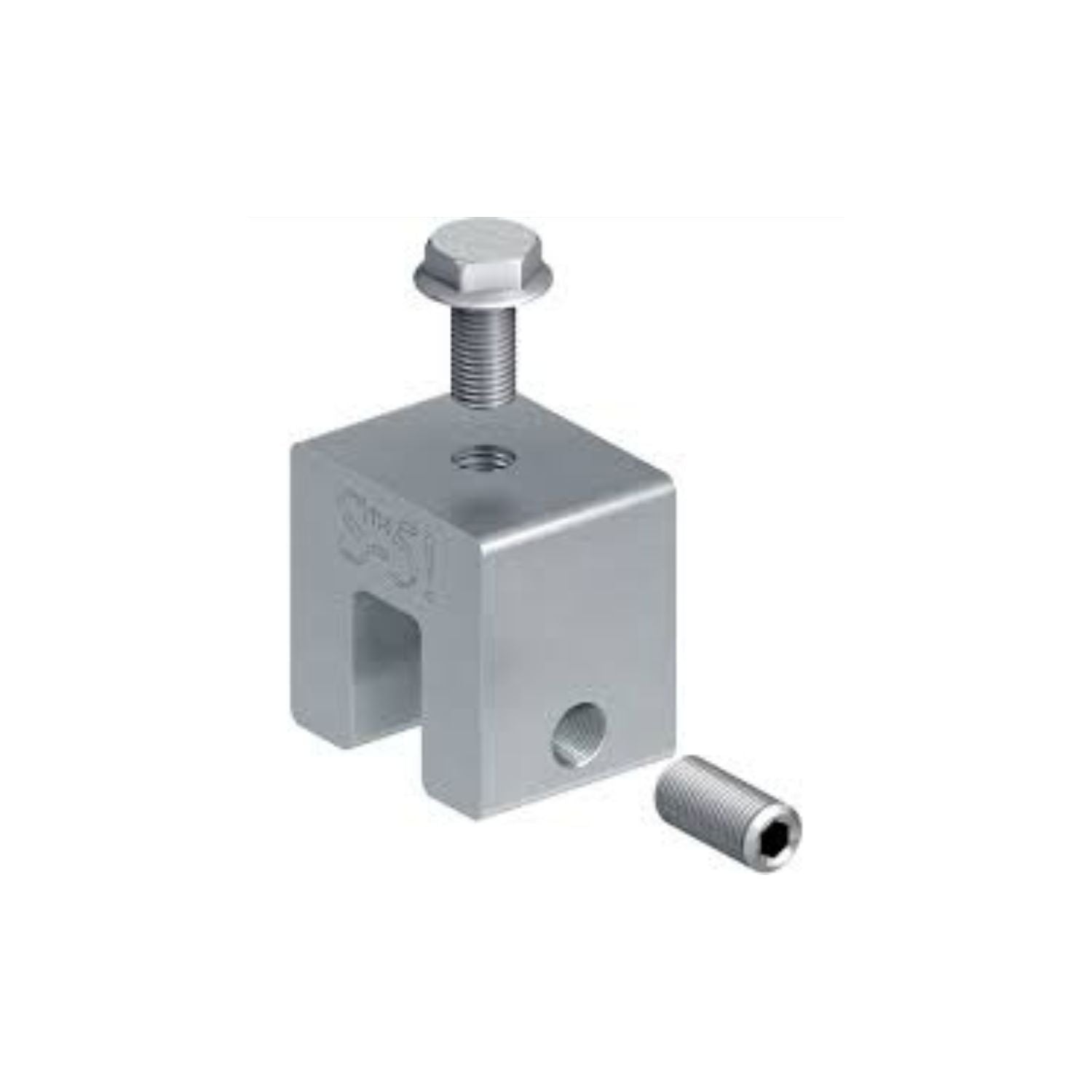

S-5-S™ Clamp Mini Specifications:

• Use on vertical snap-together profiles
• Use on single-folded with horizontal projection (horizontal seams) under ≤ 0.54” (13 mm)
• Utility mounting and other light and medium-duty applications
• Smaller than the standard S-5-S
• One T-30 Torx round-point setscrew (Torx bit tip provided)
• No M8 bolt included
• Also available in stainless - call for pricing

Documentation

• Installation Instructions - Download
• Brochure - Download
