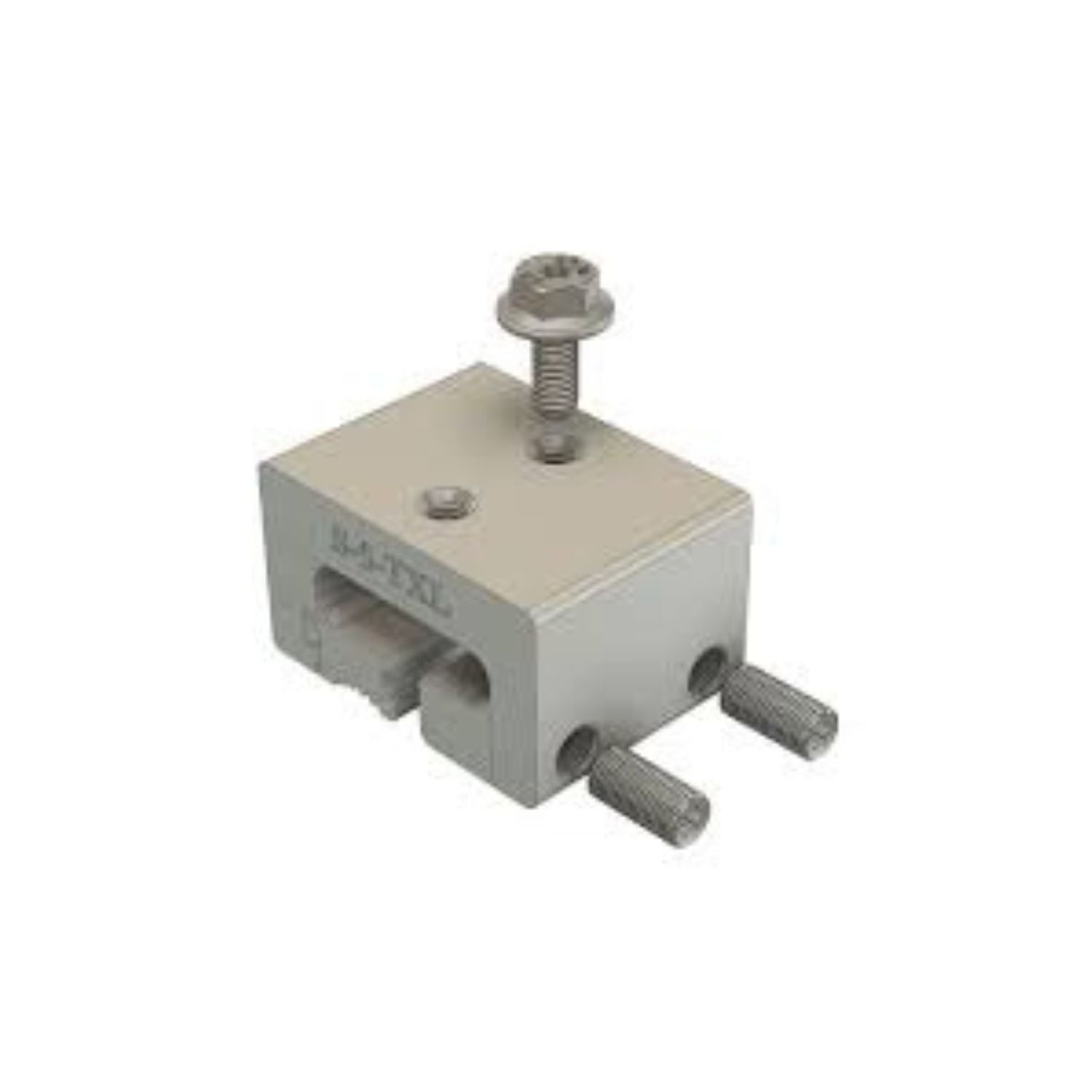

S-5-T™ Clamp

S-5-T™ Clamp Specifications:

• Developed for profiles featuring a T-shaped seam configuration with a horizontal dimension ≤ 1.3” (33 mm)
• Two-piece design allows the clamp to be placed over the top of the seam at any desired location
• Fits architectural single-fold (or “angle-seam”) and horizontal seams with a horizontal dimension ≤ 5/8” (15 mm)
• Heavy-duty applications, such as snow retention
• Two T-30 Torx round-point setscrews (Torx bit tip provided)
• One M8 bolt included

S-5-T™ Clamp Mini Specifications:

• Developed for profiles featuring a T-shaped seam configuration with a horizontal dimension ≤ 1.3” (33 mm)
• Two-piece design allows the clamp to be placed over the top of the seam at any desired location
• Fits architectural single-fold (or “angle-seam”) and horizontal seam with horizontal dimension ≤ 5/8” (15 mm)
• Light and medium-duty applications, like utility mounting
  Smaller than the standard S-5-T
• One T-30 Torx round-point setscrew (Torx bit tip provided)
• No M8 bolt included

Documentation

• Installation Instructions - Download
• Brochure - Download
