Harness the power of the sun with the ROCKSOLAR 3000W 24V Off-Grid Solar Water Pump System, your ultimate solution for independent water supply at the cottage. Central to this system is the high-efficiency 24V Brushless Solar DC Water Pump, designed to provide reliable water flow for a variety of needs, including irrigation, livestock, or household use. Complemented by 2x 24V 100AH LiFePO4 Batteries and a suite of 2x 400W Rigid Solar Panels, this system captures and stores solar energy efficiently using a state-of-the-art 60A MPPT Solar Charge Controller. The robust 3000W Pure Sine Wave Inverter ensures a steady conversion of solar energy to power essential appliances, sustaining your off-grid lifestyle without interruption. Thoughtfully engineered for scalability, the system allows for easy upgrades to accommodate increasing water demands or additional power needs. With a reassuring 10-year warranty on batteries and solar panels, and a 1-year warranty on supplementary components, ROCKSOLAR provides a secure and sustainable investment. Embrace the seamless integration of water management and energy independence with the ROCKSOLAR 3000W 24V Off-Grid Solar Water Pump System.

Product Features

ROCKSOLAR 24V 100Ah Deep Cycle LiFePO4 Battery with BMS System:

24V 100AH capacity (each)3500+ cycle life with 100% discharge rate for ultra-long service lifeSteady power: Flat voltage curve for consistent power output, no significant drop like traditional SLA batteriesUtilizes advanced LiFePO4 Battery Technology for dependable deep cyclingSmart Battery Management System for safety and longevityLightweight: Only 55 pounds for easy portability and installationSuitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.Operating temperature range for charging: 0C∽45C, discharging: -20~-60.BMS auto-shuts off the battery outside the working temperature.
Warranty: 11-year warranty and 10+ year service life

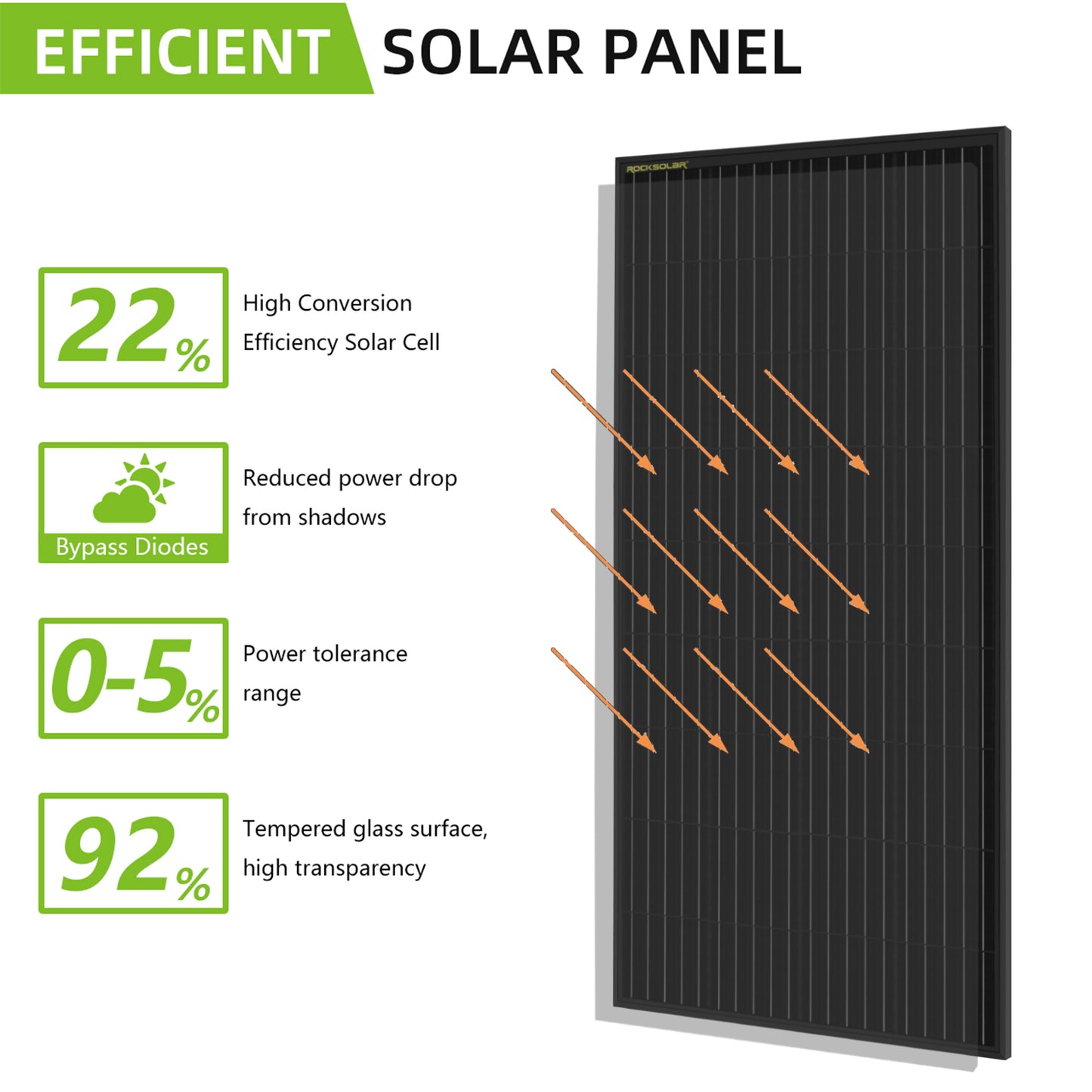

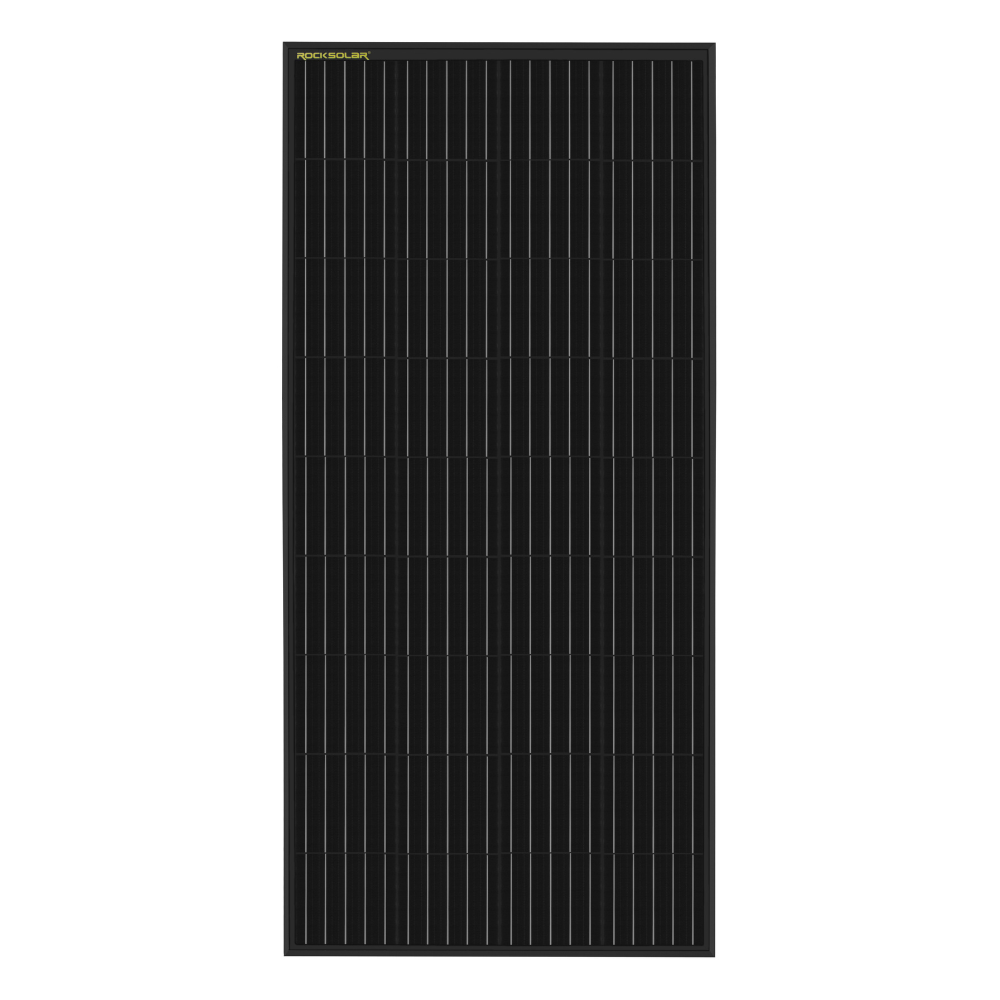

ROCKSOLAR 400W 12V Rigid Monocrystalline Solar Panel:

400W 12V output (each)Rigid Monocrystalline Solar PanelWaterproof and Corrosion-Resistant Aluminum Alloy FrameHigh-Efficiency Solar Cell with 22% Conversion EfficiencyPre-drilled holes for easy mounting and securing to any surface

ROCKSOLAR 60A MPPT Solar Charge Controller:

60A MPPT Solar Charge ControllerCompatible with Lithium and Lead Acid batteriesMaximum open voltage of 100Vdc and MPP tracking efficiency of 99.5%3-stage charge algorithm and 12/24V nominal system voltageRated charging current of 60A and battery voltage range of 8-32VHigh voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8VOperating temperature range of -20°C to 55°CIP30 rated for protection

ROCKSOLAR 24V 3000W Pure Sine Wave Power Inverter:

3000W Pure Sine Wave Power InverterDC 24V to 110V AC ConversionTemperature Range: The inverter has a working temperature range of -20～40℃ and operating humidity range of 10～90%RH, making it suitable for use in a variety of environments.2.1A USB Charging PortIdeal for RVs, Camping, Off-grid power solutions, and more.Lightweight and Compact Design: With a net weight of just 5.01kg and a size of 420.4208.9110mm (LWH), the inverter is easy to transport and store.

ROCKSOLAR 24V Brushless Solar DC Water Pump:

High-Performance Brushless Motor: Reliable and efficient operation, designed specifically for solar power applications.Durable Construction: The pump features complete stainless steel (S.S. 304) construction, with a motor brass cap and S.S. 304 body for long-lasting use.Inbuilt Controller: The pump comes with an inbuilt controller for easy operation.Powerful: The 250W power provides a maximum flow rate of 1.3m3/h and a maximum head of 70m.User-friendly: Easy to install and operate with minimal maintenance requirements. Quiet operation and low vibration for an unobtrusive addition to your solar setup.Adequate Cable Length: Comes with a 2M cable for flexible installation.Optimized for Solar: Works seamlessly with ROCKSOLAR solar panels and systems.Outlet: The pump features a 1" outlet for easy connection to your water supply system.

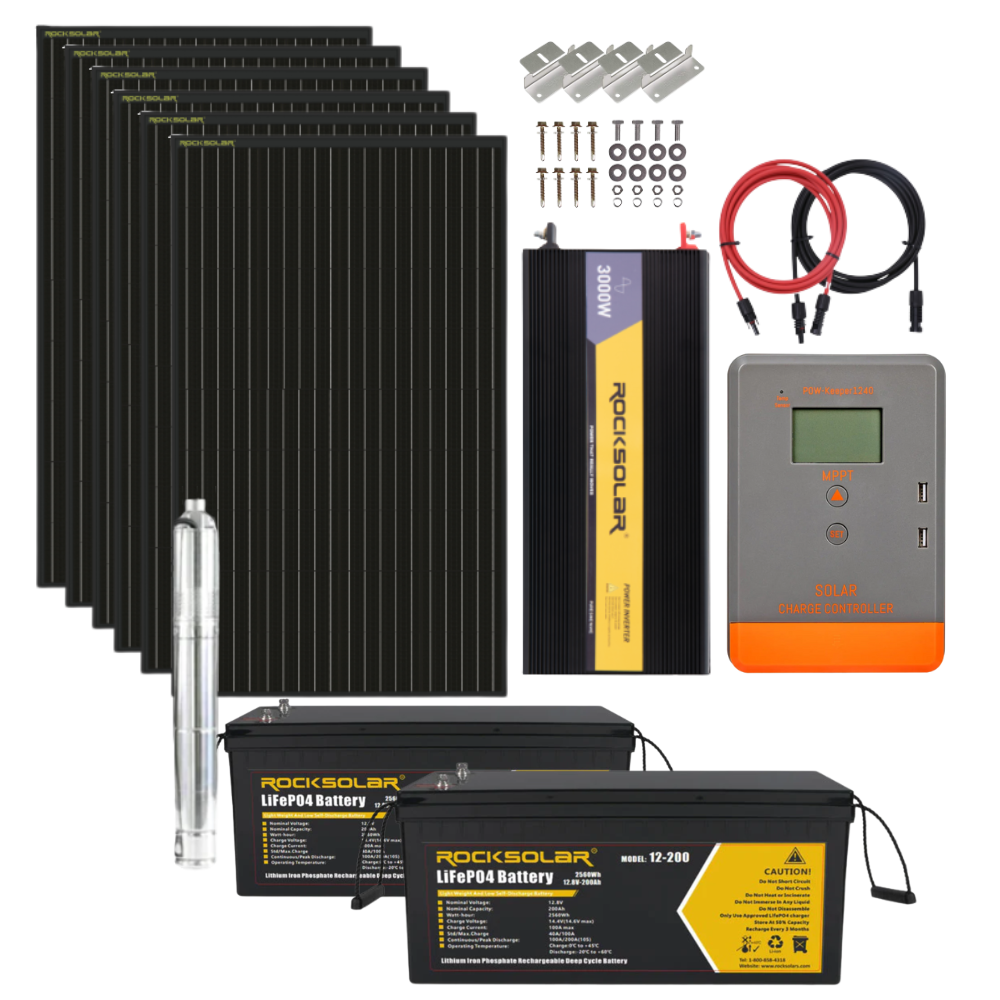

2 x 24V 100Ah Deep Cycle LiFePO4 Battery
1 x 24V Brushless Solar DC Submersible Well Pump
2 x 400W 12V Rigid Monocrystalline Solar Panel
1 x 24V 3000W Pure Sine Wave Power Inverter
1 x 60A MPPT Solar Charge Controller
1 x 20 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black
2 x Z-Bracket Mount System (Set of 4)
1 x Y Branch Connectors for Solar Panels MMF+FFM Pair
1 x User Manual

Technical Specifications

24V 100Ah Deep Cycle LiFePO4 Battery with BMS System	Details
Nominal capacity	100Ah
Mix. capacity	95Ah
Nominal energy	2560Wh
Combination structure of battery	4S
Nominal voltage	12.8V
End of discharge voltage	10.8V
Standard charge voltage	14.6±0.2V
Float charge voltage	13.8V
Standard charge current	40A
Recommended charge current	≤100A
Allowed Max. charge current	100A
Standard discharge current	40A
Recommended discharge current	≤100A
Allowed Max. discharge current	100A
Peak discharge current	200A,10Sec
Internal Resistance	≤20mΩ
Weight	Approx. 25kg
Ex-factory capacity	Approx.50% SOC
Operation temperature	Discharge: -20°C~60°C; Charge: 0°C~45°C
Storage environment	≤1Month:-20~+60°C、5~75%RH; ≤6Month: -10~+45°C、5~75%RH; Recommend environment: 15~+35°C、5~75%RH

400W 12V Rigid Monocrystalline Solar Panel	Details
Rated Power	400W
Type	Mono-crystalline silicon
System Voltage	12V
Cell Efficiency	20-22%
Frame Material	Aluminum
Dimensions	112067030 mm
Weight	approx. 8.30kg
Operating Temperature	-20~70 °C

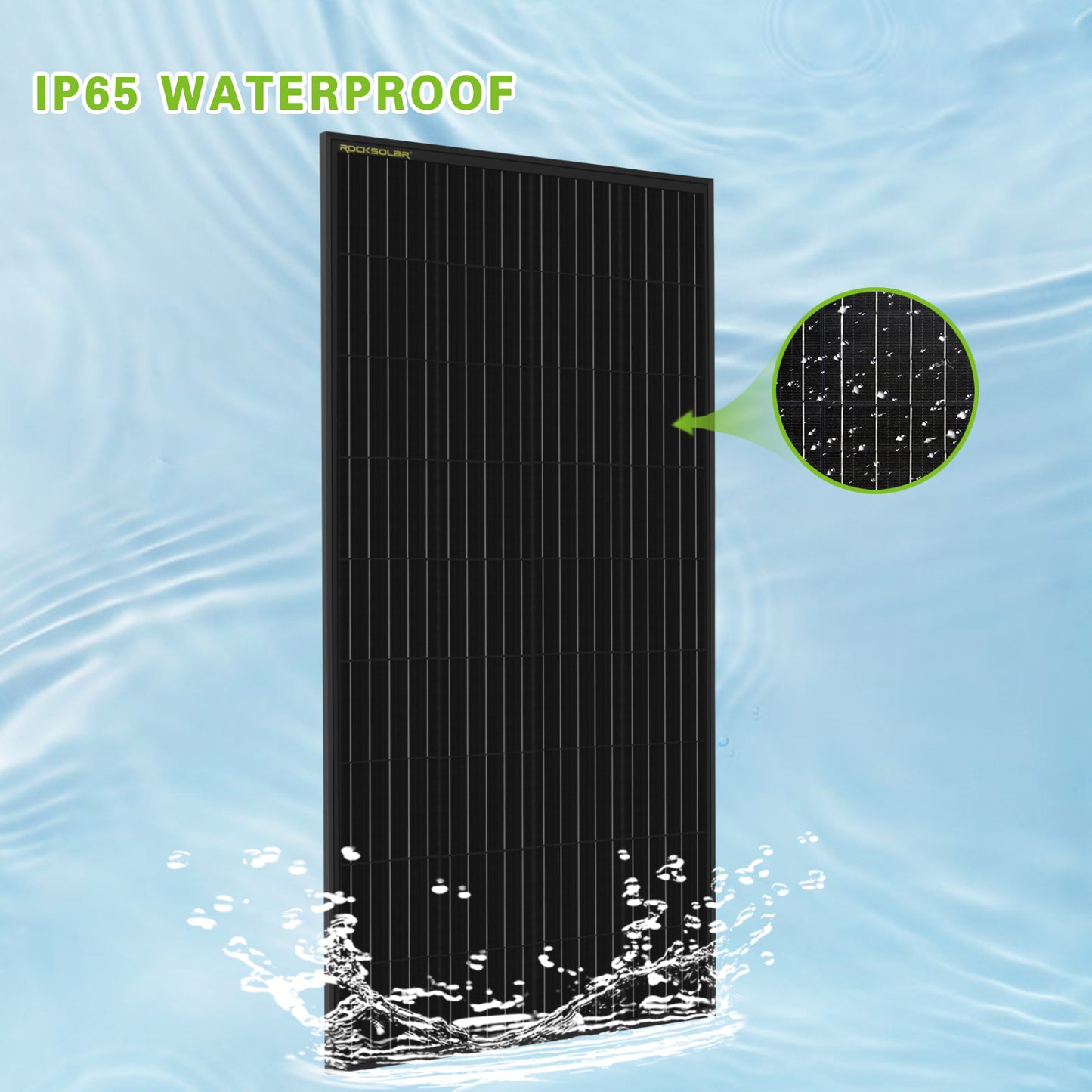

Waterproof Rating	IP65
Front Glass	High light transmittance, low-iron tempered glass
Bypass Diodes	Integrated
Connectors	MC4
Cable Length	Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations	Pre-drilled
Service Life	25 years or more
Warranty	10 Year

60A MPPT Solar Charge Controller	Details
Model	POW-M60-PRO
PV Input	Max Open Voltage of PV Module: 100Vdc
MPP Tracking Efficiency	99.50%
Light Control Voltage	5V
Charge Mode	Charge Algorithm: 3 Stage
Battery Type	Lithium and Lead Acid Battery
Low Voltage Disconnection (LVD)	AGM/ GEL/ FLd: 10.8V
Environmental	Operating Temperature Range: -20℃~55℃ (To run at full rated current continuously)
LCD Temperature Range	-20℃~70℃
Humidity Range	≤95% No condensation
General Specification	Protection Class: IP30
Dimension	12317848
Installation Hole	108*120 ∅5

3000W Pure Sine Wave Power Inverter	Details
Model	RSINV3000-001
Output	Rated power: 3000W
AC Voltage	120Vac(100/110/120Vac Set through menu)
Frequency	60Hz (50Hz/60Hz Set through menu)
Resistive Load Continuous Output Power	1800W, 3000W
Operating humidity	10～90%RH
Storage temperature, humidity	-30℃～70℃,10～95%RH
Weight	Net weight:5.01Kg Gross weight:
Size	420.4208.9110mm (LWH)
Packing	mm(LWH)

24V Brushless Solar DC Water Pump	Details
Product	Rocksolar 24V Brushless Solar DC Water Pump
Pump Model	Complete S.S. 304 + Screw
Motor	Brass Cap + S.S. 304 Body
Controller	Inbuilt Controller
Diameter(inch)	3''
Voltage(V)	24
Cable	2M
Power(W)	250
Max Flow(m3/h)	1.3
Max Head(m)	70
Outlet(inch)	1"
Warranty	5 Year

The ROCKSOLAR 24V 100Ah Deep Cycle LiFePO4 Battery has a capacity of 100Ah, offering robust power storage for extensive off-grid applications.

The battery can handle over 3500 cycles at a 100% depth of discharge, providing long-term reliability for your energy needs.

Yes, the battery includes a state-of-the-art BMS (Battery Management System) for protection against overcharging, over-discharging, short-circuiting, and temperature variations.

The battery comes with an industry-leading 11-year warranty, underscoring ROCKSOLAR's commitment to quality and customer satisfaction.

The ROCKSOLAR 24V Brushless Solar DC Water Pump offers a maximum flow rate of 1.3m³/h, suitable for a variety of applications such as irrigation and domestic water supply.

Yes, with a 3000W output, the inverter can manage heavy loads, making it ideal for running large appliances and tools.

Absolutely. The inverter includes multiple safety features such as over-voltage protection, under-voltage protection, overload protection, and temperature control.

The MPPT technology in the ROCKSOLAR Solar Charge Controller offers up to 99.5% tracking efficiency, ensuring optimal energy conversion and battery charging.

The system is compatible with monocrystalline and polycrystalline solar panels, giving you the flexibility to choose based on availability or preference.

The pump is constructed with durable materials and designed for long service life, typically lasting for several years with proper maintenance.

Yes, the stainless steel construction of the water pump is safe for drinking water applications, ensuring that water quality is maintained.

The system is designed for easy installation. It comes with clear instructions and can be set up by individuals with basic technical knowledge. For more complex setups, professional installation is recommended.

While performance may be reduced on cloudy days, the system can still operate, particularly if paired with batteries to provide a consistent energy supply.
