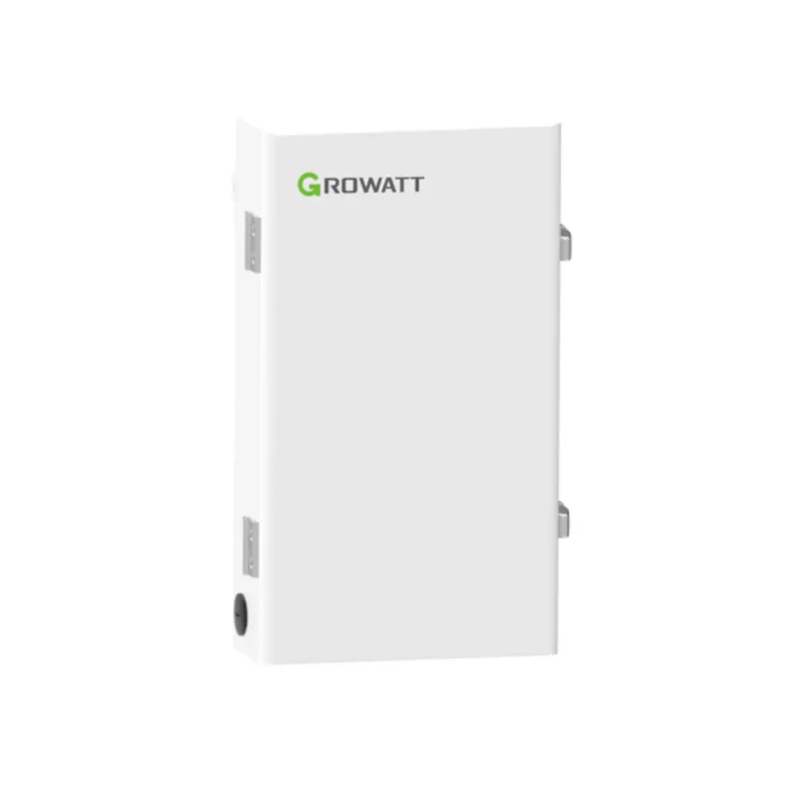

Autoformer + Automatic Transfer Switch (ATS)

Autoformer + Automatic Transfer Switch (ATS)

Prix habituel $1,299.99 CAD
Prix habituel $1,999.99 CAD Prix soldé $1,299.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • Scalable Power: Designed to efficiently connect 2 to 4 battery clusters in parallel, boosting your system's capacity.
  • Wide Voltage Range: Supports a broad voltage range from 40Vdc to 800Vdc, suitable for diverse solar power systems.
  • High Current Handling: Capable of managing up to 700A, enabling significant energy flow for larger setups.
  • Environmental Resilience: Operates effectively between -10℃ to 50℃ and withstands humidity levels of 5% to 95%.
  • IP65 Rated: Dust-tight and protected against jets of water, ensuring durability for indoor and outdoor use.
  • Flexible Connectivity: Compatible with various cable sizes (7AWG, 4AWG, 2AWG) for adaptable installation options.
  • Compact and Lightweight: With dimensions of 300/115/250mm and weighing around 4±1kg, it's easy to integrate into any system.
  • AXE/GBLI Battery Compatibility: Specifically optimized for use with AXE / GBLI 6532 battery models, ensuring seamless operation.

Local Shipping


1-year Hassle Free


Lifetime Customer

Afficher tous les détails
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Key Features:

  • Built-in Transformer: Integrated transformer simplifies installation and enhances system compatibility.
  • Simultaneous Output: ATS 5000T-US offers up to 5000VA, while ATS 11400T-US up to 11400VA of simultaneous L1-N and L2-N output.
  • Energy Storage: Maximum continuous power of 5.0kW supports robust energy storage capabilities.


  • Input Data: EPS Normal Voltage at 240V, Frequency 50/60Hz, with Max Power of 5000VA for ATS 5000T-US and 11400VA for ATS 11400T-US.
  • Max. Current: AC Grid supports 21A@240Vac for ATS 5000T-US and 48A@240Vac for ATS 11400T-US.
  • Split Phase Data: Rated Power and balanced/unbalanced power detailed for both L-L and L-N configurations.
  • Output Voltage: 120/240Vac with specified max continued current for L-L and L-N.
  • General Data: Natural convection cooling, NEMA 4X (IP65) ingress protection, and wall-mountable installation.
  • Operating Temperature Range: -25°C to +55°C (-13°F to +131°F), accommodating diverse environments.
  • Weight and Dimensions: Weighs 15.6kg/34.3lb for ATS 5000T-US and specified dimensions for compact installation.
  • Warranty: Offers a comprehensive 10-year warranty, ensuring long-term reliability and support.
  • 1x ATS-US Auto Transfer Switch: Includes either the ATS 5000T-US or ATS 11400T-US model, equipped with a built-in transformer for efficient power management between sources.
  • Installation Manual: Detailed guide for setup, installation, and operational procedures to ensure optimal use of the ATS-US unit.

Technical Specifications

Specification Details
Product Models ATS 5000T-US, ATS 11400T-US
Maximum Power ATS 5000T-US: 5000VA
ATS 11400T-US: 11400VA
Max. Current ATS 5000T-US: 21A@240Vac
ATS 11400T-US: 48A@240Vac
Input Voltage (AC Grid) 240V
Input Frequency 50/60Hz
Rated Power (L-L) ATS 5000T-US: 5000VA
ATS 11400T-US: 11400VA
Rated balanced/unbalanced power (L-N) Up to 5000VA (ATS 5000T-US)
Up to 11400VA (ATS 11400T-US)
Output Voltage 120/240Vac
Cooling Natural Convection
Ingress Protection NEMA 4X (IP65)
Installation Wall Mountable
Operating Temperature Range -25~+55°C (-13 ~ +131°F)
Weight ATS 5000T-US: 15.6kg/34.3lb
ATS 11400T-US: Specified per model
Dimensions (W/H/D) ATS 5000T-US: 18.9/10.8/4.1in (480/275/105mm)
ATS 11400T-US: Specified per model
Warranty 10 Years

The ATS-US series, including the ATS 5000T-US and ATS 11400T-US models, is designed to automatically switch between power sources in solar energy systems, ensuring continuous power supply and efficient energy storage management.

The ATS 5000T-US can handle up to 5000VA, while the ATS 11400T-US is capable of managing up to 11400VA, catering to different energy needs.

Both models are equipped with a built-in transformer to manage split-phase outputs effectively, ensuring balanced power distribution across L1-N and L2-N outputs.

The ATS-US series utilizes natural convection for cooling, eliminating the need for external cooling systems and ensuring efficient operation.

These auto transfer switches operate within a temperature range of -25°C to +55°C (-13°F to +131°F), suitable for a wide range of environmental conditions.

Both models are rated at NEMA 4X (IP65), offering protection against dust, water, and other environmental elements, making them suitable for both indoor and outdoor installations.

The ATS-US series is backed by a 10-year warranty, ensuring long-term reliability and performance.
