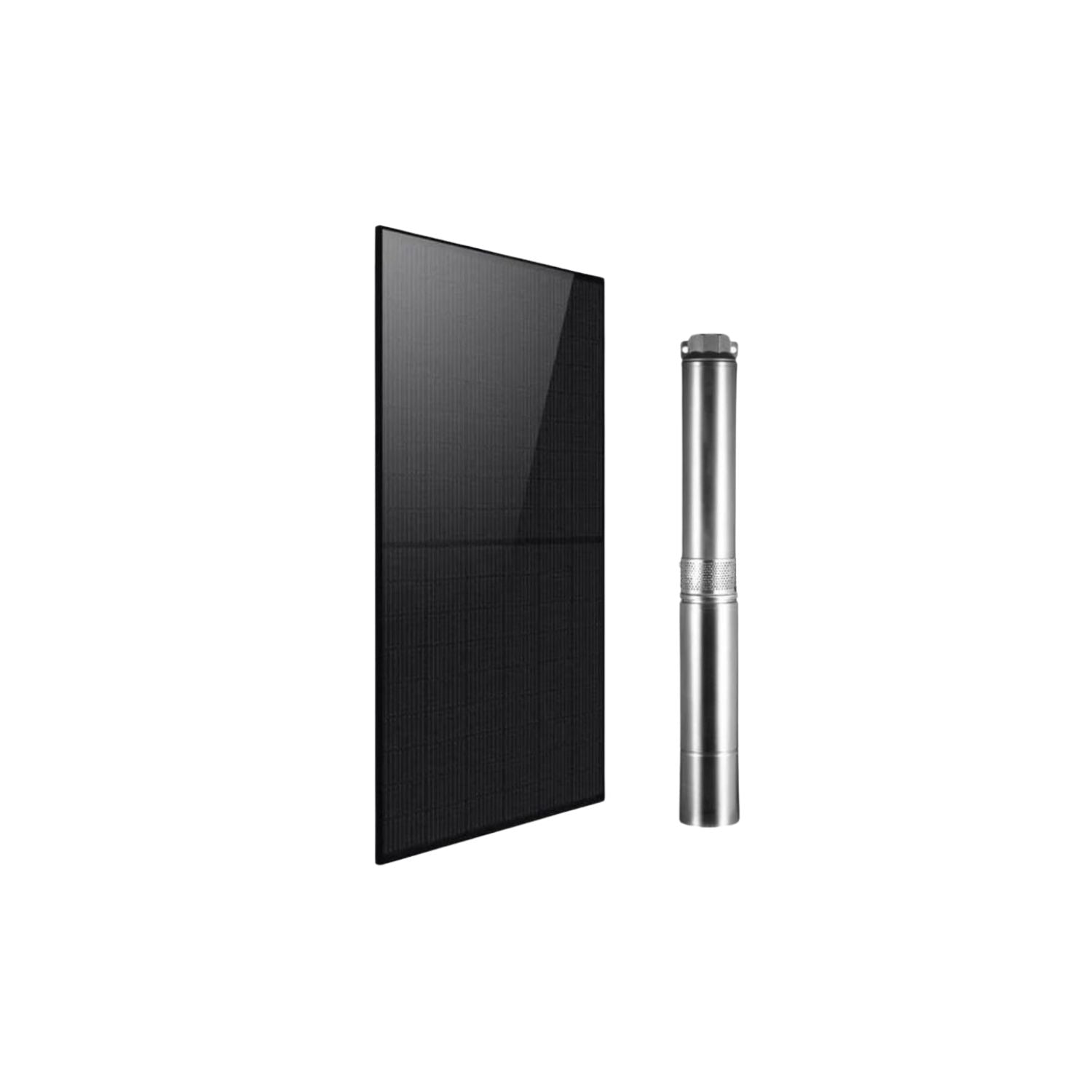

Rocksolar 0.4HP Solar-Powered Submersible Pump Kit
Rocksolar 0.4HP Solar-Powered Submersible Pump Kit
- Complete Kit: Includes pump, solar panel, mounting brackets, and cables.
- High Efficiency: 300W brushless motor with 0.4 HP.
- Voltage Flexibility: Best performance at 30-40V.
- Powerful Output: Max flow rate of 15.41GPM, depth up to 131 feet.
- Durable Construction: 3-inch diameter, 1.5-inch outlet.
- Safety Features: Dry-running auto protection.
- Easy Installation: Pre-drilled mounting holes on panels.
- Solar Compatibility: Supports 400W panel.
- Environmental Benefit: Reduces carbon footprint.
- Versatile Application: Ideal for gardening and irrigation.
- Reliable Performance: Operates under various conditions.
Free
Local Shipping
10-year Hassle Free
Warranty
Lifetime Customer
Support
- Description
- Includes
- Specifications
- Datasheet
- Downloads
- Reviews
Introducing the Rocksolar 300W/0.4HP Solar-Powered Submersible Pump Kit, a complete and efficient solution for solar-powered water pumping needs. This advanced system combines the powerful Rocksolar 20-48V 0.4HP Solar DC Brushless Submersible Pump with Built-in Controller and the high-performance 440W Solar Panel, providing an optimal and eco-friendly water pumping solution.
Designed for seamless integration, the system ensures efficient water management for a variety of applications, from home gardening to agricultural irrigation. It's an ideal setup for those looking to harness solar energy for reliable and sustainable water pumping.
Product Features

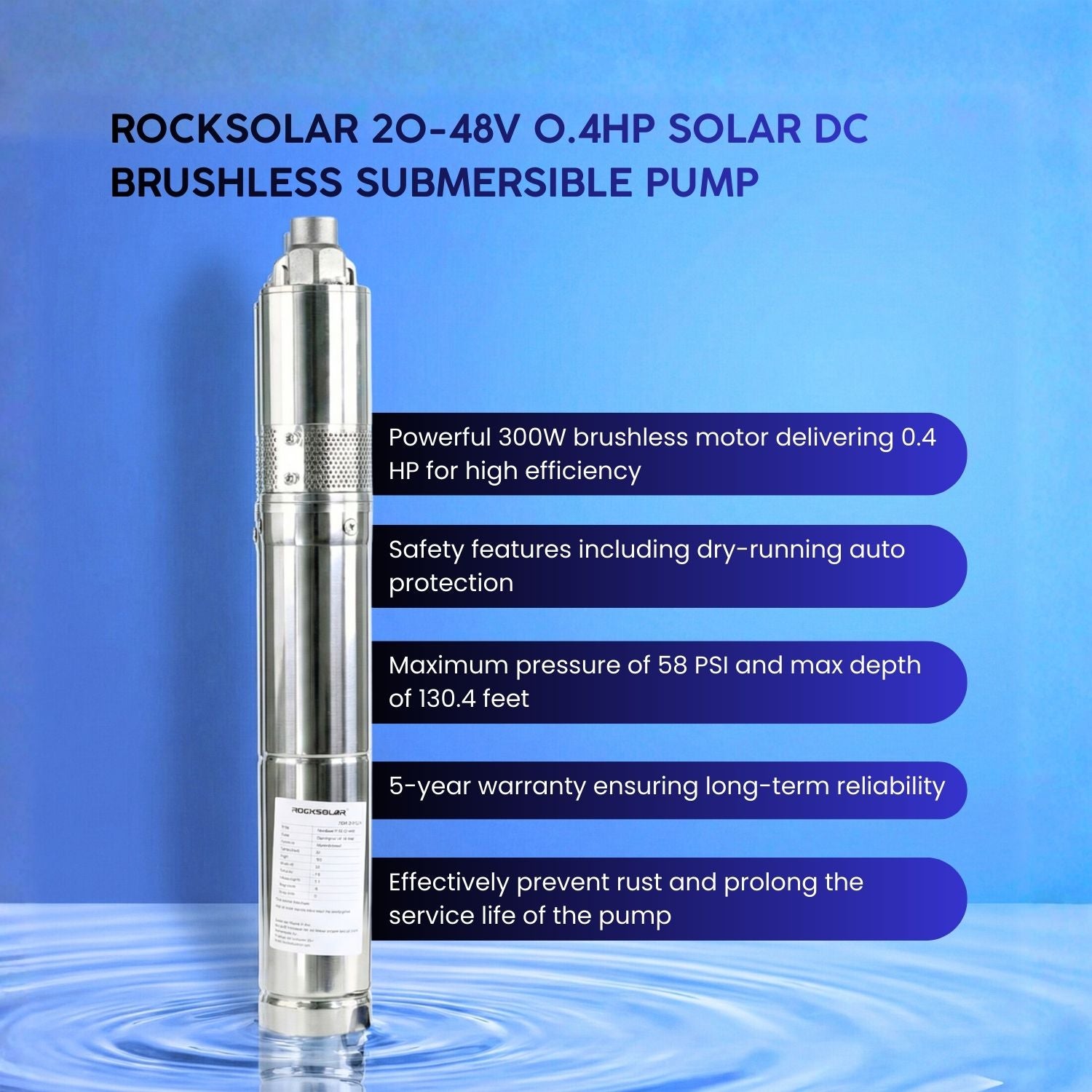

Rocksolar 20-48V 0.4HP Solar DC Brushless Submersible Pump:

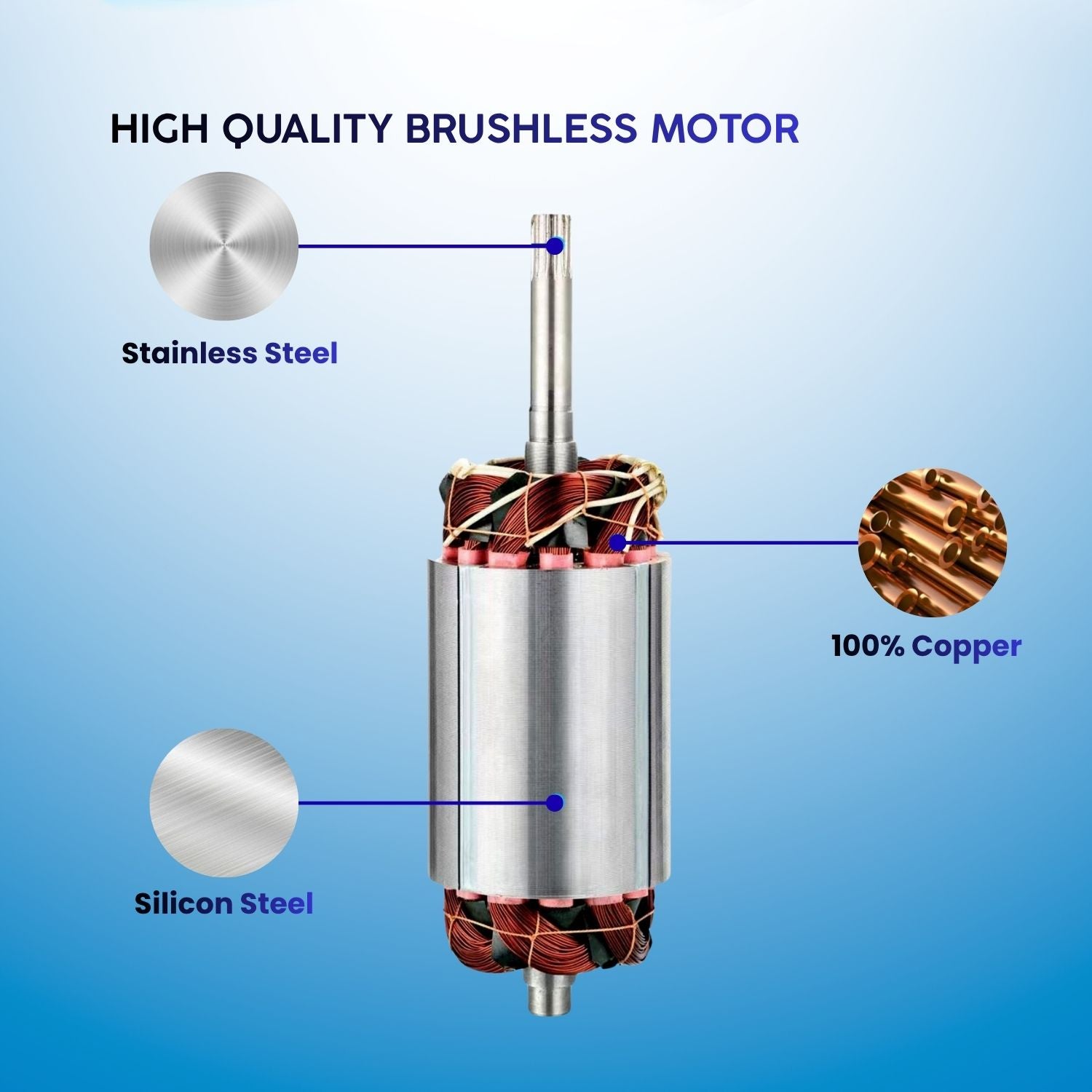

- Powerful 300W brushless motor delivering 0.4 HP for high efficiency
- Voltage flexibility: operates best at 30-40V
- Max flow rate of 15.41 GPM at minimum head
- Sturdy 3-inch diameter with a 1.5-inch outlet

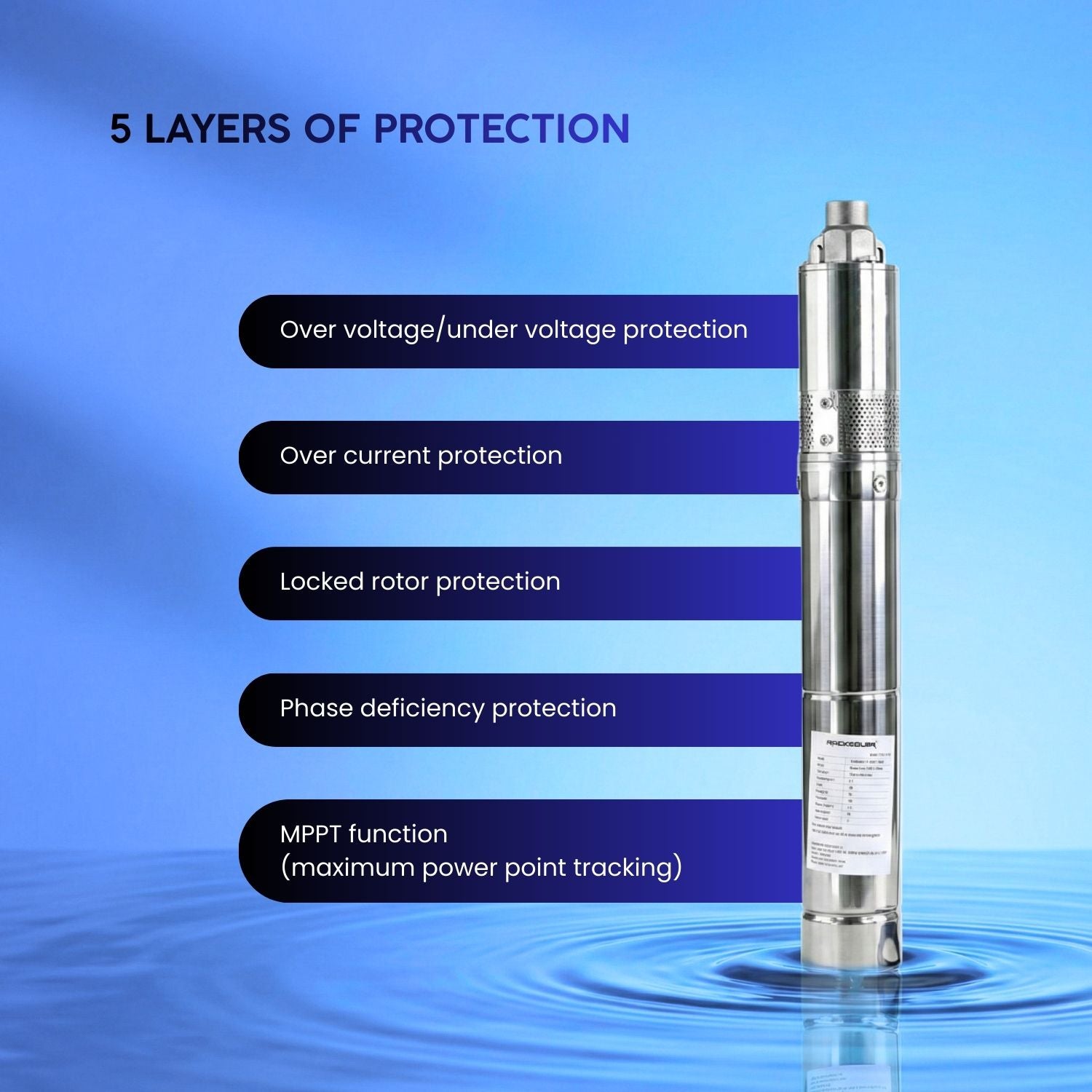

- Safety features including dry-running auto protection
- Supports solar panel and battery power
- Maximum pressure of 58 PSI and max depth of 131 feet
- 5-year warranty ensuring long-term reliability
440W Rigid Monocrystalline Solar Panel (x1):
- Utilizes advanced Topcon monocrystalline cell technology, maximizing energy yield and module efficiency.
- Features half-cell design, reducing resistive losses and increasing overall power output.
- Delivers a high module efficiency of up to 22.57%, optimized for residential and commercial applications.
- Engineered to withstand high wind loads (2400 Pa) and snow loads (5400 Pa), ensuring durability in harsh climates.
- Offers a comprehensive 30-year linear power warranty, providing long-term performance assurance.
- Equipped with a low temperature coefficient of -0.35%/°C, enhancing performance in varying temperature conditions.
- Excellent low-light performance, ensuring high efficiency even on cloudy or shaded days.
- Certified under international standards including ISO 9001, ISO 14001, and ISO 45001 for quality, environmental, and safety management.
- Conducts 100% EL testing to detect and eliminate micro-cracks, ensuring high module reliability.
- Available with optional extended warranty coverage for additional investment protection.
With the Rocksolar 0.4HP Solar-Powered Submersible Pump Kit, experience superior water management and energy independence. Achieve efficient and reliable water pumping while harnessing the power of the sun, making it an ideal choice for environmentally conscious users.

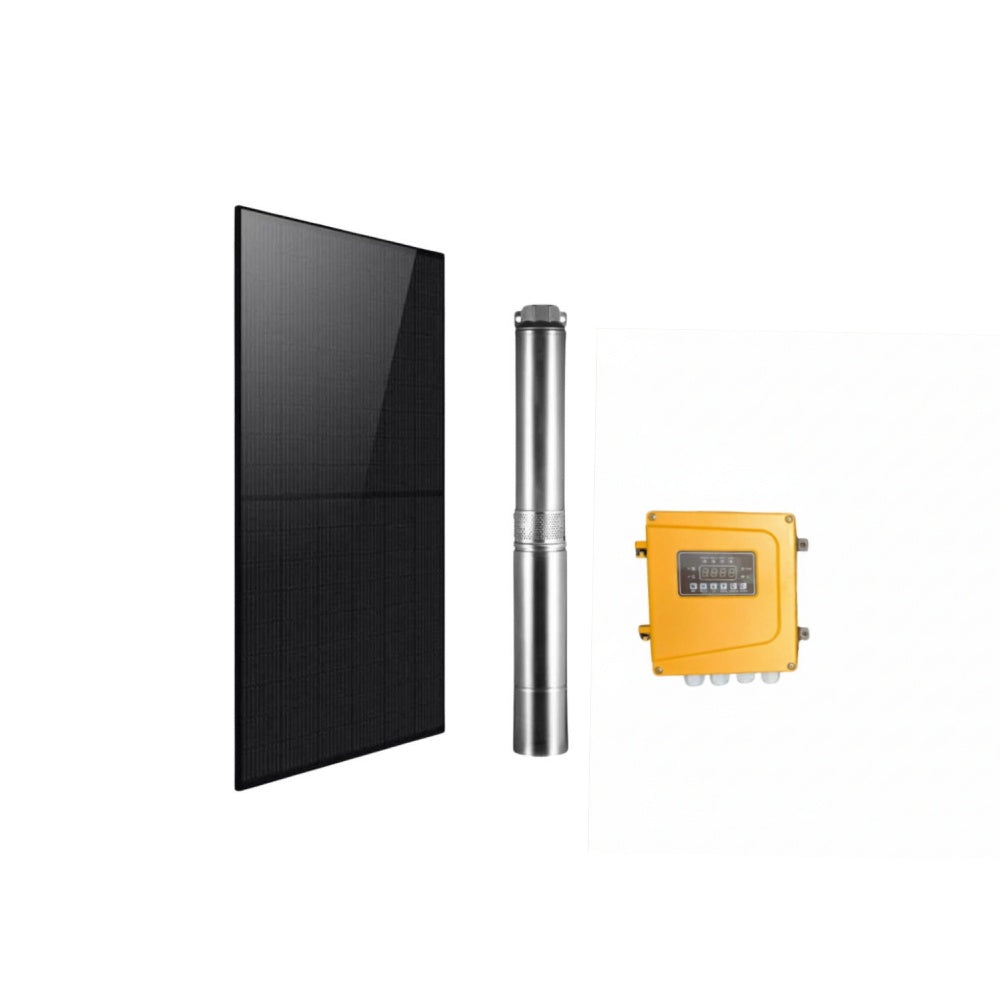

- 1 x Rocksolar 20-48V 0.4HP Solar DC Brushless Submersible Pump with Built-in Controller
- 1 x 440W Rigid Monocrystalline Solar Panel
- 1 x 10 Feet 10 AWG PV Cable
- 1 x Set of Mounting Brackets for Solar Panels (optional)
- 1 X 150V 20A DC Circuit breaker (optional)
- 1 X Waterproof DC Circuit Breaker Box (optional)
- 1 x User Manual for the Submersible Pump
- 1 x User Manual for the Solar Panels
- 1 x Warranty Card for the Complete System
Technical Specifications
Pump Specification | Details |
---|---|
Product | Rocksolar 0.4HP Brushless Solar Pump with In-Built Controller |
Model | Brushless Motor, In-Built Controller |
Power | 0.4HP |
Voltage | 20-40V, Best at 30-40V |
Solar Panel Requirement | 440W*1 PCS |
Max Head | 131 Feet |
Max Flow Rate | 15.41 GPM at 0 meters head |

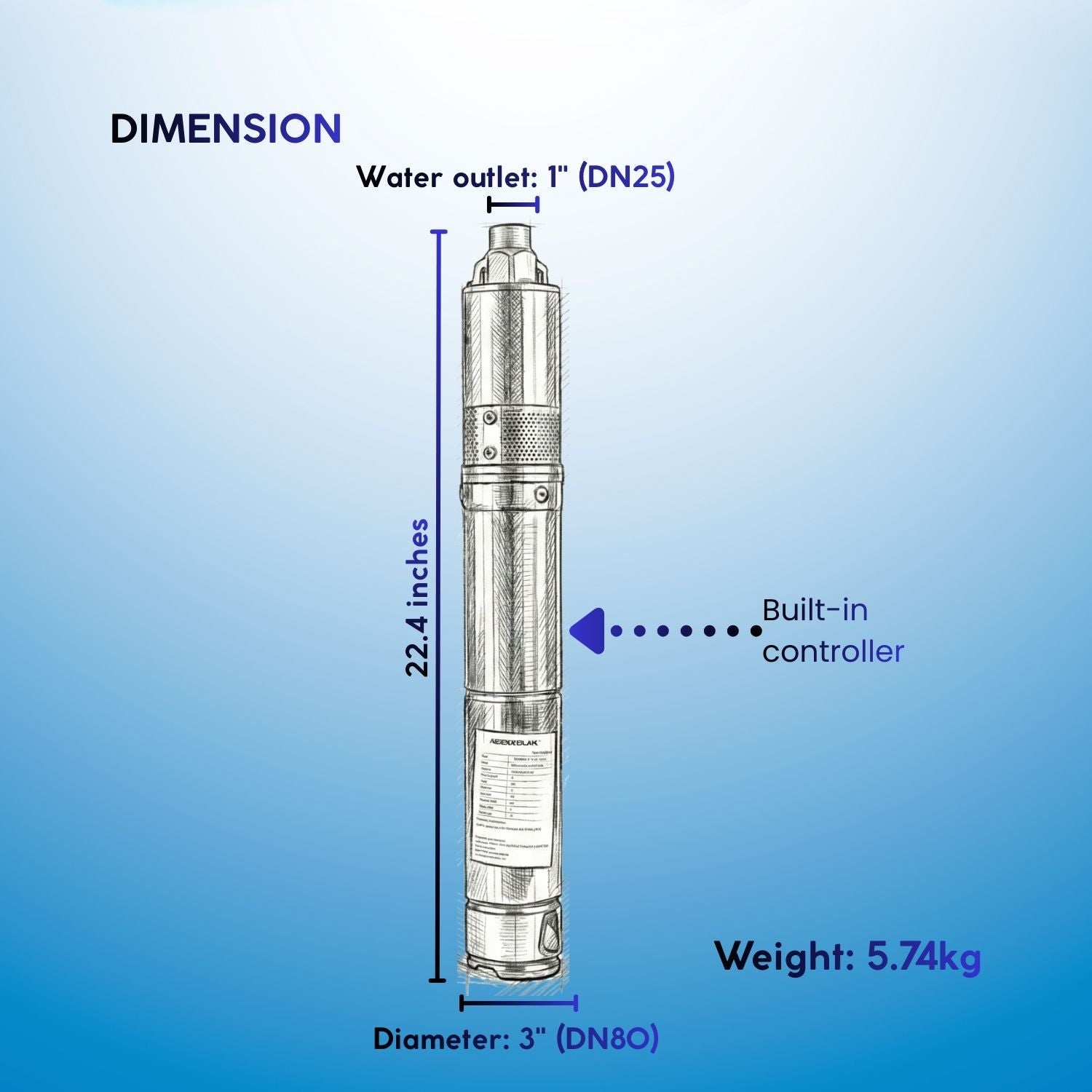

Pump Diameter | 3 inches |
Pump Outlet | 1.5 inches |

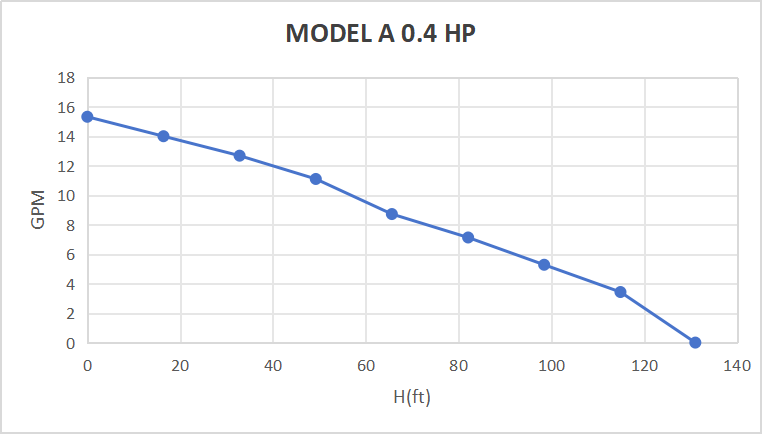

GPM | 15.32,14,12.68,11.10,8.72,7.13,5.28,3.43,0 |
Height(F) | 0,16.41,32.81,49.23,65.62,82.05,98.43,114.87,40 |
Water Cooled Motor | Yes |
Warranty | 5 Years |
Panel Specification | Details |
---|---|
Panel Type | Monocrystalline Bi facial |
Power Output | 440W |
Cell Efficiency | 22.57% |
Frame Material | Anodized Aluminum |
Dimensions | 1722mm x 1134mm x 30mm |
Weight | 22 kg |
Operating Temperature | -40°C to +85°C |
Waterproof Rating | IP68 |
Front Glass | Anti-reflective tempered glass |
Bypass Diodes | Integrated |
Connectors | MC4 |
Service Life | Over 30 years |
Warranty | 12 years |
