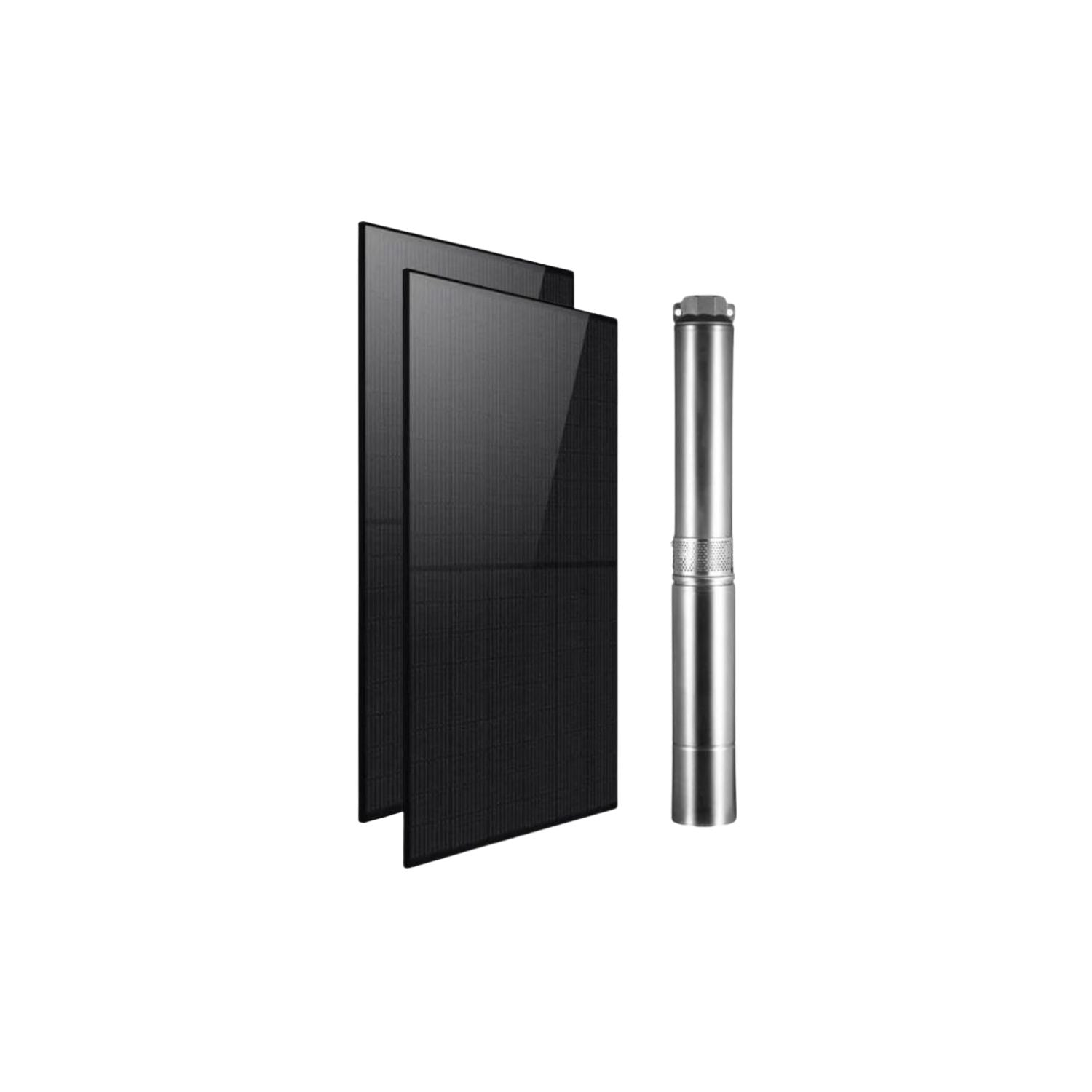

Rocksolar 0.8HP Solar-Powered Submersible Pump Kit

Rocksolar 0.8HP Solar-Powered Submersible Pump Kit

Prix habituel $1,399.99 CAD
Prix habituel $1,999.99 CAD Prix soldé $1,399.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • Complete Kit: Includes pump, two solar panels, mounting brackets, and cables.
  • High Efficiency: 600W brushless motor with 0.8 HP.
  • Voltage Flexibility: Best performance at 60-76V.
  • Powerful Output: Max flow rate of 15.85GPM, depth up to 289 feet.
  • Durable Construction: 3-inch diameter, 1.5-inch outlet.
  • Safety Features: Dry-running auto protection.
  • Easy Installation: Pre-drilled mounting holes on panels.
  • Solar Compatibility: Supports two 440W panels.
  • Environmental Benefit: Reduces carbon footprint.
  • Versatile Application: Ideal for gardening and irrigation.
  • Reliable Performance: Operates under various conditions.
Shipping

Free
Local Shipping

Warranty

10-year Hassle Free
Warranty

Support

Lifetime Customer
Support

Afficher tous les détails



  • Description
  • Includes
  • Specifications
  • Datasheet
  • User Manual
  • Reviews

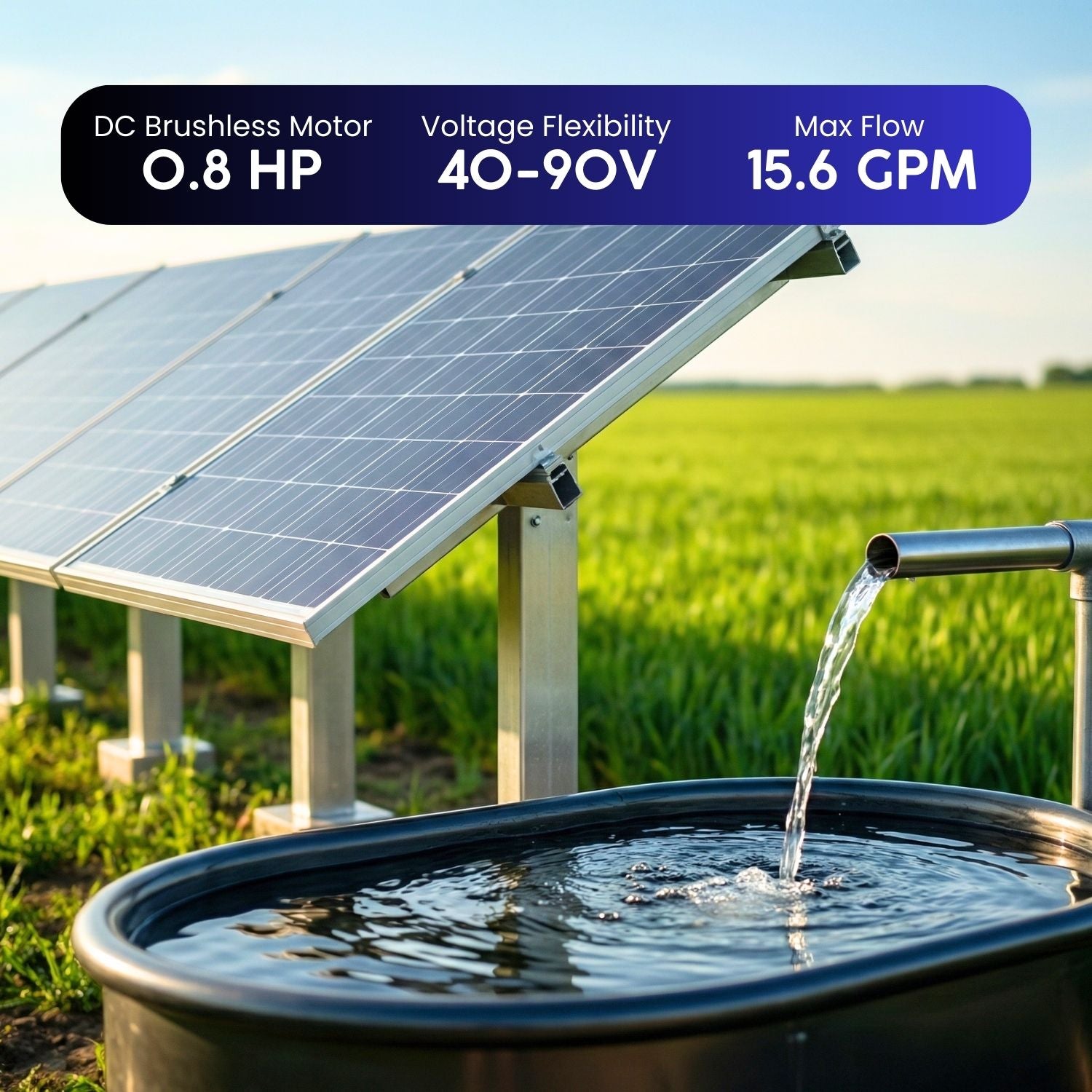

Introducing the Rocksolar 0.8HP Solar-Powered Submersible Pump Kit, a powerful and efficient solution for your solar-powered water pumping needs. This advanced system combines the robust Rocksolar 40-90V 0.8HP Solar DC Brushless Submersible Pump with Built-in Controller and the high-performance 440W Solar Panel Set (2x 440W), providing optimal and eco-friendly water pumping.

Designed for seamless integration, this system ensures efficient water management for a variety of applications, from home gardening to agricultural irrigation. It's an ideal setup for those looking to harness solar energy for reliable and sustainable water pumping.

Product Features

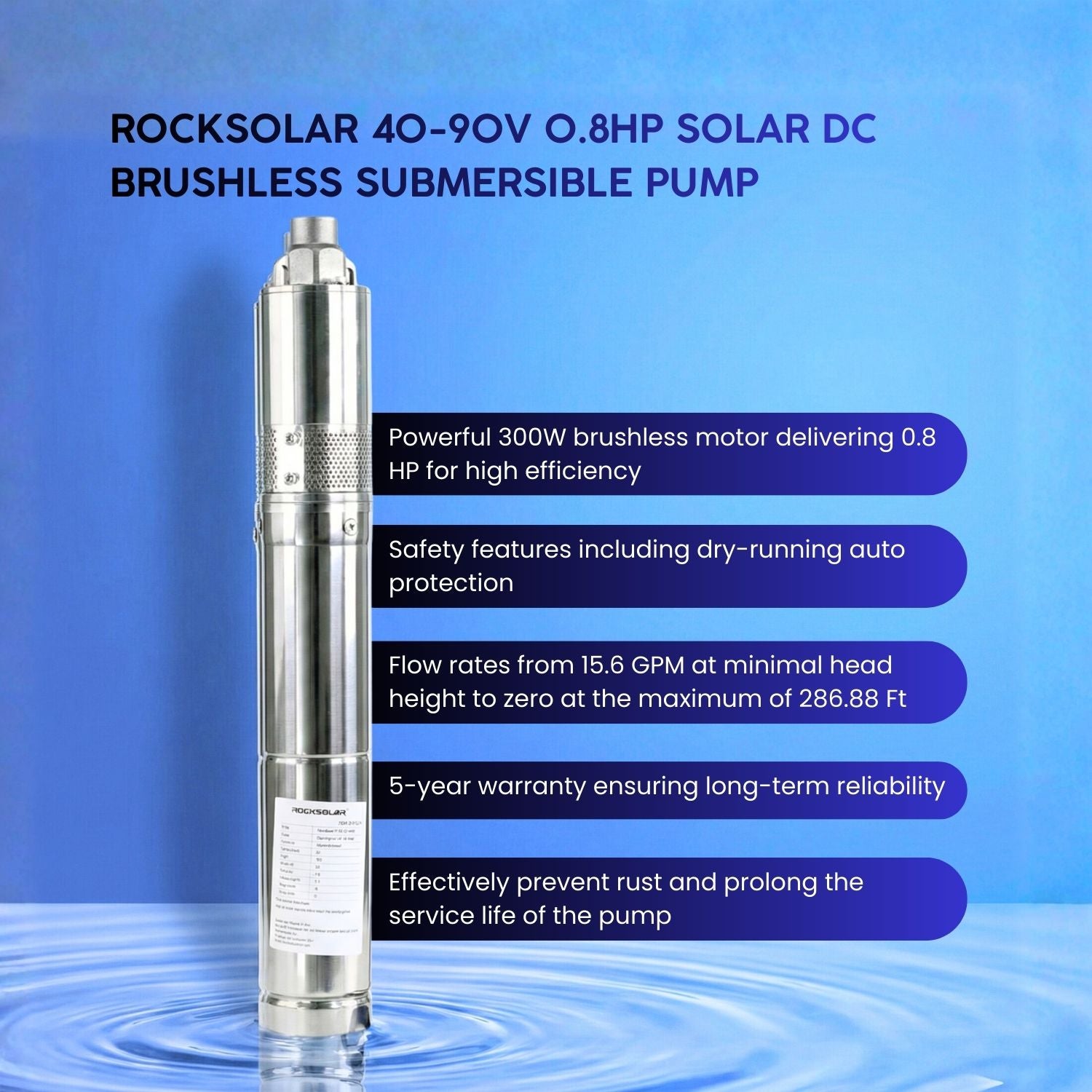

Rocksolar 40-90V 0.8HP Solar DC Brushless Submersible Pump:

  • Powerful 600W brushless motor delivering 0.8 HP for superior performance
  • Voltage flexibility: operates best at 60-76V
  • Max flow rate of 15.85 GPM at minimum head
  • Sturdy 3-inch diameter with a 1.5-inch outlet

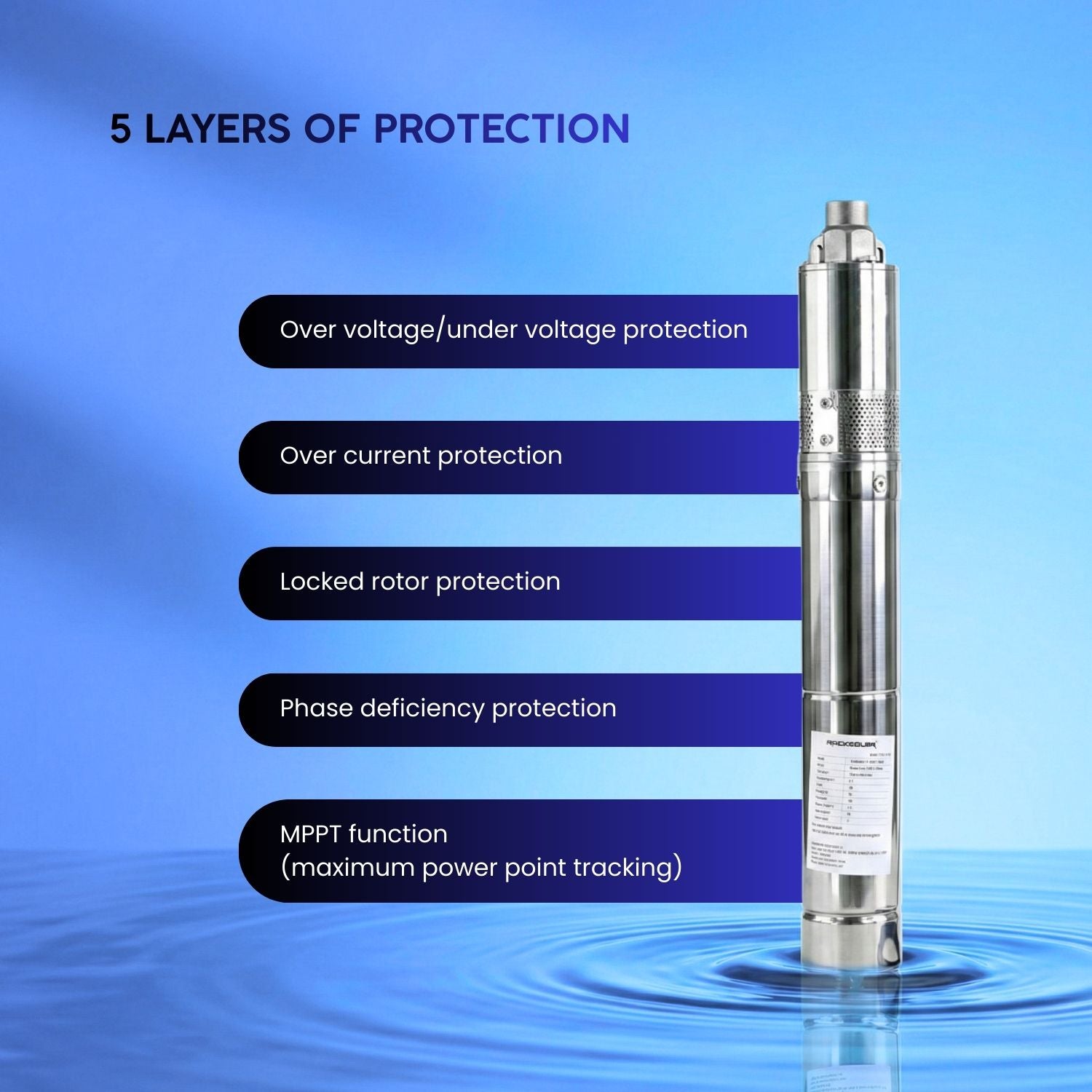

  • Safety features including dry-running auto protection
  • Supports solar panel and battery power
  • Maximum pressure of 127.6 PSI and max depth of 289 feet
  • 5-year warranty ensuring long-term reliability

ROCKSOLAR 440W Bi Facial Rigid Monocrystalline Solar Panel (x2):

  • Utilizes advanced Topcon monocrystalline cell technology, maximizing energy yield and module efficiency.
  • Features half-cell design, reducing resistive losses and increasing overall power output.
  • Delivers a high module efficiency of up to 22.57%, optimized for residential and commercial applications.
  • Engineered to withstand high wind loads (2400 Pa) and snow loads (5400 Pa), ensuring durability in harsh climates.
  • Offers a comprehensive 30-year linear power warranty, providing long-term performance assurance.
  • Equipped with a low temperature coefficient of -0.35%/°C, enhancing performance in varying temperature conditions.
  • Excellent low-light performance, ensuring high efficiency even on cloudy or shaded days.
  • Certified under international standards including ISO 9001, ISO 14001, and ISO 45001 for quality, environmental, and safety management.
  • Conducts 100% EL testing to detect and eliminate micro-cracks, ensuring high module reliability.
  • Available with optional extended warranty coverage for additional investment protection.

With the Rocksolar 0.8HP Solar-Powered Submersible Pump Kit, experience superior water management and energy independence. Achieve efficient and reliable water pumping while harnessing the power of the sun, making it an ideal choice for environmentally conscious users.

  • 1 x Rocksolar 40-96V 0.8HPSolar DC Brushless submersible Pump with Built in Controller
  • 2 x ROCKSOLAR 440W Rigid Monocrystalline Solar Panels
  • 1 x 10 Feet 10 AWG PV Cable
  • 1 x 150V 20A DC Circuit Breaker (optional)
  • 1 x Waterproof DC Circuit Breaker Box (optional)
  • Solar Panel Roof Mounting Rack (optional)
  • 2 Sets Z Brackets for Solar Panel mounting (optional)
  • 1 x User Manual for the Submersible Pump
  • 1 x User Manual for the Solar Panels
  • 1 x Warranty Card for the Complete System

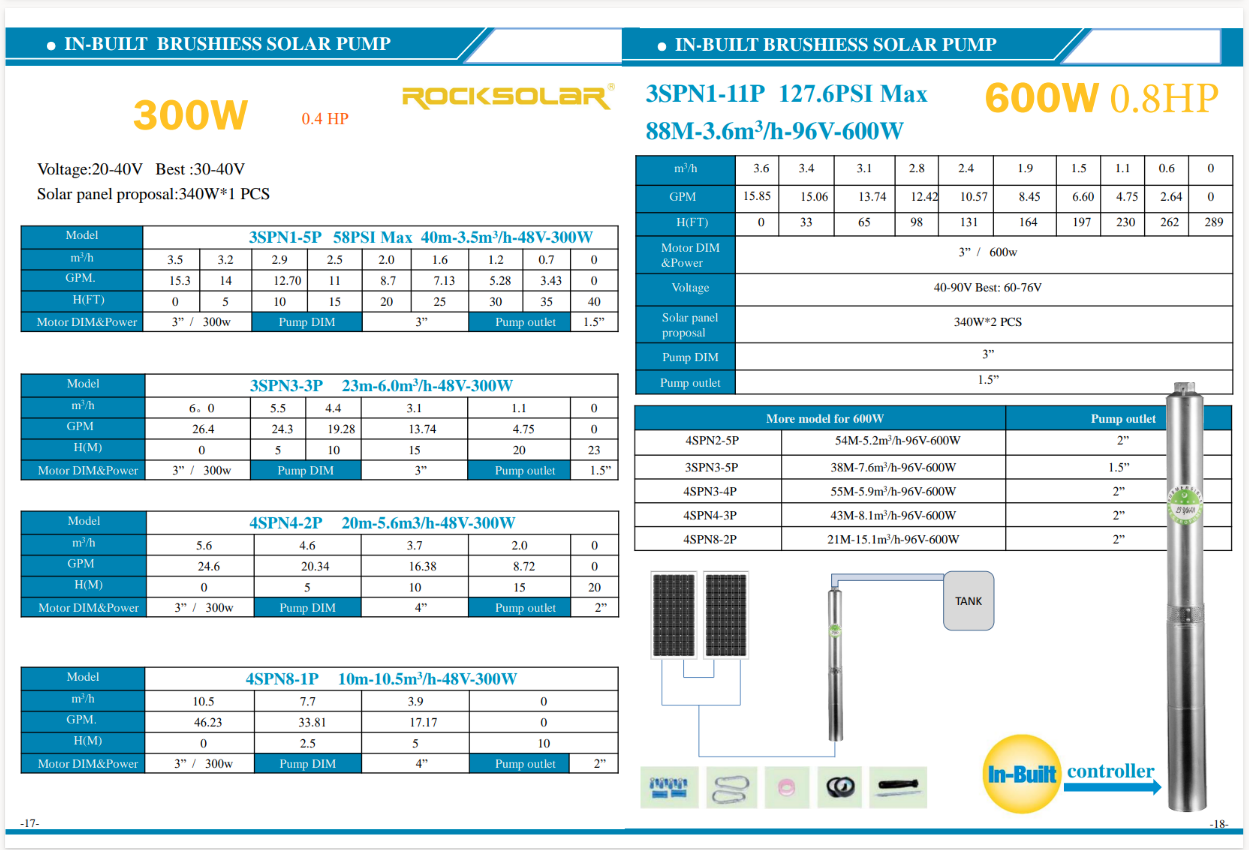

Technical Specifications


Pump Specification Details
Product Rocksolar 0.8HP Brushless Solar Pump with In-Built Controller
Model Brushless Motor, In-Built Controller
Power 0.8HP
Voltage 40-90V, Best at 60-76V
Solar Panel Requirement 2X440W
Max Head 289 FT
Max Flow Rate 15.85 GPM at 0 meters head

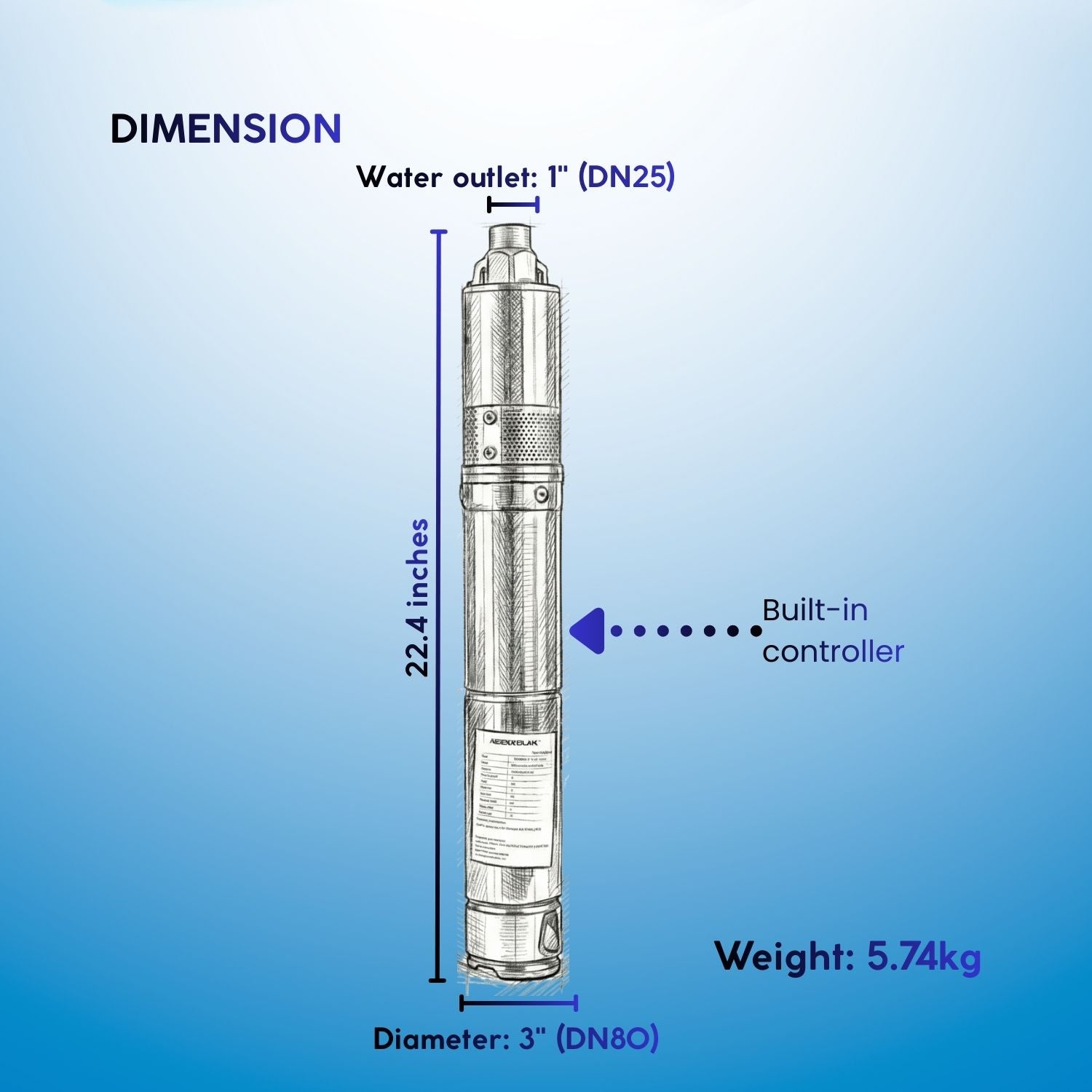

Pump Diameter 3 inches
Pump Outlet 1.5 inches

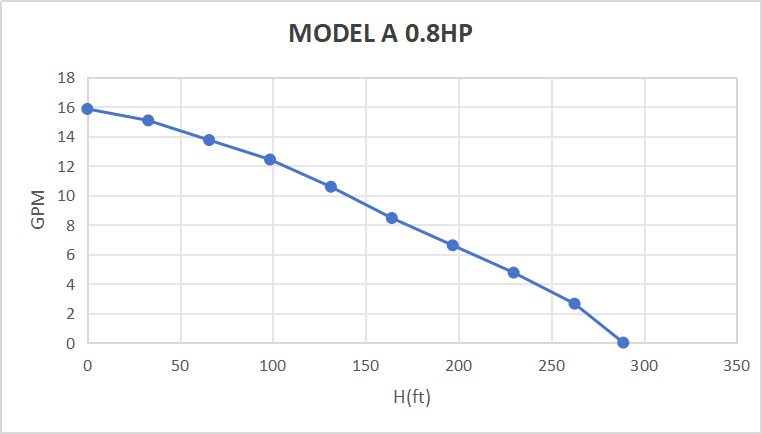

GPM (Flow Rates) 15.85, 15.06, 13.74, 12.42, 10.57, 8.45, 6.60, 4.75, 2.64, 0
Height (Feet) 0, 33, 65, 98, 131, 164, 197, 230, 262, 289
Water Cooled Motor Yes
Warranty 5 Years

Panel Specification Details
Panel Type Monocrystalline
Power Output 440W
Maximum Output Voltage 32.98V
Cell Efficiency 22.57%
Frame Material Anodized Aluminum
Dimensions 1722mm x 1134mm x 30mm
Weight 22 kg
Operating Temperature -40°C to +85°C
Waterproof Rating IP68
Front Glass Anti-reflective tempered glass
Bypass Diodes Integrated
Connectors MC4
Service Life Over 30 years
Warranty 12 years
