Rocksolar 1.34HP Solar-Powered Submersible Pump Kit

Rocksolar 1.34HP Solar-Powered Submersible Pump Kit

Prix habituel $2,149.99 CAD
Prix habituel $2,999.99 CAD Prix soldé $2,149.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • Complete Kit: Includes pump, three solar panels, mounting brackets, and cables.
  • High Efficiency: 1000W brushless motor with 1.34 HP.
  • Voltage Flexibility: Best performance at 90-110V.
  • Powerful Output: Max flow rate of 17.7GPM., depth up to 328 feet.
  • Durable Construction: 3-inch diameter, 1.5-inch outlet.
  • Safety Features: Dry-running auto protection.
  • Easy Installation: Pre-drilled mounting holes on panels.
  • Solar Compatibility: Supports three 400W panels.
  • Environmental Benefit: Reduces carbon footprint.
  • Versatile Application: Ideal for gardening and irrigation.
  • Reliable Performance: Operates under various conditions.
Shipping

Free
Local Shipping

Warranty

10-year Hassle Free
Warranty

Support

Lifetime Customer
Support

Afficher tous les détails



  • Description
  • Includes
  • Specifications
  • Datasheet
  • User Manual
  • Reviews

Introducing the Rocksolar 1.34HP Solar-Powered Submersible Pump Kit, a powerful and efficient solution for your solar-powered water pumping needs. This advanced system combines the robust Rocksolar 60-150V 1.34HP Solar DC Brushless submersible Pump with Built-in Controller and the high-performance 1320W Solar Panel Set (3x 440W), providing optimal and eco-friendly water pumping.

Designed for seamless integration, this system ensures efficient water management for a variety of applications, from home gardening to agricultural irrigation. It's an ideal setup for those looking to harness solar energy for reliable and sustainable water pumping.

Product Features

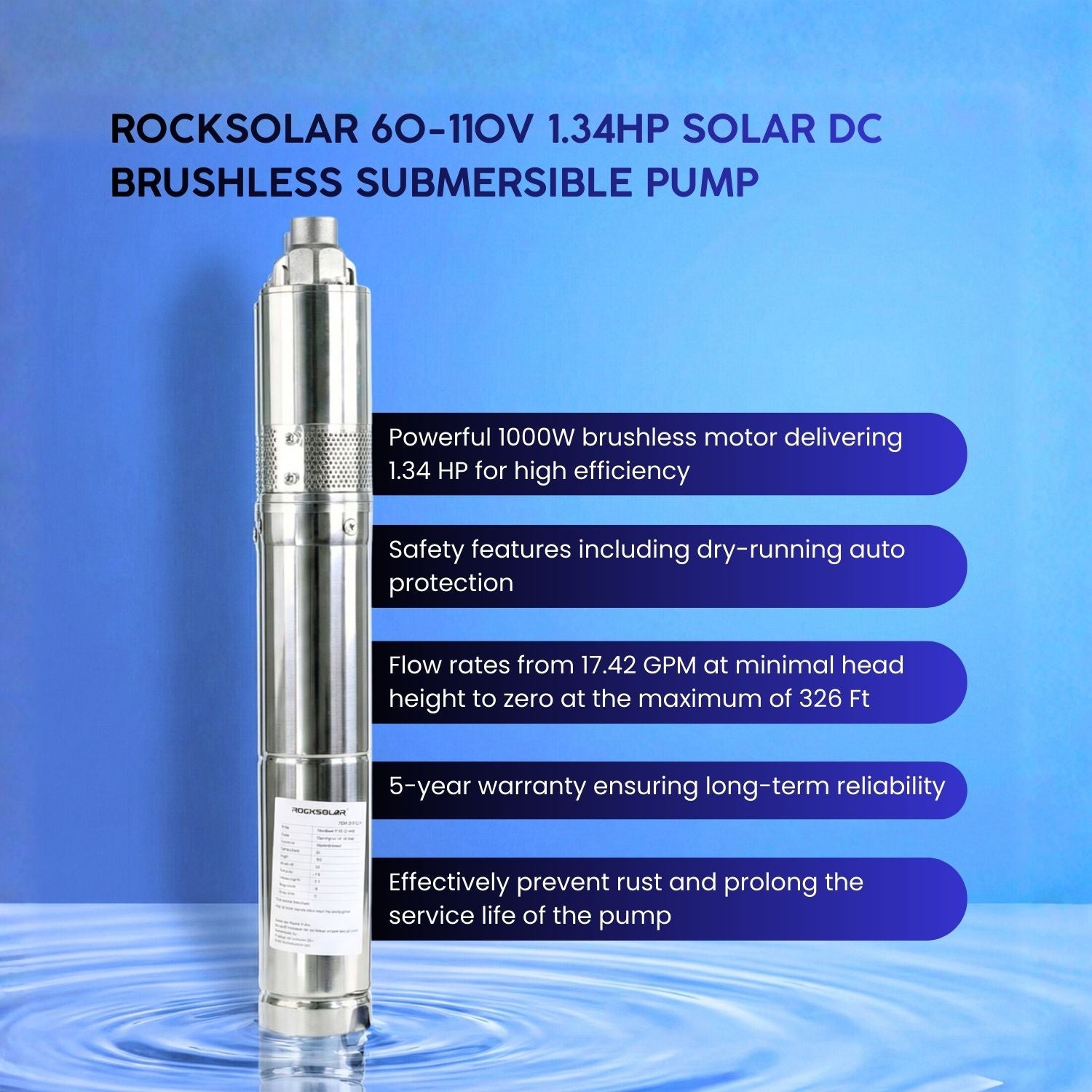

Rocksolar 60-150V 1.34HP Solar DC Brushless submersible Pump:

  • Powerful 1000W brushless motor delivering 1.34 HP for superior performance
  • Voltage flexibility: operates best at 60-110V
  • Max flow rate of 17.7 GPM at minimum head
  • Sturdy 3-inch diameter with a 1.5-inch outlet

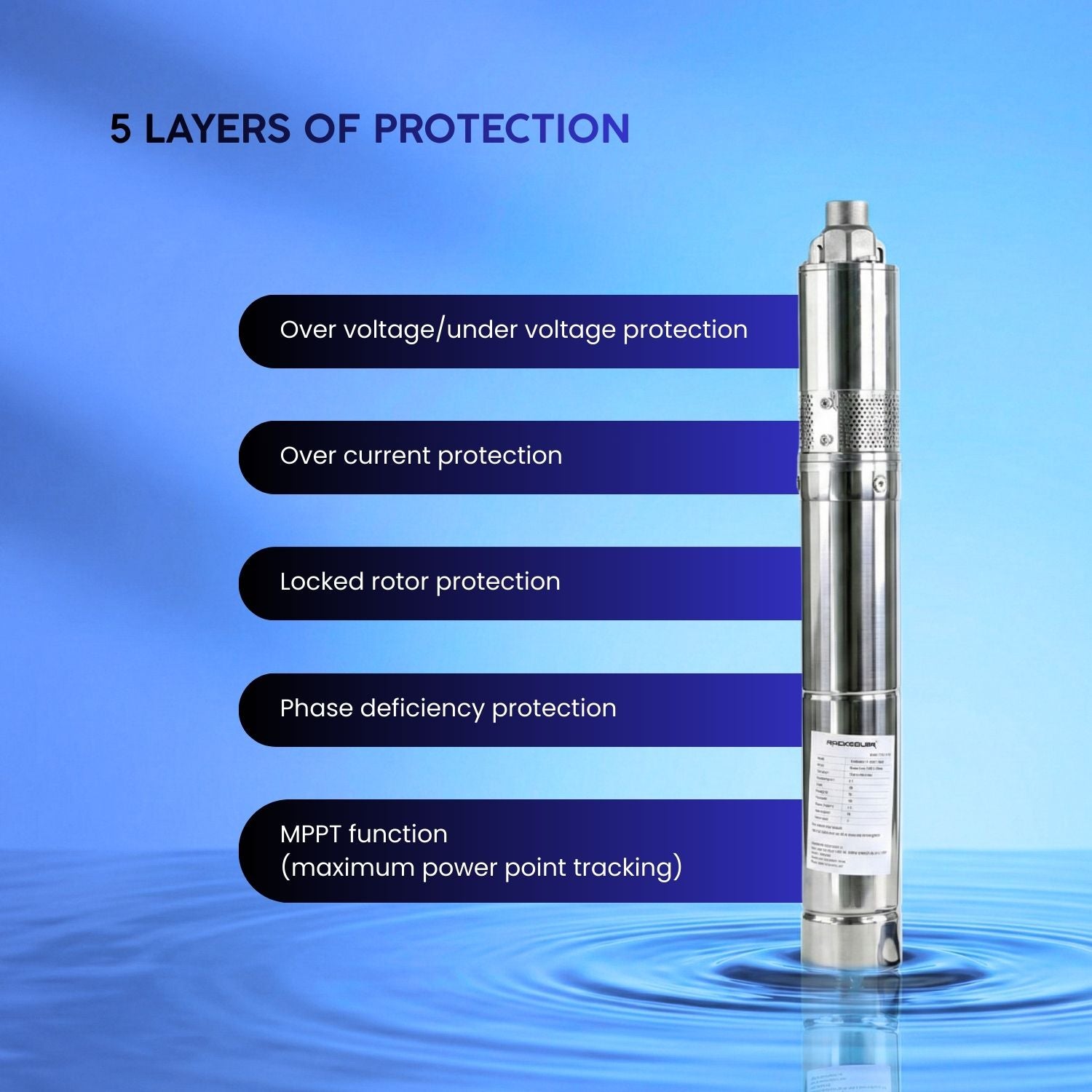

  • Safety features including dry-running auto protection
  • Supports solar panel and battery power
  • Maximum pressure of 145 PSI and max depth of 328 feet
  • 5-year warranty ensuring long-term reliability

ROCKSOLAR 440W Rigid Monocrystalline Solar Panel (x3):

  • Utilizes advanced Topcon monocrystalline cell technology, maximizing energy yield and module efficiency.
  • Features half-cell design, reducing resistive losses and increasing overall power output.
  • Delivers a high module efficiency of up to 22.57%, optimized for residential and commercial applications.
  • Engineered to withstand high wind loads (2400 Pa) and snow loads (5400 Pa), ensuring durability in harsh climates.
  • Offers a comprehensive 30-year linear power warranty, providing long-term performance assurance.
  • Equipped with a low temperature coefficient of -0.35%/°C, enhancing performance in varying temperature conditions.
  • Excellent low-light performance, ensuring high efficiency even on cloudy or shaded days.
  • Certified under international standards including ISO 9001, ISO 14001, and ISO 45001 for quality, environmental, and safety management.
  • Conducts 100% EL testing to detect and eliminate micro-cracks, ensuring high module reliability.
  • Available with optional extended warranty coverage for additional investment protection.

With the Rocksolar 1.34HP Solar-Powered Submersible Pump Kit, experience superior water management and energy independence. Achieve efficient and reliable water pumping while harnessing the power of the sun, making it an ideal choice for environmentally conscious users.

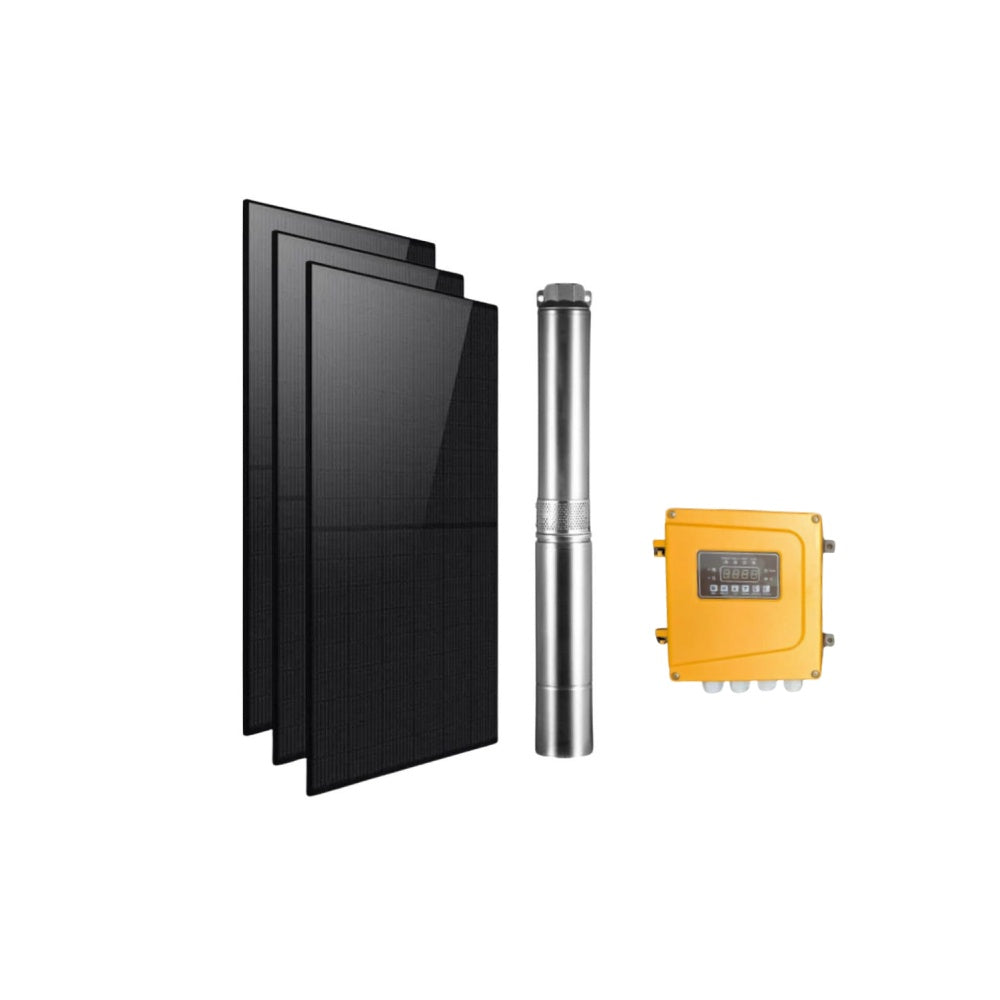

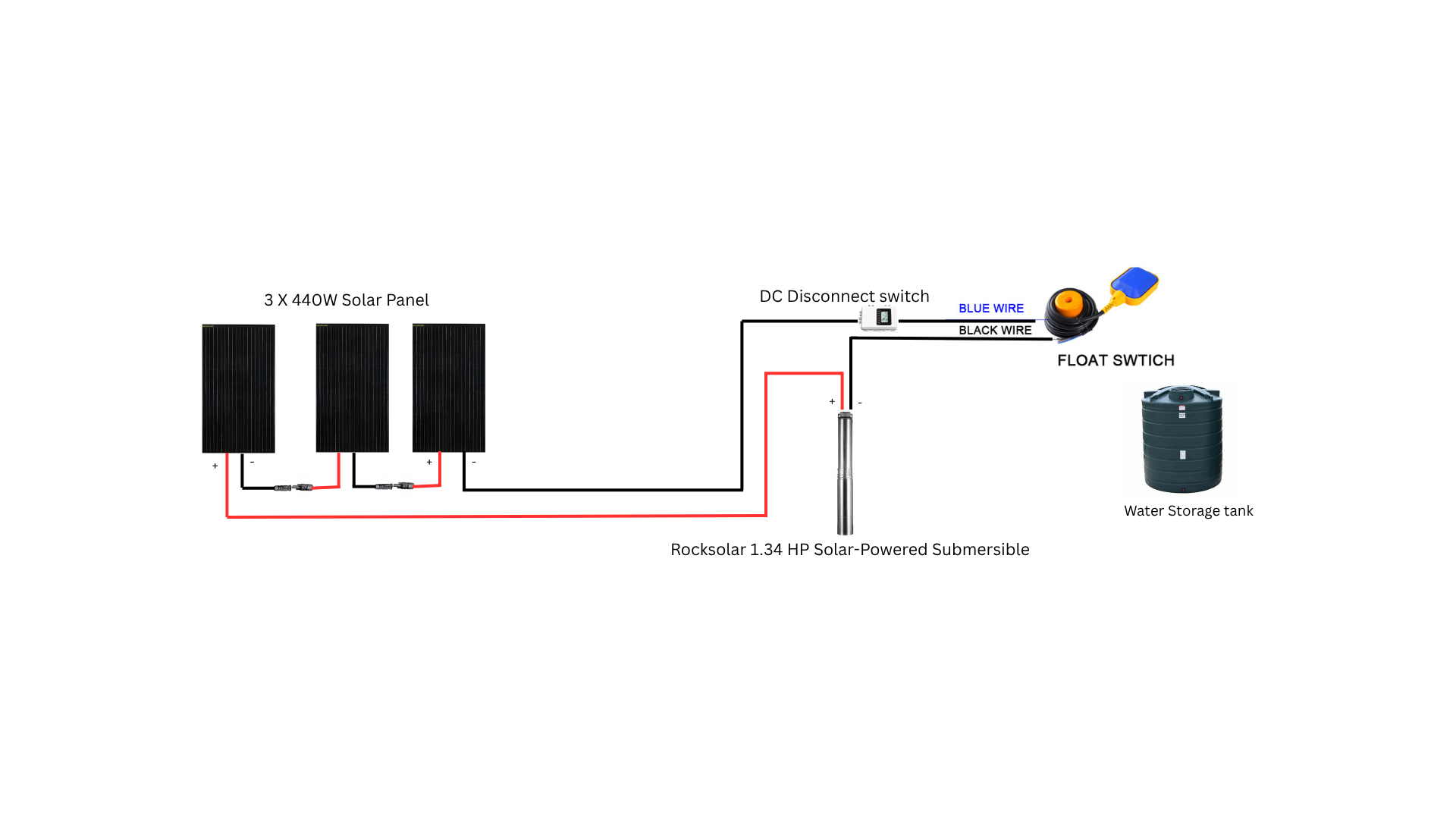

  • 1 x Rocksolar 60-150V 1.34HPSolar DC Brushless submersible Pump with Built in Controller
  • 3 x ROCKSOLAR 440W Bi Facial Rigid Monocrystalline Solar Panels
  • 1 x 10 Feet 10 AWG PV Cable
  • 3 Sets of Z Brackets for Solar Panel Mounting (Optional)
  • 1 x 150V 20A DC Circuit Breaker (Optional)
  • 1 x Waterproof DC Circuit Breaker Box (Optional)
  • Solar Panel Ground or Roof mount rack (Optional)
  • 1 x User Manual for the Submersible Pump
  • 1 x User Manual for the Solar Panels
  • 1 x Warranty Card for the Complete System

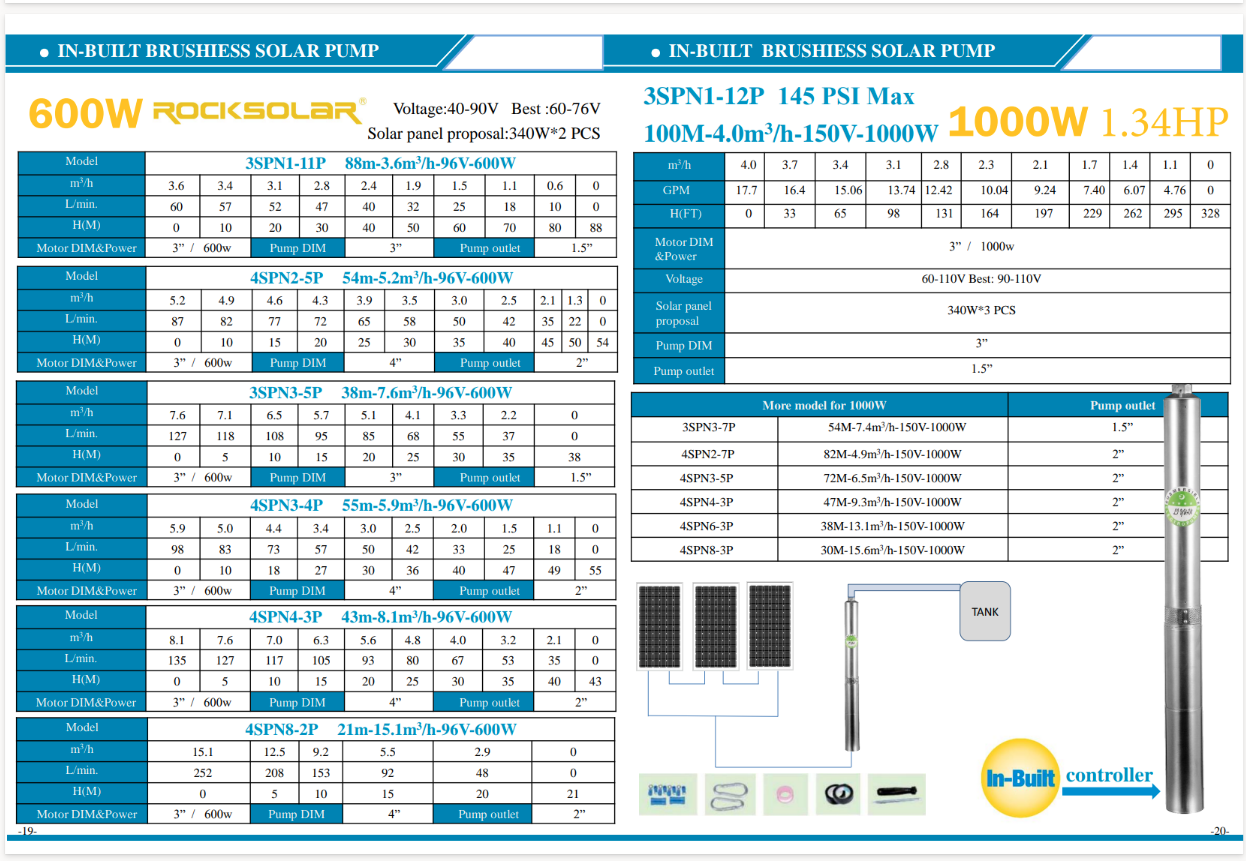

Technical Specifications


Pump Specification Details
Model Rocksolar 1.34HP Brushless Solar Pump with In-Built Controller
Power and Motor 1.34 HP
Voltage Range 60-110V, Best at 90-110V
Solar Panel Compatibility Can be paired with three 440W solar panels
Max Flow Rate 16.51 GPM at 0 meters head
Max Head 328 Ft

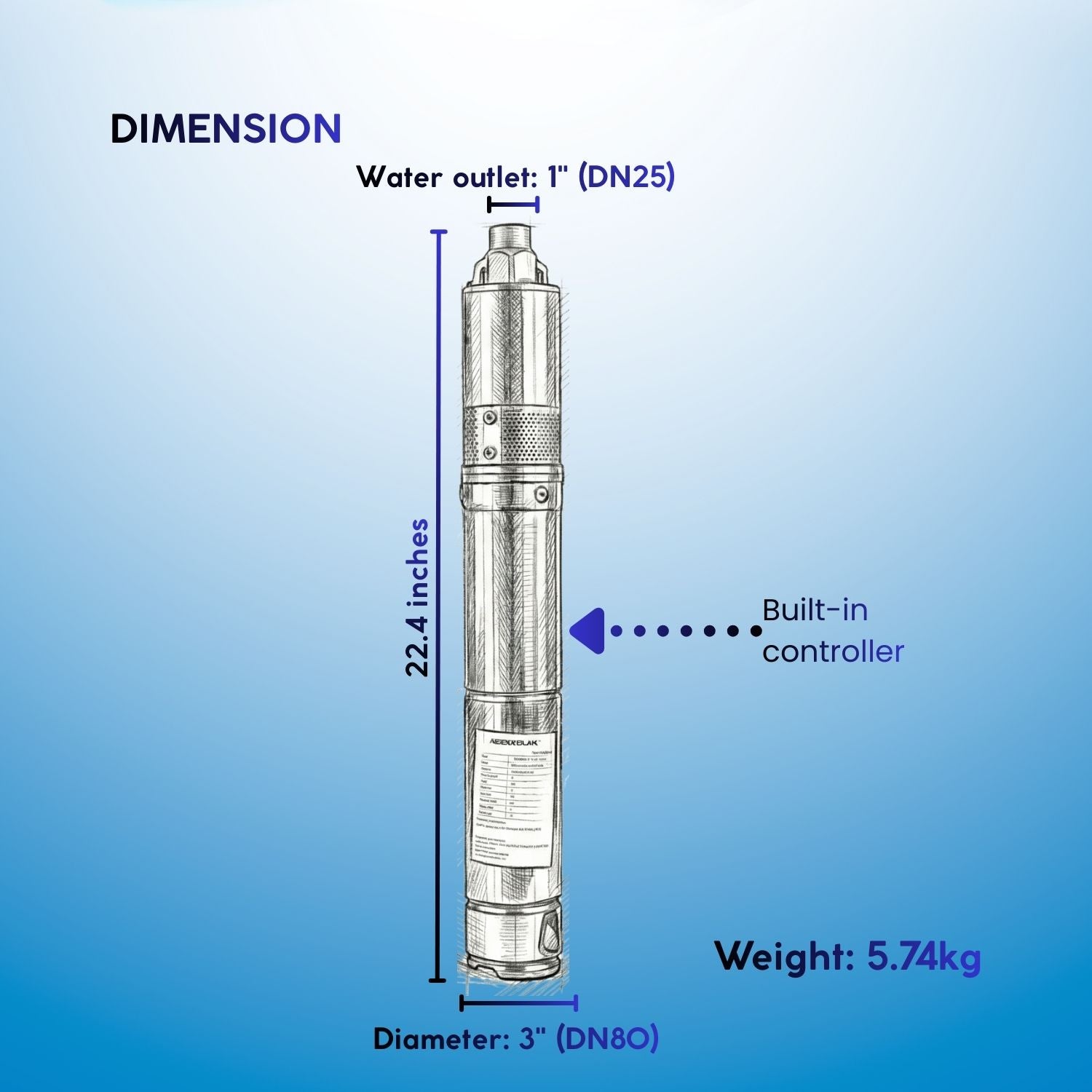

Pump Diameter 3 inches
Pump Outlet 1.5 inches

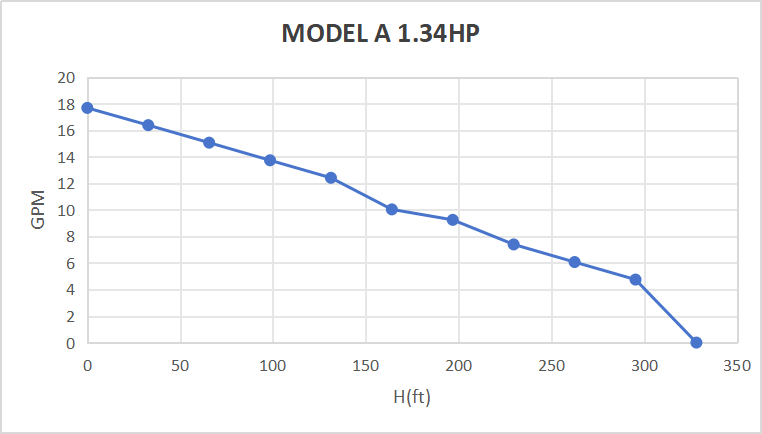

GPM 17.7,16.4,15.06,13.74,12.42,10.04,9.24,7.40,6.07,4.76,0
Height(F) 0,33,65,98,131,164,197,229,262,295,328

Panel Specification Details
Panel Type Monocrystalline Bi facial
Power Output 440W
Cell Efficiency 22.57%
Frame Material Anodized Aluminum
Dimensions 1722mm x 1134mm x 30mm
Weight 22 kg
Operating Temperature -40°C to +85°C
Waterproof Rating IP68
Front Glass Anti-reflective tempered glass
Bypass Diodes Integrated
Connectors MC4
Service Life Over 30 years
Warranty 12 years
