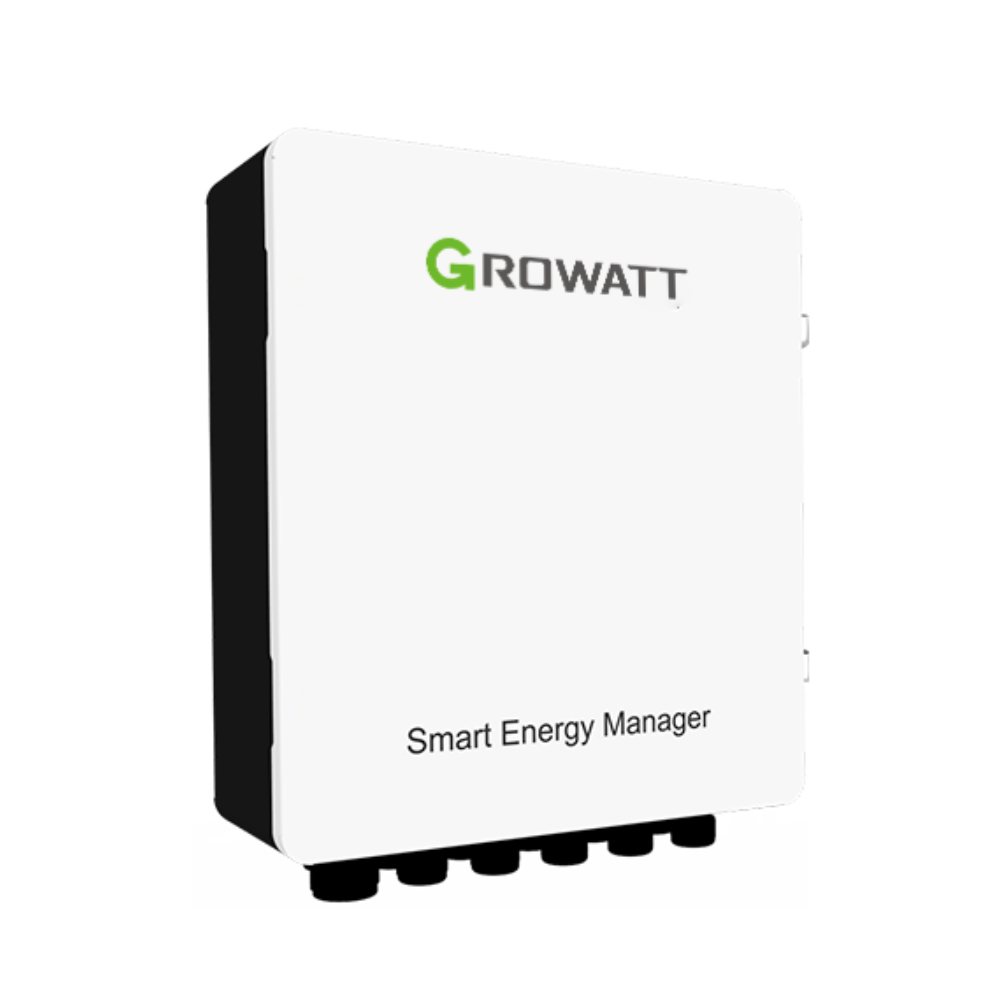

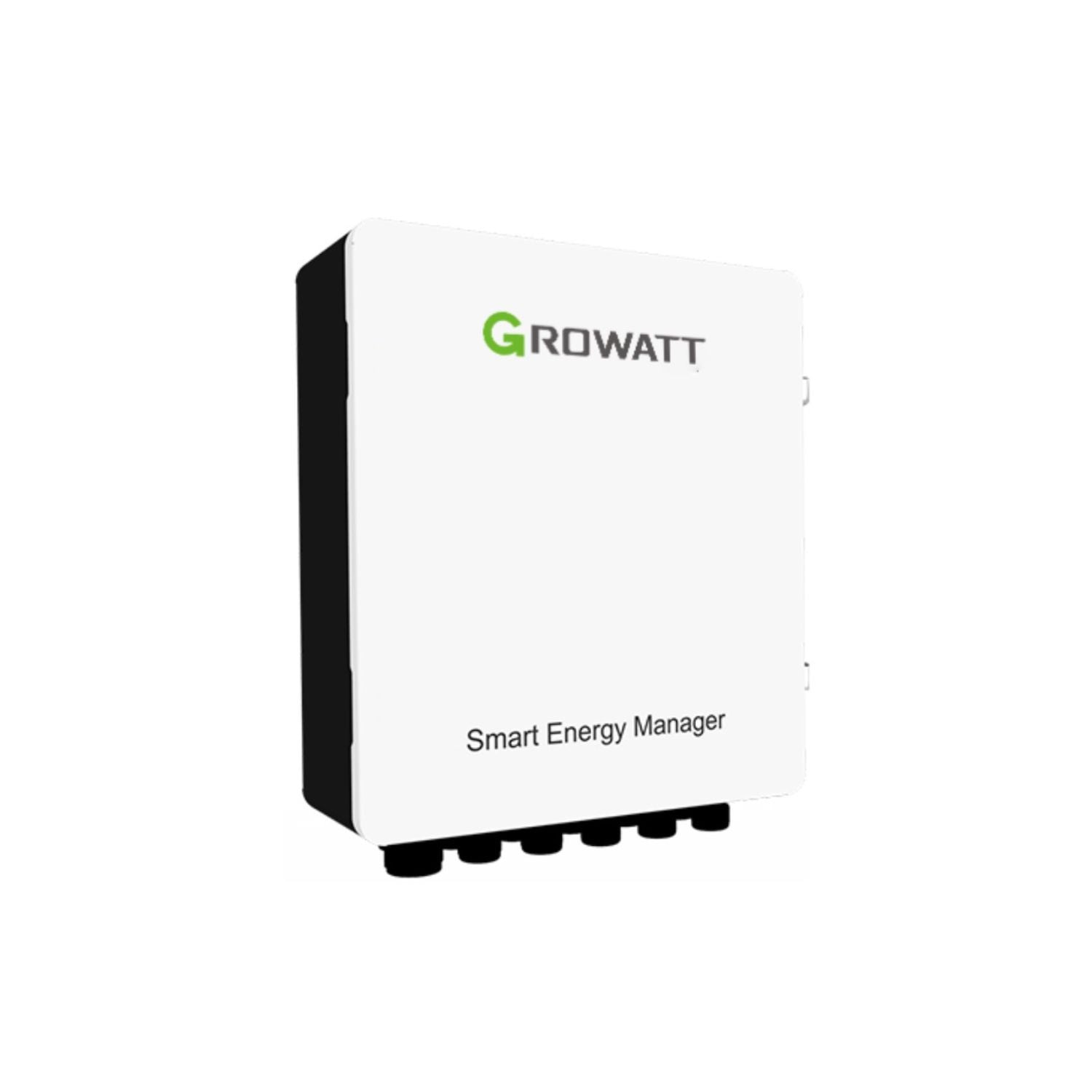

100kW Smart Energy Manager ShineSEM-X-RM

100kW Smart Energy Manager ShineSEM-X-RM

$5,599.99 CAD
$6,999.99 CAD $5,599.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • Optimized for 100KW Systems: Perfect for small to medium-sized commercial setups.
  • Robust Connectivity: Includes RS485, Ethernet, with optional PLC for advanced integration.
  • IP66 Rated: Reliable in extreme temperatures and certified for high altitudes.
  • Accurate Monitoring: Supports a wide voltage range and detects up to 600A for precise management.
  • Compact Design: Easy to install and integrate, designed specifically for indoor use.
Shipping

Free
Local Shipping

Warranty

1-year Hassle Free
Warranty

Support

Lifetime Customer
Support
Afficher tous les détails
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Product Spotlight: 100kW Smart Energy Manager ShineSEM-X-RM

Introducing the 100kW Smart Energy Manager ShineSEM-X-RM, a flagship solution by ROCKSOLAR Canada, designed to redefine the efficiency and intelligence of commercial and industrial energy management systems. This compact yet powerful device is engineered to optimize energy usage, ensuring maximum efficiency and sustainability for businesses.

Key Features:

  • Optimized System Size: Specifically configured for systems requiring up to 100kW, making it perfect for small to medium-sized commercial applications.
  • High-End Communication: Equipped with RS485 and Ethernet connectivity options, and an optional PLC for enhanced communication capabilities.
  • Exceptional Environmental Tolerance: With an IP66 (NEMA 4X) rating, it operates reliably within a temperature range of -22°F to +149°F (-30°C to +65°C), suited for a variety of climatic conditions.
  • Advanced Metering: Features nominal input voltages of 208V/220V/400V/480V/540V, with an input voltage range of 187V-594V, ensuring accurate energy monitoring and management.

Technical Specifications:

  • Dimensions: 398mm (W) x 450mm (H) x 158mm (D), providing a compact footprint for easy integration into existing setups.
  • Weight: 13.5kg (29.7lbs), facilitating straightforward installation and maintenance.
  • Operational Altitude: Certified for use at altitudes up to 4000m (13123ft), ensuring versatility across various geographical locations.
  • Maximum Current Detection: Capable of detecting up to 600A, with a maximum input current of 5A on the CT secondary side, complemented by an accuracy rating of 0.5.

The 100kW Smart Energy Manager ShineSEM-X-RM is not just a product but a comprehensive energy solution that empowers businesses to monitor, control, and optimize their energy consumption with unparalleled precision and ease. Embrace the future of energy management with ROCKSOLAR Canada's innovative technology.

    • 1x 100kW Smart Energy Manager ShineSEM-X-RM: The core unit designed for optimizing energy management in commercial and industrial settings.
    • 1x Installation Manual: Detailed documentation providing step-by-step instructions for installing, operating, and maintaining the Smart Energy Manager to ensure optimal performance.
    • 1x Communication Interface Kit: Includes RS485 and Ethernet cables for seamless integration and connectivity with existing energy management systems.
    • 1x Accessory Kit: All necessary mounting hardware and connectors required for a secure and compliant installation.
    • 1x Warranty and Registration Card: Information on registering your product and details on the comprehensive warranty coverage to protect your investment.

Technical Specifications


Specification Details
System Size 100KW
Communication RS485, Ethernet, Optional PLC, Optional Ring Network Switch
Max. Inverter Number 9PCS
Communication Distance RS485: 1000m, Ethernet Cable: 100m
Dimensions (W/H/D) 398/450/158mm (15.66*17.71*6.22 inches)
Weight 13.5kg (29.7lbs)
Operation Temperature Range -22°F to +149°F (-30°C to +65°C)
Protection Rating IP66 (NEMA 4X)
Relative Humidity 5%-95% no-condensing
Placement Indoor
Altitude 13123ft (4000m)
Nominal Input Voltage 208V/220V/400V/480V/540V
Input Voltage Range 187V-594V
Normal Input Frequency 50/60Hz
Max. Current (CT Detection) 600A
Max. Input Current (CT Second Side) 5A
Accuracy (@Rated CT Current) 0.5


The 100kW Smart Energy Manager ShineSEM-X-RM is designed to manage systems up to 100KW, making it ideal for small to medium-sized commercial energy management applications.

It supports RS485 and Ethernet for basic communication needs, with optional PLC and a Ring Network Switch for advanced connectivity and integration capabilities.

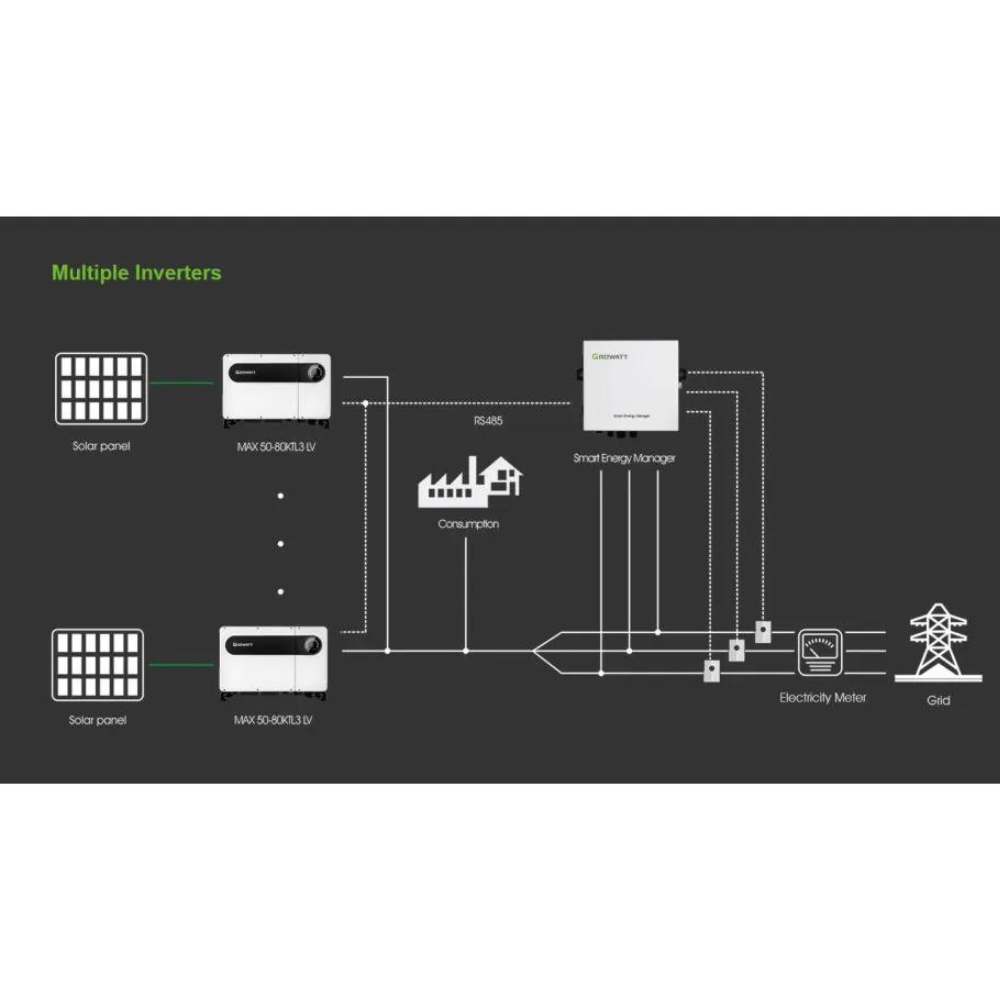

The ShineSEM-X-RM can support up to 9 inverters, allowing for comprehensive energy management across multiple units.

It operates effectively within a temperature range of -22°F to +149°F (-30°C to +65°C), ensuring reliability under various environmental conditions.

With an IP66 (NEMA 4X) protection rating, it is well-protected against dust and water, suitable for indoor use in demanding conditions.

Yes, it is certified for use at altitudes up to 13123ft (4000m), accommodating a range of installation locations.

It features maximum current detection up to 600A for the CT detection side, with a max. input current of 5A on the CT secondary side, ensuring accurate energy management.


Download Product Manual (PDF)
