ROCKSOLAR 2000W 24V Off-Grid Solar System
ROCKSOLAR 2000W 24V Off-Grid Solar System

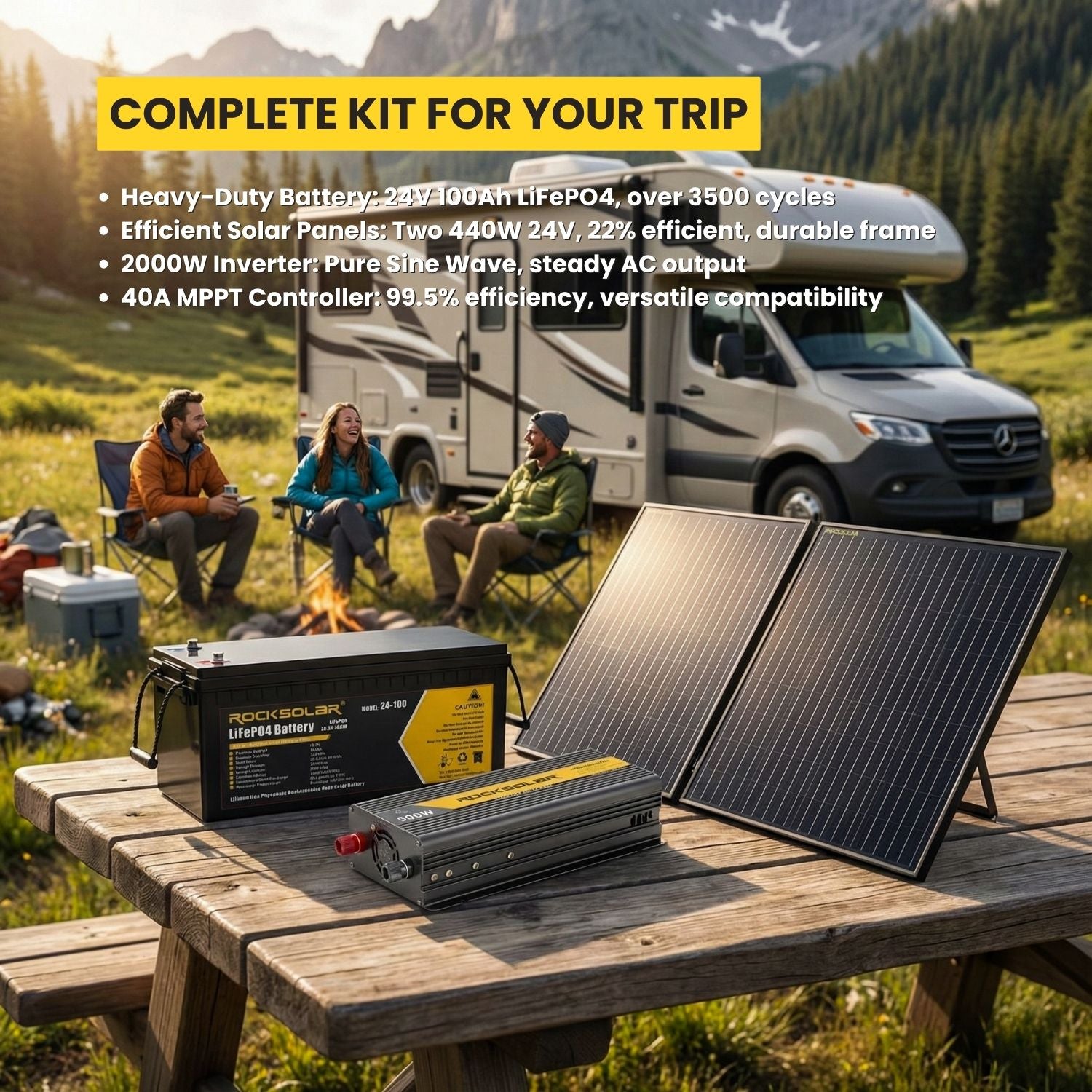

- Power System: 24V 100AH battery, two 440W philadelphia panels, 40A charge controller, 2000W inverter.
- Heavy-Duty Battery: 24V 100Ah LiFePO4, over 3500 cycles.
- Efficient Solar Panels: Two 440W 24V, 22% efficient, durable frame.
- 2000W Inverter: Pure Sine Wave, steady AC output.
- 40A MPPT Controller: 99.5% efficiency, versatile compatibility.
- Weatherproof Panels: Waterproof, corrosion-resistant.
- Protected Battery: BMS for safety in various conditions.
- Multiple Uses: Perfect for off-grid needs.
- 10-Year Warranty: Battery and panels covered.
- Simple Install: Pre-drilled panels, easy guidelines.
- Upgradeable: Ready for future expansion.
- Wide Temperature Range: Battery -20°C to 60°C, Controller -20°C to 55°C.
Free
Local Shipping
10-year Hassle Free
Warranty
Lifetime Customer
Support
Impossible de charger la disponibilité du service de retrait
- Description
- Includes
- Specifications
- FAQ
- Downloads
- Reviews
The ROCKSOLAR 2000W 24V Off-Grid Solar System is the supreme power solution for cottage owners in Canada. Specifically designed for unmatched reliability and efficiency, this system guarantees constant off-grid power whenever you need it. This comprehensive system includes five key components: a 24V 100AH LiFePO4 Battery, 2 X 440W Rigid Solar Panels, a 40A MPPT Solar Charge Controller, and a powerful 24V 2000W Pure Sine Wave Inverter. Engineered to deliver consistent power to crucial devices like a mini fridge, freezer, LCD TV, wifi routers, coffee machine, microwave, lighting, stereo, laptop, and phone chargers, this system provides a 24/7 power supply to meet all your needs. Perfect for all-year-round usage, the ROCKSOLAR 2000W 24V Off-Grid Solar System ensures a dependable power source that you can trust. The 24V 100AH LiFePO4 Battery and 440W Rigid Solar Panels come with an impressive 10-year warranty, while the other components are covered for 1 year. This off-grid solar system is also designed to be future-proof, offering easy upgrade services and interchangeable key components. ROCKSOLAR ensures that all components hold their value, so you can get the most from your investment. With the ROCKSOLAR 2000W 24V Off-Grid Solar System, enjoy a life of power independence at your cottage. Experience the convenience of 24/7 power and the confidence of a reliable system with a long-term warranty.
Product Features

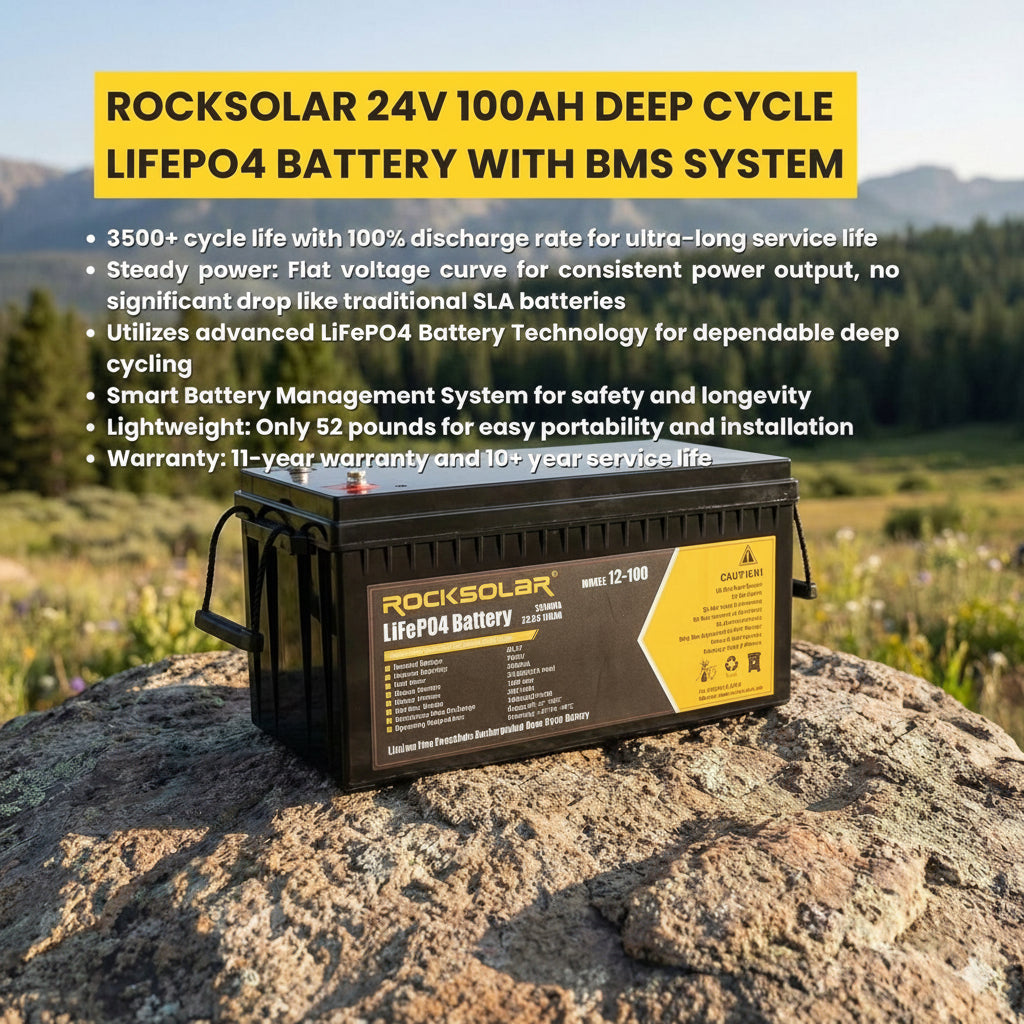

ROCKSOLAR 24V 100Ah Deep Cycle LiFePO4 Battery with BMS System:
- 24V 100AH capacity
- 3500+ cycle life with 100% discharge rate for ultra-long service life
- Steady power: Flat voltage curve for consistent power output, no significant drop like traditional SLA batteries
- Utilizes advanced LiFePO4 Battery Technology for dependable deep cycling
- Smart Battery Management System for safety and longevity
- Lightweight: Only 52 pounds for easy portability and installation
- Suitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.

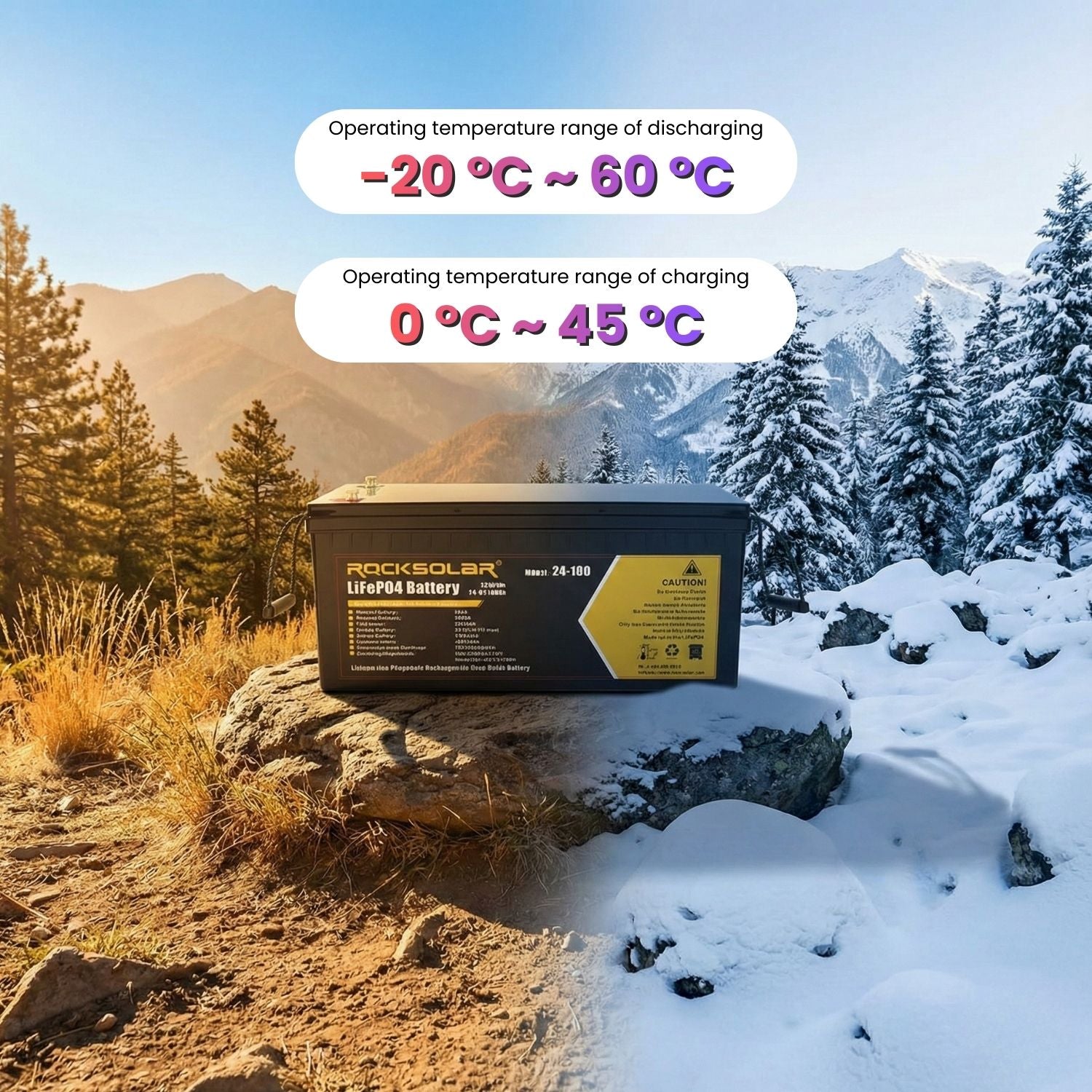

- Operating temperature range for charging: 0C∽45C, discharging: -20~-60. BMS auto-shuts off the battery outside the working temperature.
- Warranty: 11-year warranty and 10+ year service life

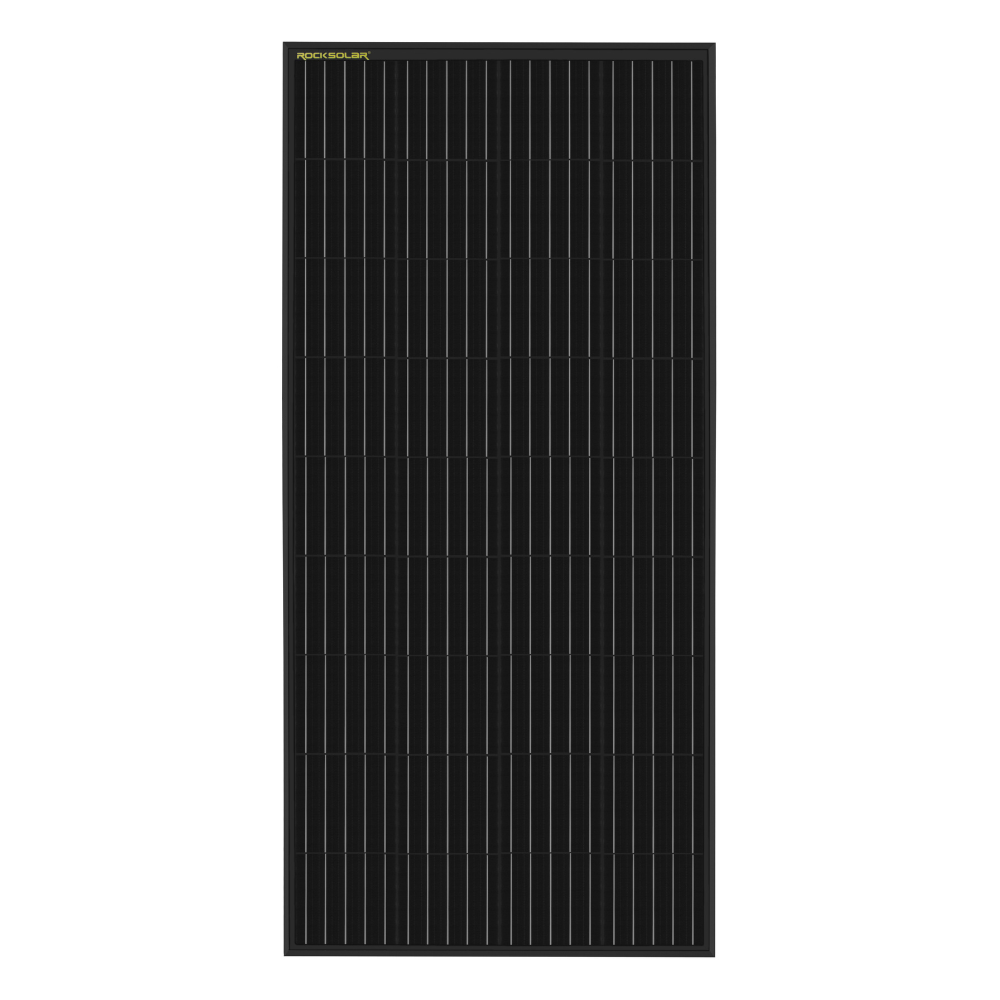

440W Bifacial Solar Panel

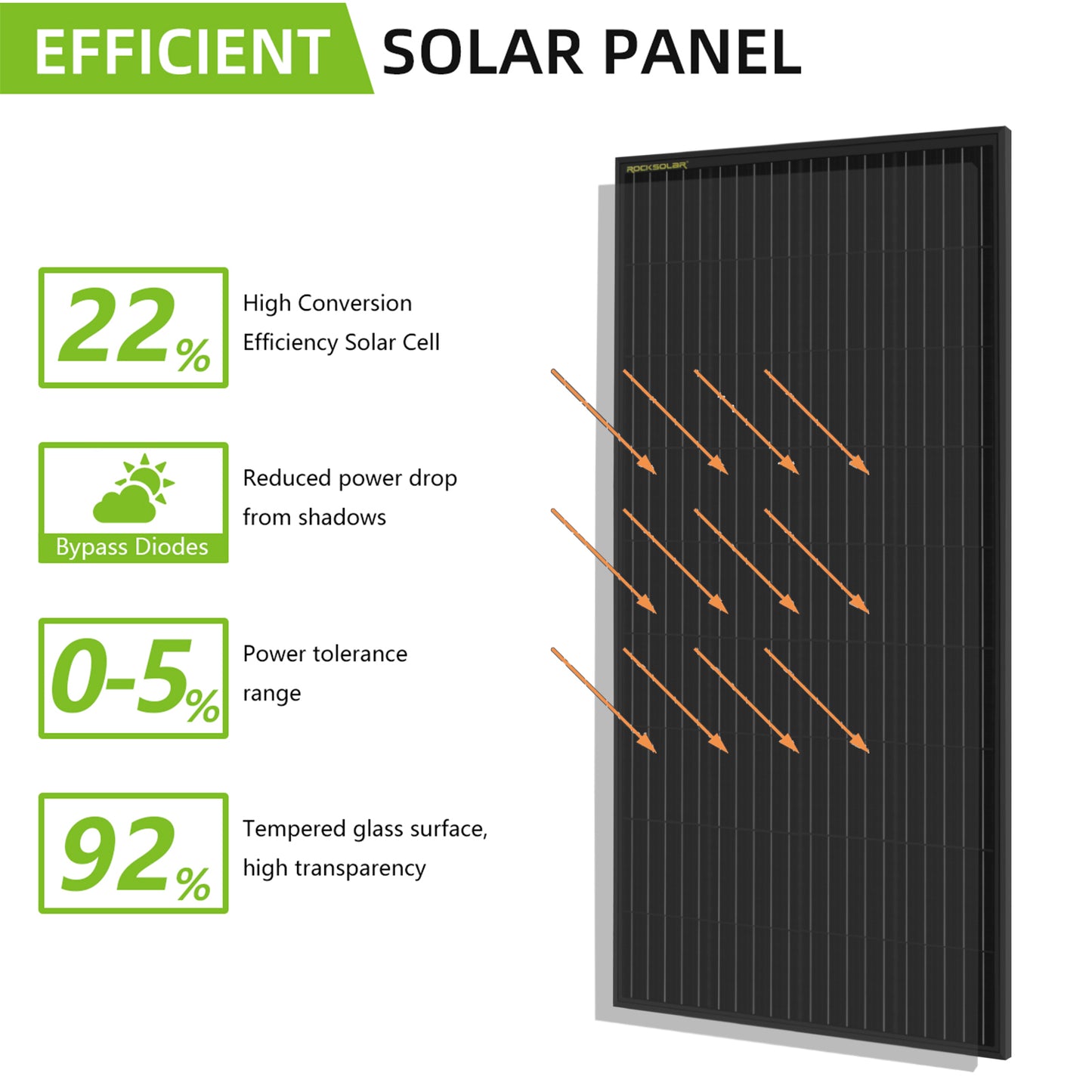

- High-efficiency Monocrystalline Cells: These solar cells offer outstanding performance in low light conditions, providing a higher energy output compared to polycrystalline cells.
- 440W Power Output: Each solar panel generates 440 watts of power, ideal for a wide range of applications, including RVs, boats, cabins, and off-grid systems.
- Rigid Aluminum Frame: Each panel features a durable, corrosion-resistant aluminum frame that assures long-lasting performance and easy mounting.

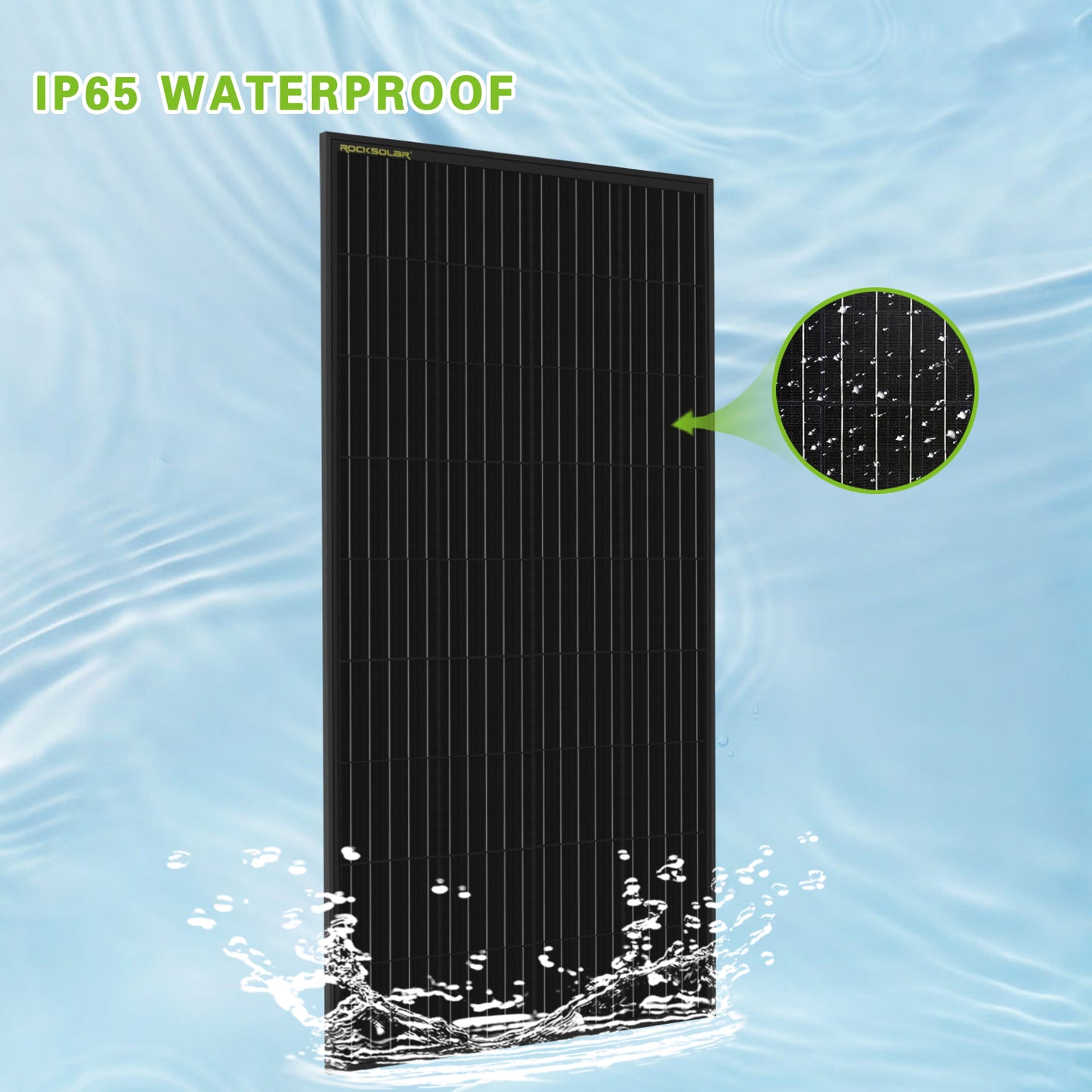

- Weather-Resistant Design: Built to endure harsh environmental conditions, these panels can withstand heavy rain, snow, and strong winds.
- High Light Transmittance Glass: Each panel features high-quality, low-iron tempered glass, offering excellent light transmittance and improved energy output.
- Pre-Drilled Mounting Holes: For easy mounting and installation, each panel comes with pre-drilled holes.
- Bypass Diodes: Integrated bypass diodes minimize the effect of shading on panel performance, ensuring consistent energy output.
- MC4 Connectors: Each solar panel is equipped with industry-standard MC4 connectors for easy and secure connections to your solar system.
- Long Service Life: Monocrystalline solar panels are renowned for their long lifespan, typically providing over 30 years of service with proper maintenance.
- Easy Installation: These solar panels can be conveniently installed on various mounting systems, including roof, ground, and pole mounts.
- Eco-friendly Power Source: Solar energy is a clean, sustainable, and environmentally friendly way to generate electricity, reducing your carbon footprint.

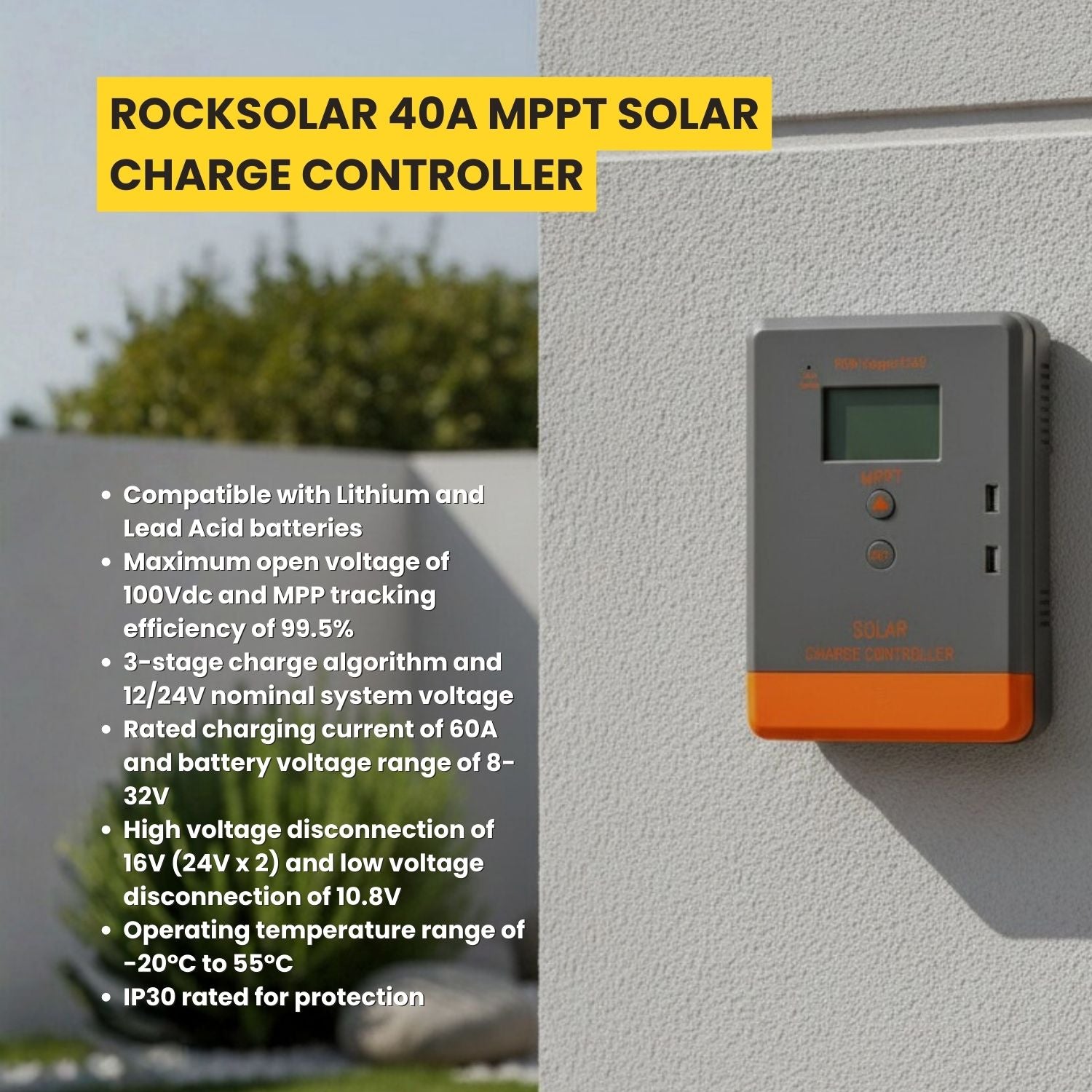

ROCKSOLAR 40A MPPT Solar Charge Controller:
- 40A MPPT Solar Charge Controller
- Compatible with Lithium and Lead Acid batteries
- Maximum open voltage of 100Vdc and MPP tracking efficiency of 99.5%
- 3-stage charge algorithm and 12/24V nominal system voltage
- Rated charging current of 60A and battery voltage range of 8-32V
- High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V
- Operating temperature range of -20°C to 55°C
- IP30 rated for protection

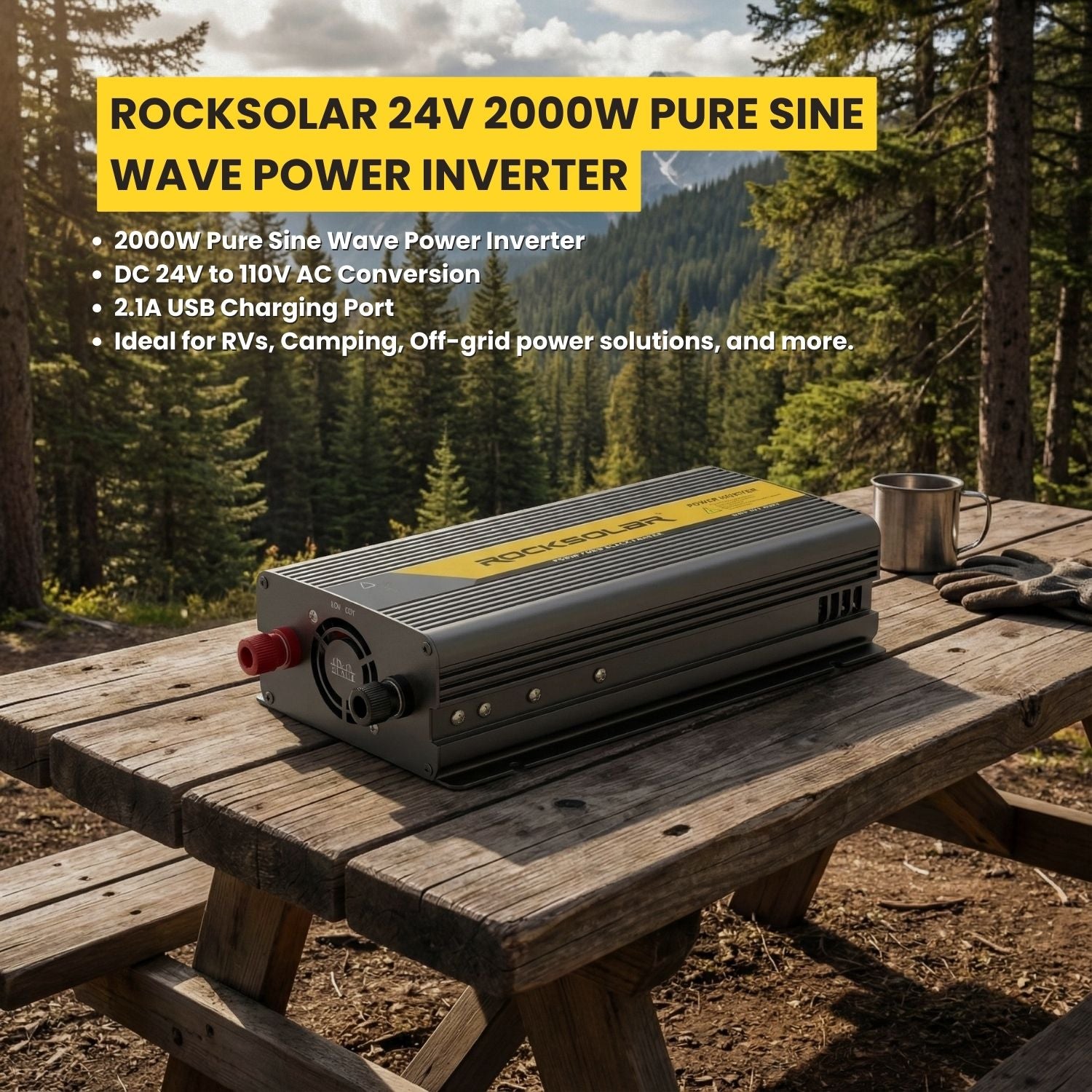

ROCKSOLAR 24V 2000W Pure Sine Wave Power Inverter:
- 2000W Pure Sine Wave Power Inverter
- DC 24V to 110V AC Conversion
- 2.1A USB Charging Port
- Ideal for RVs, Camping, Off-grid power solutions, and more.

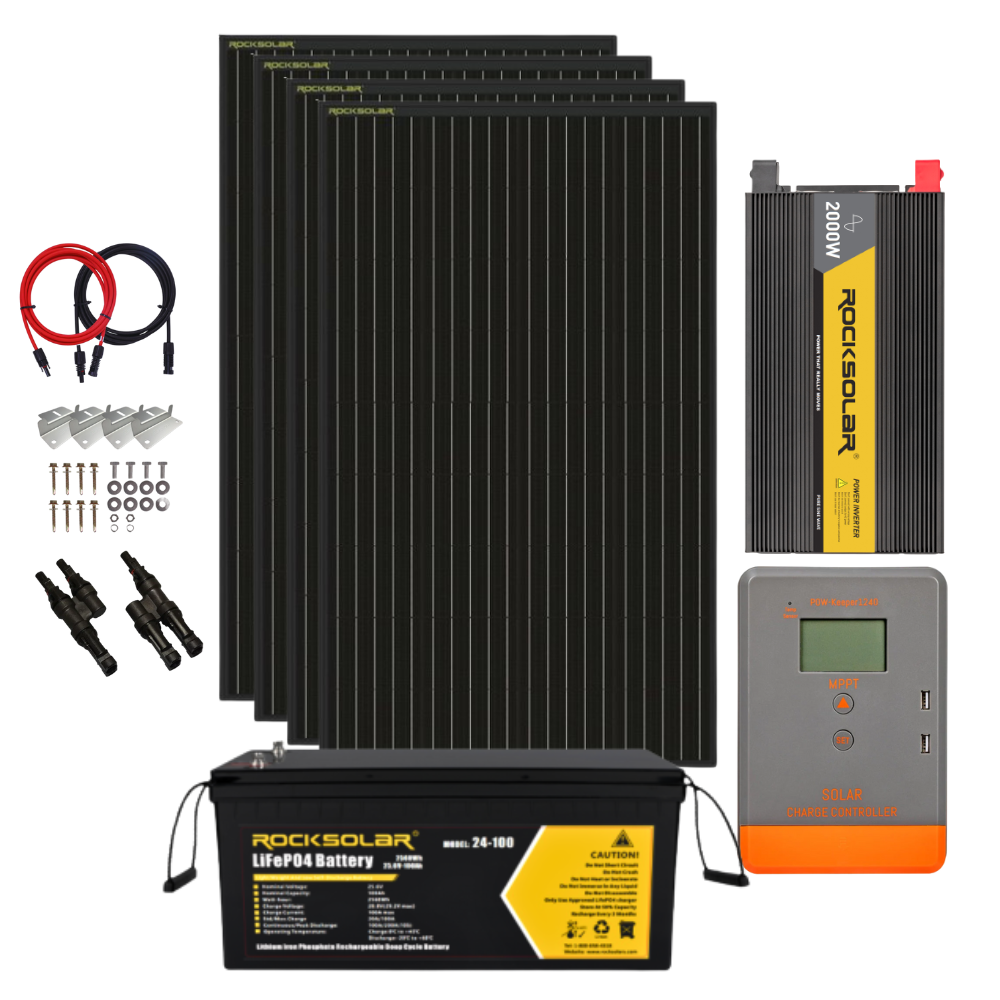

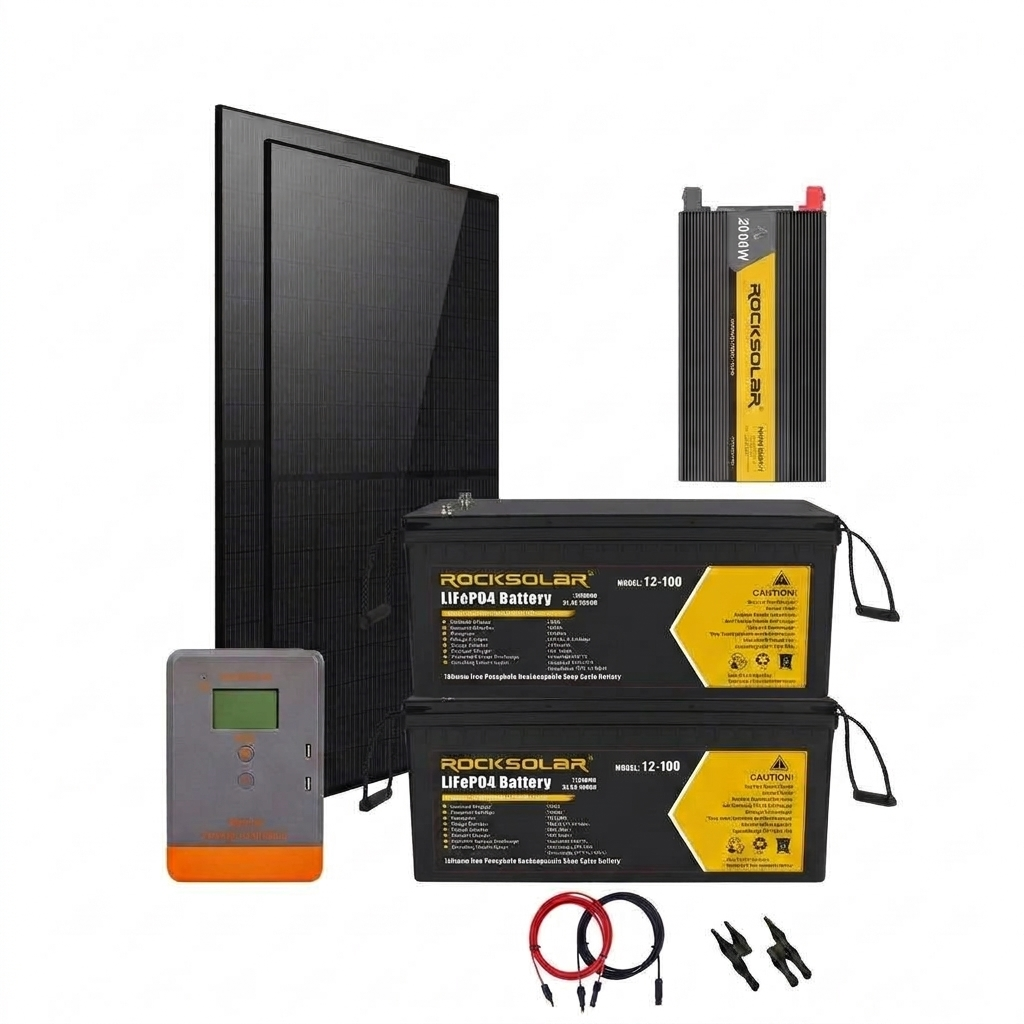

- 1 x 24V 100Ah Deep Cycle LiFePO4 Battery
- 2 x 440W 24V Rigid Philadelphia Solar Panel
- 1 x 24V 2000W Pure Sine Wave Power Inverter
- 1 x 40A MPPT Solar Charge Controller
- 1 x 10 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black

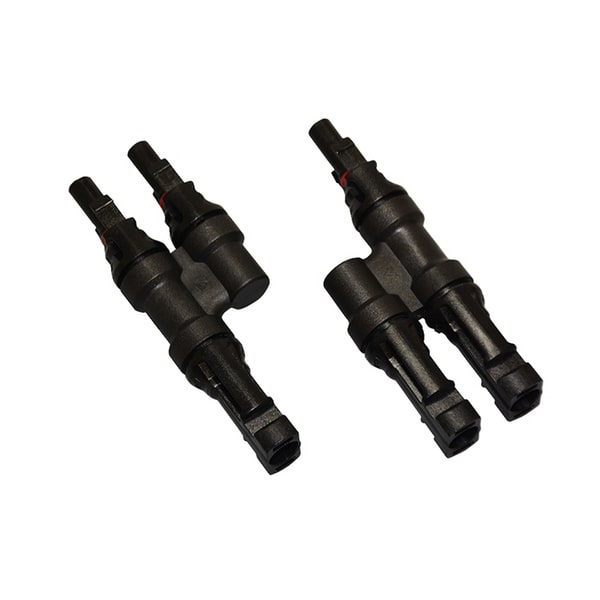

- 1 x Y Connector
- 2 x Z-Bracket Mount System (Set of 4)
- 1X DC Circuit Breaker
- 1 x User Manual
Technical Specifications
| 24V 100Ah Deep Cycle LiFePO4 Battery | Details |
|---|---|
| Nominal capacity | 100.0Ah |
| Mix. capacity | 98.0Ah |
| Nominal energy | 2560Wh |
| Combination structure of battery | 8S |
| Nominal voltage | 25.6V |
| End of discharge voltage | 21.6V |
| Standard charge voltage | 29.2±0.2V |
| Float charge voltage | 27.6V |
| Standard charge current | 20A |
| Recommended charge current | ≤50A |
| Allowed Max. charge current | 100A |
| Standard discharge current | 20A |
| Recommended discharge current | ≤100A |
| Allowed Max. discharge current | 100A |
| Peak discharge current | 200A,10Sec |
| Internal Resistance | ≤40mΩ |
| Weight | Approx. 24.0kg |
| Ex-factory capacity | Approx.50% SOC |
| Operation temperature | Discharge: -20°C~60°C; Charge: 0°C~45°C |
| Storage environment |
≤1Month:-20~+60°C、5~75%RH; ≤6Month: -10~+45°C、5~75%RH; Recommend environment: 15~+35°C、5~75%RH |
| 12V 200W Rigid Philadelphia Solar Panel | Details |
|---|---|
| Rated Power | 200W |
| Type | Mono-crystalline silicon |
| System Voltage | 24V |
| Cell Efficiency | 20-22% |
| Frame Material | Aluminum |

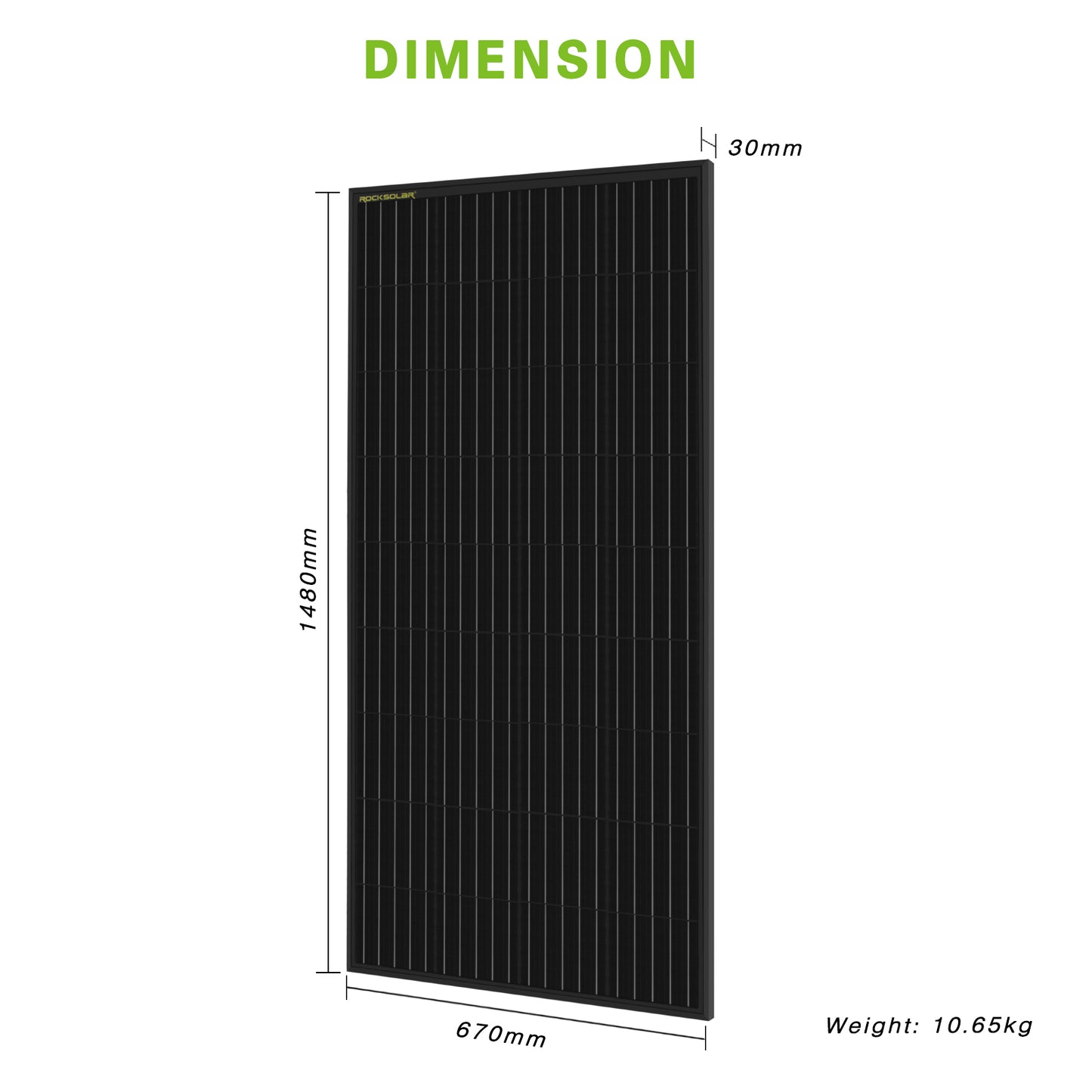

| Dimensions | 1480X680X30mm |
| Weight | approx. 8.30kg |
| Operating Temperature | -20~70 °C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
| Warranty | 10 Year |
| 40A MPPT Solar Charge Controller | Details |
|---|---|
| Max Open Voltage of PV Module | 100Vdc |
| MPP Tracking Efficiency | 99.50% |
| Light Control Voltage | 5V |
| Charge Algorithm | 3 Stage |
| Battery Type | Lithium and Lead Acid Battery |
| Nominal System Voltage | 12/24V |
| Rated Charging Current | 40A |
| Battery Voltage Range | 8~32V |
| High Voltage Disconnection | 16V (24V x 2) |
| Duration for absorption charging | 2 hours |
| Charge Loop Voltage Drop | ≤0.29V |
| Self-consumption | ≤ 9.2mA 12V; ≤ 11.7mA 24V |
| Equalized Charging Voltage | AGM: 14.6V; GEL: No; FLd: 14.8V |
| Absorption Charging voltage | AGM: 14.4V; GEL: 14.2; FLd: 14.6V |
| Floating Charging voltage | AGM/ GEL/ FLd: 13.8V |
| Low Voltage re-connection (LVR) | AGM/ GEL/ FLd: 12.6V |
| Low Voltage Disconnection (LVD) | AGM/ GEL/ FLd: 10.8V |
| Operating Temperature Range | -20℃~55℃ (To run at full rated current continuously) |
| LCD Temperature Range | -20℃~70℃ |
| Humidity Range | ≤95% No condensation |
| Protection Class | IP30 |
| Dimension | 123*178*48 |
| Installation Hole | 108*120 ∅5 |
| Warranty | 1 Year |
| 24V 2000W Pure Sine Wave Power Inverter | Details |
|---|---|
| Rated power | 2000W |
| AC Voltage | 120V |
| Frequency | 60HZ |
| Resistive Load Continuous Output Power | 2000W |
| Inductive Load Continuous Output Power | 1500W The pump can start normally (beyond which protection may be possible without damaging the inverter) |
| Capacitive Load Continuous Output Power | 940±30W，PF：0.7 Tri-color energy saving lamp, beyond may be protected, but will not cause damage to the inverter) |
| Waveform | Pure Sine Wave |
| Waveform Distortion（THD) | ≤5% |
| Voltage range | 9～17Vdc; 18V～32V |
| Battery Voltage | 12Vdc; 24Vdc |
| DC Current | 198.4A（Load 1000W when entering 12Vdc; 47.9A（Load 1000W when entering 24Vdc) |
| No Load Loss | 1A; 0.6A |
| Shutdown mode static current | 1mA |
| Maximum efficiency | 90% |
| Battery type | All 12V batteries |
| Insurance slice | 300A*2 |
| Battery Low Voltage Alarm | 9.5/10/10.5/11/11.5/12/12.5V，Buzzer alarm, LED display E06 |
| Battery Low Voltage Alarm Recovery | 10/10.5/11/11.5/12/12.5/13V |
| Battery Low Voltage Protection | 9/9.5/10/10.5/11/11.5/12V (Set through menu)，LED display shows E01, automatic shutdown after 30S |
| Battery Low Voltage Protection Recovery | Recovery voltage within 30S：11/11.5/12/12.5/13/13.5/14V |
| Battery High Voltage Protection | 17V，LED display shows E02, automatic shutdown after 30S |
| Battery High Voltage Protection Recovery | Recovery voltage within 30S：16.5V |
| Over Temperature | Buzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted output |
| Output Short Circuit | Buzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30S |
| Overload | Over 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S |
| Overload | Over 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S |
| USB Output Voltage | 5V |
| USB Output Current | 2.1A |
| Working Temperature | -20～40℃ |
| Operating humidity | 10～90%RH |
| Storage temperature, humidity | -30℃～70℃,10～95%RH |
| Weight | Net weight：5.01 kg |
| Size | 420.4*208.9*110 mm(L*W*H) |
| Warranty | 1 Year |
The time it takes to fully charge the 24V 100Ah LiFePO4 Battery depends on the charging source. With the four included 150W solar panels under ideal sunlight conditions, it can be fully charged in approximately 6-7 hours. Charging times will vary based on weather conditions and the amount of sunlight available.
The ROCKSOLAR 2000W 24V Off-Grid Solar System can power a range of appliances, including a mini fridge, freezer, LCD TV, wifi routers, coffee machine, microwave, lighting, stereo, laptop, and phone chargers. The duration will depend on the power consumption of each device and the amount of stored power in the system.
Yes, the ROCKSOLAR 2000W 24V Off-Grid Solar System is designed with future upgrades in mind. You can add more solar panels or batteries as needed. ROCKSOLAR provides free upgrade services and ensures that all components retain their value, so you can expand your energy independence with confidence.
