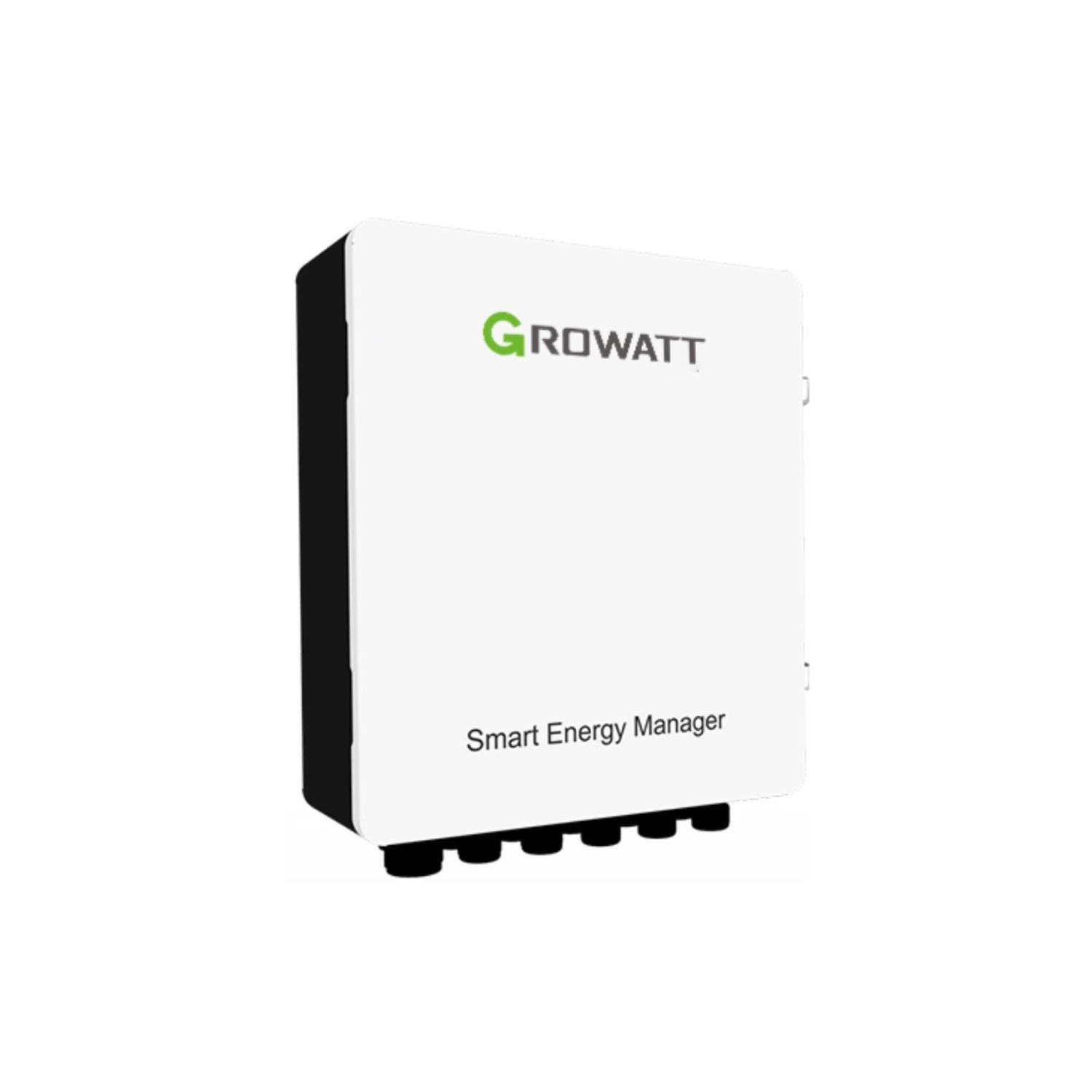

300kW Smart Energy Manager ShineSEM-X-RM

300kW Smart Energy Manager ShineSEM-X-RM

$5,999.99 CAD
$7,999.99 CAD $5,999.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • 300KW Management: Tailored for large-scale commercial and industrial energy systems, optimizing efficiency and performance.
  • Flexible Connectivity: Features RS485 and Ethernet, with optional PLC and Ring Network Switch for advanced system integration.
  • Robust Environmental Tolerance: IP66 (NEMA 4X) rating ensures reliable operation in temperatures from -22°F to +149°F (-30°C to +65°C) and at high altitudes.
  • Accurate Monitoring: Capable of detecting currents up to 2000A, ensuring precise energy management.
  • Designed for Indoor Use: Perfect for indoor installations, operating optimally within a 5%-95% non-condensing humidity range.
Shipping

Free
Local Shipping

Warranty

1-year Hassle Free
Warranty

Support

Lifetime Customer
Support
Afficher tous les détails



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Explore the 300kW Smart Energy Manager ShineSEM-X-RM

Introducing the 300kW Smart Energy Manager ShineSEM-X-RM, a pivotal solution by ROCKSOLAR Canada designed for the next level of commercial and industrial energy management. This device is tailored to empower businesses with unparalleled efficiency and control over their energy systems, ideal for larger operations seeking to optimize energy usage and sustainability.

Distinguished Features:

  • High-Capacity Management: Configured for systems requiring up to 300kW, this Smart Energy Manager is suited for substantial commercial and industrial applications.
  • Enhanced Connectivity: Comes equipped with RS485 and Ethernet for seamless system integration, with an optional PLC and Ring Network Switch for expanded communication capabilities.
  • Environmental Resilience: Enclosed in an IP66 (NEMA 4X) rated casing, it ensures reliable performance across temperatures ranging from -22°F to +149°F (-30°C to +65°C), even at altitudes up to 4000m (13123ft).
  • Accurate Energy Monitoring: Features a comprehensive input voltage range of 187V-594V, supporting maximum current detection up to 2000A for precise energy management.

Technical Highlights:

  • Compact and Efficient Design: With dimensions of 398/450/158mm (15.66*17.71*6.22 inches) and weighing just 13.5kg (29.7lbs), it offers a space-saving solution without compromising performance.
  • Reliable Operation: Certified for indoor use, it maintains stability with a relative humidity range of 5%-95% non-condensing, ensuring optimal functionality in diverse settings.

The 300kW Smart Energy Manager ShineSEM-X-RM by ROCKSOLAR Canada stands as a testament to advanced energy management technology, providing businesses with the tools to efficiently manage and optimize their energy consumption for enhanced sustainability and cost savings.

    • 1x 300kW Smart Energy Manager ShineSEM-X-RM: The primary device engineered for optimizing energy usage in larger commercial and industrial settings.
    • 1x Detailed Installation Guide: Comprehensive documentation to assist with the setup, operation, and maintenance, ensuring seamless integration into your energy system.
    • 1x Connectivity Kit: Includes essential cables and interfaces for RS485 and Ethernet, with optional components for PLC connectivity and a Ring Network Switch, enhancing the device’s integration capabilities.
    • 1x Mounting and Installation Hardware: All necessary brackets, screws, and accessories required for secure mounting and installation.
    • 1x Warranty Registration Card: Details for registering your product to activate warranty services, outlining coverage and support options.

Technical Specifications


Specification Details
System Capacity 300KW
Communication Protocols RS485, Ethernet, Optional PLC, Optional Ring Network Switch
Environmental Protection IP66 (NEMA 4X)
Operating Temperature Range -22°F to +149°F (-30°C to +65°C)
Altitude Limit Up to 4000m (13123ft)
Humidity Range 5%-95% non-condensing
Input Voltage Range 187V-594V
Nominal Input Voltage 208V/220V/400V/480V/540V
Maximum Current Detection Up to 2000A for the CT detection side
Dimensions (W x H x D) 398 x 450 x 158 mm
Weight 13.5 kg
Installation Indoor


Designed to manage energy systems up to 300KW, it's perfect for large-scale commercial and industrial applications requiring advanced energy optimization.

It comes with RS485 and Ethernet for standard connectivity, with optional PLC and Ring Network Switch for comprehensive system integration.

Rated IP66 (NEMA 4X), it ensures operation in extreme conditions, from -22°F to +149°F (-30°C to +65°C), even at altitudes up to 4000m (13123ft).

It can detect up to 2000A for the CT detection side, ensuring accurate and reliable energy management for high-capacity systems.

Yes, designed specifically for indoor use, it maintains optimal performance within a relative humidity range of 5%-95% non-condensing.


Download Product Manual (PDF)
