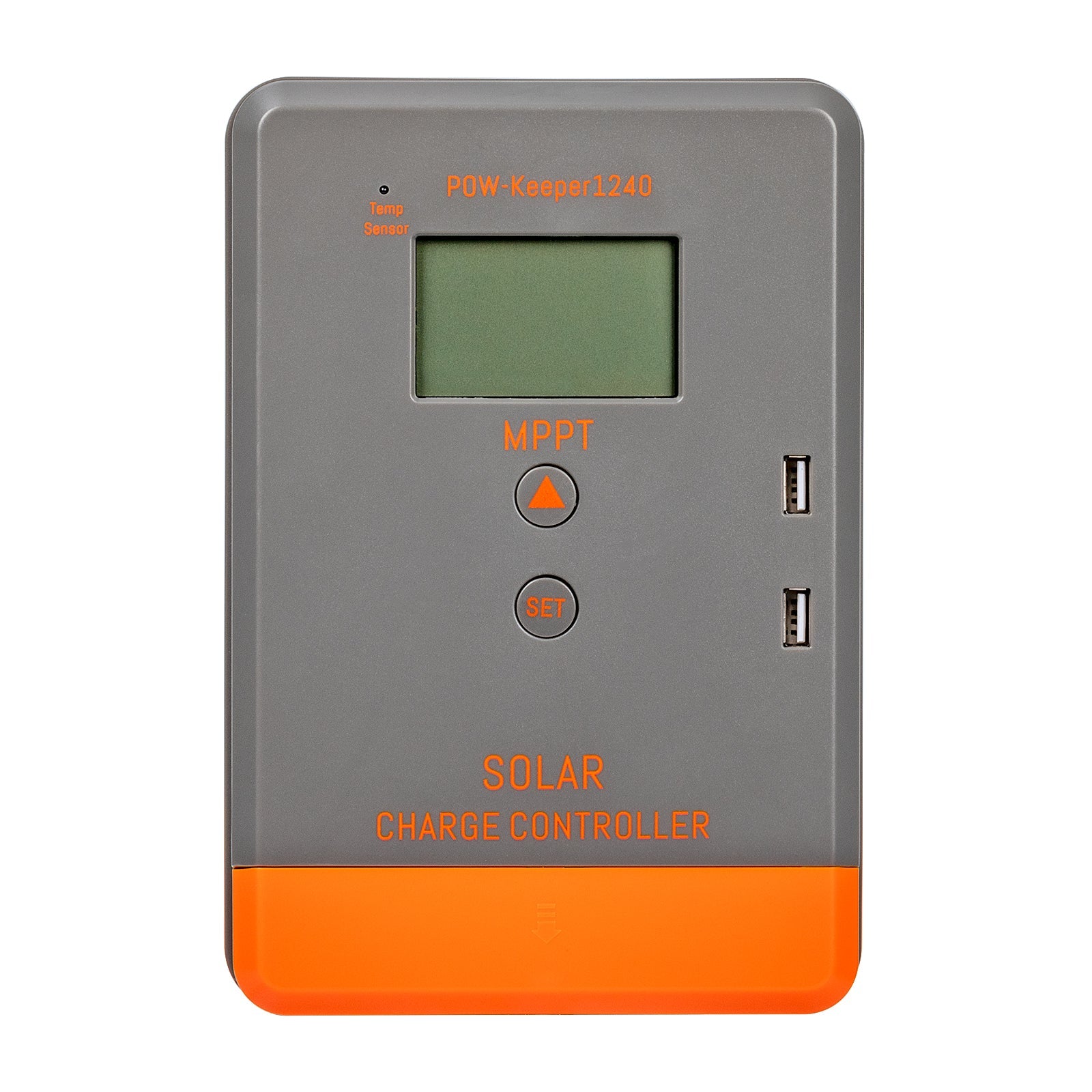

ROCKSOLAR 40A MPPT Solar Charge Controller
ROCKSOLAR 40A MPPT Solar Charge Controller
- 100Vdc Max PV Input: Ideal for diverse solar panel setups.
- 99.5% MPP Efficiency: Ensures optimal power generation.
- 520W/1040W Max PV Power: Suitable for 12V/24V systems.
- 3-Stage Charging Algorithm: Promotes battery health and longevity.
- Lithium & Lead Acid Compatibility: Flexible for various battery types.
- 40A Charging Current: Efficient power management.
- 8-32V Voltage Range: Adapts to a wide array of systems.
- IP30 Protection: Durable in challenging conditions.
- Easy Monitoring: Light control voltage for better management.
- User-Friendly Design: Simplifies installation and operation.
Free
Local Shipping
1-year Hassle Free
Warranty
Lifetime Customer
Support
Impossible de charger la disponibilité du service de retrait
- Description
- Includes
- Specifications
- FAQ
- Downloads
- Reviews
High-Efficiency MPP Tracking: The ROCKSOLAR 40A MPPT Solar Charge Controller stands out with a superior tracking efficiency of 99.5%. This feature ensures optimal power generation from your solar panels in all weather conditions, making the most of available sunlight.
Advanced 3-Stage Charge Algorithm: Utilizing a state-of-the-art 3-stage charging process, the controller optimizes battery health and longevity. This intelligent algorithm efficiently manages the charging cycle, providing a safe and effective way to maintain your batteries.
Versatile Battery Compatibility: Designed to support a wide range of battery types, this controller is compatible with both Lithium and Lead Acid batteries. Its versatility makes it an ideal choice for various solar power systems, from residential setups to mobile applications.
Wide Operating Voltage Range: With a battery voltage range of 8-32V and a nominal system voltage of 12/24V, this controller caters to a broad spectrum of solar power requirements. The high voltage disconnection feature at 16V (24V x 2) adds an extra layer of safety and compatibility.
Light Control for Easy Management: The controller's light control voltage of 5V allows for straightforward monitoring and management of the charging process, ensuring your system operates at peak efficiency.
Durable and Reliable Construction: The IP30 protection rating of the charge controller ensures it is well-guarded against dust and moisture ingress. This robust build quality translates to enhanced durability and a longer lifespan for the unit.

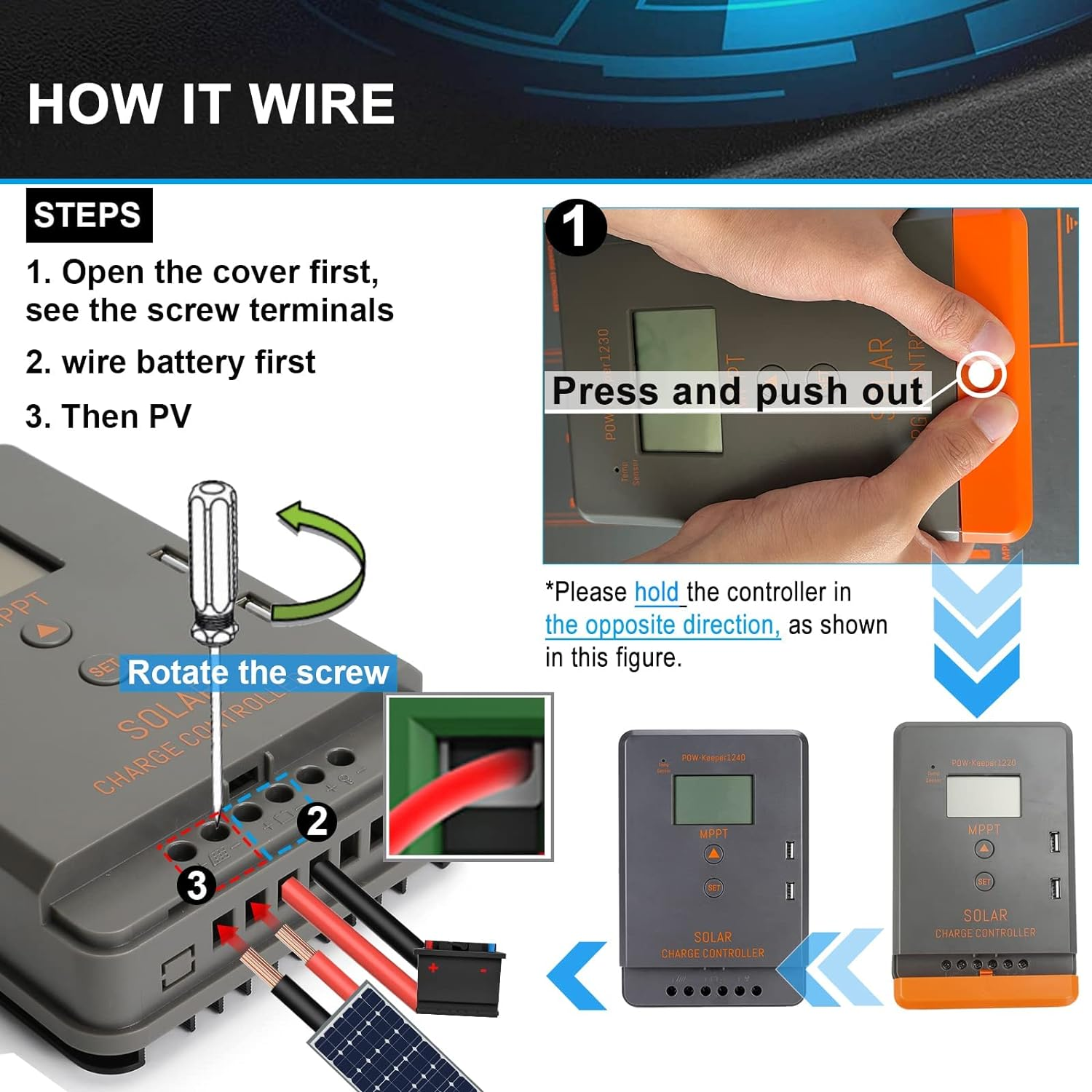

User-Friendly Installation and Operation: Designed with simplicity in mind, the ROCKSOLAR 40A MPPT Solar Charge Controller is easy to install and operate. Whether you're a solar power novice or an experienced user, this controller offers a hassle-free solution to meet your solar charging needs.
- 1x ROCKSOLAR 40A MPPT Solar Charge Controller: Efficiently manages solar power for optimal battery charging and longevity.
- 1x User Manual: Detailed instructions for setup, operation, and maintenance, ensuring you get the most out of your solar charge controller.
Technical Specifications
| Specification | Details |
|---|---|
| Model | POW-Keeper1240 |
| PV Input | Max Open Voltage of PV Module: 100Vdc |
| MPP Tracking Efficiency | 99.50% |
| MAX PV POWER | 520W for 12V system, 1040W for 24V system |
| Charge Mode | 3 Stage Charge Algorithm |
| Battery Type | Lithium and Lead Acid Battery |
| Nominal System Voltage | 12/24V |
| Rated Charging Current | 40A |
| Battery Voltage Range | 8~32V |
| High Voltage Disconnection | 16V (24V x 2) |
| Duration for Absorption Charging | 2 hours |
| Charge Loop Voltage Drop | ≤0.29V |
| Self-consumption | ≤ 9.2mA 12V; ≤ 11.7mA 24V |
| Equalized Charging Voltage | AGM: 14.6V; GEL: No; FLd: 14.8V |
| Absorption Charging Voltage | AGM: 14.4V; GEL: 14.2; FLd: 14.6V |
| Floating Charging Voltage | AGM/ GEL/ FLd: 13.8V |
| Low Voltage Re-connection (LVR) | AGM/ GEL/ FLd: 12.6V |
| Low Voltage Disconnection (LVD) | AGM/ GEL/ FLd: 10.8V |

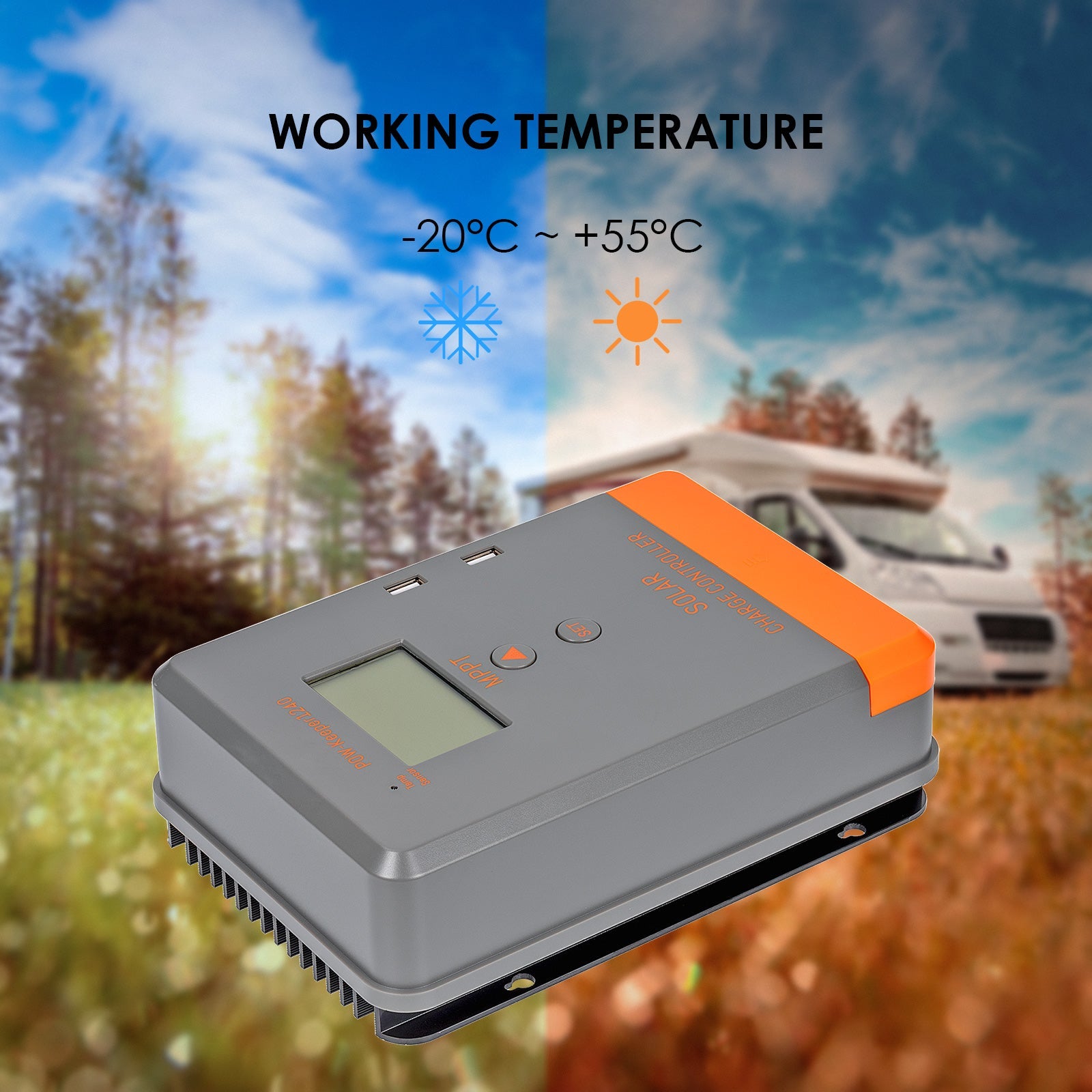

| Operating Temperature Range | -20℃~55℃ (Full rated current) |
| LCD Temperature Range | -20℃~70℃ |
| Humidity Range | ≤95% No condensation |
| Protection Class | IP30 |

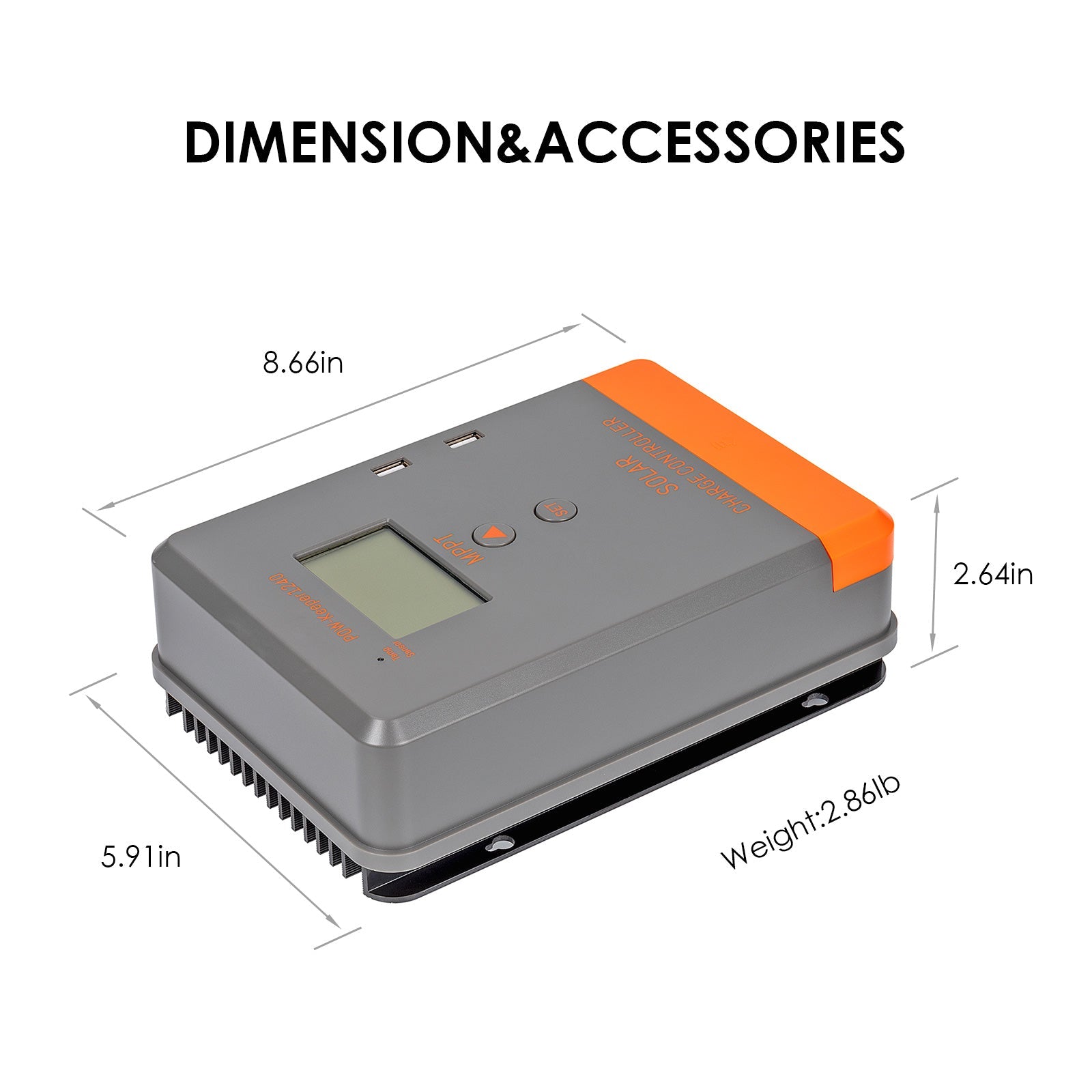

| Dimensions | 123*178*48 mm |
| Installation Hole | 108*120 ∅5 |
The ROCKSOLAR 40A MPPT Solar Charge Controller can handle a maximum PV input of 100Vdc, making it suitable for a wide range of solar panel configurations.
The controller boasts an MPP tracking efficiency of 99.5%, ensuring optimal solar energy conversion and power generation.
Yes, the ROCKSOLAR 40A MPPT Controller is compatible with both Lithium and Lead Acid batteries, offering flexibility for different solar power systems.
The controller has a rated charging current of 40A, providing efficient power management for larger solar systems.
Yes, with an IP30 protection rating and an operating temperature range of -20℃ to 55℃, the controller is designed to perform reliably in diverse conditions.
