ROCKSOLAR 500W 24V Off-Grid Solar Water Pump System
ROCKSOLAR 500W 24V Off-Grid Solar Water Pump System
- All-Inclusive: Complete system with water pump, battery, panel, controller & inverter.
- Long-Life Battery: 24V 50Ah LiFePO4, designed for longevity.
- High-Efficiency Solar: 400W panel with superior 22% efficiency.
- Advanced Controller: 20A MPPT for better charge management.
- 24V 250W Water Pump Included: Durable brushless DC water pump.
- Robust Construction: Panel built to withstand harsh conditions.
- BMS Protection: Battery Management System for safety.
- Flexible Use: Powers a variety of essential devices.
- Decade-Long Warranty: 10-year assurance on battery and panel.

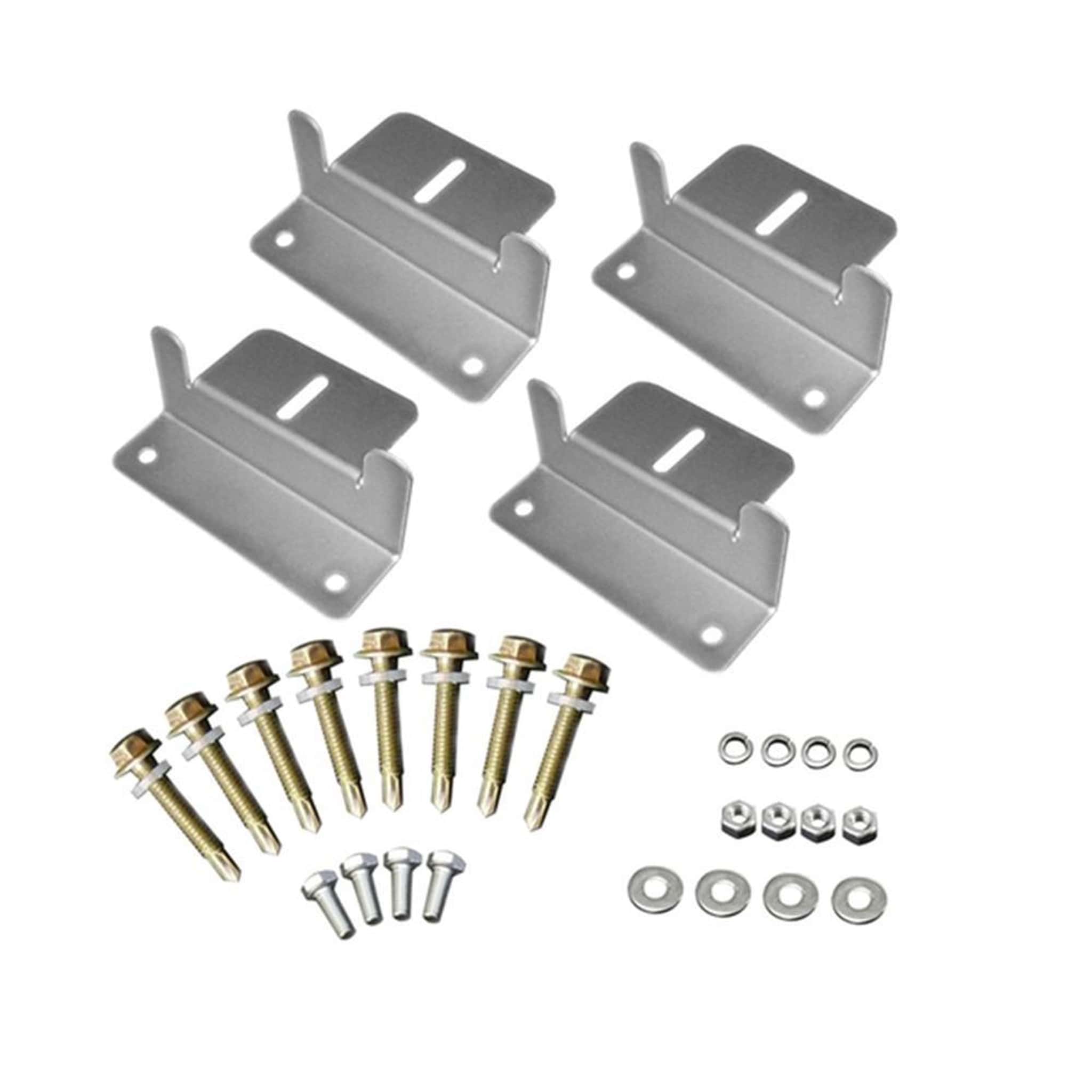

- Easy Mounting: Hassle-free installation with provided brackets.
- Future-Proof: Expandable system to grow with your needs.
- Thermal Resilience: Operates in extreme temperatures.
Free
Local Shipping
10-year Hassle Free
Warranty
Lifetime Customer
Support
Impossible de charger la disponibilité du service de retrait
- Description
- Includes
- Specifications
- FAQ
- User Manual
- Reviews
The ROCKSOLAR 500W 24V Off-Grid Solar Water Pump System stands as a pioneering solution for remote and independent water supply needs. Expertly crafted for off-grid applications, this robust system includes a 24V 50Ah Deep Cycle LiFePO4 Battery with a high-tech BMS, 1 X 400W Rigid Monocrystalline Solar Panel,and a precise 20A MPPT Solar controller, ensuring smooth and consistent water pumping. It’s equipped with a high-performance 24V 1/3 HP Brushless Solar DC Submersible Well Pump, designed for seamless solar operation, delivering a maximum flow of 1.3m³/h with a 70m head. Perfectly tailored for use in varied environments, this system guarantees reliability with its durable stainless steel construction and an inbuilt pump controller for hassle-free operation. The battery and solar panel come with an 10-year warranty, showcasing ROCKSOLAR's commitment to long-lasting service. Whether it's for agricultural irrigation, livestock watering, or rural home use, the ROCKSOLAR 500W solar powered pump system offers a self-sufficient water supply, making it an indispensable asset for off-grid living in Canada.
Product Features

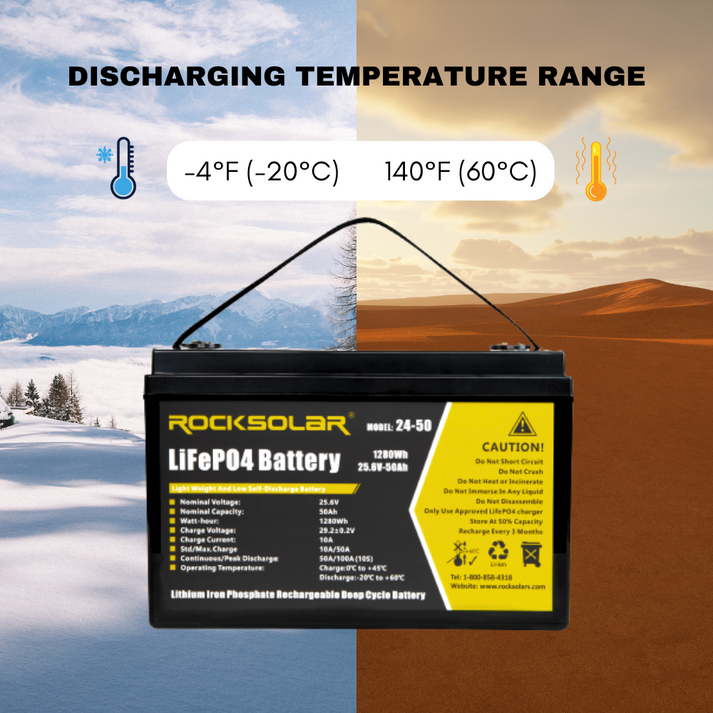

ROCKSOLAR 24V 50Ah Deep Cycle LiFePO4 Battery with BMS System:
- 24V 50Ah capacity
- Service life: 3500+ cycle life and 100% discharge rate for ultra-long service life
- Consistent power: Flat voltage curve ensures steady power output, with no dramatic drop in output like SLA batteries
- Deep Cycle LiFePO4 Battery Technology
- Patented Smart Battery Management System
- Lightweight: Only 13 pounds for easy portability and installation
- Ideal for harsh environments: Patented BMS offers protection from temperature, short circuits, over-discharge, over current, and overcharge, as well as battery cell balancing.
- Operating temperature range of charging: 0C∽45C, discharging: -20~-60. BMS auto-shuts off the battery outside the working temperature.
- Warranty: 10-year warranty and 10+ year service life
400W Rigid Monocrystalline Solar Panel - Waterproof with Corrosion-Resistant Aluminum Alloy Frame:
- 400W output
- Rigid Monocrystalline Solar Panel
- Waterproof and Corrosion-Resistant Aluminum Alloy Frame
- High-Efficiency Solar Cell with 22% Conversion Efficiency
- Pre-drilled holes for easy mounting and securing to any surface

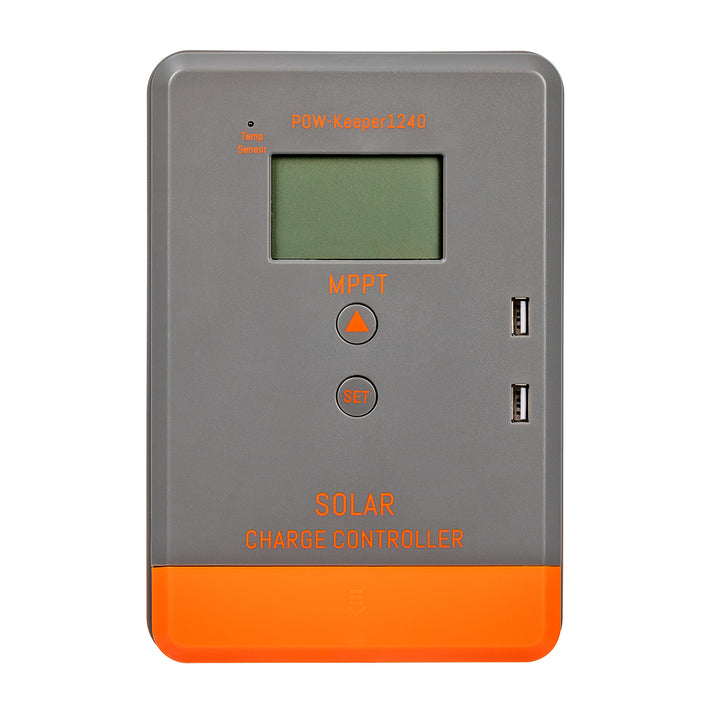

ROCKSOLAR 20A MPPT Solar Charge Controller:
- 20A MPPT Solar Charge Controller
- Compatible with Lithium and Lead Acid batteries
- The maximum open voltage of 75Vdc and MPP tracking efficiency of 99.5%
- 3-stage charge algorithm and 12/24V nominal system voltage
- Rated charging current of 20A and battery voltage range of 8-32V
- High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V
- Operating temperature range of -20°C to 55°C
- IP30 rated for protection

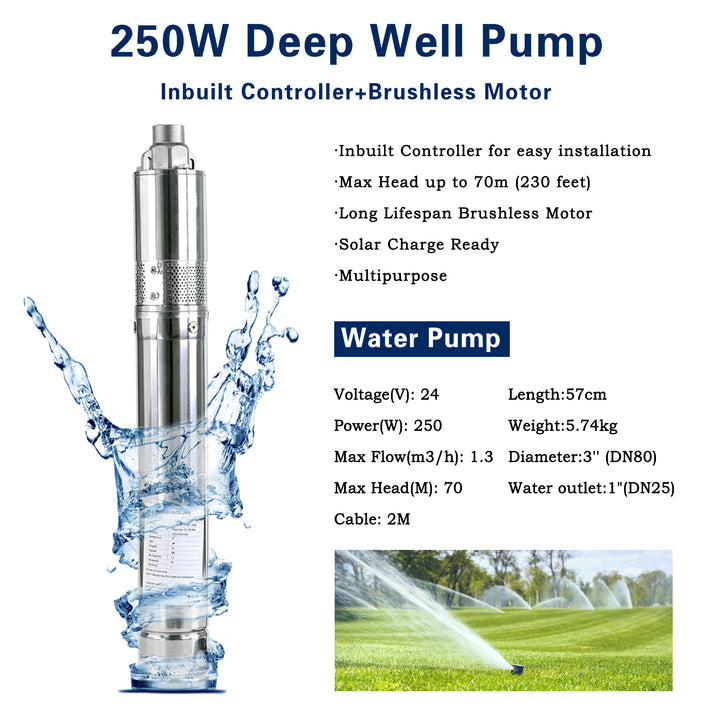

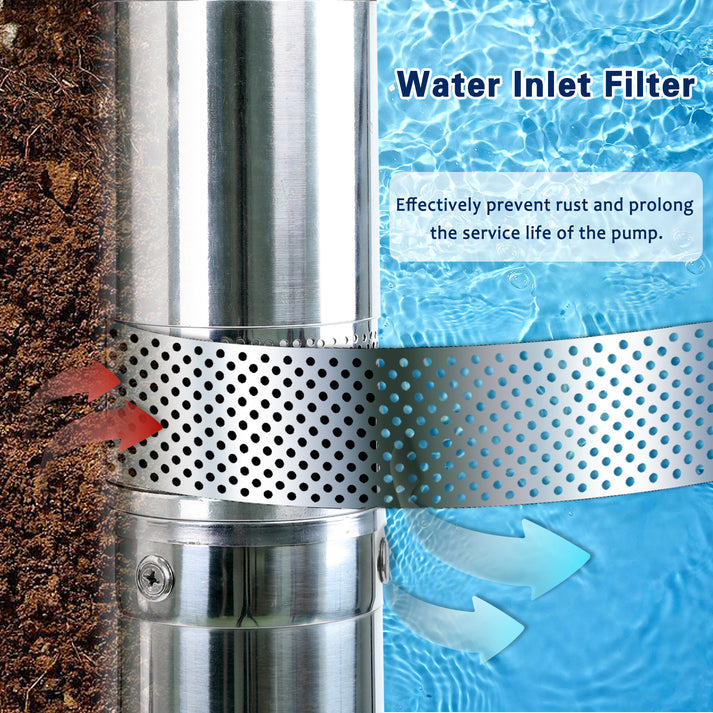

ROCKSOLAR 24V 1/3 HP Brushless Solar DC Submersible Well Pump:
- High-Performance Brushless Motor: Reliable and efficient operation, designed specifically for solar water pumping technology.
- Durable Construction: The pump features complete stainless steel (S.S. 304) construction, with a motor brass cap and S.S. 304 body for long-lasting use.
- Inbuilt Controller: The pump comes with an inbuilt controller for ease of operation.
- Powerful: The 250W power provides a maximum flow rate of 1.3m3/h and a maximum head of 70m.
- User-friendly: Easy to install and operate with minimal maintenance requirements. Quiet operation and low vibration for an unobtrusive addition to your solar setup.
- Adequate Cable Length: Comes with a 2M cable for flexible installation.
- Optimized for Solar: Works seamlessly with ROCKSOLAR solar panels and systems.
- Outlet: The pump features a 1" outlet for easy connection to your water supply system.
500W Pure Sine Wave Inverter
- Powerful Output: 500W continuous, 1000W peak.
- High Efficiency: Up to 91% maximum.
- Full Protection: Against shorts, overloads, and temperature extremes.
- Wide Use: Ideal for RVs, trucks, camping, and emergencies.
- Lightweight: Only 0.94 kg for portability.
- Silent Fan: Smart cooling without noise.
- USB Port: Convenient 2.1A charging.
- Stable Power: Pure Sine Wave for smooth operation.
- 12-Month Warranty: For reliability and trust.
- Versatile Compatibility: Suits various devices and appliances.

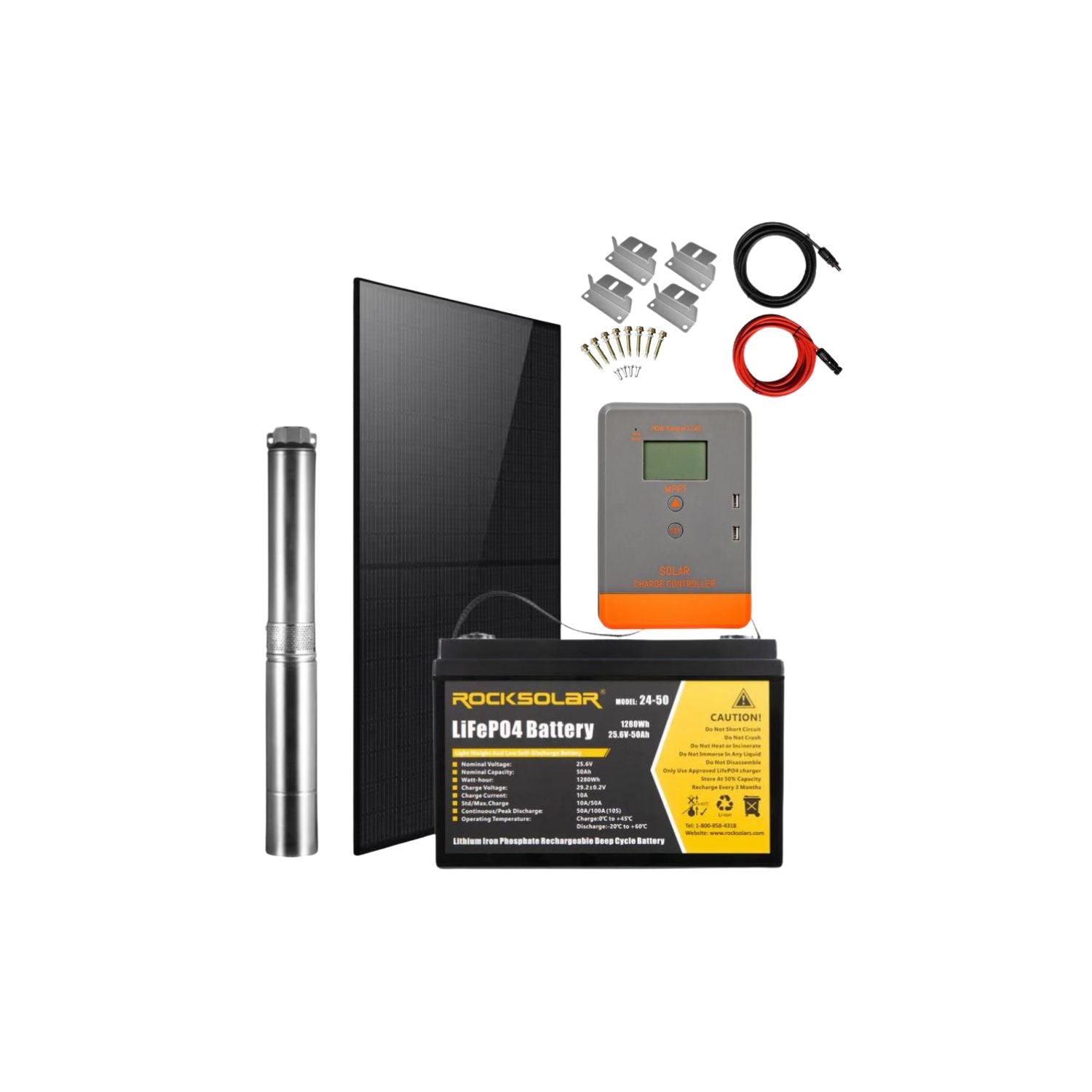

- 1 x 24V 50Ah Deep Cycle LiFePO4 Battery
- 1 x 24V Brushless Solar DC Submersible Well Pump
- 1 x 400W Rigid Monocrystalline Solar Panel
- 1 x 20A MPPT Solar Charge Controller
- 1x 500W Inverter
- 1 x User Manual
Technical Specifications
| 24V 50Ah Deep Cycle LiFePO4 Battery | Details |
|---|---|
| Product Dimensions | 14.99 x 6.6 x 9.4 cm |
| Battery Type | Lithium Ion battery |
| Special Features | Deep cycle |
| Working Temperature | -20C -60C |
| Voltage | 24 Volts (DC) |
| Item Weight | 13 kg |
| Warranty | 11 Years |
| 400W Panel Specification | Details |
|---|---|
| Panel Type | Monocrystalline |
| Power Output | 400W-420W |
| System Voltage | 1000V |
| Cell Efficiency | 20.7% |
| Frame Material | Anodized Aluminum |
| Dimensions | 1722mm x 1134mm x 30mm |
| Weight | 22 kg |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP68 |
| Front Glass | Anti-reflective tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Service Life | 25 years |
| Warranty | 10 years |
| 20A MPPT Solar Charge Controller | Details |
|---|---|
| Max Open Voltage of PV Module | 75Vdc |
| MPP Tracking Efficiency | 99.50% |
| Light Control Voltage | 5V |
| Charge Algorithm | 3 Stage |
| Battery Type | Lithium and Lead Acid Battery |
| Nominal System Voltage | 12/24V |
| Rated Charging Current | 20A |
| Battery Voltage Range | 8~32V |
| High Voltage Disconnection | 16V (24V x 2) |
| Duration for absorption charging | 2 hours |
| Charge Loop Voltage Drop | ≤0.29V |
| Self-consumption | ≤ 9.2mA 12V; ≤ 11.7mA 24V |
| Equalized Charging Voltage | AGM: 14.6V; GEL: No; FLd: 14.8V |
| Absorption Charging voltage | AGM: 14.4V; GEL: 14.2; FLd: 14.6V |
| Floating Charging voltage | AGM/ GEL/ FLd: 13.8V |
| Low Voltage re-connection (LVR) | AGM/ GEL/ FLd: 12.6V |
| Low Voltage Disconnection (LVD) | AGM/ GEL/ FLd: 10.8V |
| Operating Temperature Range | -20℃~55℃ (To run at full rated current continuously) |
| LCD Temperature Range | -20℃~70℃ |
| Humidity Range | ≤95% No condensation |
| Protection Class | IP30 |
| Dimension | 123*178*48 |
| Installation Hole | 108*120 ∅5 |
| Warranty | 1 Year |
| 500W Inverter Specification | Details |
|---|---|
| Model | RSINV500-001 |
| Output | Rated Power: 500W AC Voltage: 120V Frequency: 60HZ Resistive Load Continuous Output Power: 500W Inductive Load Continuous Output Power: 450W Capacitive Load Continuous Output Power: 150±30W，PF：0.6 Waveform: Pure Sine Wave Waveform Distortion (THD): ≤5% |
| Input | Battery Voltage: 12Vdc Voltage Range: 10～15.5Vdc DC Current: 52.1A No Load Loss: ≤0.8A Shutdown Mode Static Current: 15mA Maximum Efficiency: 91% Battery Type: All 12V batteries |
| Output Protection | Over Temperature, Output Short Circuit, Overload USB Output: 5V, 2.1A |
| Environmental Conditions | Operating Temperature: 0～40℃ Operating Humidity: 10～90%RH Storage Temperature/Humidity: -30℃～70℃, 10～95%RH |
| Physical Characteristics | Weight: Net Weight: 0.94Kg Size: 250.6*118*56mm (L*W*H) |

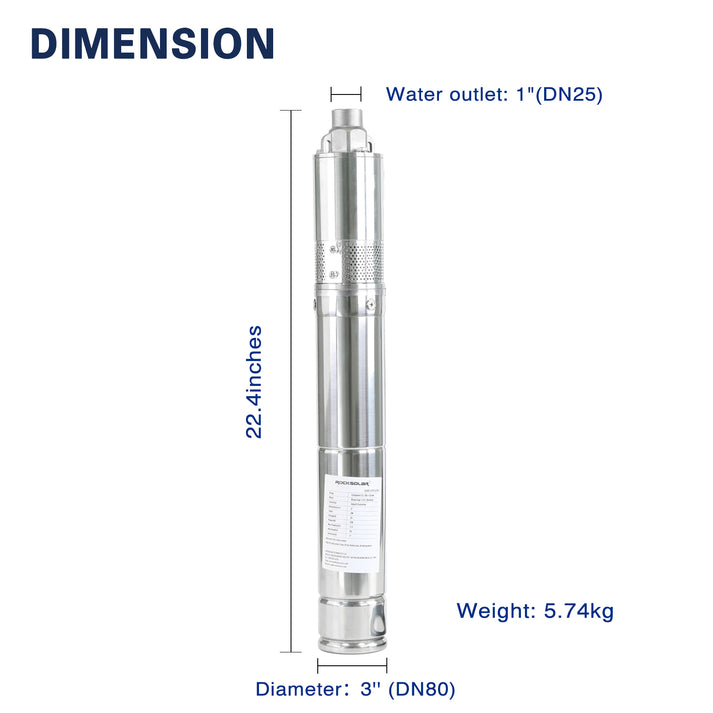

| 24V Brushless Solar DC Submersible Well Pump | Details |
|---|---|
| Product | Rocksolar 24V Brushless Solar DC Submersible Well Pump |
| Pump Model | Complete S.S. 304 + Screw |
| Motor | Brass Cap + S.S. 304 Body |
| Controller | Inbuilt Controller |
| Diameter(inch) | 3'' |
| Voltage(V) | 24 |
| Cable | 2M |
| Power(W) | 250 |
| Max Flow(m3/h) | 1.3 |
| Max Head(m) | 70 |
| Outlet(inch) | 1" |
| Warranty | 5 Year |
This system includes a 24V 50Ah Deep Cycle LiFePO4 Battery with BMS, a 400W Rigid Monocrystalline Solar Panel, a 20A MPPT Solar Charge Controller, a 500W Pure Sine Wave Inverter, and a 24V 1/3 HP Brushless Solar DC Submersible Well Pump.
The LiFePO4 Battery and Solar Panel come with an 10-year warranty, and the remaining components are covered by a 1-year warranty.
Yes, the system is designed for continuous operation, suitable for applications such as water pumping in remote locations.
Yes, the system can be expanded with additional components for increased power demands.
The system operates effectively in a wide range of temperatures, but performance can vary based on environmental conditions.
Installation guides are provided, and our support team is available for further assistance.
It's generally suitable for various locations, but checking local solar conditions is advisable for optimal setup.
It's crafted for moderate to high-demand water pumping tasks, but specifics should be compared with the device's capacity.
Minimal maintenance is required, with regular checks and cleaning to ensure performance.
Yes, customer support is available for any issues or questions regarding the system.
The submersible well pump requires a 24V DC power source, which can be provided by the included components.
The pump delivers a max flow rate of 1.3m3/h, suitable for various water supply applications.
It should not be used in dirty or corrosive water to prevent damage and wear.
The pump is low maintenance but should be kept submerged and checked if not used for long periods.
Yes, there's a 5-year warranty, covering manufacturing defects but not damage from misuse or improper operation.
