ROCKSOLAR 60A MPPT Solar Charge Controller

ROCKSOLAR 60A MPPT Solar Charge Controller

Prix habituel $189.99 CAD
Prix habituel $299.99 CAD Prix soldé $189.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • 100Vdc Max PV Input: Ideal for various solar setups.
  • 99.5% MPP Efficiency: Maximizes solar power generation.
  • Dual Battery Support: Compatible with Lithium and Lead Acid.
  • 60A Charging Current: Suitable for larger solar systems.
  • 3-Stage Charging: Enhances battery life and performance.
  • 6-48V Voltage Range: Wide compatibility for diverse setups.
  • IP30 Protection: Guards against dust and moisture.

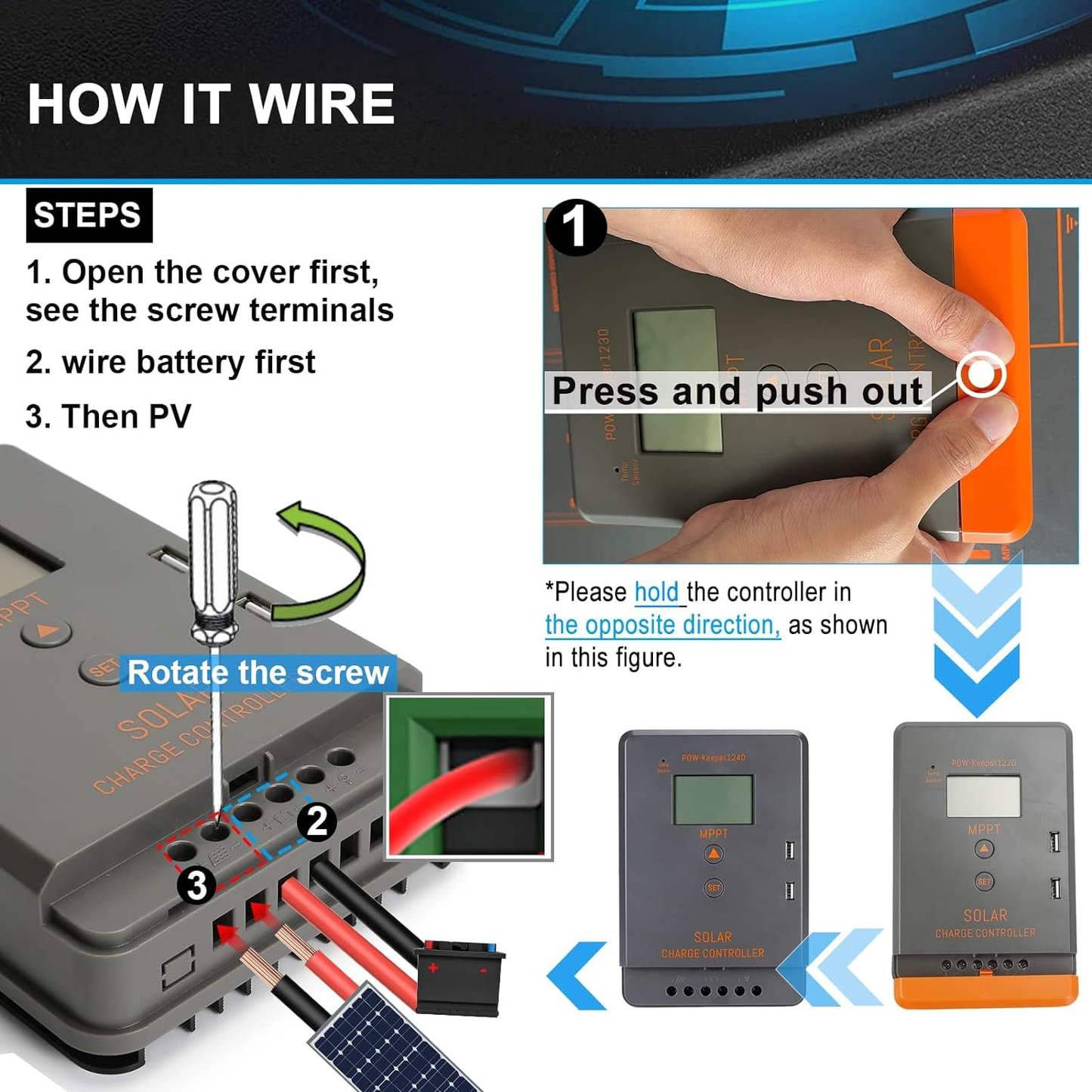

  • Easy Installation: User-friendly design for simple setup.
  • 5V Light Control: Simplifies charging process monitoring.
  • Reliable Performance: Built to operate in varied environments.
Shipping

Free
Local Shipping

Warranty

1-year Hassle Free
Warranty

Support

Lifetime Customer
Support



Afficher tous les détails
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Dual Battery Compatibility: The ROCKSOLAR 60A MPPT Solar Charge Controller is a versatile solution for your solar power systems. It is designed to work seamlessly with both Lithium and Lead Acid batteries, offering flexibility for a variety of applications.

Optimized Power Generation: Experience maximum efficiency with a PV module open voltage capacity of up to 55Vdc and an impressive MPP tracking efficiency of 99.5%. This controller ensures that your solar panels generate optimal power in all weather conditions.

Advanced Charging Algorithm: Equipped with a 3-stage charging algorithm, the controller not only efficiently charges your batteries but also significantly prolongs their lifespan. This smart technology ensures safe and effective battery management.

High Charging Capacity: With a substantial 60A rated charging current and a battery voltage range of 6-48V, this controller is suitable for larger solar power setups. Its ability to work with both 12V,24V,36V,48V systems makes it a versatile choice for different solar power requirements.

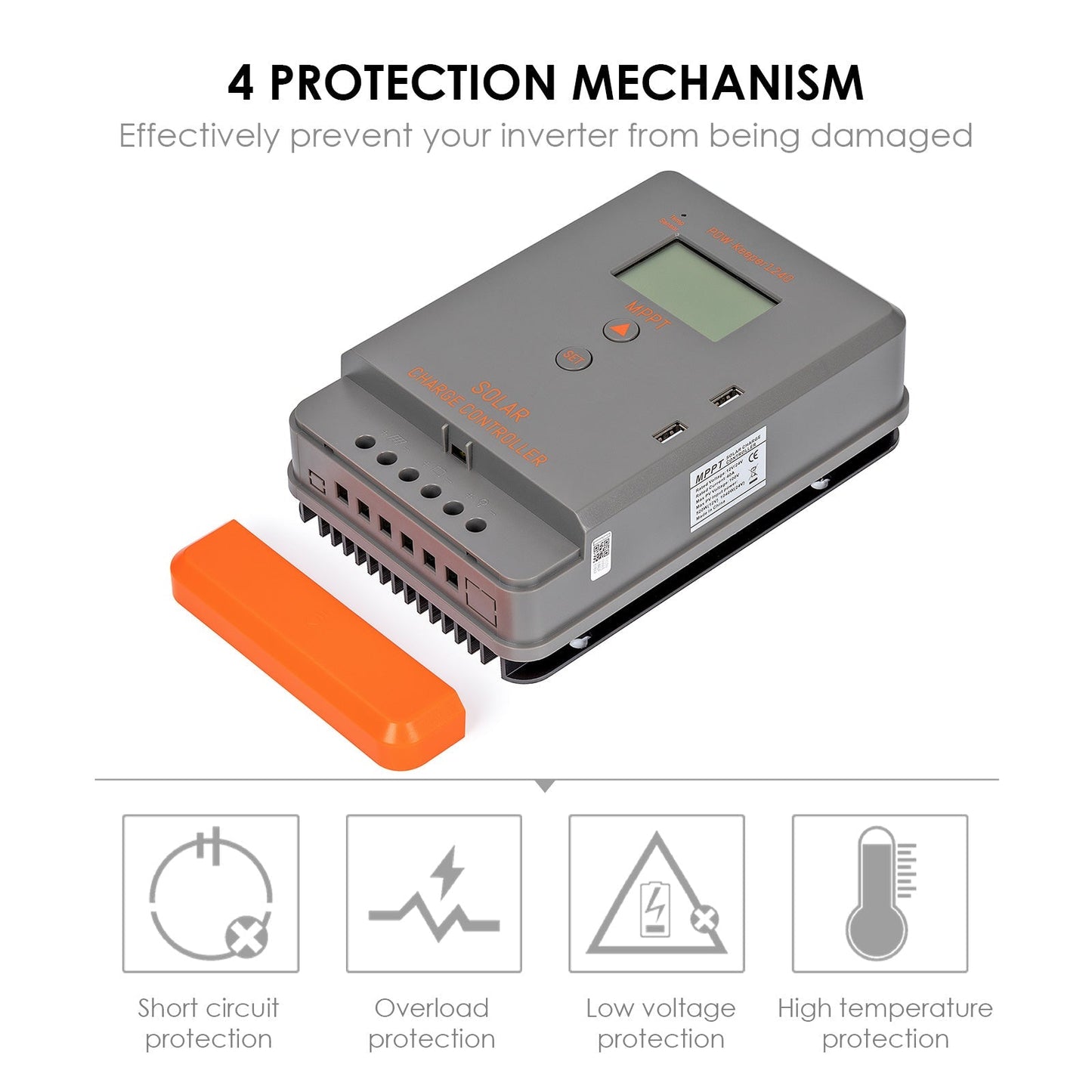

Superior Protection: The ROCKSOLAR 60A Controller comes with an IP30 rating, offering robust protection against dust and moisture. This feature ensures the controller's durability and longevity, even in challenging environmental conditions.

PV Input Volts: The maximum PV input voltage for the 12V, 24V, 36V, and 48V systems is 720W, 1440W, 2100W, and 2800W, respectively.

PV Input Volts: The maximum PV input voltage for the 12V system DC, 24V system DC, 36V system DC, and 48V systems DC is 20V~80V, 37V~105V, 50V~160V, and 72V~160V, respectively.

User-Friendly Design: Installation and operation of this charge controller are straightforward, making it an ideal choice for both beginners and experienced users. The light control voltage of 5V provides easy monitoring and control of the charging process, enhancing the user experience.



    • 1x ROCKSOLAR 60A MPPT Solar Charge Controller: Efficiently manages solar power for optimal battery charging and longevity.
    • 1x User Manual: Detailed instructions for setup, operation, and maintenance, ensuring you get the most out of your solar charge controller.

    Technical Specifications


    Specification Details
    Model POW-M60-PRO
    PV Input Max Open Voltage of PV Module: 100Vdc
    MPP Tracking Efficiency 99.50%
    Light Control Voltage 5V
    Charge Mode 3 Stage Charge Algorithm
    Battery Type Lithium and Lead Acid Battery
    Nominal System Voltage 12/24V
    Rated Charging Current 60A
    Battery Voltage Range 6~48V
    High Voltage Disconnection 16V (24V x 2)
    Duration for Absorption Charging 2 hours
    Charge Loop Voltage Drop ≤0.29V
    Self-consumption ≤ 9.2mA 12V; ≤ 11.7mA 24V
    Equalized Charging Voltage AGM: 14.6V; GEL: No; FLd: 14.8V
    Absorption Charging Voltage AGM: 14.4V; GEL: 14.2; FLd: 14.6V
    Floating Charging Voltage AGM/ GEL/ FLd: 13.8V
    Low Voltage Re-connection (LVR) AGM/ GEL/ FLd: 12.6V
    Low Voltage Disconnection (LVD) AGM/ GEL/ FLd: 10.8V

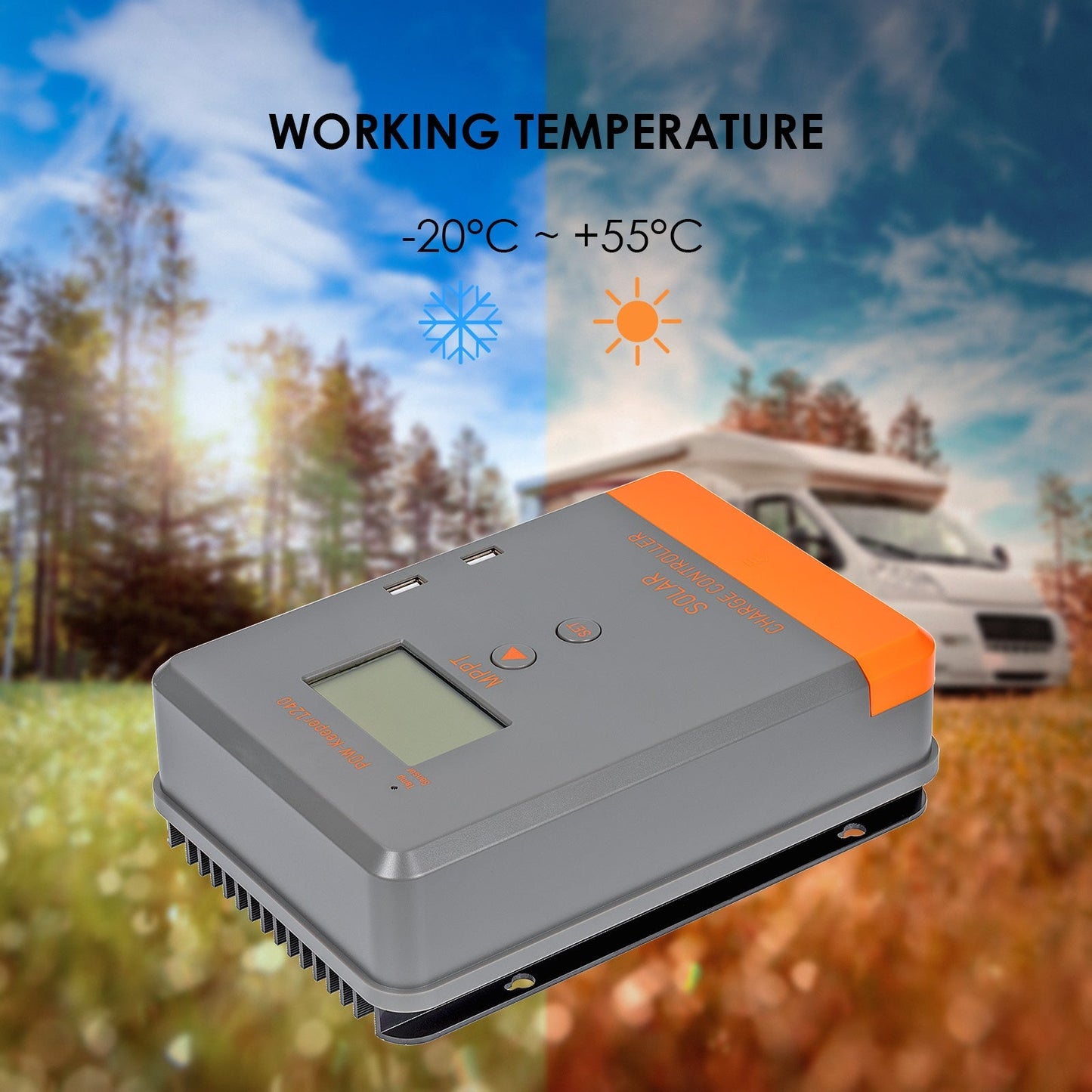

    Operating Temperature Range -20℃~55℃ (Full rated current)
    LCD Temperature Range -20℃~70℃
    Humidity Range ≤95% No condensation
    Protection Class IP30
    Dimensions 123*178*48 mm
    Installation Hole 108*120 ∅5


    The ROCKSOLAR 60A MPPT Solar Charge Controller can handle a maximum PV input voltage of 100Vdc, making it suitable for a wide range of solar panel configurations.

    The controller boasts an MPP tracking efficiency of 99.5%, ensuring optimal solar energy conversion and power generation.

    Yes, the ROCKSOLAR 60A MPPT Controller is compatible with both Lithium and Lead Acid batteries, offering flexibility for different solar power systems.

    The controller has a rated charging current of 60A, providing efficient power management for larger solar systems.

    Yes, with an IP30 protection rating, the controller is designed to provide superior protection against dust and moisture, ensuring durability and longevity in various environmental conditions.



    Customer Reviews

    Based on 20 reviews
    80%
    (16)
    15%
    (3)
    0%
    (0)
    0%
    (0)
    5%
    (1)
    A
    Anna Prozorov
    Return

    Hi, I sent you an email a week ago, no response. I would like to return the controller.

    B
    BRIAN FUDER
    PowMr?

    I am requesting a refund for the price difference between the Rocksolar that I ordered and the PowMr that you shipped to me.

    K
    Ken Wilson
    60 amp mppt

    So far it is working fine I won't get the true benefit until spring
    Would be nice to have the option of a remote screen so I could view without going to the crawlspace

    M
    Max
    Lithium battery compatible

    Exactly what I needed. I had the older model which was not Lithium battery compatible. This one has a lithium setting. works great.

    O
    Olivia
    Powerful and high quality controller.

    I have been a DIY solar tech for a few years now. I've built three systems so far and of course, each time I improve on just about everything. This unit has been one of the biggest improvements yet!
