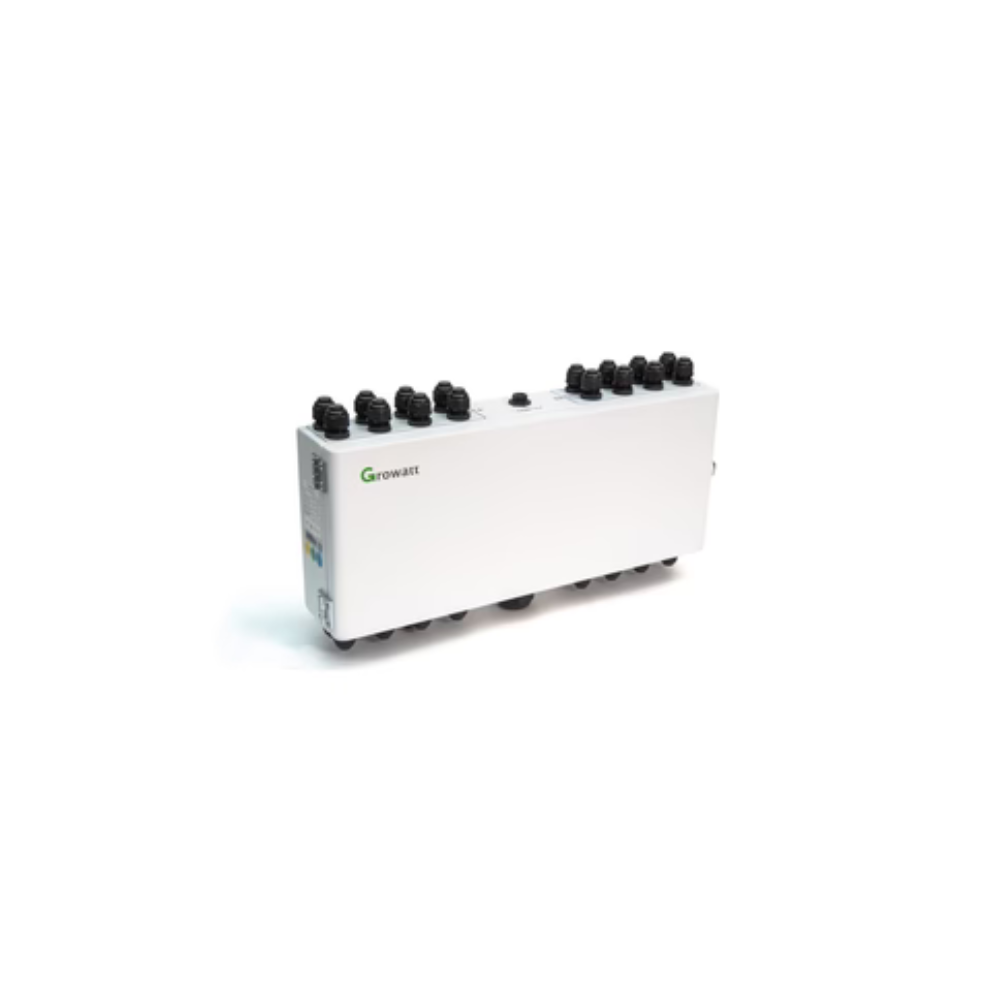

AXE Battery Hub by Growatt

AXE Battery Hub by Growatt

Prix habituel $599.99 CAD
Prix habituel $999.99 CAD Prix soldé $599.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • Scalable Power: Designed to efficiently connect 2 to 4 battery clusters in parallel, boosting your system's capacity.
  • Wide Voltage Range: Supports a broad voltage range from 40Vdc to 800Vdc, suitable for diverse solar power systems.
  • High Current Handling: Capable of managing up to 700A, enabling significant energy flow for larger setups.
  • Environmental Resilience: Operates effectively between -10℃ to 50℃ and withstands humidity levels of 5% to 95%.
  • IP65 Rated: Dust-tight and protected against jets of water, ensuring durability for indoor and outdoor use.
  • Flexible Connectivity: Compatible with various cable sizes (7AWG, 4AWG, 2AWG) for adaptable installation options.
  • Compact and Lightweight: With dimensions of 300/115/250mm and weighing around 4±1kg, it's easy to integrate into any system.
  • AXE/GBLI Battery Compatibility: Specifically optimized for use with AXE / GBLI 6532 battery models, ensuring seamless operation.
Shipping

Free
Local Shipping

Warranty

1-year Hassle Free
Warranty

Support

Lifetime Customer
Support



Afficher tous les détails



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

General Features:

  • Purpose: Designed for connecting multiple battery clusters in parallel, enhancing storage system capacity and flexibility.
  • Compatibility: Optimally used with AXE / GBLI 6532 battery models for seamless system integration.

Specifications:

  • Voltage Range: 40Vdc to 800Vdc, accommodating a wide variety of system configurations.
  • Weight: Approximately 4±1kg, ensuring ease of installation and handling.
  • Max. Current: Capable of supporting up to 700A, for substantial power transmission.
  • Operating Temperature Range: -10℃ to 50℃, suitable for diverse environmental conditions.
  • Number of Battery Clusters in Parallel: Connects 2 to 4 battery clusters, providing system scalability.
  • Compatible Battery Model: AXE / GBLI 6532, guaranteeing compatibility and efficient operation.
  • Cable Diameter Options: Supports 7AWG, 4AWG, and 2AWG cables, offering flexibility in wiring requirements.
  • Dimensions (W/D/H): 300/115/250mm, compact design for versatile installation options.
  • IP Rating: IP65, ensuring dust tightness and protection against water jets.
  • Humidity Tolerance: Operates effectively within a humidity range of 5% to 95%, adaptable to various atmospheric conditions.
  • 1x AXE Battery Hub: The central unit designed for connecting multiple battery clusters in parallel, enhancing the capacity and scalability of your energy storage system.
  • Cable Adapters for Different AWG Sizes: Adapters for 7AWG, 4AWG, and 2AWG cables, ensuring compatibility with a wide range of wiring specifications for efficient power transmission.

Technical Specifications


Specification Details
Voltage Range 40Vdc to 800Vdc
Weight 4±1kg
Max. Current 700A
Operating Temperature Range -10℃ to 50℃
Number of Battery Clusters in Parallel 2 to 4 clusters
Compatible Battery Model AXE / GBLI 6532
Cable Diameter Options 7AWG/4AWG/2AWG
Dimensions (W/D/H) 300/115/250mm
IP Rating IP65
Humidity Tolerance 5% to 95%


The AXE Battery Hub is designed to connect multiple battery clusters in parallel, enhancing the scalability and capacity of solar energy storage systems.

It allows for the parallel connection of 2 to 4 battery clusters, providing flexibility in system expansion and capacity.

The hub is compatible with AXE / GBLI 6532 battery models, ensuring seamless integration with specific energy storage solutions.

It supports a maximum current of 700A, accommodating substantial power flow through the connected battery clusters.

Designed to operate in a wide range of environments, it functions effectively within a temperature range of -10℃ to 50℃ and a humidity range of 5% to 95%.

Yes, it has an IP65 rating, indicating it is dust-tight and protected against jets of water, suitable for both indoor and outdoor applications.

The hub supports cable diameters of 7AWG, 4AWG, and 2AWG, offering versatility in connection options to meet various system requirements.
