10 AWG Solar PV Cable Set – Red + Black – 2000V – 300 m Each

Get red and black 10 AWG photovoltaic cable together in one set for your solar wiring project. Both colours use the same 19-strand bare copper construction and XLPE insulation, with a 2,000 V rating and CSA Type RPVU90 designation.

What is included

• 300 metres of red PV cable — reference IM300691
• 300 metres of black PV cable — reference IM300689
• 600 metres of cable in total per set

Ordering quantities

Sold as complete red-and-black sets. Quantity 1 includes 300 m of each colour; quantity 2 includes 600 m of each colour; quantity 3 includes 900 m of each colour; quantity 4 includes 1,200 m of each colour. Each additional set adds 300 m of red cable and 300 m of black cable.

Features and specifications — both colours

• Manufacturer: Deca Cables
• Cable type: CSA RPVU90, single conductor
• Conductor: 10 AWG (5.26 mm²), 19-strand bare copper, unilay construction
• Insulation: cross-linked polyethylene (XLPE)
• Colours: red and black, supplied together
• Rated voltage: 2,000 V
• Operating temperature: -40°C to 90°C, wet or dry
• Sunlight-resistant and marked for direct burial
• Length markings every 1 metre
• Nominal overall diameter: 6.096 mm (0.240 in)
• Insulation thickness: 1.524 mm (0.060 in)
• Separate outer jacket: none
• Cable weight: 68.32 kg/km per cable
• Minimum installed bending radius: 49 mm (1.9 in)
• Minimum installation temperature: -20°C
• Manufacturer-listed ampacity: 55 A, referencing CEC Tables 1 and 2; applicable ampacity depends on installation conditions
• Specification references: CSA C22.2 No. 271 and CSA C22.2 No. 38 / UL 44
• Flame-test rating: none listed

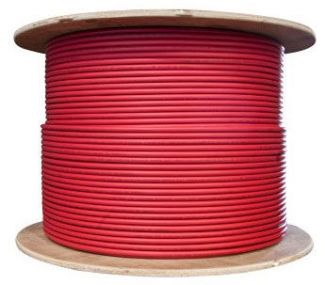

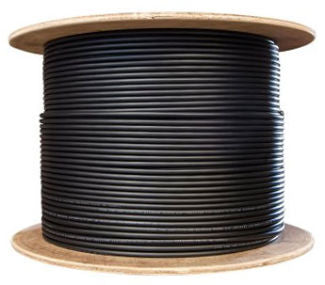

Photos show representative red and black PV wire. Actual cable appearance and packaging may differ.
