Growatt 10kW MIN 10000TL-XH-US Grid-Tied | Battery Storage Solar Inverter

Growatt 10kW MIN 10000TL-XH-US Grid-Tied | Battery Storage Solar Inverter

Prix habituel $4,299.99 CAD
Prix habituel $6,999.99 CAD Prix soldé $4,299.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • 98.3% Max Efficiency: Superior solar conversion.
  • Hybrid Functionality: For grid-tie, storage, off-grid.
  • 4 MPPTs: Enhances solar harvest.
  • Wide Battery Support: Compatible with Growatt, LG batteries.
  • Remote Monitoring: WiFi for easy tracking.
  • Enhanced Safety: With RSD and AFCI.
  • Compliance: Meets major standards.
  • 10-Year Warranty: Ensuring reliability.

Local Shipping


10-year Hassle Free


Lifetime Customer

Afficher tous les détails
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Growatt MIN10000TL-XH-US 10kW Grid-Tie | Battery Storage Solar Inverter

The Growatt MIN10000TL-XH-US is a state-of-the-art Grid-Tie inverter, meticulously crafted for residential energy storage systems. This versatile model is designed to facilitate not just grid-tie and battery storage capabilities but also to accommodate off-grid and solar systems with the addition of Growatt ATS (Auto Transfer Switch). Equipped with a user-friendly WiFi module, it allows for straightforward, plug-and-play online monitoring of your power system's status through a mobile phone or web portal, ensuring you are always in control and informed.

  • Advanced Grid-Tie Technology: Engineered for seamless integration with grid-tie and battery storage systems, offering a robust solution for residential setups.
  • Exceptional Efficiency: Achieves a maximum efficiency of 98.3%, ensuring optimal conversion of solar energy into usable electricity.

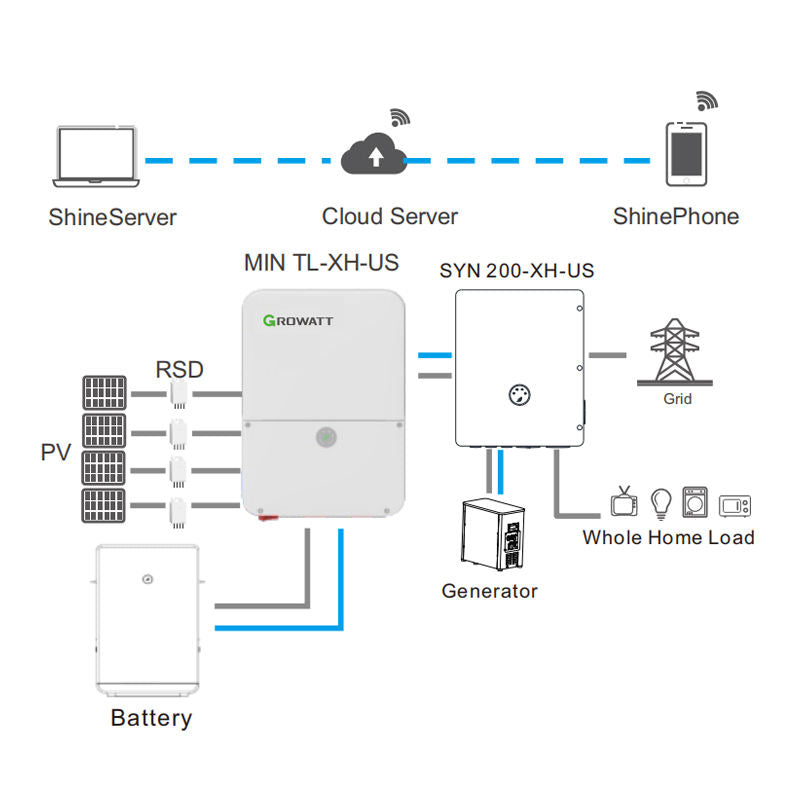

  • Enhanced System Compatibility: Compatible with both DC Coupled and AC Coupled systems, supporting diverse operational modes like self-consumption, Zero Export, TOU, and Off-Grid.
  • Comprehensive Safety Features: Includes support for RSD, AFCI, and RGM meter, reinforcing the inverter's operational safety and reliability.
  • High-Capacity Energy Production: With a 20kW max PV input power and 4 MPPT trackers, it efficiently manages solar input for maximum yield.
  • Broad Battery Compatibility: Works seamlessly with Growatt ARO HV Battery and LG Prime(Gen3) Battery, enhancing energy storage flexibility.
  • Remote System Monitoring: The WiFi+ LAN module, with optional 4G, offers comprehensive monitoring capabilities, easily accessible via APP and website.
  • Industry Compliance: Fully certified with UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, and UL9540, ensuring adherence to the highest standards.
  • Durable and Reliable: Encased in a robust housing and backed by a 10-year warranty, it promises long-term, hassle-free operation.

Growatt's MIN10000TL-XH-US Solar Inverter stands as a testament to the company's dedication to innovation, offering a high-quality, efficient, and versatile solution for leveraging solar power to achieve energy independence and sustainability.

  • 1x MIN 10000TL-XH-US Inverter: A high-efficiency inverter supporting DC/AC coupled systems, backup power, and multiple energy modes.
  • 1x User Manual: Instructions for installation, setup, and operation.
  • Optional Communication Module: For remote system monitoring and management.
  • 1x AC Connection Cable: Connects the inverter to AC power.
  • 1x PV Connection Kit: For safe solar panel integration.
  • 1x Battery Cable: Links the inverter to battery storage.
  • Mounting Hardware: Includes brackets and screws for installation.
  • 1x Warranty Documentation: Covers warranty terms and support information.

Technical Specifications

Specification Details
Manufacturer Growatt
Type Grid-Tie / Battery Storage
AC Power 10kW
Max PV Input Power 20kW
MPP Trackers 4
MPPT Voltage Range 210~500V
Max Efficiency 98.3%
Compatible Battery Growatt ARO HV Battery / LG Prime(Gen3) Battery
Warranty 10 Years
Communications CAN2.0, RS485, SUNSPEC / APP, Website
Certificate UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540
PV Input
Max PV Input Power 20.0 kW
Max Input Voltage 600V
Full Load Voltage Range 210~500V
Max Input Current per MPTT 13.5A
Max Short-circuit Current per MPTT 16.9A
MPP Trackers 4
Strings per MPP Tracker 2
Battery Connection
Battery Voltage Range 360~550V
Rated Battery Voltage 400V
I/O DC Current 30A/30A
I/O DC Power 10.3kW
AC Output (Grid)
Nominal Power 10kW
Max Output Current 42A
Nominal AC Voltage 208/240V
General Data
Dimensions (H*W*D) 15.8*25.2*7.4 inch (400*638*187mm)
Weight 45.2lbs (20.5kg)

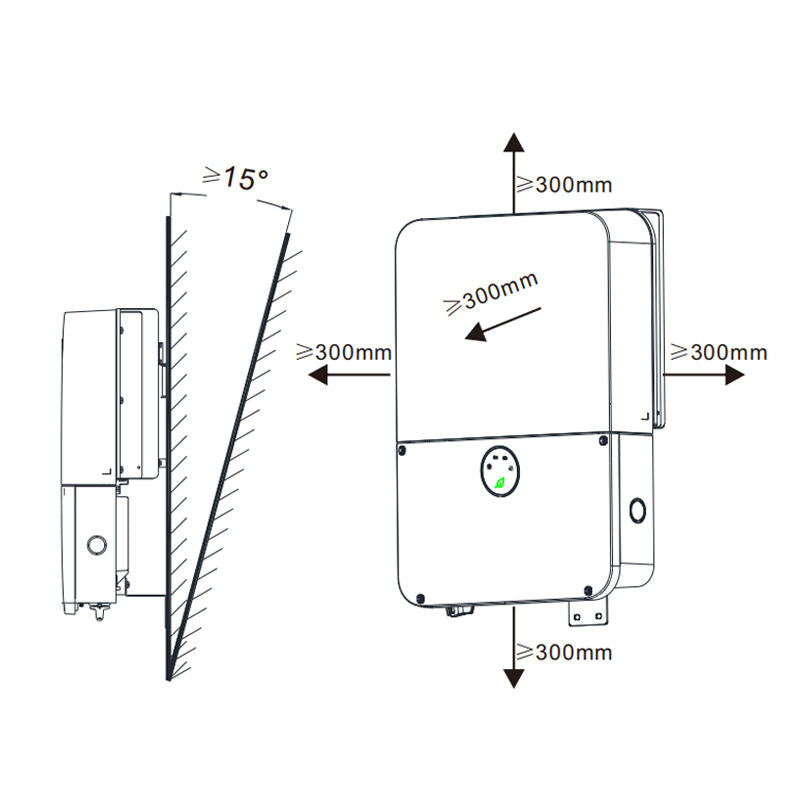

Installation Indoor, Outdoor, Wall-mounted
Monitoring Module WiFi+ LAN, 4G(Optional)

This inverter operates at a maximum efficiency of 98.3%, ensuring optimal conversion of solar energy into electricity for your home or business.

Yes, while primarily designed for grid-tie and battery storage systems, it can also accommodate off-grid systems when paired with the Growatt ATS (Auto Transfer Switch) and appropriate batteries.

Indeed, with four MPPT trackers, it efficiently manages multiple PV arrays to maximize solar harvest and energy production.

The inverter is compatible with a variety of high-voltage battery systems, including the Growatt ARO HV Battery and LG Prime(Gen3) Battery, offering flexible storage options.

Yes, equipped with a plug-and-play WiFi module, it enables real-time monitoring of your system's performance through a mobile app or website portal.

The inverter comes with a 10-year warranty, showcasing Growatt's commitment to product quality and customer satisfaction.

It includes safety features such as Rapid Shutdown (RSD) and Arc Fault Circuit Interrupter (AFCI), providing comprehensive protection for your solar energy system.

Yes, it adheres to key industry standards, including UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule 21, and UL9540, ensuring compliance and broad installation applicability.
