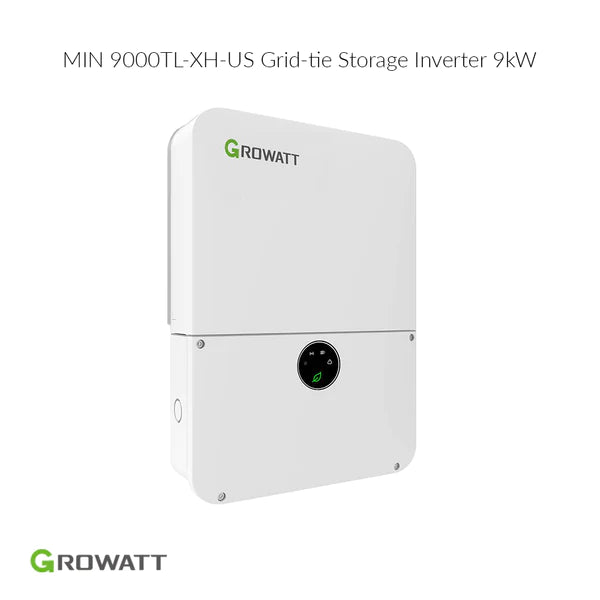

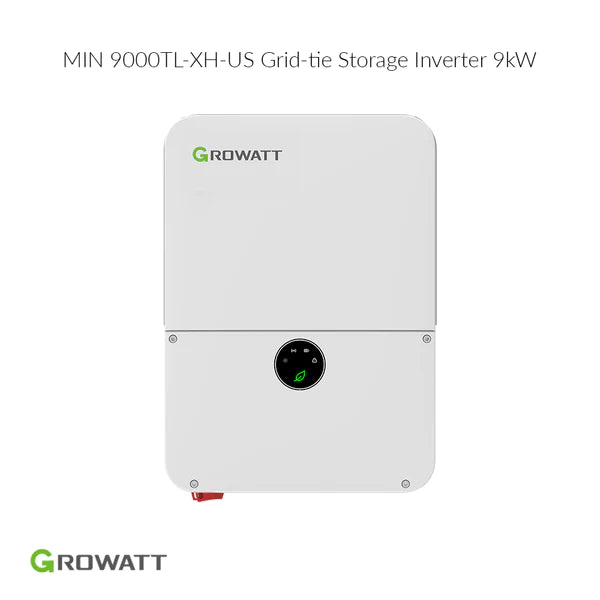

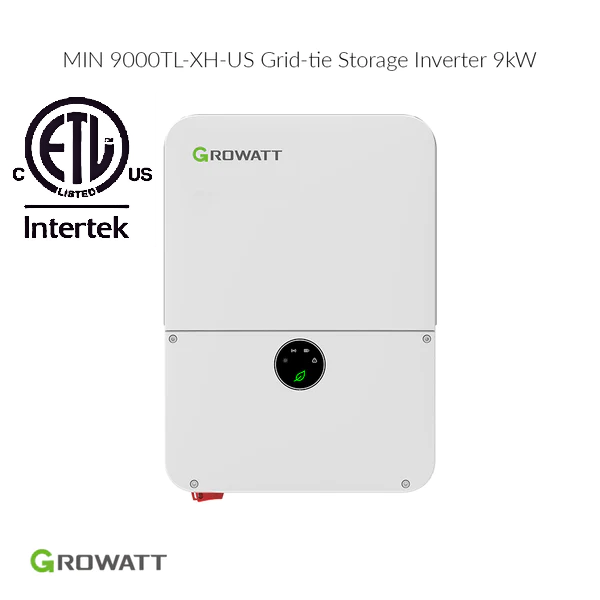

Growatt 9kW MIN 9000TL-XH-US Grid-Tied | Battery Storage Solar Inverter

Growatt 9kW MIN 9000TL-XH-US Grid-Tied | Battery Storage Solar Inverter

$3,999.99 CAD
$6,599.99 CAD $3,999.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • 98.5% Efficiency: Ensures top-notch solar conversion efficiency.
  • Hybrid Capability: Supports grid-tie, battery storage, and off-grid configurations.
  • 4 MPPT Trackers: Maximizes solar harvest from multiple arrays.
  • Wide Battery Compatibility: Compatible with Growatt ARO/APX HV and LG Prime(Gen3) batteries.
  • Advanced Remote Monitoring: WiFi module for real-time tracking via app or web.
  • Comprehensive Safety: Equipped with RSD and AFCI for enhanced system protection.
  • Standards Compliance: Adheres to UL1741SA/SB, CA Rule 21, & HECO requirements.
  • 10-Year Warranty: Comes with a decade-long warranty for peace of mind.
Shipping

Free
Local Shipping

Warranty

10-year Hassle Free
Warranty

Support

Lifetime Customer
Support
Afficher tous les détails
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Growatt 9kW MIN 9000TL-XH-US Grid-Tied | Battery Storage Solar Inverter

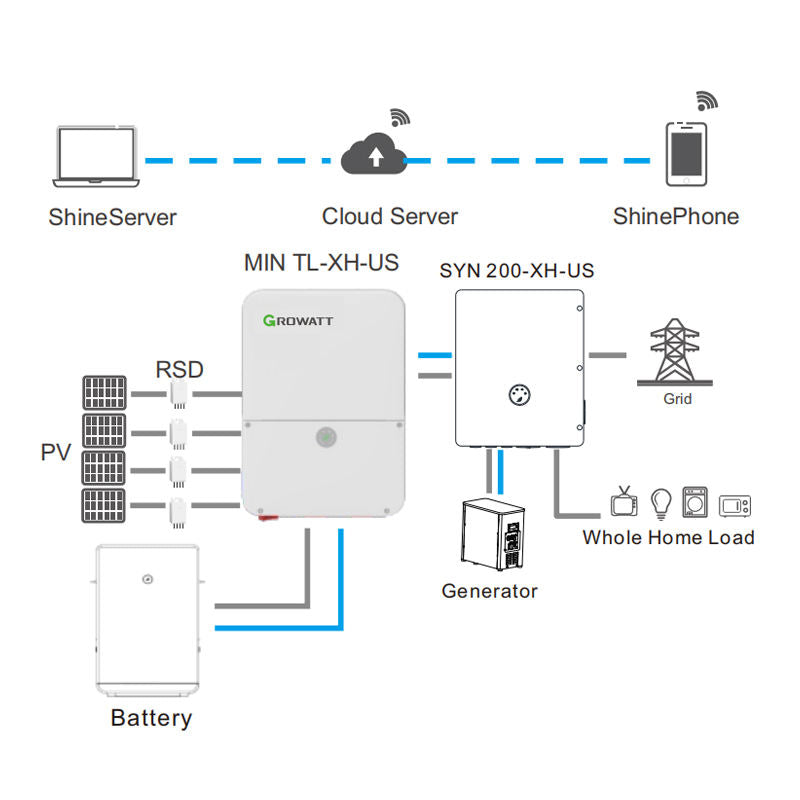

The Growatt 9kW MIN 9000TL-XH-US is a top-tier grid-tie inverter that offers exceptional multi-functional capabilities for both grid-tie and battery storage systems. Tailor-made for modern residential energy storage requirements, this versatile inverter also accommodates off-grid and solar systems when used in conjunction with the Growatt ATS (Auto Transfer Switch). Its user-friendly, plug-and-play WiFi module facilitates effortless online monitoring of your power system via mobile phone or website portal, ensuring you stay informed and in control.

  • Advanced Functionality: Equipped to offer whole home backup and dark start operation, it also supports RSD, AFCI, and RGM meter, ensuring your system operates smoothly and safely.
  • Optimized Energy Production: Boasting a DC/AC Ratio up to 2.0 and a peak efficiency of 98.5%, it stands out in maximizing energy conversion and enhancing savings.
  • Enhanced System Compatibility: Perfectly suited for both DC-Coupled and AC-Coupled systems, it supports various energy management modes including self-consumption, Zero Export, TOU, and Off-Grid. It also complies with UL1741SA/SB, CA Rule 21, and HECO standards, offering wide applicability.
  • Broad Battery Compatibility: Compatible with Growatt ARO/APX HV battery and LG Prime(Gen3) Battery, it provides flexibility in choosing the right energy storage solution for your needs.
  • Comprehensive Monitoring and Communication: Features CAN2.0, RS485, and SUNSPEC communications, along with APP and website connectivity for streamlined system management and monitoring.
  • Solid Warranty and Compliance: Backed by a robust 10-year warranty and certified under key standards such as UL1741, UL1741SA, UL1998, and UL1699B, ensuring a dependable solution for your energy needs.

With the Growatt MIN 9000TL-XH-US Solar Inverter, Growatt reinforces its commitment to innovation and renewable energy, providing homeowners with a powerful, efficient, and versatile tool to maximize their solar power usage, promote energy independence, and contribute to a greener planet.

  • 1x MIN 9000TL-XH-US Inverter: A high-efficiency inverter supporting DC/AC coupled systems, backup power, and multiple energy modes.
  • 1x User Manual: Instructions for installation, setup, and operation.
  • Optional Communication Module: For remote system monitoring and management.
  • 1x AC Connection Cable: Connects the inverter to AC power.
  • 1x PV Connection Kit: For safe solar panel integration.
  • 1x Battery Cable: Links the inverter to battery storage.
  • Mounting Hardware: Includes brackets and screws for installation.
  • 1x Warranty Documentation: Covers warranty terms and support information.

Technical Specifications


Specification Details
Manufacturer Growatt
Type Grid-Tie / Battery Storage
AC Power 9.0kW
Max PV Input Power 18.0kW
MPP Trackers 4
MPPT Voltage Range 50~550V
Max Efficiency 98.5%
Compatible Battery Growatt ARO/APX HV Battery / LG Prime(Gen3) Battery
Warranty 10 Years
Communications CAN2.0, RS485, SUNSPEC / APP, Website
Certificate UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540
PV Input
Max PV Input Power 18.0 kW
Max Input Voltage 600V
Full Load Voltage Range 190~500V
Max Input Current per MPTT 13.5A
Max Short-circuit Current per MPTT 16.9A
MPP Trackers 4
Strings per MPP Tracker 2
Battery Connection
Battery Voltage Range 360~550V
Rated Battery Voltage 400V
I/O DC Current 14.3A
I/O DC Power 5.0kW
AC Output (Grid)
Nominal Power 9.0kW
Max Output Current 45A
Nominal AC Voltage 208/240V
General Data
Dimensions (W*H*D) 15.8*25.2*7.4 inch (400*638*187mm)
Weight 45.2lbs (20.5kg)

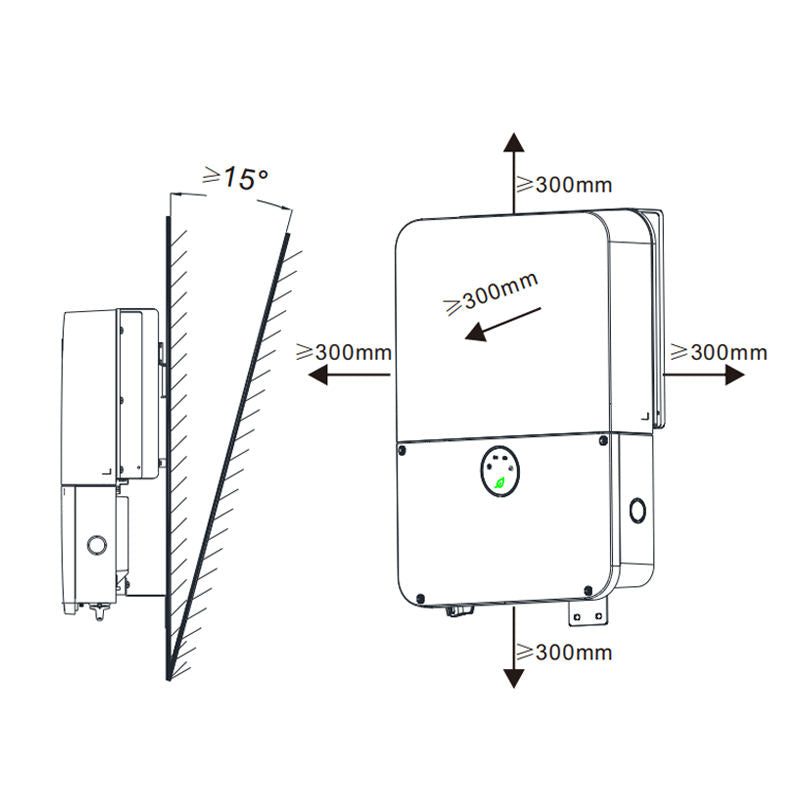

Installation Indoor, Outdoor, Wall-mounted
Monitoring Module WiFi+ LAN, 4G(Optional)


This inverter operates at a peak efficiency of 98.5%, ensuring that a significant portion of the solar energy collected is efficiently converted into usable power for your home or business.

Yes, the Growatt 9kW inverter is primarily designed for grid-tie and battery storage systems but can support off-grid operations when used with the Growatt ATS (Auto Transfer Switch) and suitable storage batteries.

Absolutely, it comes equipped with four MPPT trackers, enabling it to manage multiple PV arrays efficiently, thereby optimizing the solar energy harvest.

The inverter is compatible with various high-voltage battery systems, including the Growatt ARO/APX HV battery and LG Prime(Gen3) Battery, offering versatile energy storage solutions.

Yes, it features a WiFi module for easy online monitoring, enabling you to track your power system's performance via a mobile app or web portal from anywhere.

Growatt offers a 10-year warranty for this inverter, demonstrating their confidence in the product's durability and their commitment to customer satisfaction.

The MIN 9000TL-XH-US is equipped with comprehensive safety features, including Rapid Shutdown (RSD) and Arc Fault Circuit Interrupter (AFCI), enhancing the protection for your solar energy system.

Yes, it meets critical industry regulations and standards, including UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule 21, and HECO, ensuring its suitability for a wide range of installations.

Download Product Manual (PDF)
