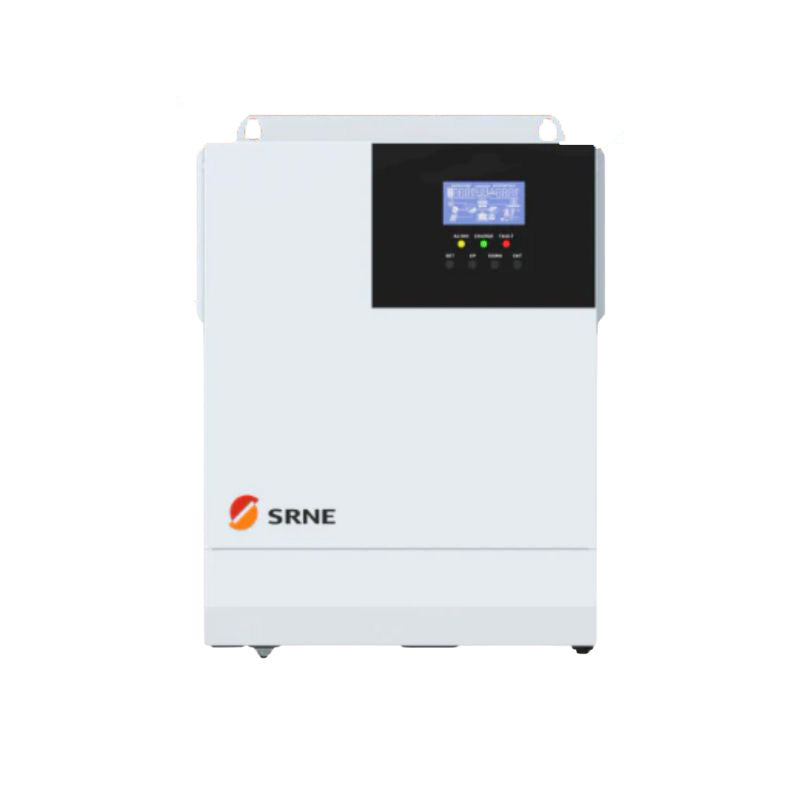

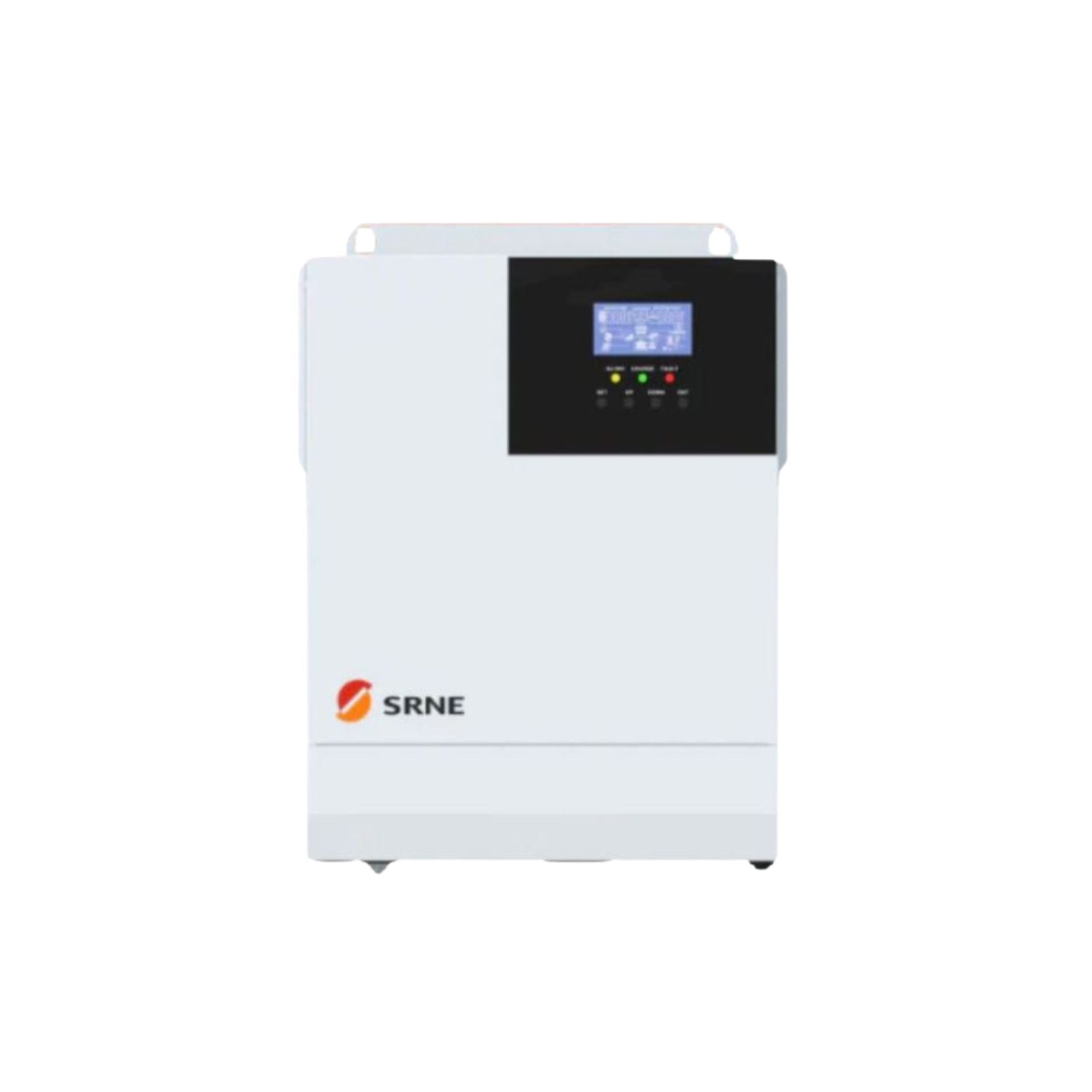

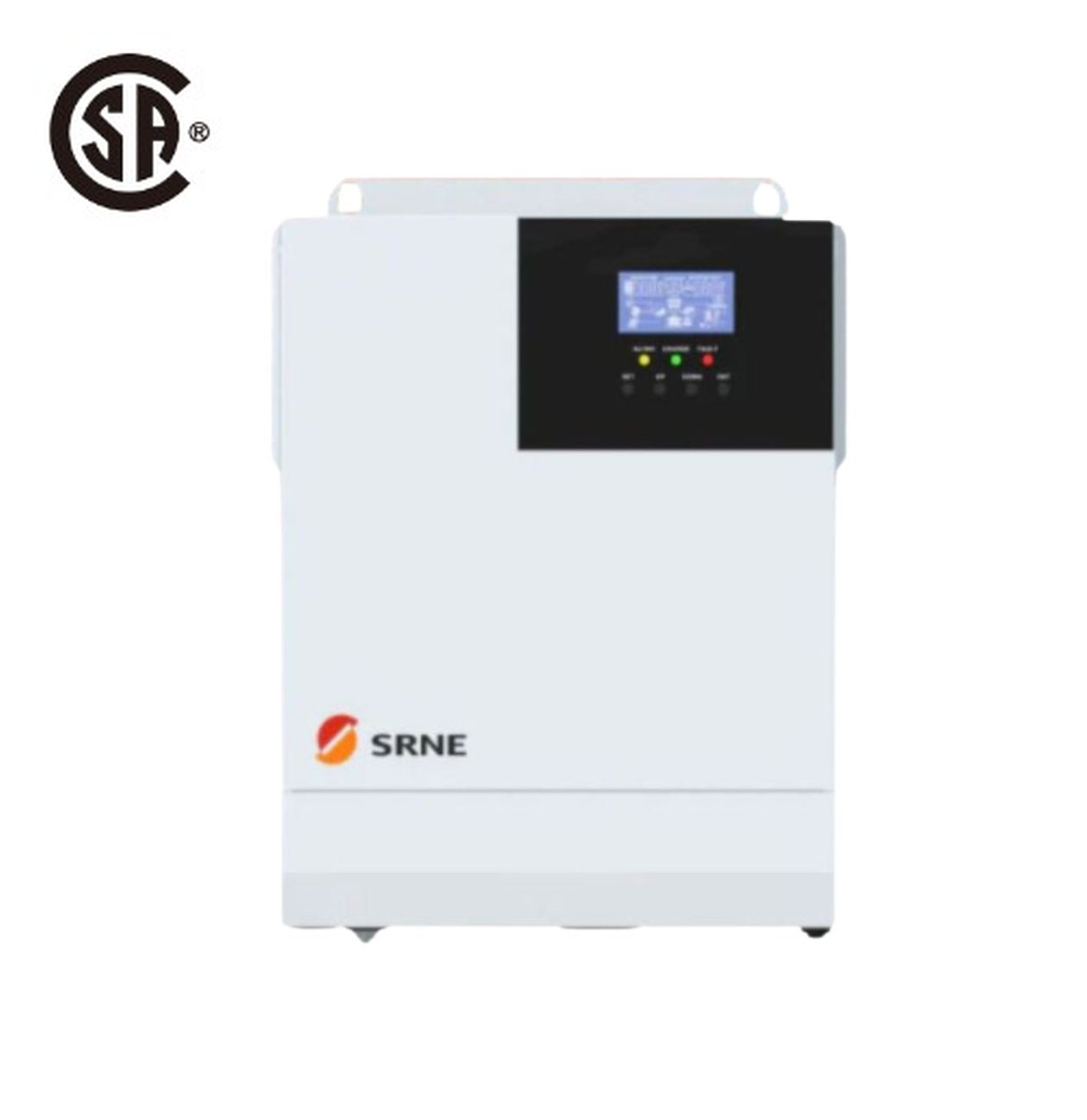

24V 3kW Single-Phase off-grid Solar Storage Inverter

24V 3kW Single-Phase off-grid Solar Storage Inverter

$899.99 CAD
$1,699.99 CAD $899.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.

HF2430U60–100 Inverter Specifications

Model: HF2430U60–100

Inverter Output

  • Rated Output Power: 3,000W
  • Max. Peak Power: 6,000VA
  • Output Voltage: 120Vac (Single-Phase)
  • Load Motor Capacity: 2HP
  • Frequency: 50/60Hz
  • Waveform: Pure sine wave
  • Switch Time: 10ms (typical)

Battery

  • Type: Lead-acid / Lithium-ion / User-defined
  • Rated Voltage: 24V
  • Voltage Range: 20Vdc–33Vdc
  • Max. Solar Charging: 60A
  • Max. Grid/Generator Charging: 40A
  • Max. Hybrid Charging: 100A

Solar Input

  • MPPTs: 1
  • Max. PV Power: 1,600W
  • Max. Input Current: 60A
  • Open Circuit Voltage: 108Vdc
  • MPPT Range: 30–90Vdc

Grid / Generator Input

  • Voltage Range: 90–140Vac
  • Frequency Range: 50/60Hz
  • Bypass Overload Current: 40A

Efficiency

  • MPPT Tracking: 99.9%
  • Max Efficiency: 92%

General Data

  • Dimensions: 378×280×103mm
  • Weight: 6.8kg
  • Protection: IP20 (Indoor use)
  • Temp Range: -15°C to 55°C
  • Humidity: 0–100%
  • Cooling: Fan cooled
  • Warranty: 5 years
  • Communication: RS485, CAN, USB, Dry Contact
  • External Module: Wi-Fi / GPRS (Optional)
  • Topology: Transformerless

Certifications

RoHs, ENG1000, IEC 62109, cETL UL17418, CSA C22.2, PSE

Bulk Order Inquiry

Interested in ordering in bulk? We offer competitive pricing and flexible terms for large orders.

Request a Bulk Quote

Shipping

Free
Local Shipping

Warranty

10-year Hassle Free
Warranty

Support

Lifetime Customer
Support
Afficher tous les détails
  •  Generator connection ready
  • MPPT Charge Controller integrated
  •  Multiple charging and on-load modes to maximise energy use
  • 2.0HP Motor Load Capacity
  • Support remote monitoring of equipment operating parameters
