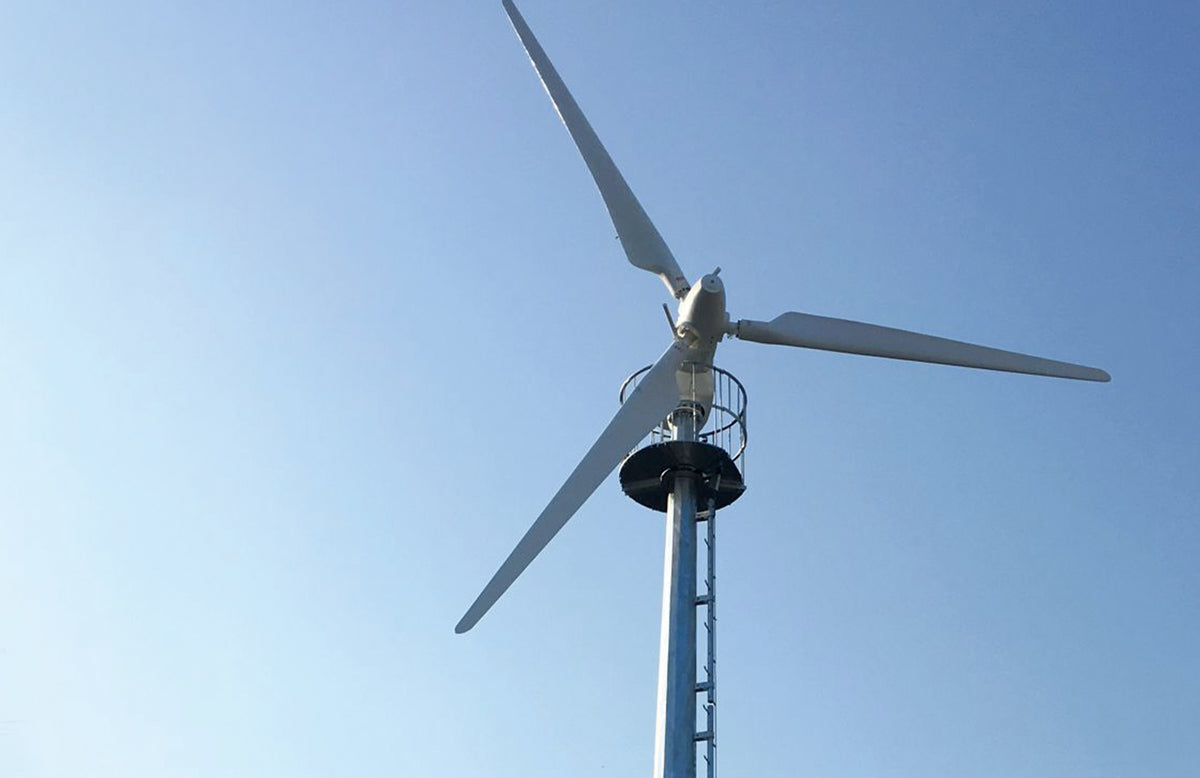

20 kW pitch control wind turbine; supplier reference photograph

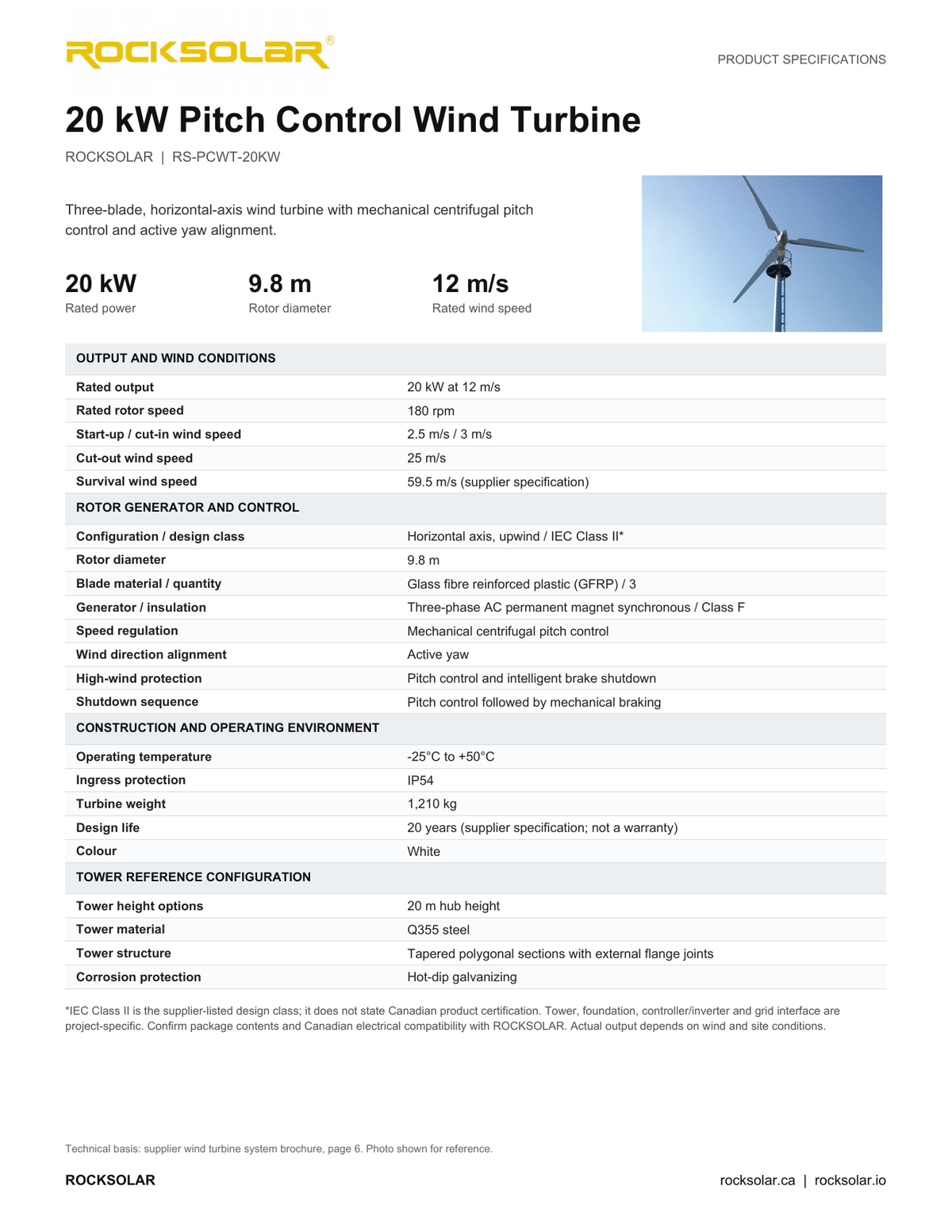

ROCKSOLAR 20kW wind turbine specification sheet, with rated output, rotor dimensions, operating limits and tower reference options

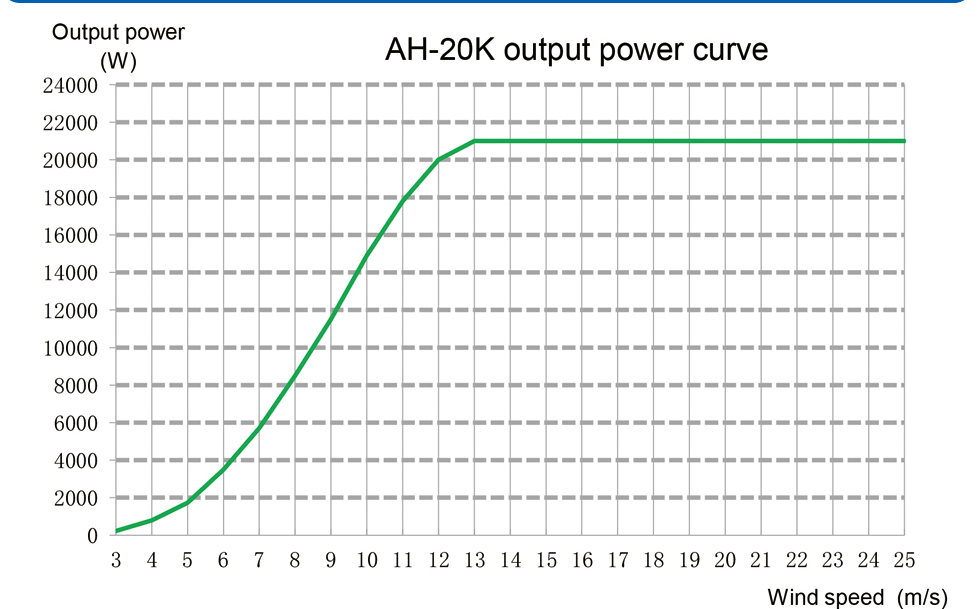

Supplier reference power curve for the 20kW pitch control wind turbine; actual production depends on site conditions

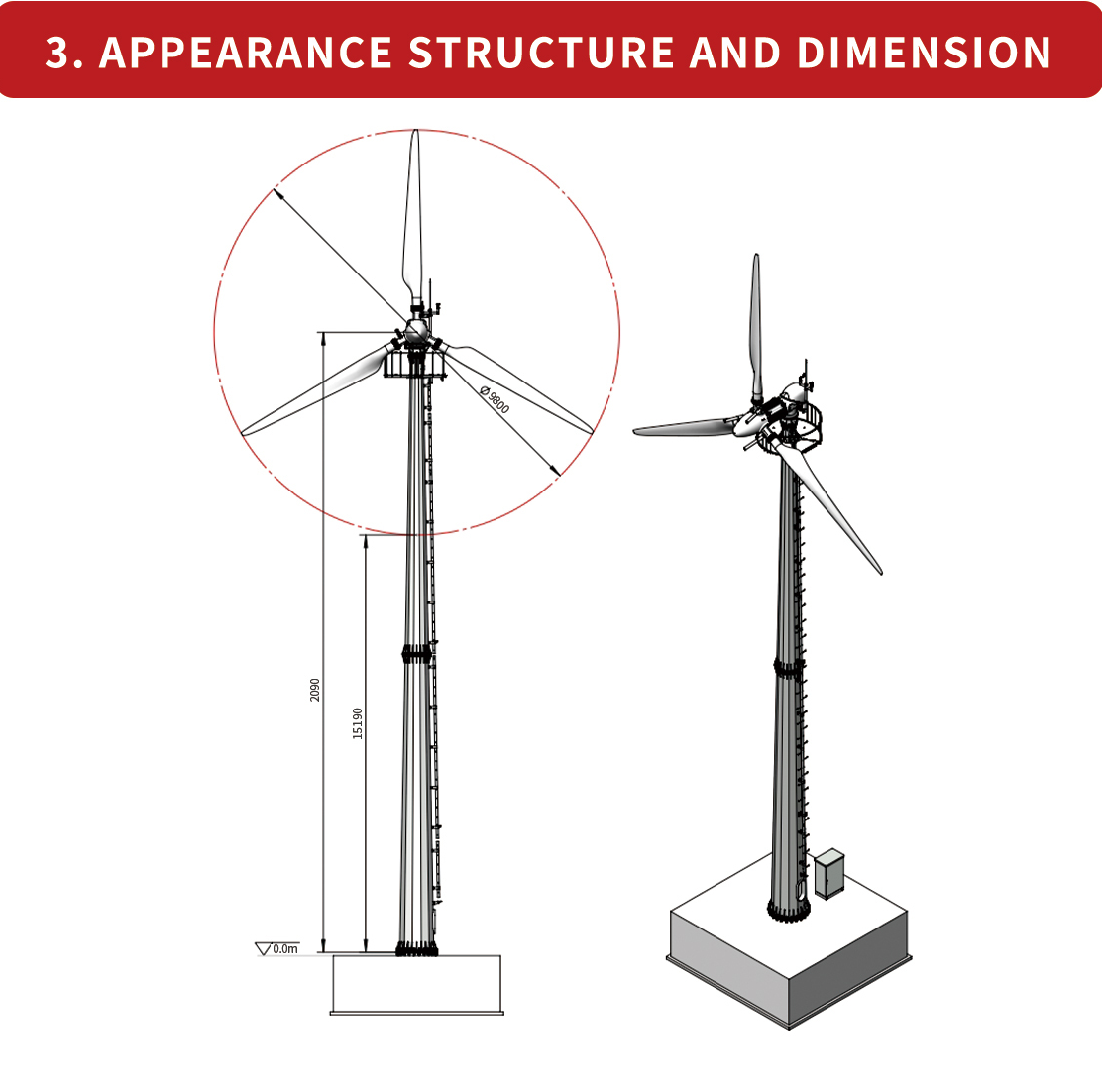

Supplier reference rotor and tower drawing for the 20kW wind turbine; final tower design is project-specific

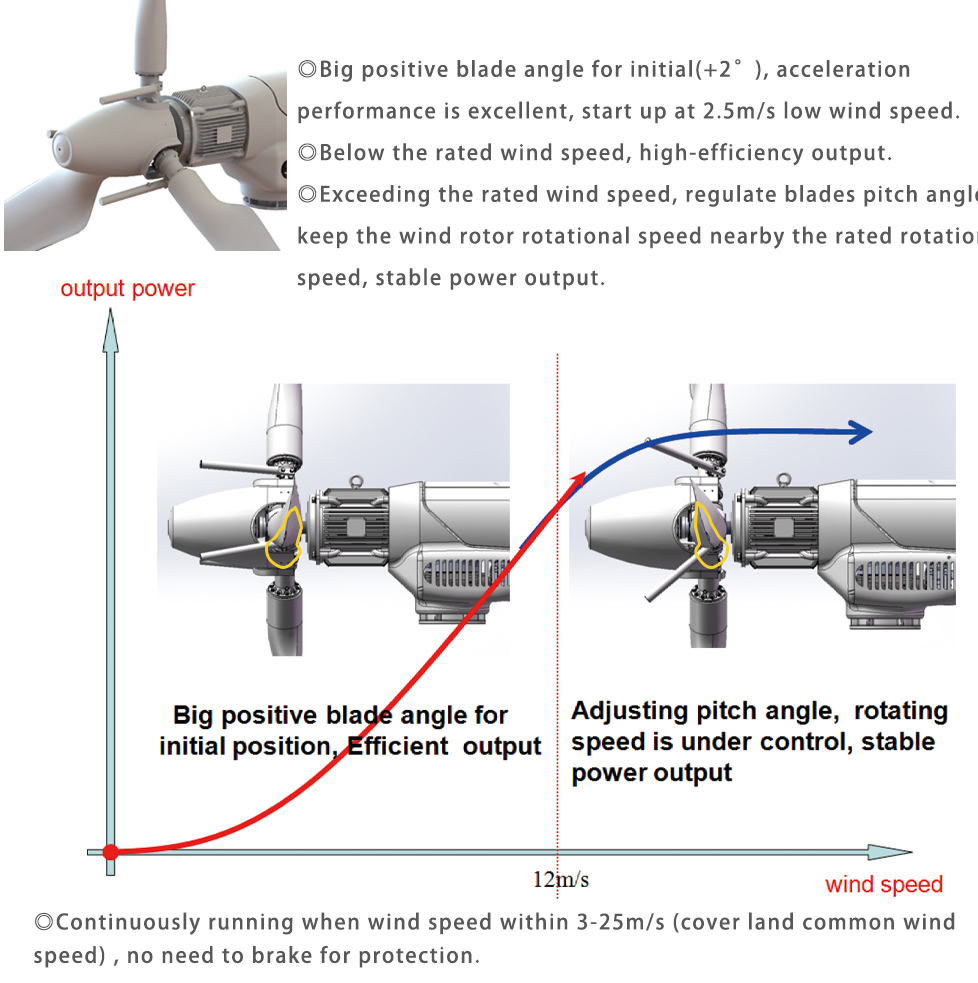

Mechanical centrifugal pitch-control mechanism and operating principle for the 20kW wind turbine

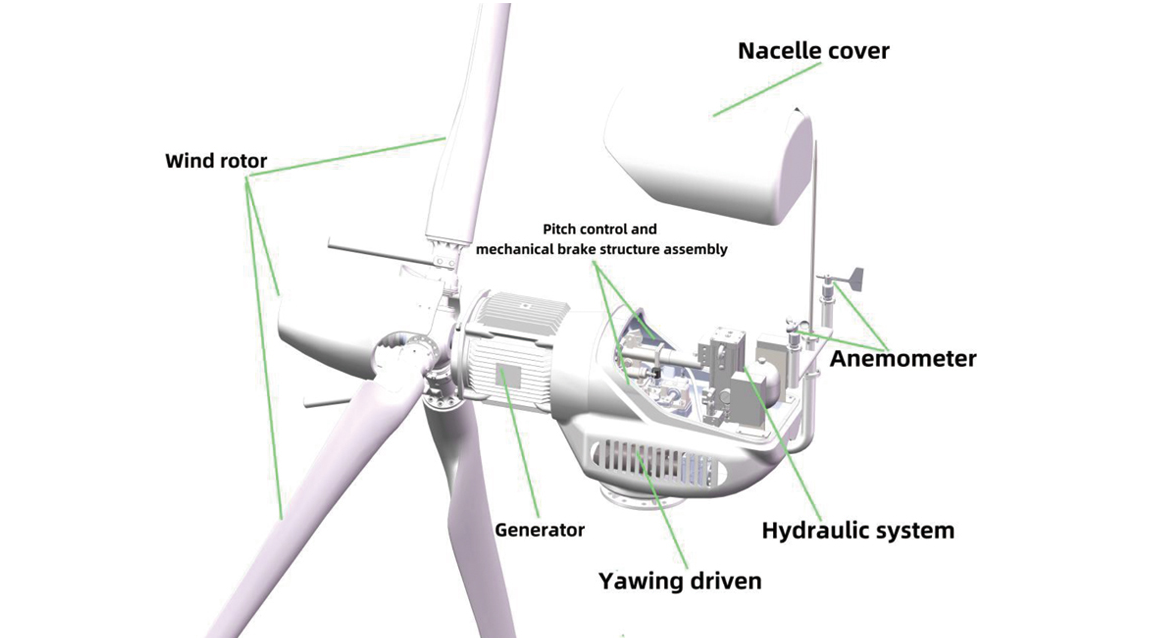

20kW wind turbine component cutaway showing generator, yaw drive and control components

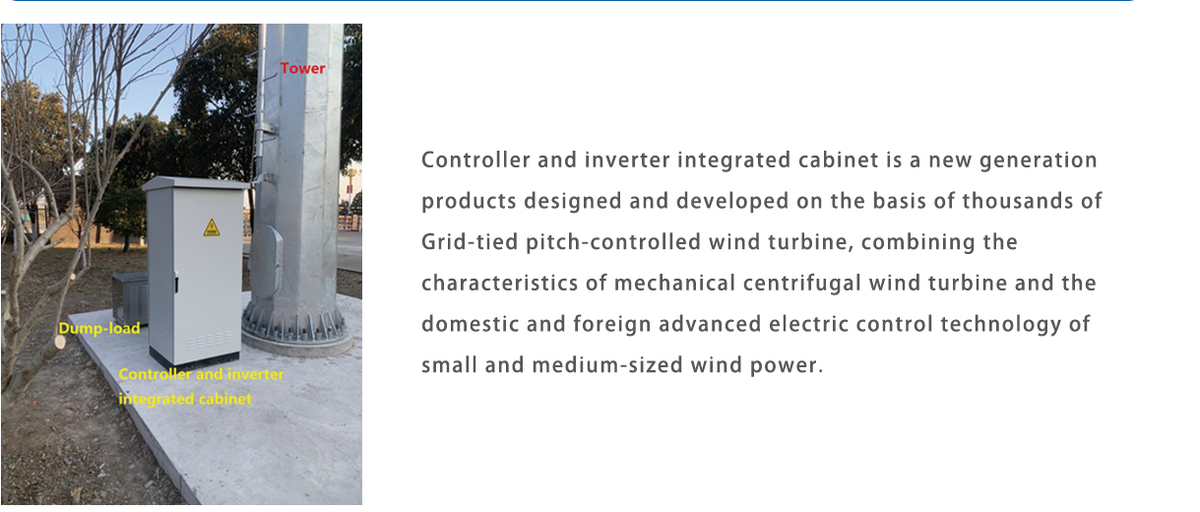

Supplier reference integrated controller/inverter cabinet for a 20kW on-grid system; configuration and inclusion subject to quotation

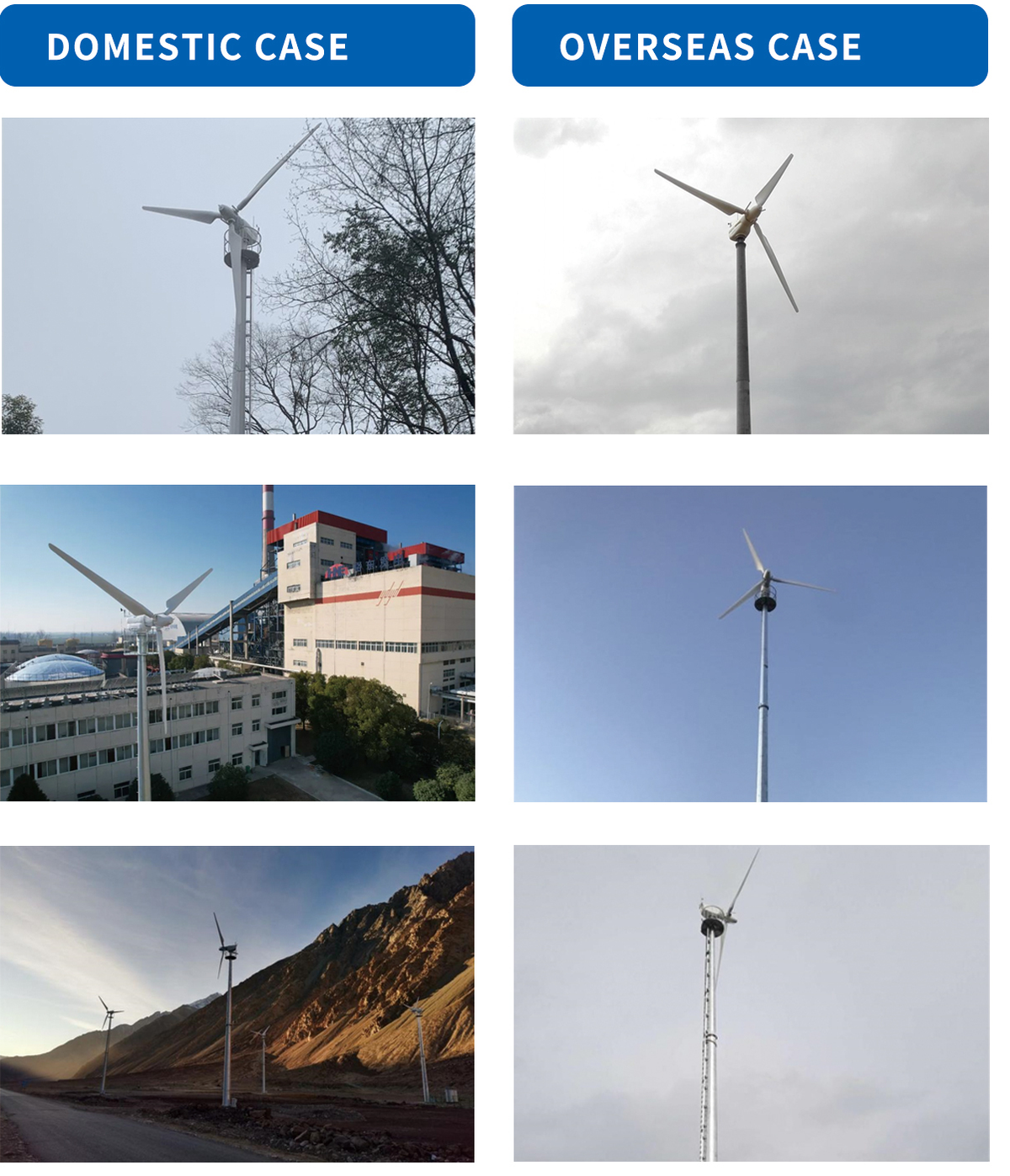

Supplier installation examples from the 20kW wind turbine brochure

ROCKSOLAR 20kW Pitch Control Wind Turbine

Fournisseur: ROCKSOLAR CANADA

Type: Pitch Control Wind Turbine

UGS: RS-PCWT-20KW

$35,999.00 CAD

Rupture de stock — commande possible

Livraison rapide et suivie

Entreprise détenue et exploitée par des Canadiens

Plus de 25 ans d'expérience dans l'industrie solaire

Magasin Google le mieux noté

Entreprise notée A+ par le Better Business Bureau

Approuvé par plus de 10 000 clients canadiens

Politique de retour de 30 jours sans tracas

Garantie la plus performante du secteur

Livraison fiable partout au Canada

Description

The ROCKSOLAR 20kW Pitch Control Wind Turbine is designed for grid-connected or off grid wind energy projects at farms, commercial properties and industrial sites with suitable wind resources. Its three-blade, upwind rotor combines mechanical centrifugal pitch control with active yaw to regulate rotor speed and align the turbine with the wind.

Features

20 kW rated output: Rated at a wind speed of 12 m/s, with a 9.8 m rotor.
Pitch control: Blade pitch adjusts above rated wind speed to regulate rotor speed and support stable power output.
Active yaw: The yaw drive positions the turbine in response to wind direction.
Controlled shutdown: Pitch control reduces rotor speed before mechanical braking is applied.
System monitoring: The supplier's integrated controller and inverter configuration supports operating-data monitoring and remote start/stop functions, depending on the selected communication setup.
What's Included: 1. 20KW Wind Turbine. 2. MPPT Charge Controller. 3. Dump load. 4. Inverter (optional). 5. Battery (optional). 6 Wind Turbine Tower (optional)

Technical specifications

Specification	Value
Rated power	20 kW at 12 m/s
Configuration	Horizontal axis, upwind
Rotor diameter	9.8 m
Blades	3 glass fibre reinforced plastic (GFRP) blades
Rated rotor speed	180 rpm
Start-up wind speed	2.5 m/s
Cut-in wind speed	3 m/s
Cut-out wind speed	25 m/s
Survival wind speed	59.5 m/s (supplier specification)
Generator	Three-phase AC permanent magnet synchronous generator
Generator insulation	Class F
Speed regulation	Mechanical centrifugal pitch control
Wind alignment	Active yaw
Stopping sequence	Pitch control followed by mechanical braking
Ingress protection	IP54
Operating temperature	-25°C to +50°C
Turbine weight	1,210 kg (supplier-listed turbine weight)
Colour	White

Tower and system configuration

The reference configuration uses a 20 m hub-height independent tower made from Q355 steel with a tapered polygonal structure, external flange joints and hot-dip galvanized protection. The complete wind turbine system combines the turbine, tower and an integrated controller/inverter cabinet. Tower selection, cabinet, dump load, communications, foundation design, cabling and installation scope are confirmed in the project quotation; the reference configuration is not a statement of included package contents.

Plan your wind project

Contact ROCKSOLAR with your site location, wind-resource information and electrical service details to confirm system configuration and pricing. Grid voltage and frequency, inverter certification, utility interconnection requirements, tower design and installation requirements must be confirmed for the Canadian project before ordering. Rated output is measured at the stated wind speed; actual energy production depends on the site's wind conditions, tower height and system availability.
