ROCKSOLAR 29.2V/10A 24V LiFePO4 Battery Charger

ROCKSOLAR 29.2V/10A 24V LiFePO4 Battery Charger

Prix habituel $114.00 USD
Prix habituel $152.00 USD Prix soldé $114.00 USD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • Compact Power: Offers 292W of efficient output power.
  • Flexible Input: Supports a wide input range of 100~240Vac.
  • Precision Charging: Delivers stable charging with ±0.2V voltage accuracy.
  • Temperature Resilience: Operates smoothly from -10 to +45℃.
  • Humidity Tolerance: Effective in 5%-95% relative humidity conditions.

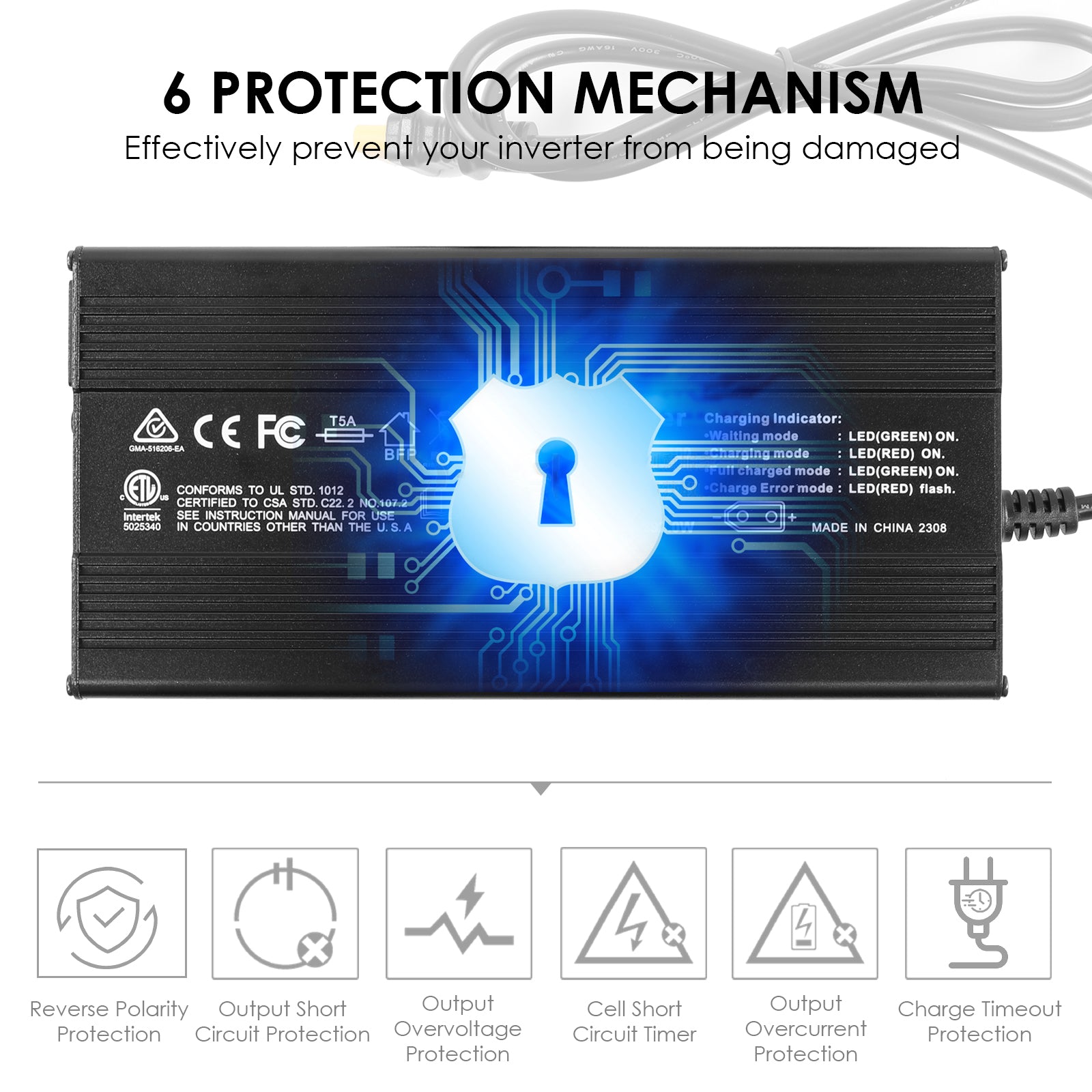

  • Safety Assurance: Features reverse polarity, short circuit, overvoltage, and overcurrent protection.
  • Natural Air Cooling: Maintains optimal performance through natural air cooling.
  • Altitude Adaptability: Functions well up to 2000m above sea level.
  • LED Indicators: Provides clear charging status with color-coded LED lights.
  • Versatile Use: Suitable for a broad range of charging applications.
Shipping

Free
Local Shipping

Warranty

1-year Hassle Free
Warranty

Support

Lifetime Customer
Support

Afficher tous les détails
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Compact and Powerful Charging: Introducing the ROCKSOLAR 29.2V/10A LiFePO4 Battery Charger, offering a solid 292W output power. Perfect for efficiently charging 24V LiFePO4 batteries.

Flexible Input Voltage: Designed to support a wide input voltage range from 100~240Vac, making it versatile for use in different regions and power sources.

Precision Output Control: Delivers a steady output voltage of 29.2Vdc with an output current of 10A, ensuring precise and consistent charging, along with a stable voltage accuracy of ±0.2V.

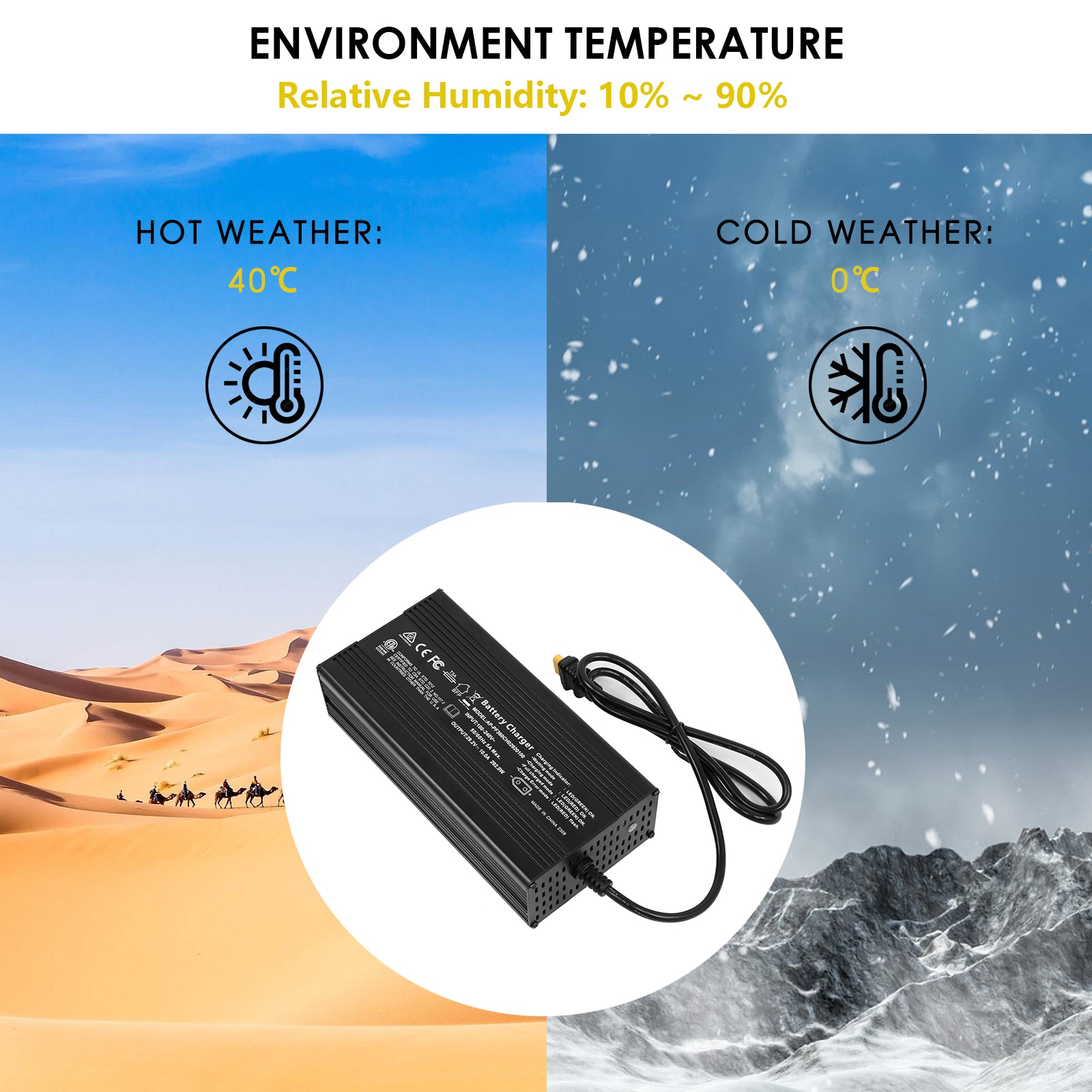

Durable in Varied Environments: Operates reliably in a broad operating temperature range of -10 to +45℃ and can be stored in temperatures ranging from -40 to 70℃. It’s also designed to work efficiently in relative humidity levels of 5% to 95%, non-condensing.

Natural Air Cooling: Utilizes a natural air cooling method, enhancing the charger's durability and maintaining optimal performance without the need for additional cooling equipment.

Enhanced Electrical Characteristics: Features include a broad input voltage range of 90~264 Vac, a maximum input current of 5A, and superior power factor correction of ≥0.95. Its efficiency of ≥90% at full load ensures an energy-efficient operation.

Advanced Protection Features: Equipped with comprehensive safety mechanisms like reverse polarity protection, output short circuit protection, output overvoltage, and overcurrent protection, safeguarding both the charger and connected batteries.

Intuitive LED Indicators: The charger displays clear charging status with a green LED for power on, red LED during charging, and green LED when the battery is fully charged.

Reliable and User-Friendly: The ROCKSOLAR 29.2V/10A LiFePO4 Battery Charger is an ideal choice for users seeking a reliable, easy-to-use, and efficient charging solution for a variety of applications.

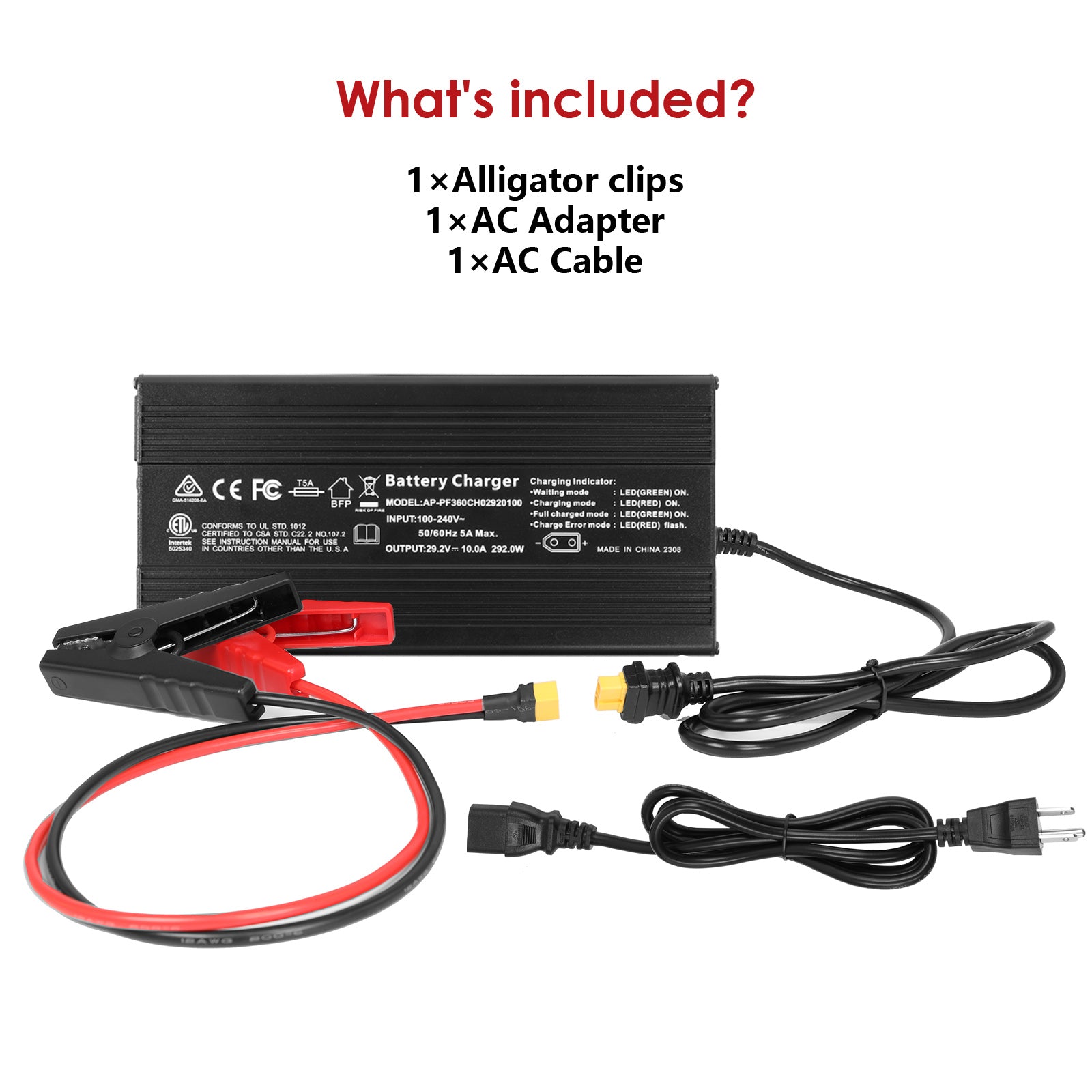

  • 1x Alligator Clips
  • 1x AC Adapter
  • 1x AC Cable

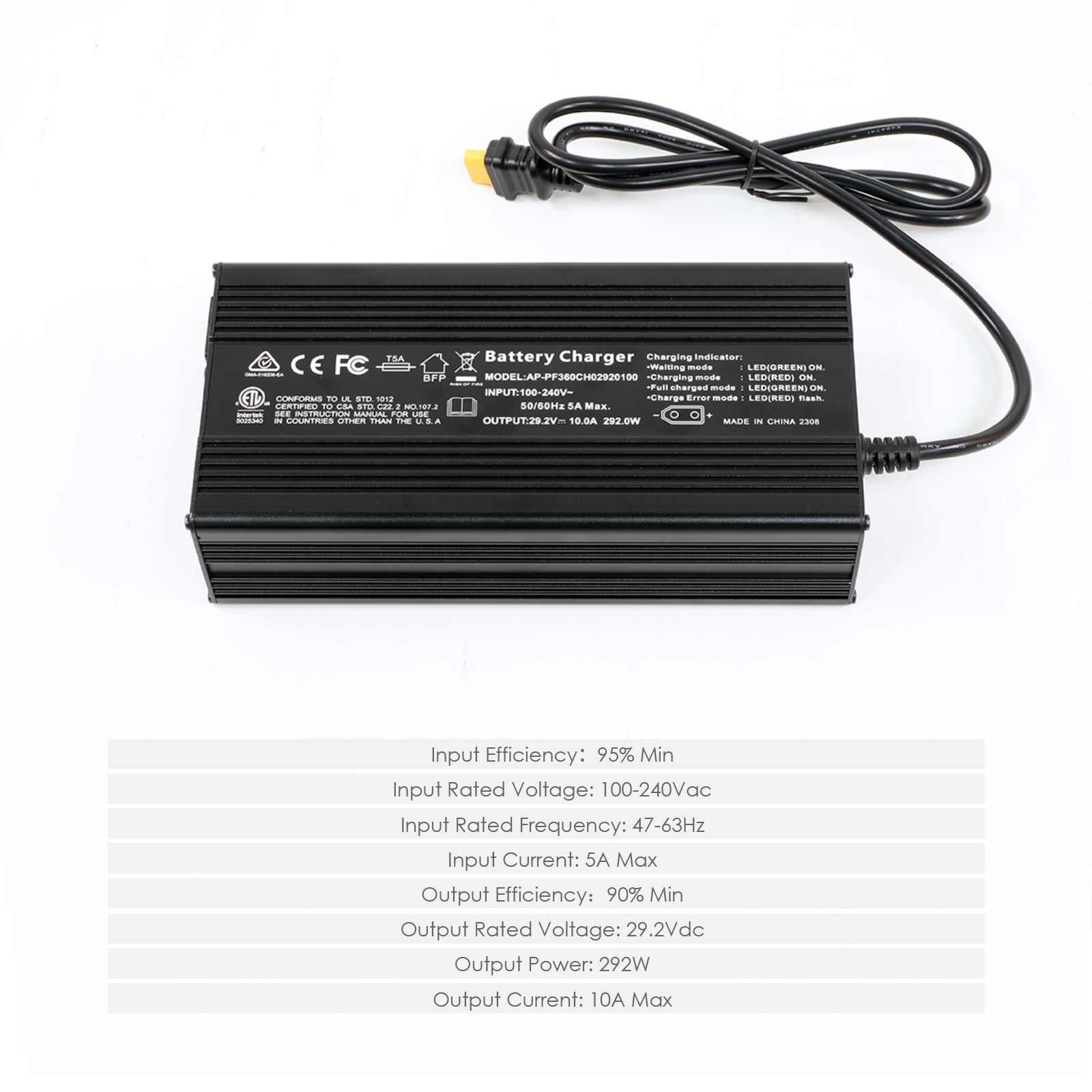

Technical Specifications


Specification Details
Output Power 292W
Rated Input Voltage 100~240Vac
Output Voltage 29.2Vdc
Output Current 10A
Stable Voltage Accuracy ±0.2V
Operating Temperature -10~+45℃, Typical value 25℃ (Full load)
Storage Temperature -40~70℃, Typical value 25℃
Relative Humidity 5%-95%, Non-condensing
Elevation ≤2000 m (Normal operation)
Cooling Method Natural Air
Input Voltage Range 90~264 Vac
Input Inrush Current ≤110 A (Vin=230Vac @ full load, 25℃)
Input Current Max 5 A (Vin=100Vac @Full load)
AC Input Voltage Frequency 47—63 Hz
Power Factor Correction ≥0.95 (Input 100~240Vac @ Full load)
Output Efficiency ≥90% (Input 230Vac @ Full load)
Ripple & Noise ≤500 mVp-p
Reverse Polarity Protection Yes
Output Short Circuit Protection Yes
Output Overvoltage Protection Yes
Output Overcurrent Protection Yes
Charging Indication Status Power on: Green LED
Charging: Red LED
Battery full: Green LED


The ROCKSOLAR 29.2V/10A LiFePO4 Battery Charger offers an efficient output power of 292W, ideal for fast and reliable charging.

Yes, this charger operates effectively in a wide temperature range from -10 to +45℃, ensuring versatility for use in various environmental conditions.

Absolutely, the ROCKSOLAR Charger is designed to function in relative humidity levels of 5% to 95%, non-condensing, making it robust for use in diverse humidity conditions.

This charger is equipped with comprehensive safety features, including reverse polarity protection, output short circuit protection, overvoltage, and overcurrent protection, ensuring a safe and secure charging process.

The charger boasts high efficiency with a power factor correction of ≥0.95 and an output efficiency rate of ≥90%, ensuring energy-efficient operation.

Yes, designed for versatility, this charger can effectively function at altitudes up to 2000 meters, suitable for various high-altitude applications.

The charger includes intuitive LED indicators: green light for power on, red light during charging, and green light when the battery is fully charged, ensuring clear and easy understanding of the charging status.
