ROCKSOLAR 58.4V/10A 48V LiFePO4 Battery Charger

ROCKSOLAR 58.4V/10A 48V LiFePO4 Battery Charger

$199.99 CAD
$299.99 CAD $199.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • Efficient Output: Delivers a robust 584W power output.
  • Variable Input Range: Accommodates 100~240Vac input voltage.
  • Stable Charging: Ensures ±0.2V voltage accuracy for reliability.
  • Environmental Adaptability: Operates effectively from -10 to +45℃.
  • Humidity Resistant: Functions well in 5%-95% relative humidity.
  • Advanced Safety Features: Includes multiple protection systems.
  • Effective Cooling: Equipped with a 40x40x20mm bearing fan.
  • High Altitude Performance: Operates up to 2000m altitude.
  • Clear Status Indicators: Intuitive charging status lights.
  • Wide Compatibility: Ideal for various high-demand applications.
Shipping

Free
Local Shipping

Warranty

1-year Hassle Free
Warranty

Support

Lifetime Customer
Support
Afficher tous les détails
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

High-Efficiency Charging Solution: Presenting the ROCKSOLAR 58.4V/10A LiFePO4 Battery Charger, a highly efficient charging device with a robust 584W output power. Ideal for charging 48V LiFePO4 batteries, this charger is a staple for efficient energy management.

Versatile Input and Output Range: With a rated input voltage of 100~240Vac and an output voltage of 58.4Vdc, this charger caters to a wide range of power requirements. Its 10A output current ensures rapid and consistent charging, backed by a stable voltage accuracy of ±0.2V.

Adaptable to Various Environments: Engineered to operate within a broad temperature range of -10 to +45°C, and capable of storage in temperatures from -40 to 70°C. It also functions effectively in relative humidity levels of 5% to 95%, non-condensing, and at altitudes up to 2000m, making it highly adaptable to different environmental conditions.

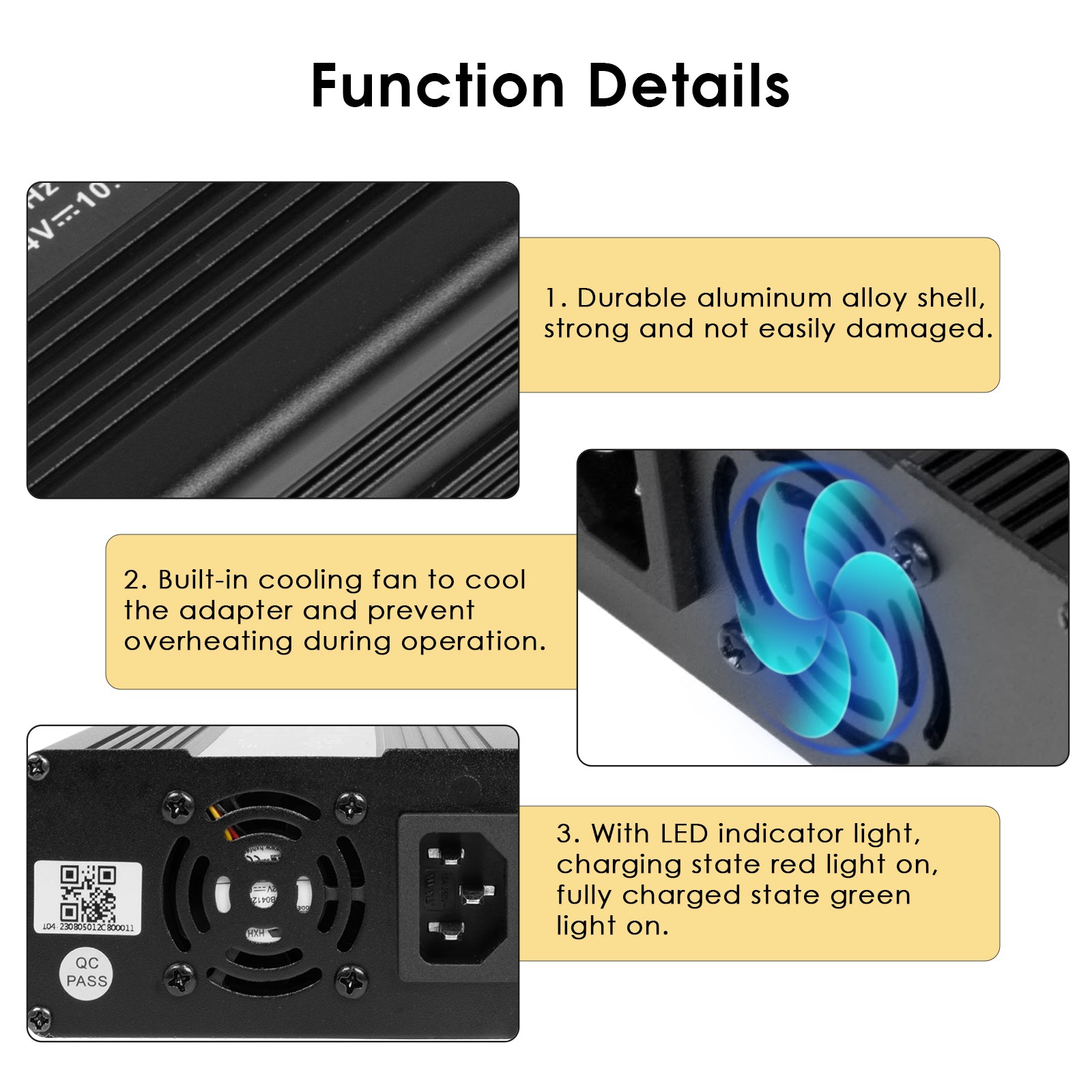

Efficient Cooling Mechanism: The charger is equipped with a 40x40x20mm bearing fan cooling system, ensuring optimal performance and longevity even under full load conditions.

Advanced Electrical Features: It boasts an input voltage range of 90~264 Vac, a maximum input current of 8A, and a power factor correction of ≥0.95. The charger's output efficiency of ≥89%, coupled with its low ripple & noise levels of ≤500 mVp-p, guarantees a smooth and reliable charging process.

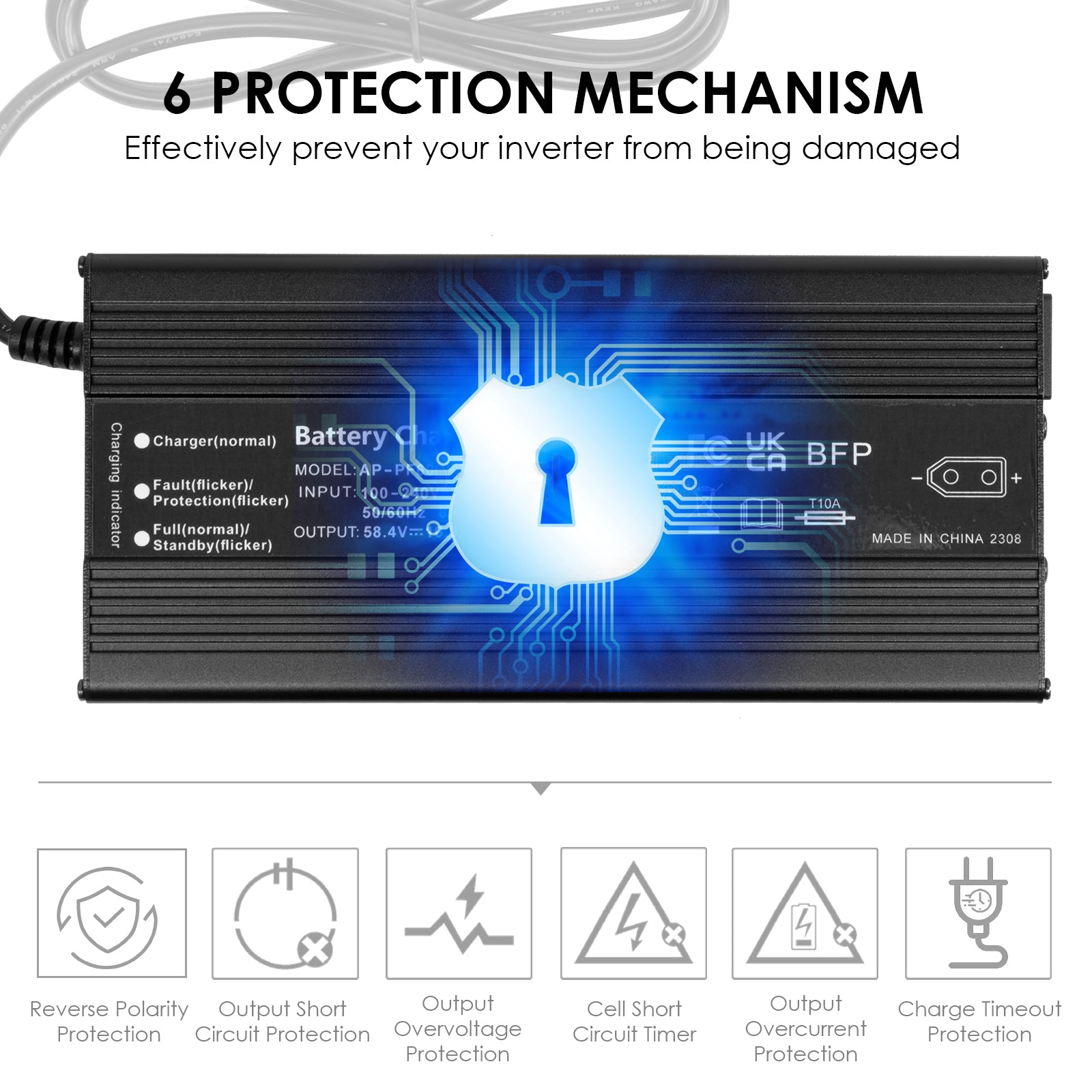

Comprehensive Protection Systems: This charger is designed with multiple safety features including reverse polarity protection, output short circuit protection, output overvoltage, and overcurrent protection, ensuring the safety of both the charger and the batteries it powers.

Intuitive Charging Indicators: The charger provides clear status indicators with a green light for power on, a blue light during charging, and a green light when the battery is fully charged. An additional red light indicates any abnormal conditions.

Trusted Charging Companion: The ROCKSOLAR 58.4V/10A LiFePO4 Battery Charger is your go-to solution for reliable, efficient, and safe power management, suitable for a wide range of applications.

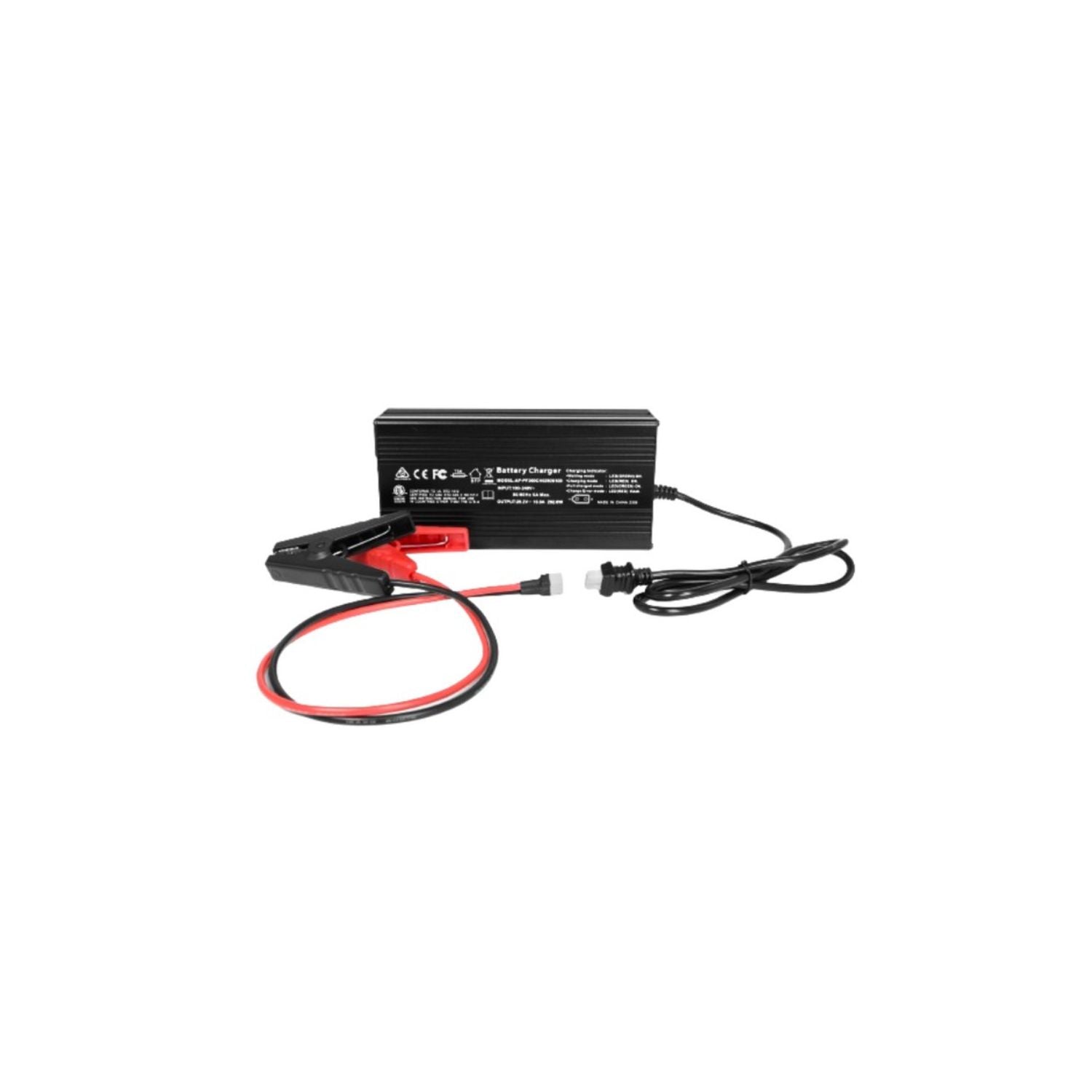

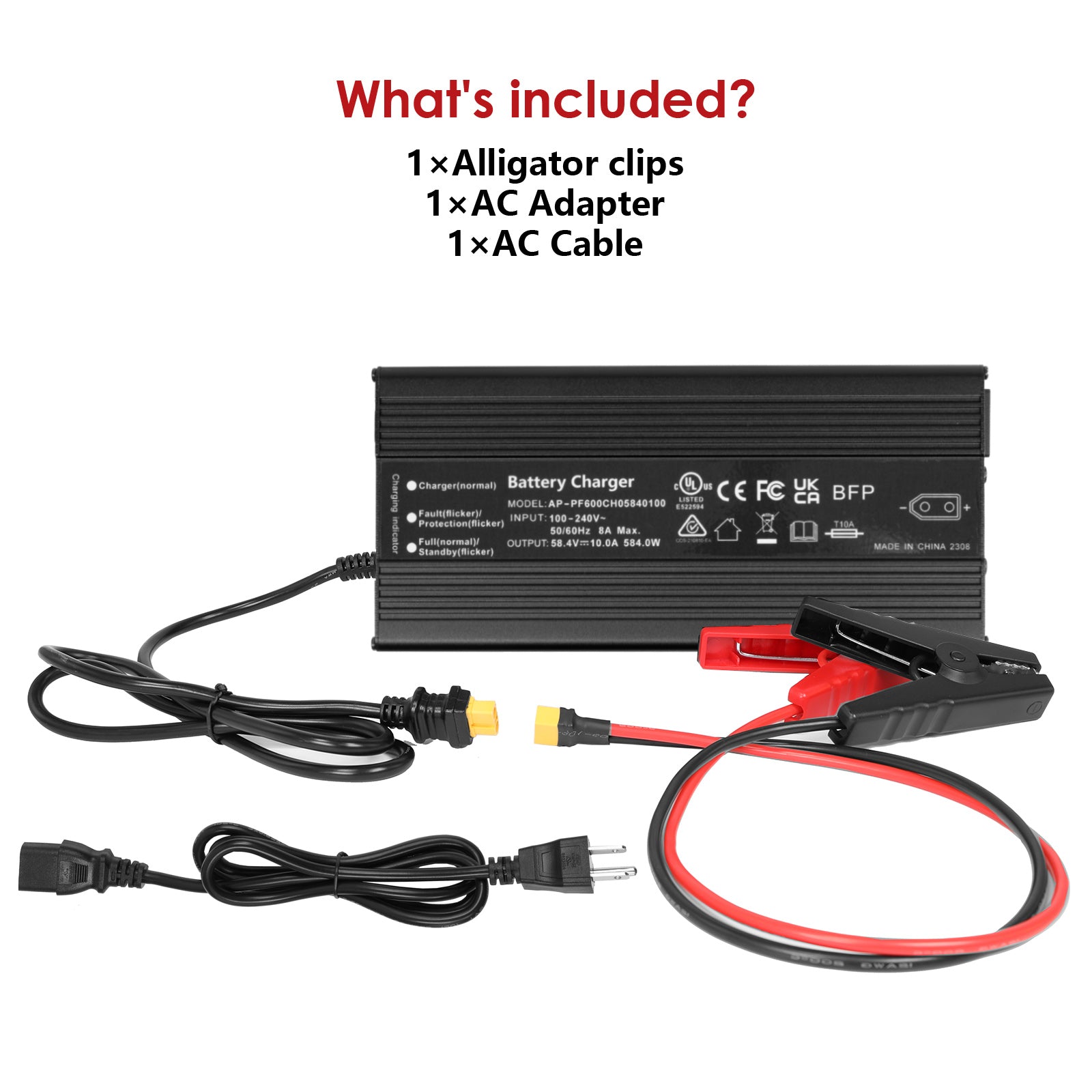

  • 1x Alligator Clips
  • 1x AC Adapter
  • 1x AC Cable

Technical Specifications


Specification Details
Output Power 584W
Rated Input Voltage 100~240Vac
Output Voltage 58.4Vdc
Output Current 10A
Stable Voltage Accuracy ±0.2V
Operating Temperature -10～+45℃, Typical value 25℃ (Full load)
Storage Temperature -40～70℃, Typical value 25℃
Relative Humidity 5%－95%, Non-condensing
Altitude ≤2000 m (Normal operation)
Cooling Method 40*40*20mm Bearing Fan Cooling
Input Voltage Range 90~264 Vac
Input Current Max 8 A (Vin=100Vac @Full load)
AC Input Voltage Frequency 47—63 Hz
Power Factor Correction ≥0.95 (Input 100~240Vac @ Full load)
Output Efficiency ≥89% (Input 230Vac @ Full load)
Ripple & Noise ≤500 mVp-p
Reverse Polarity Protection Yes
Output Short Circuit Protection Yes
Output Overvoltage Protection Yes
Output Overcurrent Protection Yes
Charging Indication Status Power on: Green light flashed
Charging: Blue light always on
Battery full: Green light always on
Abnormal: Red light flashed


The ROCKSOLAR LiFePO4 Battery Charger boasts an impressive output power of 584W, ensuring efficient and rapid charging for your batteries.

Yes, this charger is designed to function optimally in a wide temperature range from -10 to +45℃, making it versatile for use in various environmental conditions.

Definitely, the ROCKSOLAR Charger can operate in relative humidity levels ranging from 5% to 95%, non-condensing, making it robust for use in diverse humidity conditions.

This charger is equipped with multiple safety features, including reverse polarity protection, output short circuit protection, overvoltage, and overcurrent protection, ensuring a secure charging process.

The charger maintains high efficiency with a power factor correction of ≥0.95 and an output efficiency of ≥89%. Its advanced cooling system also ensures optimal performance.

Yes, the charger is designed to function effectively at altitudes up to 2000 meters, making it suitable for various high-altitude applications.

The charger features intuitive status indicators: a green light for power on, blue light during charging, green light when the battery is fully charged, and a red light to indicate any abnormal conditions.

Download Product Manual (PDF)
