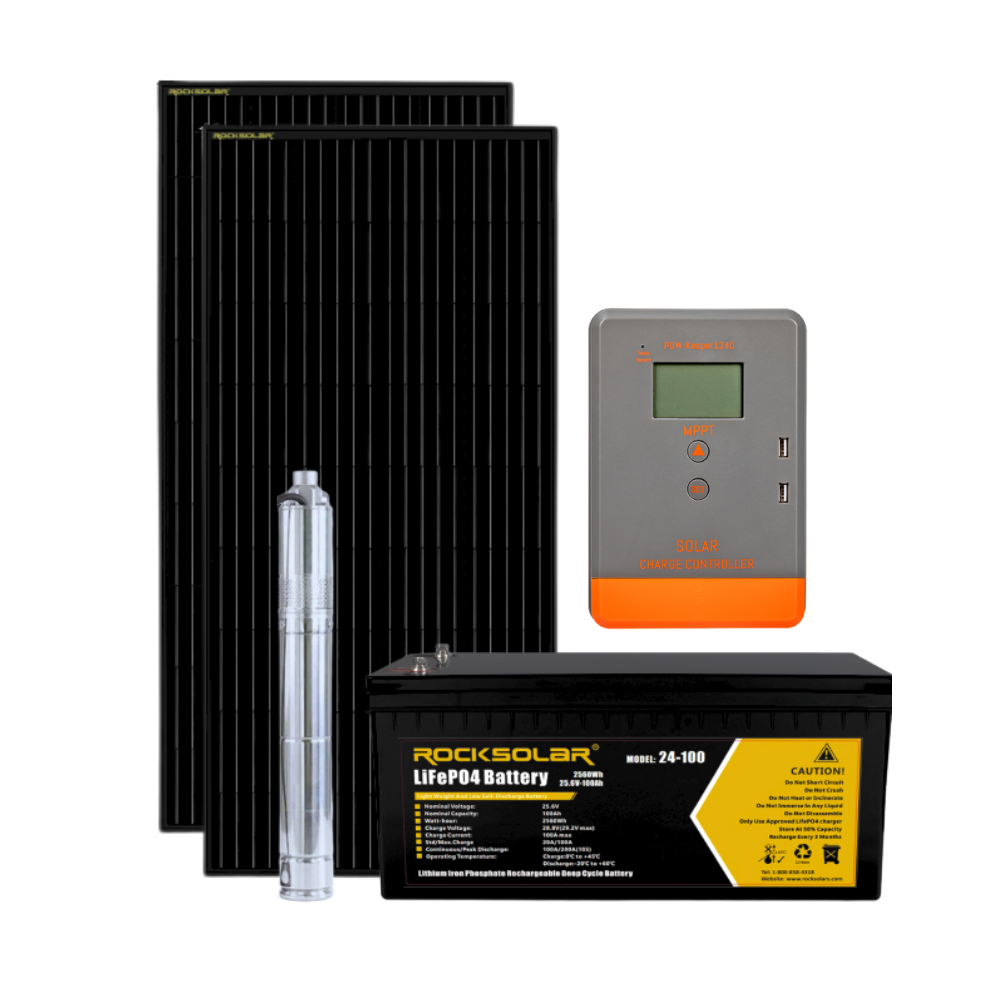

Rocksolar HydraPower Ultra: All-in-One Kit with Brushless Pump

Rocksolar HydraPower Ultra: All-in-One Kit with Brushless Pump

Prix habituel $2,699.99 CAD
Prix habituel $3,299.99 CAD Prix soldé $2,699.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.

Superior Power Generation and Efficiency

  • Set includes two 200W monocrystalline solar panels, each providing 800-1000 Wh of electricity per day (depending on sun availability), for a total of 1600-2000 Wh.
  • High-performance brushless motor of the Rocksolar 24V Solar DC Brushless Water Pump ensures reliable and efficient operation.

Optimized for Solar Use

  • Solar panel has built-in bypass diodes that minimize power drops due to shade for optimal performance even in low-light conditions.
  • Water pump is designed specifically for solar power, optimized for use with ROCKSOLAR solar panels and systems.
Read more
Afficher tous les détails
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews


Introducing the ROCKSOLAR HydraPower Ultra, an All-in-One Kit that's poised to transform your off-grid energy needs. This kit combines the highest quality components to create a powerful, efficient, and long-lasting energy system that's perfect for a variety of applications.

It features a 24V brushless DC water pump that is highly efficient, reducing energy consumption and extending the life of the pump. To power your water pump, the HydraPower Ultra comes equipped with a ROCKSOLAR 400W Rigid Solar Panel Kit. These two high-efficiency 200W monocrystalline solar panels provide excellent performance, even in low light conditions. Their durable aluminum frames and weather-resistant design ensure they can withstand the harshest of environments, while their high light transmittance glass improves energy output, ensuring consistent power to your system.

Power storage is handled by the ROCKSOLAR 24V 100Ah Deep Cycle LiFePO4 Battery, equipped with a state-of-the-art BMS system. Despite its high capacity, this battery is surprisingly lightweight and compact, making it ideal for mobile applications. With a lifespan of over 3500+ cycles, this battery not only delivers reliable power but is also a fantastic long-term investment.

To effectively manage the energy between your solar panels and battery, the HydraPower Ultra includes the ROCKSOLAR 20A MPPT Solar Charge Controller. This versatile device is compatible with both lithium and lead-acid batteries, featuring a high MPP tracking efficiency and a three-stage charge algorithm. Its broad operating temperature range makes it suitable for use in a variety of environments.

Product Features

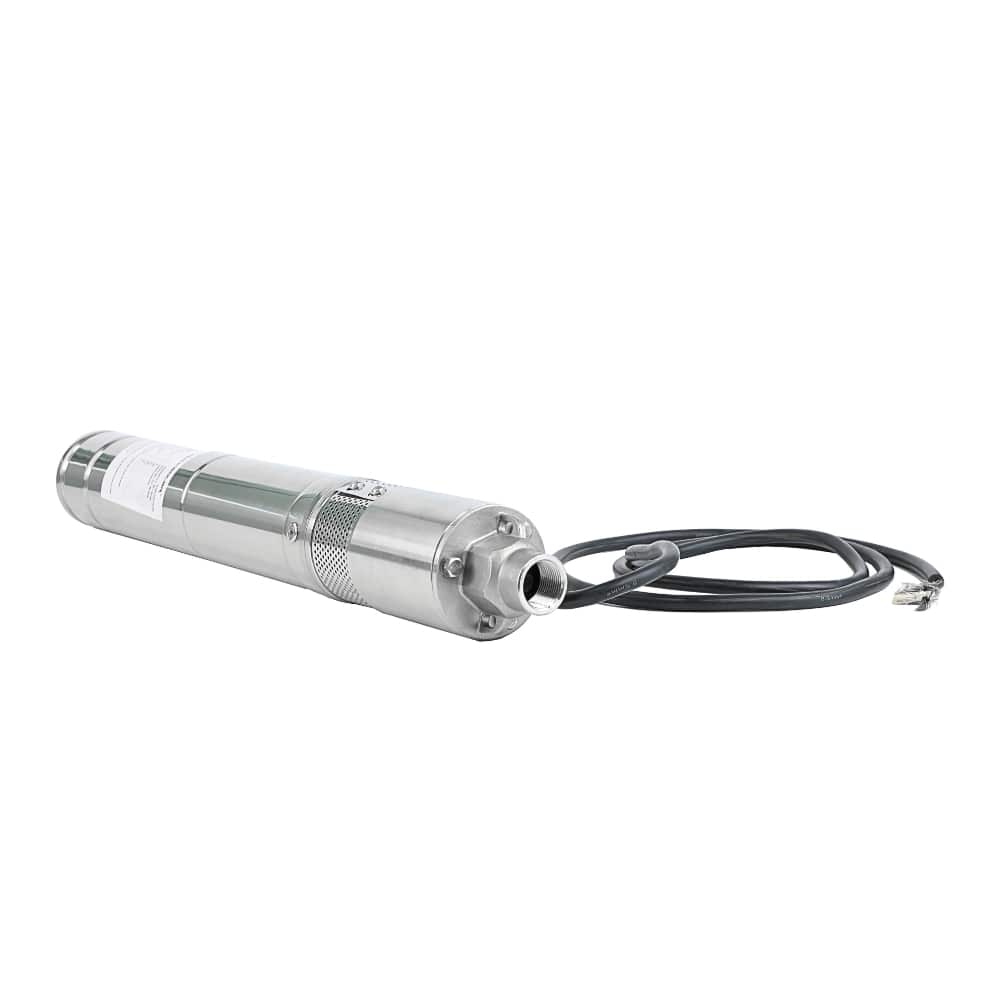

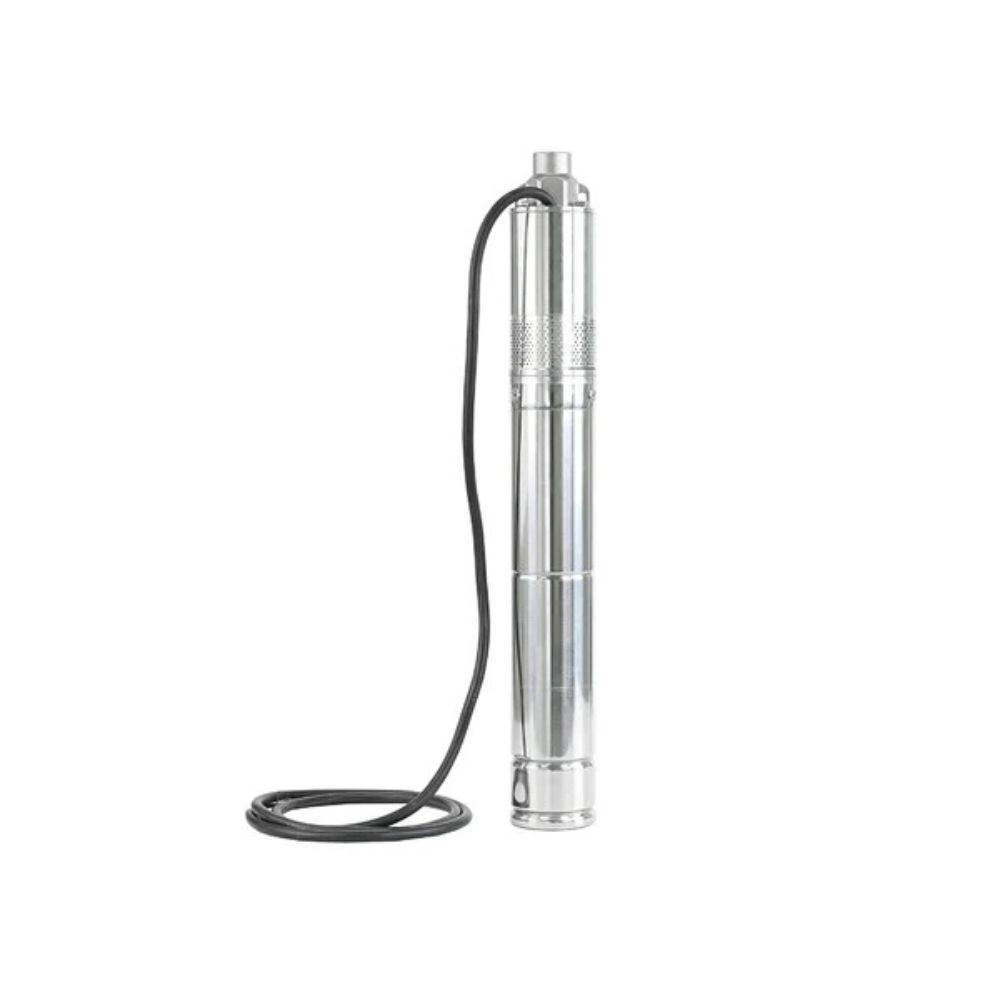

ROCKSOLAR 24V Brushless Solar DC Water Pump:

  • High-Performance Brushless Motor: Reliable and efficient operation, designed specifically for solar power applications.
  • Durable Construction: The pump features complete stainless steel (S.S. 304) construction, with a motor brass cap and S.S. 304 body for long-lasting use.
    Inbuilt Controller: The pump comes with an inbuilt controller for ease of operation.
  • Powerful: The 250W power provides a maximum flow rate of 1.3m3/h and a maximum head of 70m.
  • User-friendly: Easy to install and operate with minimal maintenance requirements. Quiet operation and low vibration for an unobtrusive addition to your solar setup.
  • Adequate Cable Length: Comes with a 2M cable for flexible installation.
  • Optimized for Solar: Works seamlessly with ROCKSOLAR solar panels and systems.
  • Outlet: The pump features a 1" outlet for easy connection to your water supply system.

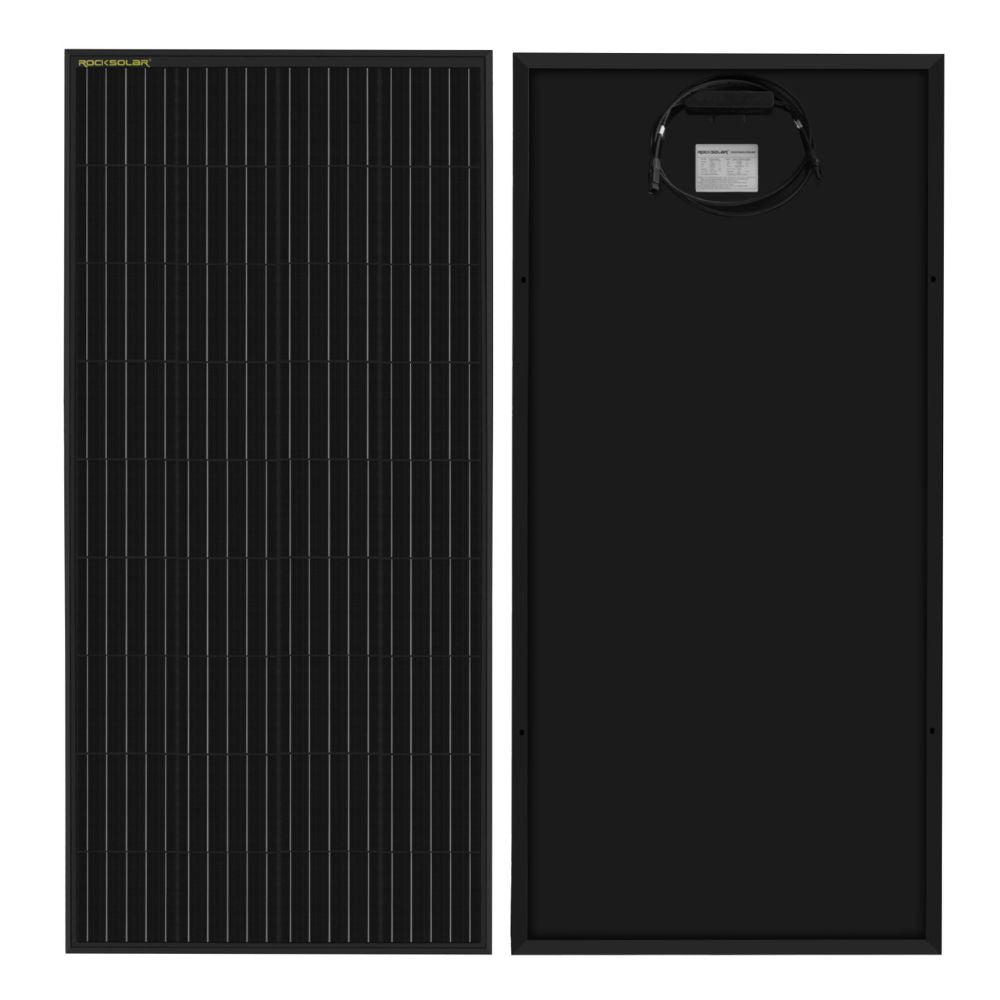

ROCKSOLAR 400W Rigid Solar Panel Kit (2x 200W Panels):

  • High-efficiency monocrystalline cells for excellent performance even in low light conditions.
  • Total power output of 400W, suitable for a range of applications.
  • 12V system compatibility, ideal for remote or off-grid locations.
  • Durable, corrosion-resistant aluminum frame for longevity and easy mounting.
  • Weather-resistant design to withstand harsh environmental conditions.
  • High light transmittance glass for improved energy output.
  • Pre-drilled mounting holes for easy installation.
  • Integrated bypass diodes for consistent energy output.
  • Equipped with industry-standard MC4 connectors for secure connections.
  • Long service life of 25 years or more with proper maintenance.
  • Eco-friendly power source, reducing your carbon footprint.

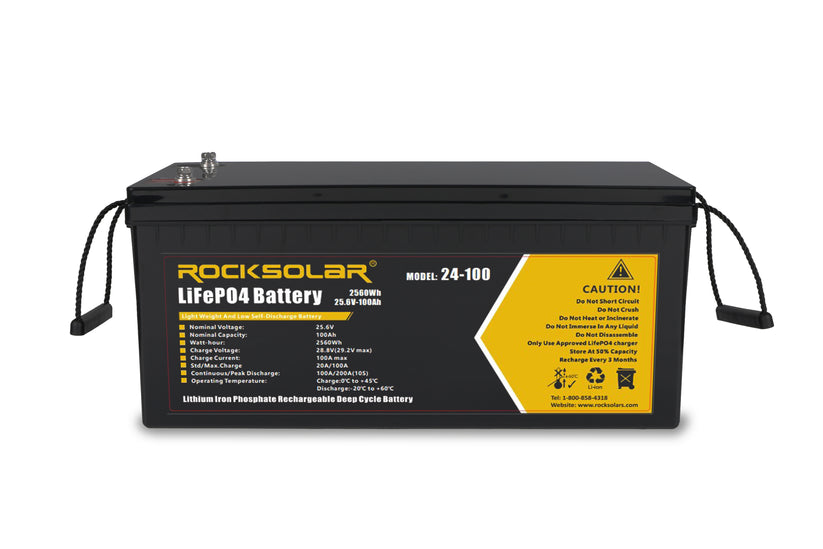

ROCKSOLAR 24V 100Ah Deep Cycle LiFePO4 Battery with BMS System:

  • Powerful and Long-lasting: With a capacity of 100Ah, this battery delivers reliable, sustained power for your applications. Its LiFePO4 chemistry ensures over 3500+ life cycles, offering a great return on investment.
  • Advanced BMS Protection: The integrated BMS ensures optimal performance under various conditions. It provides comprehensive protection against overcharging, short-circuiting, and extreme temperature variations.
  • Lightweight and Portable: Despite its high power output, this battery is lightweight at only 25 kg (55 lb) and has a compact design. This makes it ideal for mobile applications like RVs, boats, and more.
  • Durable and Reliable: This battery is designed to withstand harsh conditions, making it ideal for marine and off-grid applications.
  • Flexible Application: Perfect for various power needs, it's easy to link in series to create 48V or 72V systems. This flexibility allows you to meet specific power requirements for RVs, boats, off-grid solar systems and more.
  • Long-Term Warranty: Gain confidence in your purchase with our impressive 11-year warranty. Trust in the longevity and reliability of the ROCKSOLAR 24V 100Ah Deep Cycle LiFePO4 Battery.

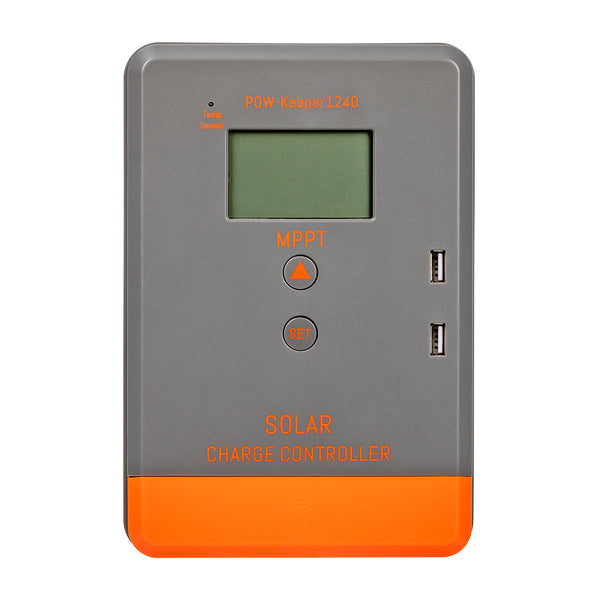

ROCKSOLAR 20A MPPT Solar Charge Controller:

  • Compatible with Lithium and Lead Acid batteries
  • The maximum open voltage of 75Vdc and MPP tracking efficiency of 99.5%
  • Rated charging current of 20A and battery voltage range of 8-32V
  • 3-stage charge algorithm and 12/24V nominal system voltage.
  • High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V
  • Operating temperature range of -20°C to 55°C

Rocksolar HydraPower Ultra: All-in-One Kit with Brushless Pump


24V Brushless Solar DC Water Pump


200W Monocrystalline Rigid Solar Panel


24V Brushless Solar DC Water Pump


20 MPPT Solar Charge Controllers

Technical Specification

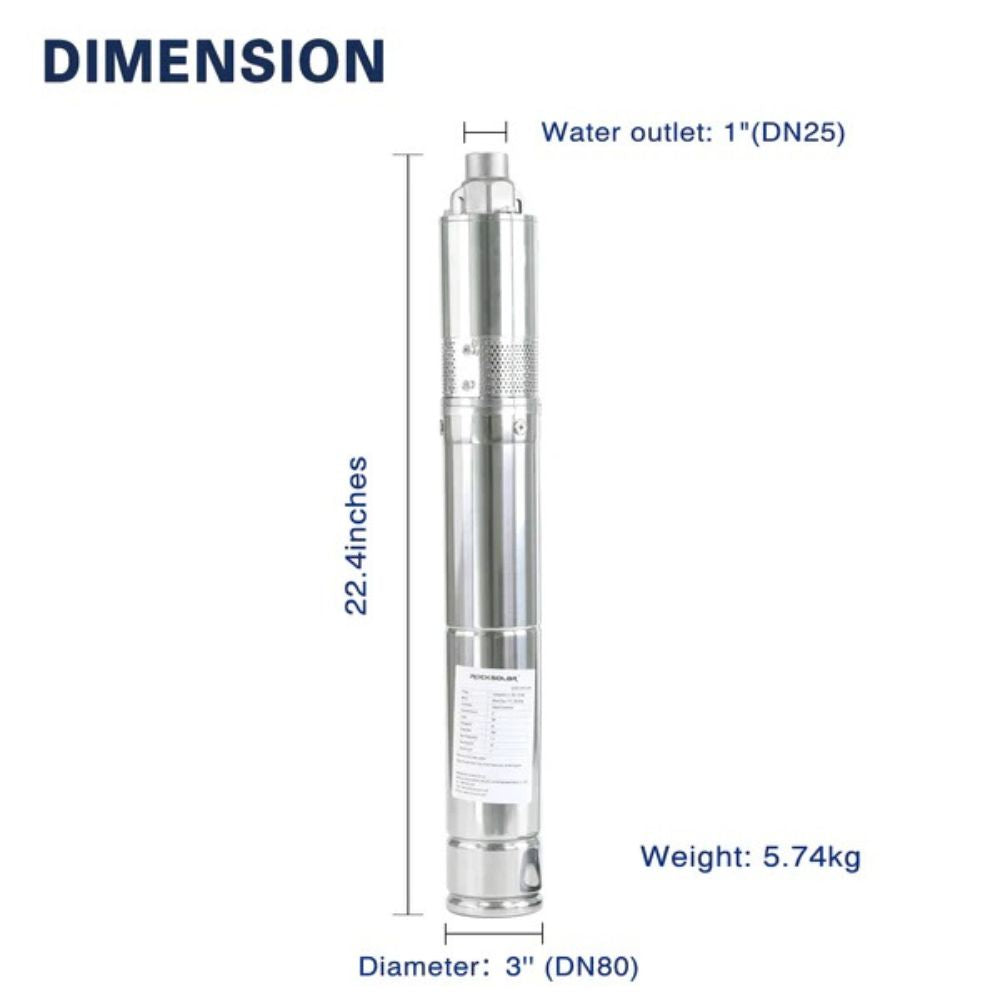

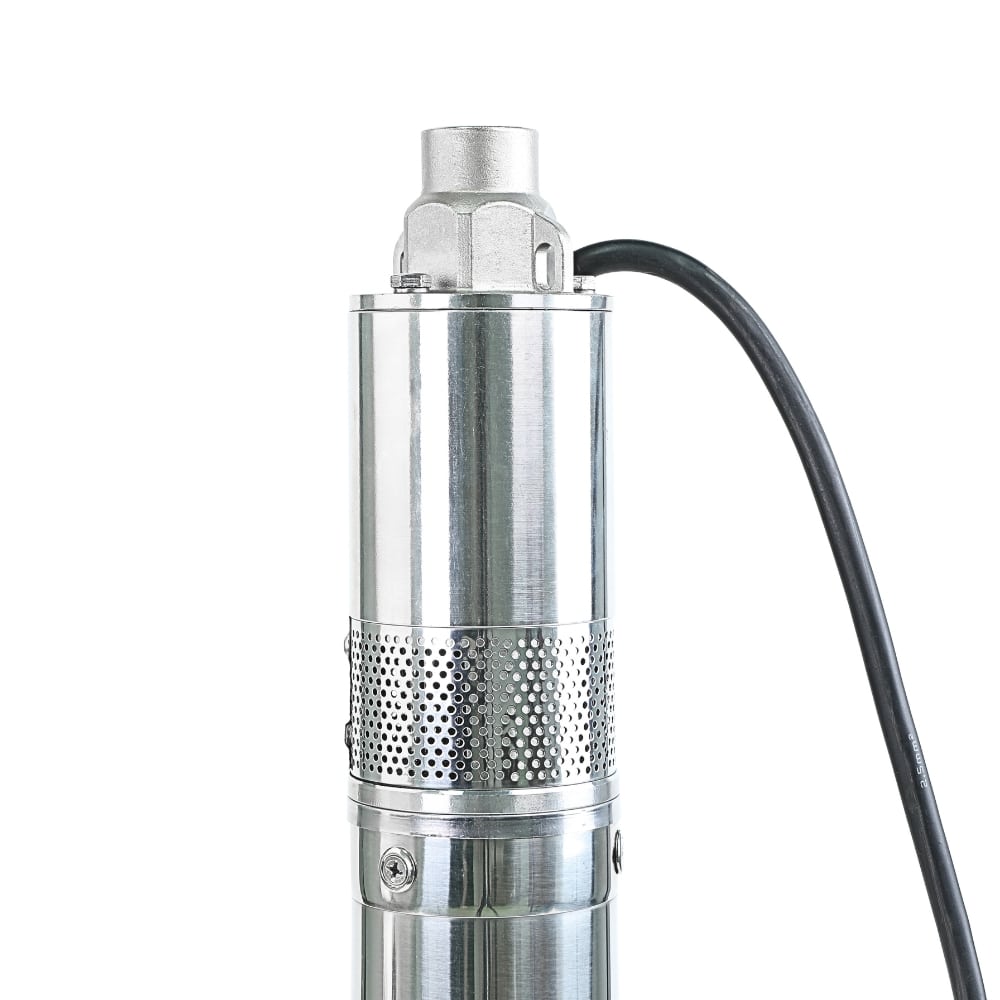

24V Brushless Solar DC Water Pump Details
Product Rocksolar 24V Brushless Solar DC Water Pump
Pump Model Complete S.S. 304 + Screw
Motor Brass Cap + S.S. 304 Body
Controller Inbuilt Controller
Diameter(inch) 3''
Voltage(V) 24
Cable 2M
Power(W) 250
Max Flow(m3/h) 1.3
Max Head(m) 70
Outlet(inch) 1"
Warranty 5 Year

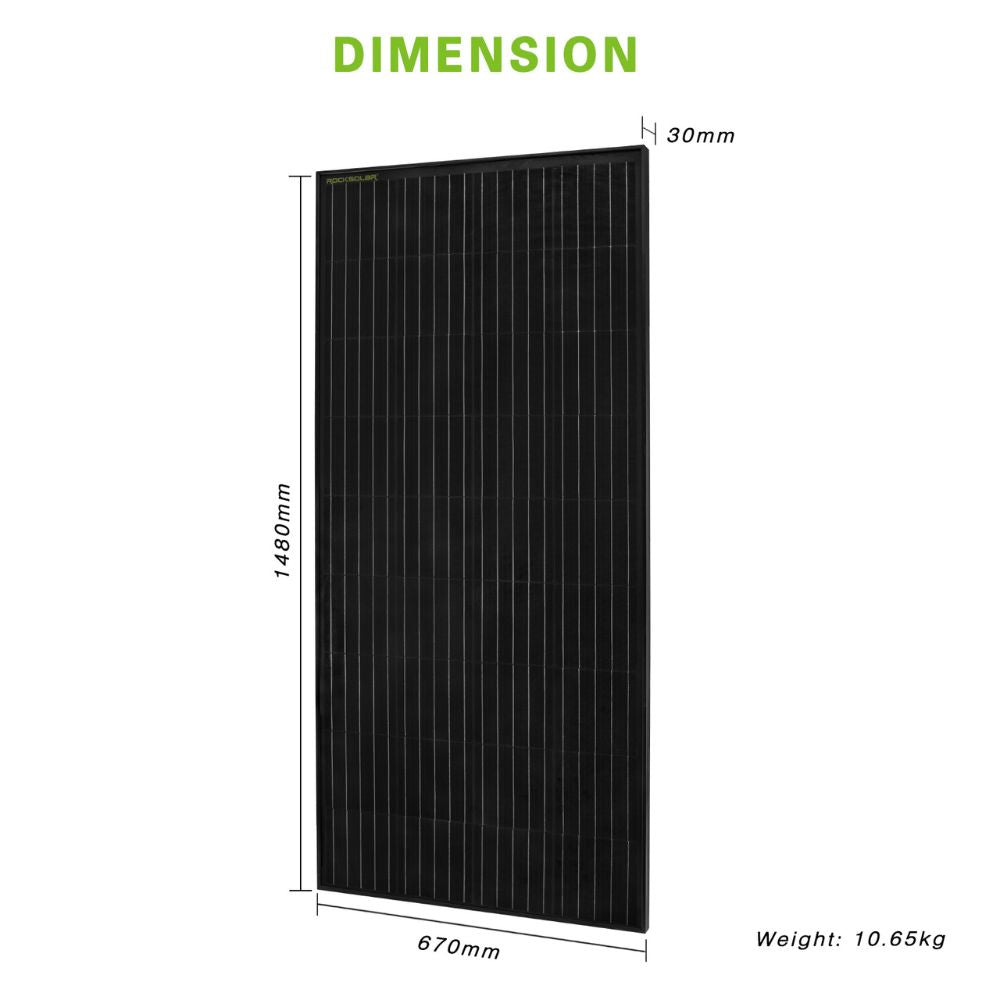

200W 12V Rigid Solar Panel Details
Panel Type Monocrystalline
Power Output 200W
System Voltage 12V
Cell Efficiency 20-22%
Frame Material Aluminum
Dimensions  65" x 39"
Weight approx. 25-30 lbs
Operating Temperature -40°C to +85°C
Waterproof Rating IP65
Front Glass High light transmittance, low-iron tempered glass
Bypass Diodes Integrated
Connectors MC4
Cable Length Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations Pre-drilled
Service Life 25 years or more
Warranty 10 years

24V 100Ah LiFePO4 Battery
Nominal capacity 100.0Ah
Mix. capacity 98.0Ah
Nominal energy 2560Wh
Combination structure of battery 8S
Nominal voltage 25.6V
End of discharge voltage 21.6V
Standard charge voltage 29.2±0.2V
Float charge voltage 27.6V
Standard charge current 20A
Recommended charge current ≤50A
Allowed Max. charge current 100A
Standard discharge current 20A
Recommended discharge current ≤100A
Allowed Max. discharge current 100A
Peak discharge current 200A,10Sec
Internal Resistance ≤40mΩ
Weight Approx. 24.0kg
Ex-factory capacity Approx.50% SOC
Operation temperature Discharge: -20°C~60°C; Charge: 0°C~45°C
Storage environment

≤1Month:-20~+60°C、5~75%RH; ≤6Month: -10~+45°C、5~75%RH; Recommend environment: 15~+35°C、5~75%RH

20A MPPT Solar Charge Controller Details
Max Open Voltage of PV Module 75Vdc
MPP Tracking Efficiency 99.50%
Light Control Voltage 5V
Charge Algorithm 3 Stage
Battery Type Lithium and Lead Acid Battery
Nominal System Voltage 12/24V
Rated Charging Current 20A
Battery Voltage Range 8~32V
High Voltage Disconnection 16V (24V x 2)
Duration for absorption charging 2 hours
Charge Loop Voltage Drop ≤0.29V
Self-consumption ≤ 9.2mA 12V; ≤ 11.7mA 24V
Equalized Charging Voltage AGM: 14.6V; GEL: No; FLd: 14.8V
Absorption Charging voltage AGM: 14.4V; GEL: 14.2; FLd: 14.6V
Floating Charging voltage AGM/ GEL/ FLd: 13.8V
Low Voltage re-connection (LVR) AGM/ GEL/ FLd: 12.6V
Low Voltage Disconnection (LVD) AGM/ GEL/ FLd: 10.8V
Operating Temperature Range -20℃~55℃ (To run at full rated current continuously)
LCD Temperature Range -20℃~70℃
Humidity Range ≤95% No condensation
Protection Class IP30
Dimension 123*178*48
Installation Hole 108*120 ∅5
Warranty 1 Year

The HydraPower Ultra Kit includes a ROCKSOLAR 24V Solar DC Water Pump, a 400W Rigid Solar Panel Kit, a 24V 100Ah Deep Cycle LiFePO4 Battery with BMS system, and a 20A MPPT Solar Charge Controller. All these components work together to create a complete off-grid power system.

The 24V Solar DC Water Pump is powered by the 400W Rigid Solar Panel Kit included in the HydraPower Ultra package. The panels convert sunlight into electricity, which then powers the pump.

The battery has a lifespan of over 3500+ cycles, ensuring reliable and sustained power for a long time. It’s a great long-term investment for your off-grid power needs.

The 20A MPPT Solar Charge Controller manages the energy flow between the solar panels and the battery. It maximizes the energy harvested from the panels and ensures the battery is charged in an efficient and safe manner.

Yes, all the components in the HydraPower Ultra kit are built to withstand harsh conditions. The solar panels have a weather-resistant design, and the battery is made to endure extreme temperatures, making the kit suitable for a variety of environments.
