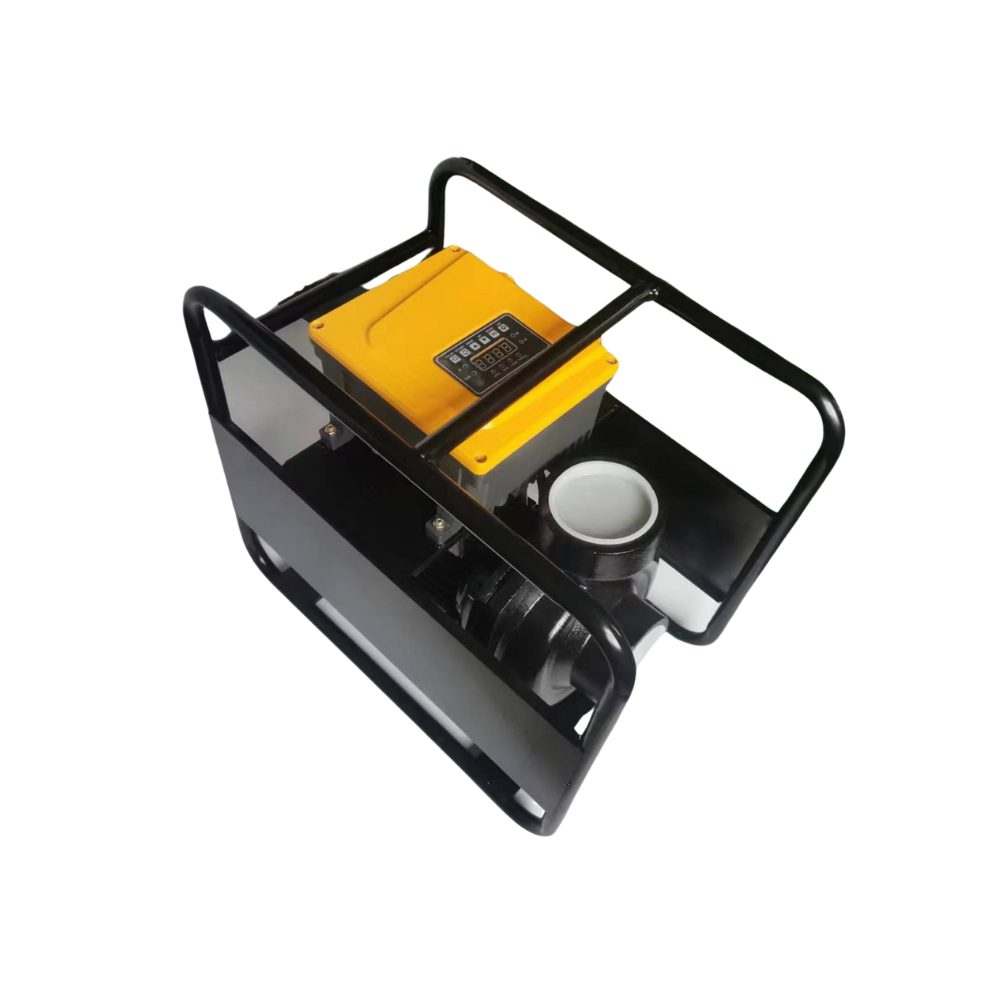

ROCKSOLAR Solar AC/DC Swimming Pool Pump 2.14HP

Solar AC/DC 2HP (≈2.14HP) Swimming Pool Pump – High Performance Hybrid System

The Solar AC/DC 2HP Swimming Pool Pump is a powerful hybrid circulation pump designed for large residential and commercial pools. Built with a high-efficiency brushless DC motor and external intelligent controller, this system operates on both solar DC power and AC grid input, ensuring reliable performance under varying sunlight conditions.

Key Features:

High-Efficiency BLDC Motor: Permanent-magnet brushless motor for stable and smooth water flow.

Hybrid AC/DC Operation: Works with AC input (150–240V, 50/60Hz) and solar DC power.

Advanced MPPT & Vector Control: Maximizes solar energy utilization and system efficiency.

External Smart Controller: Digital display showing Voltage (V), Current (A), Power (P), and Speed.

Automatic Power Mode Selection: AUTO mode intelligently prioritizes DC (solar) and switches to AC when needed.

IP65 Rated Controller: Suitable for outdoor installation (avoid direct sunlight exposure).

IP54 Rated Pump Body: Designed for durable poolside operation.

5-Year Manufacturer Warranty.

Electrical & Solar Specifications (2HP Model):

AC Voltage: 150–240V

DC (Solar) Voltage Range: 60–380V DC

Maximum DC Input Current: 10A

Recommended Solar Panel Configuration: 5–7 × 340W panels (series connection recommended)

Maximum Allowable VOC: Must not exceed system voltage limit (damage from incorrect voltage is not covered under warranty)

Ideal Applications:

Large residential swimming pools

Commercial pool circulation systems

Solar-assisted pool filtration

Hybrid solar/AC backup installations
