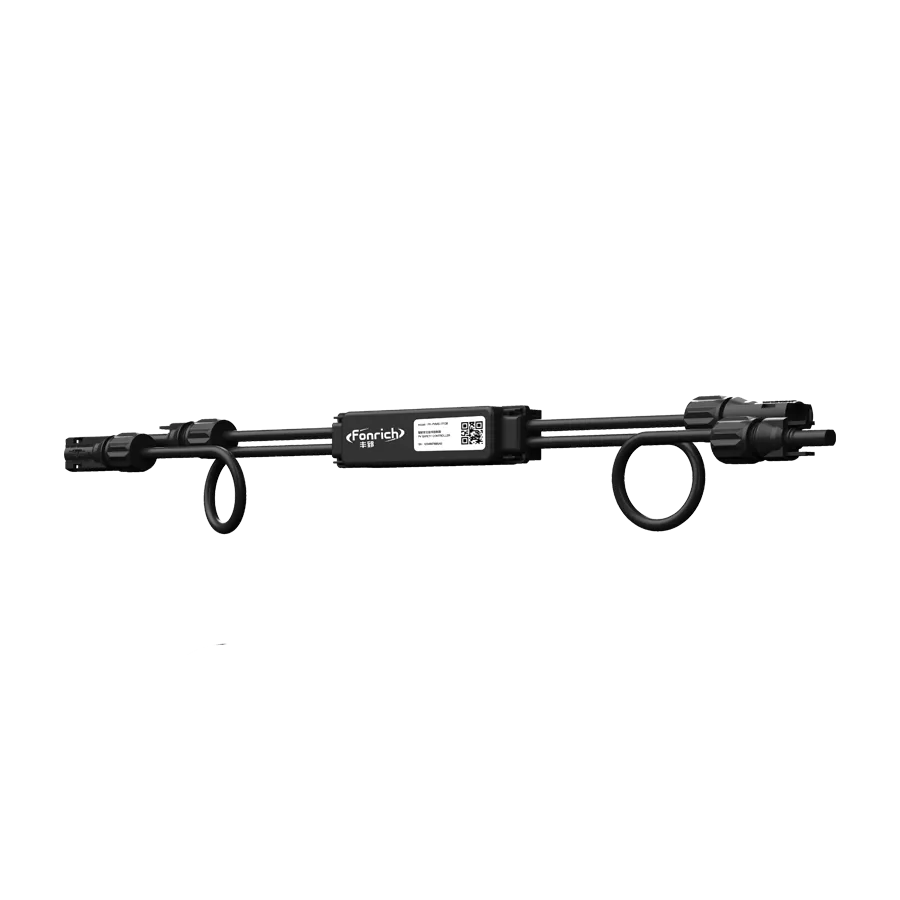

Fonrich PV Module Rapid shutdown module FR-PVMS-TFxC 60V 20A

Fonrich PV Module Rapid shutdown module FR-PVMS-TFxC 60V 20A

$59.99 CAD
$89.99 CAD $59.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • PV Module Level Arc Fault Protection: Arc fault detection: series and parallel arc. Quickly extinguish the arc, effectively preventing fire accidents.
  • PV Module Rapid Shutdown: Initiative or manually shuts off, to ensure maintenance and fire safety.
  • PV Module Real-Time Monitoring: Including voltage, power, power generation, IV working point, temperature, and other data. Use snapshots to show the collective data.
  • Fault Notification: Real-time push information on abnormal situations of PV panels.
  • Flexible Configuration and Customize Design: Long string design to reduce construction costs.
  • Bidirectional PLC Technology: 1600m super long communication distance.
View full details



  • Description
  • Includes
  • Specifications
  • Datasheet
  • User Manual
  • Reviews

Product Features

  • PV Module Level Arc Fault Protection: Arc fault detection: series and parallel arc. Quickly extinguish the arc, effectively preventing fire accidents.
  • PV Module Rapid Shutdown: Initiative or manually shuts off, to ensure maintenance and fire safety.
  • PV Module Real-Time Monitoring: Including voltage, power, power generation, IV working point, temperature, and other data. Use snapshots to show the collective data.
  • Fault Notification: Real-time push information on abnormal situations of PV panels.
  • Flexible Configuration and Customize Design: Long string design to reduce construction costs.
  • Bidirectional PLC Technology: 1600m super long communication distance.
  • 1 x FR-PVMS-TFxC 60V 20A

Technical Specifications


Item FR-PVMS-TFxB FR-PVMS-TFxC FR-PVMS-TFxH
Max input operating voltage 60V 60V 80V
Max continuous input/output current (Imax) 16A 20A 16A
Cable Size (square millimeters) 4 4 4
Pollution degree PD3 PD3 PD3
Operating ambient temperature range -30°C ~ +70°C -30°C ~ +70°C -30°C ~ +70°C
UV exposure Yes Yes Yes
Ingress protection IP68 IP68 IP68
Communication Power Line Carrier Communication Power Line Carrier Communication Power Line Carrier Communication
Max cable loop length 1600m 1600m 1600m
Max PV modules under one PLC transceiver 624 624 624
Max PV strings under one PLC transceiver 24 24 24



Download Datasheet (PDF)
Download User Manual (PDF)
