ROCKSOLAR 2000W 24V Off-Grid Solar Water Pump System

Name: ROCKSOLAR 2000W 24V Off-Grid Solar Water Pump System
Brand: ROCKSOLAR
SKU: RSSOS-4X150R24BL-COT3-001
Price: 2778.0 USD
Availability: InStock

Up to 50% off already applied. Use code HOLIDAY23 for an extra 15% off!

$2,778.00 USD

~~$5,030.00 USD~~ $2,778.00 USD

Sale Sold out

Shipping calculated at checkout.

Complete Power Solution: 24V 100AH LiFePO4 battery, 24V Water Pump, 600W solar array, 60A MPPT controller, 2000W inverter.
High-Cycle Battery: Over 3500 cycles with a 24V 100Ah capacity.
Efficient Panels: 22% efficiency, monocrystalline, durable aluminum frame.
Pure Sine Inverter: 2000W, stable AC conversion.
MPPT Controller: 99.5% tracking efficiency, multi-battery support.
Rugged Panels: Waterproof, corrosion-resistant construction.
Smart BMS: Temperature and electrical protection for the battery.
Off-Grid Ready: Suitable for remote and outdoor applications.
Long-Term Warranty: 10 years for the battery, 10 for panels.
Easy Mounting: Pre-drilled panels for quick setup.
Expandable System: Designed for scalable energy needs.
Broad Temp Range: Battery and controller operate in extreme conditions.
Robust Water Pump: 24V solar-powered, 250W output, 1.3m³/h flow.

Product variants

Quantity

Free
Local Shipping

10-year Hassle Free
Warranty

Lifetime Customer
Support

View full details

Description
Includes
Specifications
FAQ
Downloads
Reviews

Unleash the full potential of solar energy with the ROCKSOLAR 2000W 24V Off-Grid Solar Water Pump System, an upgraded solution tailored for those seeking self-reliance in water supply. Elevate your off-grid living, agricultural, or remote operations with this comprehensive system that combines the robustness of a 24V 100Ah LiFePO4 battery and the reliability of high-efficiency 150W monocrystalline solar panels. The included 2000W pure sine wave inverter ensures that your power is not just sustainable but also stable and versatile for various applications. With an advanced 60A MPPT solar charge controller and a high-performance brushless DC water pump, this system promises efficient water pumping with minimal maintenance. Whether you're looking to enhance your rural home or empower your farm, the ROCKSOLAR 2000W system delivers water where you need it, seamlessly and eco-consciously.

Product Features

ROCKSOLAR 24V 100Ah Deep Cycle LiFePO4 Battery with BMS System:

24V 100AH capacity

3500+ cycle life with 100% discharge rate for ultra-long service life

Steady power: Flat voltage curve for consistent power output, no significant drop like traditional SLA batteries

Utilizes advanced LiFePO4 Battery Technology for dependable deep cycling

Smart Battery Management System for safety and longevity

Lightweight: Only 52 pounds for easy portability and installation

Suitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.

Operating temperature range for charging: 0C∽45C, discharging: -20~-60. BMS auto-shuts off the battery outside the working temperature.

Warranty: 11-year warranty and 10+ year service life

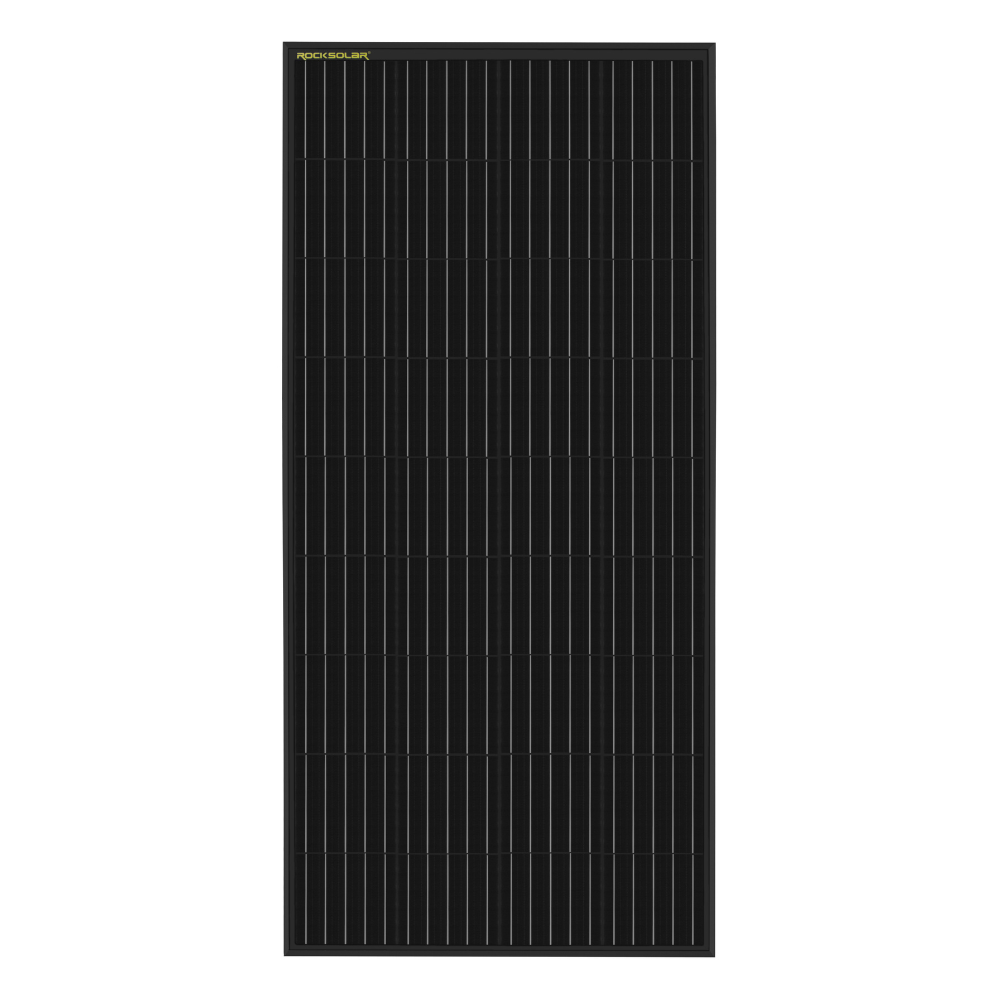

ROCKSOLAR 150W 12V Rigid Monocrystalline Solar Panel:

150W 12V output

Rigid Monocrystalline Solar Panel

Waterproof and Corrosion-Resistant Aluminum Alloy Frame

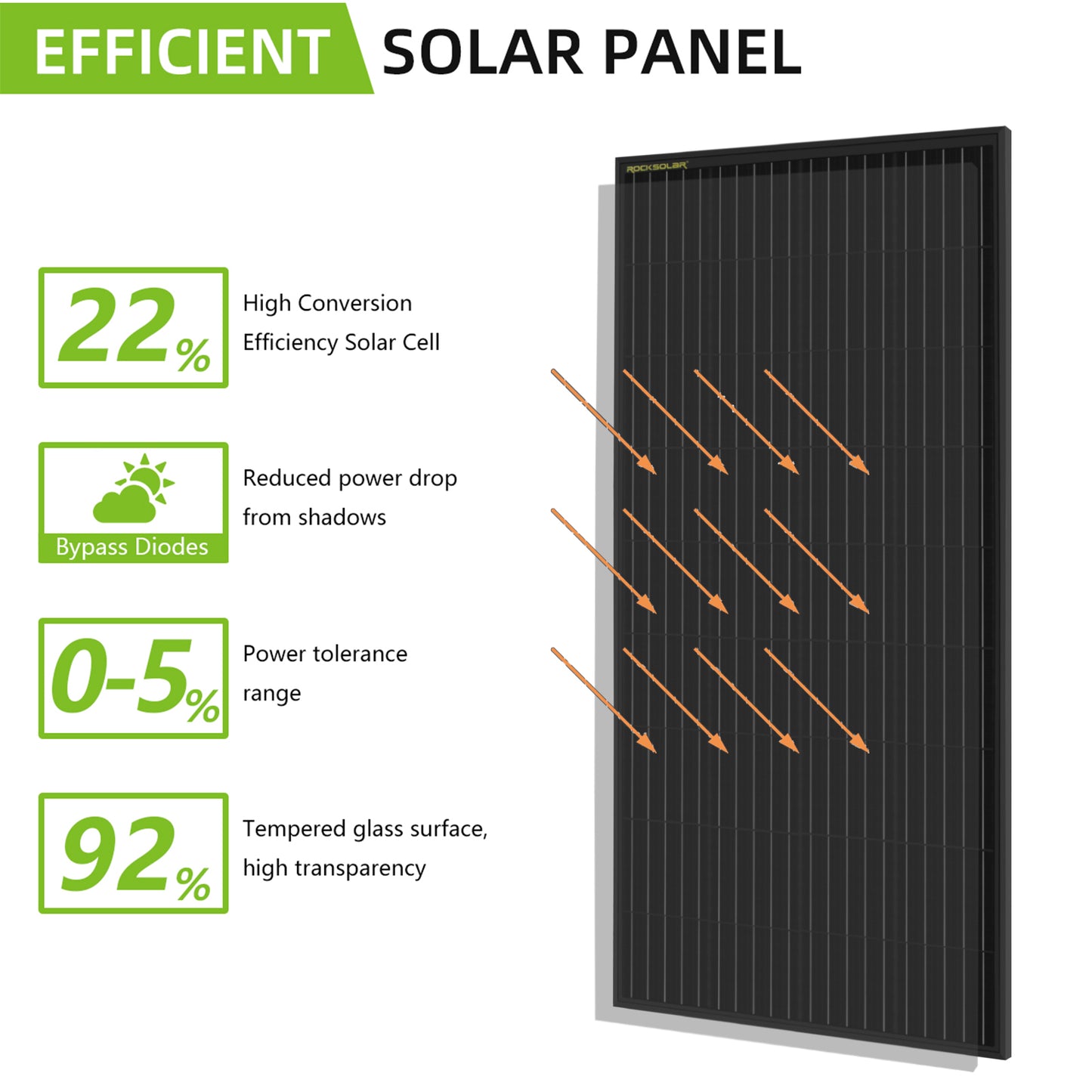

High-Efficiency Solar Cell with 22% Conversion Efficiency

Pre-drilled holes for easy mounting and securing to any surface

ROCKSOLAR 60A MPPT Solar Charge Controller:

60A MPPT Solar Charge Controller

Compatible with Lithium and Lead Acid batteries

Maximum open voltage of 100Vdc and MPP tracking efficiency of 99.5%

3-stage charge algorithm and 12/24V nominal system voltage

Rated charging current of 60A and battery voltage range of 8-32V

High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V

Operating temperature range of -20°C to 55°C

IP30 rated for protection

ROCKSOLAR 24V 2000W Pure Sine Wave Power Inverter:

2000W Pure Sine Wave Power Inverter

DC 24V to 110V AC Conversion

2.1A USB Charging Port

Ideal for RVs, Camping, Off-grid power solutions, and more.

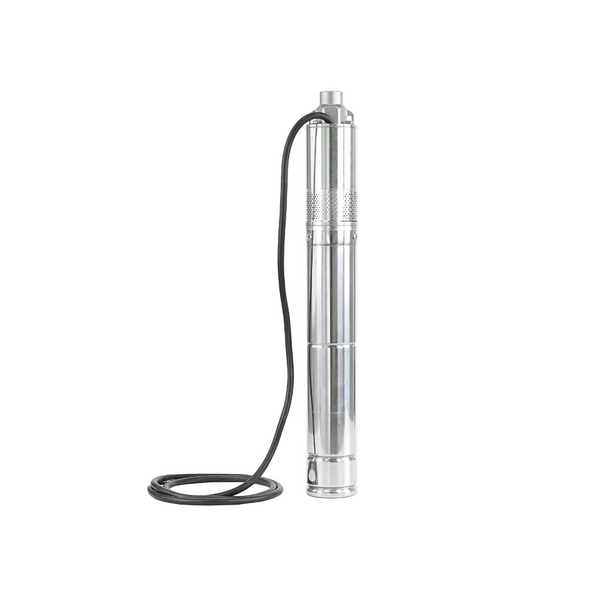

ROCKSOLAR 24V Brushless Solar DC Water Pump:

High-Performance Brushless Motor: Reliable and efficient operation, designed specifically for solar power applications.

Durable Construction: The pump features complete stainless steel (S.S. 304) construction, with a motor brass cap and S.S. 304 body for long-lasting use.

Inbuilt Controller: The pump comes with an inbuilt controller for easy operation.

Powerful: The 250W power provides a maximum flow rate of 1.3m3/h and a maximum head of 70m.

User-friendly: Easy to install and operate with minimal maintenance requirements. Quiet operation and low vibration for an unobtrusive addition to your solar setup.

Adequate Cable Length: Comes with a 2M cable for flexible installation.

Optimized for Solar: Works seamlessly with ROCKSOLAR solar panels and systems.

Outlet: The pump features a 1" outlet for easy connection to your water supply system.

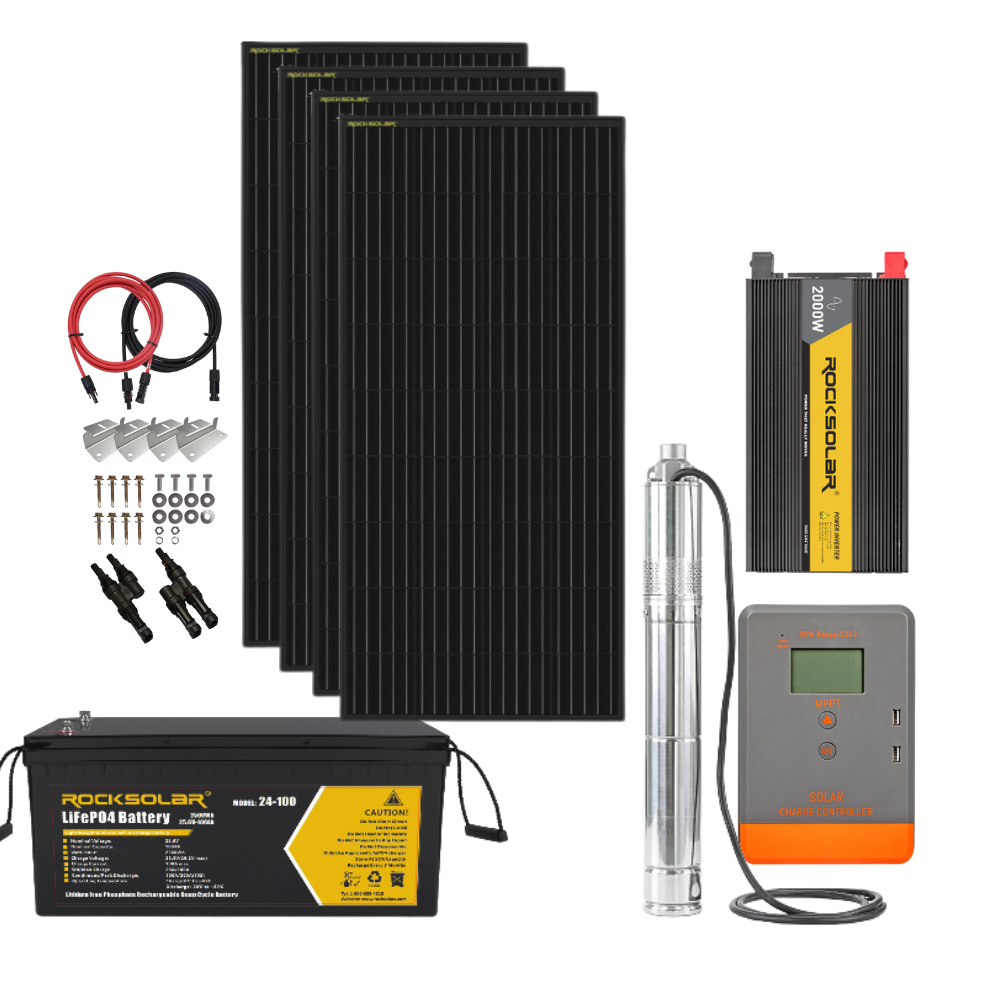

1 x 24V 100Ah Deep Cycle LiFePO4 Battery
1 x 24V Brushless Solar DC Submersible Well Pump
4 x 150W 12V Rigid Monocrystalline Solar Panel
1 x 24V 2000W Pure Sine Wave Power Inverter
1 x 60A MPPT Solar Charge Controller
1 x 20 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black
4 x Z-Bracket Mount System (Set of 4)
3 x Y Branch Connectors for Solar Panels MMF+FFM Pair
1 x User Manual

Technical Specifications

24V 100Ah Deep Cycle LiFePO4 Battery	Details
Nominal capacity	100.0Ah
Mix. capacity	98.0Ah
Nominal energy	2560Wh
Combination structure of battery	8S
Nominal voltage	25.6V
End of discharge voltage	21.6V
Standard charge voltage	29.2±0.2V
Float charge voltage	27.6V
Standard charge current	20A
Recommended charge current	≤50A
Allowed Max. charge current	100A
Standard discharge current	20A
Recommended discharge current	≤100A
Allowed Max. discharge current	100A
Peak discharge current	200A,10Sec
Internal Resistance	≤40mΩ
Weight	Approx. 24.0kg
Ex-factory capacity	Approx.50% SOC
Operation temperature	Discharge: -20°C~60°C; Charge: 0°C~45°C
Storage environment	≤1Month:-20~+60°C、5~75%RH; ≤6Month: -10~+45°C、5~75%RH; Recommend environment: 15~+35°C、5~75%RH

150W 12V Rigid Monocrystalline Solar Panel	Details
Rated Power	150W
Type	Mono-crystalline silicon
System Voltage	12V
Cell Efficiency	20-22%
Frame Material	Aluminum
Dimensions	112067030 mm
Weight	approx. 8.30kg
Operating Temperature	-20~70 °C

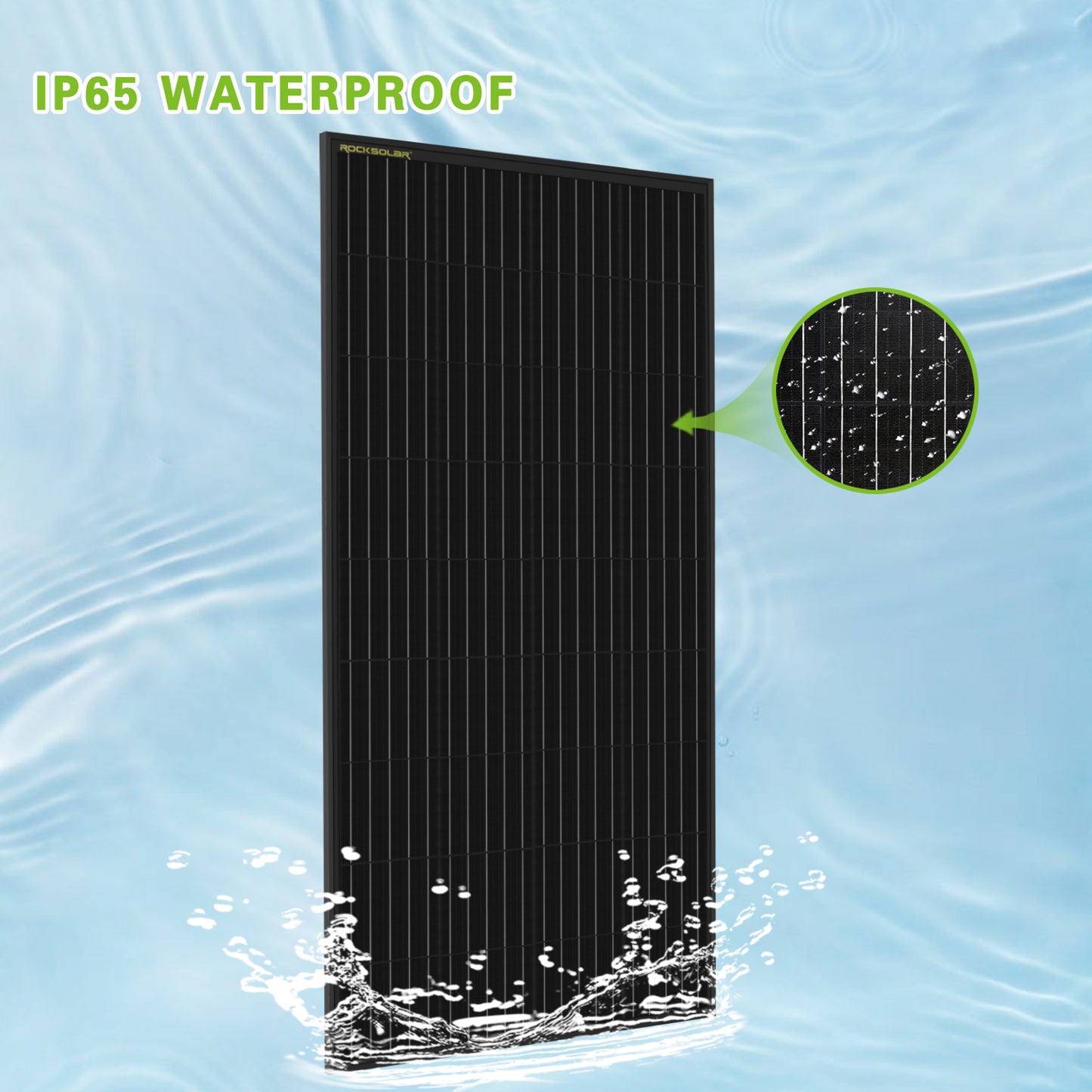

Waterproof Rating	IP65
Front Glass	High light transmittance, low-iron tempered glass
Bypass Diodes	Integrated
Connectors	MC4
Cable Length	Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations	Pre-drilled
Service Life	25 years or more
Warranty	10 Year

60A MPPT Solar Charge Controller	Details
Max Open Voltage of PV Module	100Vdc
MPP Tracking Efficiency	99.50%
Light Control Voltage	5V
Charge Algorithm	3 Stage
Battery Type	Lithium and Lead Acid Battery
Nominal System Voltage	12/24V
Rated Charging Current	60A
Battery Voltage Range	8~32V
High Voltage Disconnection	16V (24V x 2)
Duration for absorption charging	2 hours
Charge Loop Voltage Drop	≤0.29V
Self-consumption	≤ 9.2mA 12V; ≤ 11.7mA 24V
Equalized Charging Voltage	AGM: 14.6V; GEL: No; FLd: 14.8V
Absorption Charging voltage	AGM: 14.4V; GEL: 14.2; FLd: 14.6V
Floating Charging voltage	AGM/ GEL/ FLd: 13.8V
Low Voltage re-connection (LVR)	AGM/ GEL/ FLd: 12.6V
Low Voltage Disconnection (LVD)	AGM/ GEL/ FLd: 10.8V
Operating Temperature Range	-20℃~55℃ (To run at full rated current continuously)
LCD Temperature Range	-20℃~70℃
Humidity Range	≤95% No condensation
Protection Class	IP30
Dimension	12317848
Installation Hole	108*120 ∅5
Warranty	1 Year

24V 2000W Pure Sine Wave Power Inverter	Details
Rated power	2000W
AC Voltage	120V
Frequency	60HZ
Resistive Load Continuous Output Power	2000W
Inductive Load Continuous Output Power	1500W The pump can start normally (beyond which protection may be possible without damaging the inverter)
Capacitive Load Continuous Output Power	940±30W， PF：0.7 Tri-color energy saving lamp, beyond may be protected, but will not cause damage to the inverter)
Waveform	Pure Sine Wave
Waveform Distortion（THD)	≤5%
Voltage range	9～17Vdc; 18V～32V
Battery Voltage	12Vdc; 24Vdc
DC Current	198.4A（Load 1000W when entering 12Vdc; 47.9A（Load 1000W when entering 24Vdc)
No Load Loss	1A; 0.6A
Shutdown mode static current	1mA
Maximum efficiency	90%
Battery type	All 12V batteries
Insurance slice	300A*2
Battery Low Voltage Alarm	9.5/10/10.5/11/11.5/12/12.5V, Buzzer alarm, LED display E06
Battery Low Voltage Alarm Recovery	10/10.5/11/11.5/12/12.5/13V
Battery Low Voltage Protection	9/9.5/10/10.5/11/11.5/12V (Set through menu)，LED display shows E01, automatic shutdown after 30S
Battery Low Voltage Protection Recovery	Recovery voltage within 30S：11/11.5/12/12.5/13/13.5/14V
Battery High Voltage Protection	17V，LED display shows E02, automatic shutdown after 30S
Battery High Voltage Protection Recovery	Recovery voltage within 30S：16.5V
Over Temperature	Buzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted output
Output Short Circuit	Buzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30S
Overload	Over 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S
Overload	Over 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S
USB Output Voltage	5V
USB Output Current	2.1A
Working Temperature	-20～40℃
Operating humidity	10～90%RH
Storage temperature, humidity	-30℃～70℃,10～95%RH
Weight	Net weight：5.01 kg
Size	420.4208.9110 mm(LWH)
Warranty	1 Year

24V Brushless Solar DC Water Pump	Details
Product	Rocksolar 24V Brushless Solar DC Water Pump
Pump Model	Complete S.S. 304 + Screw
Motor	Brass Cap + S.S. 304 Body
Controller	Inbuilt Controller
Diameter(inch)	3''
Voltage(V)	24
Cable	2M
Power(W)	250
Max Flow(m3/h)	1.3
Max Head(m)	70
Outlet(inch)	1"
Warranty	5 Year

The system includes a 2000W Pure Sine Wave Power Inverter, 24V Brushless Solar DC Water Pump, 150W 12V Rigid Monocrystalline Solar Panels, 24V 100Ah Deep Cycle LiFePO4 Battery with BMS, and a 60A MPPT Solar Charge Controller.

The system can operate on cloudy days, but efficiency will decrease. The battery storage provides backup power to compensate for reduced sunlight.

Yes, the stainless steel construction of the water pump is safe for drinking water applications.

Maintenance involves cleaning solar panels regularly, checking connections, and ensuring the battery is charged correctly to prolong its lifespan.

Yes, the system is expandable. Additional solar panels and batteries can be added to increase power and water pumping capacity.

The lifespan of the monocrystalline solar panels is typically over 25 years.

Remote monitoring depends on the specific model of the MPPT controller. Some models may support remote monitoring with additional equipment.

The system includes overcharge, over-discharge, overload protection, and temperature controls to ensure safe operation.

The MPPT Solar Charge Controller has an MPP tracking efficiency of 99.5%, ensuring maximum solar energy conversion.

Yes, the system is ideal for irrigation, providing a sustainable solution for water delivery to remote areas.
