ROCKSOLAR 200W 2X100W 12V Flexible Monocrystalline Solar Panels
ROCKSOLAR 200W 2X100W 12V Flexible Monocrystalline Solar Panels
- Peak Efficiency: Over 22% conversion with monocrystalline cells.

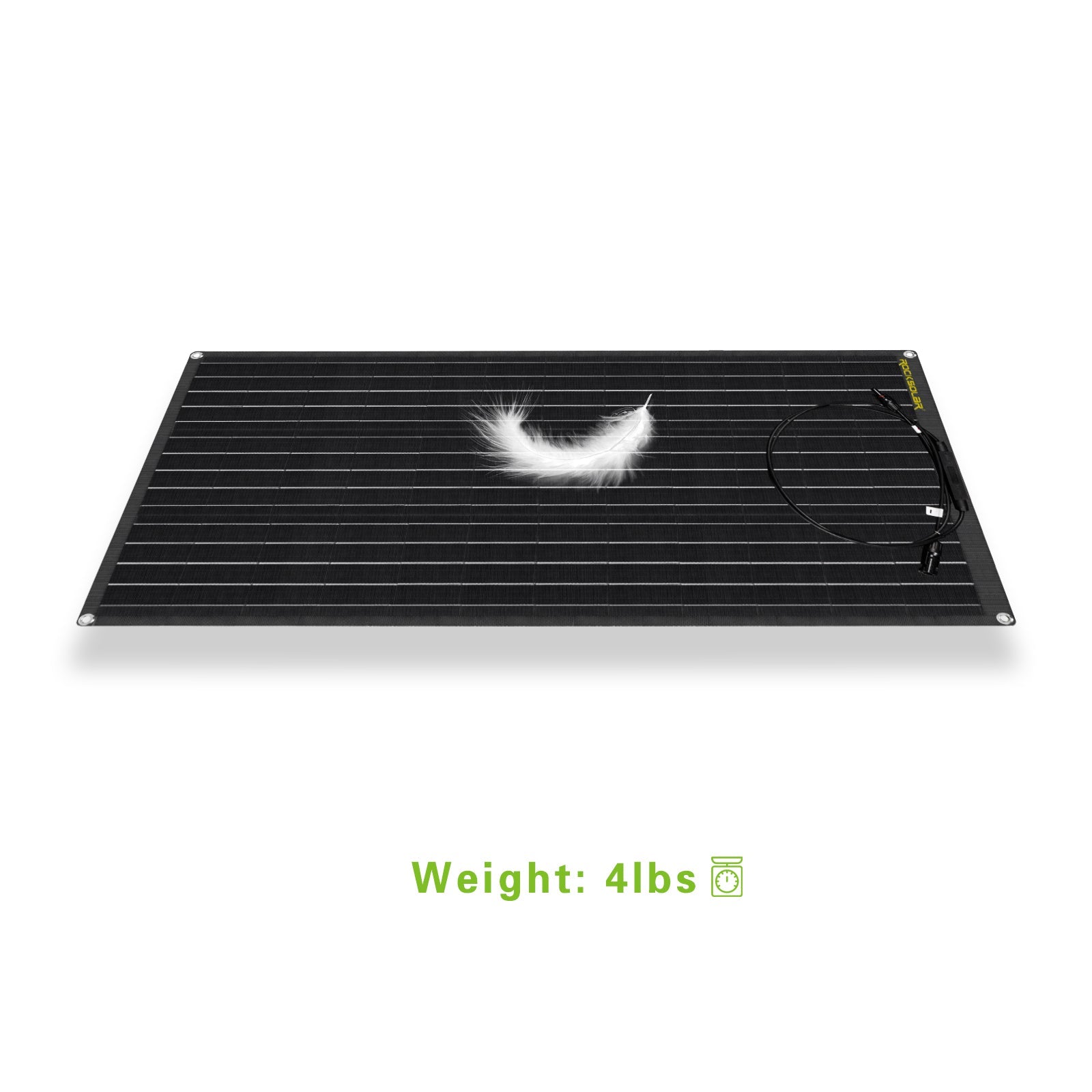

- Light & Slim: Each panel is 3.42 pounds and 20mm thick.
- Flexibility: Suitable for curved surfaces.
- Weatherproof: IP68 rating and protective PET film.
- Voltage Stability: 23.4V open circuit, 18V peak.
- Multi-Use: Great for RVs, boats, off-grid setups.
- Size: 1025x510x20 mm per panel.

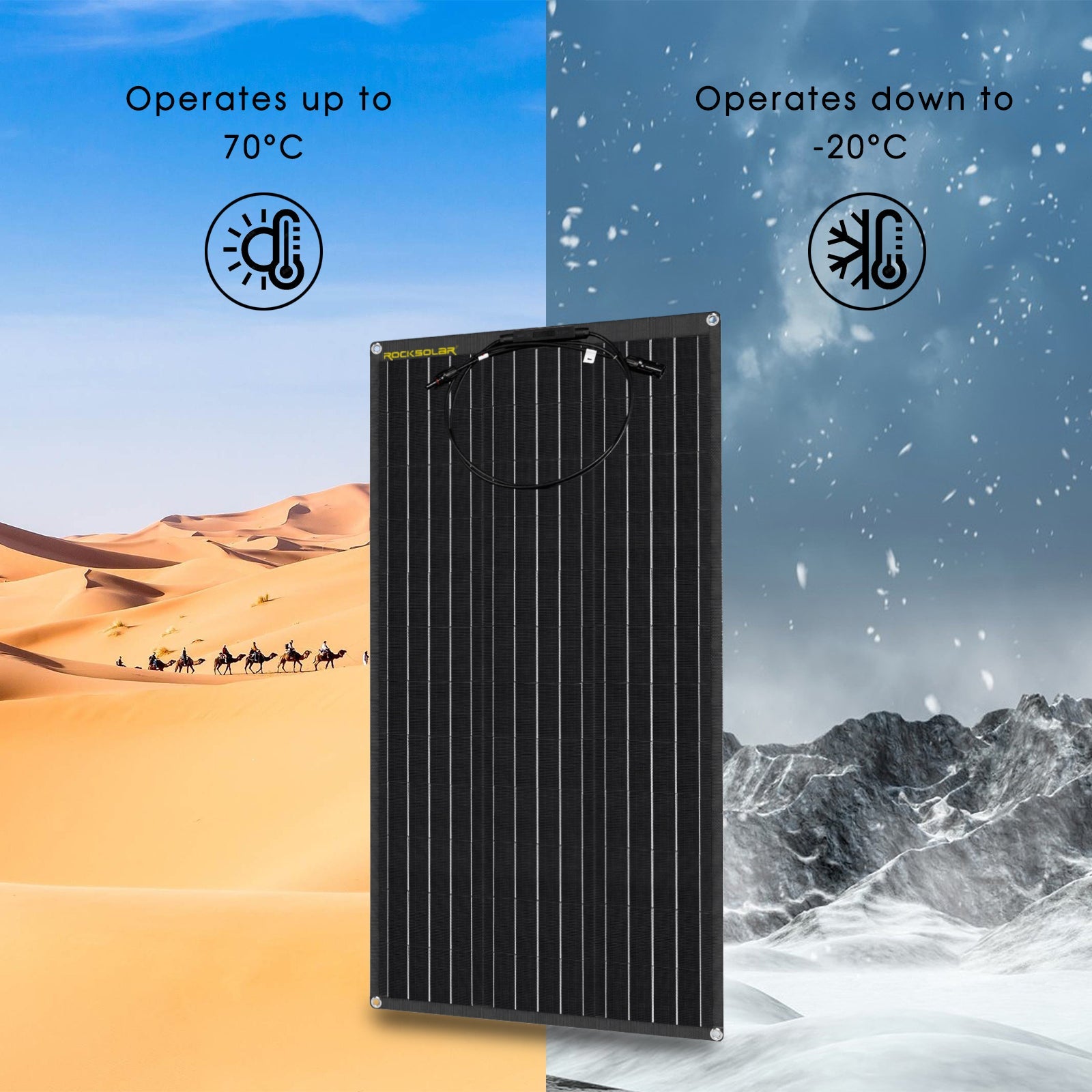

- Temperature Range: -20°C to 70°C operation.

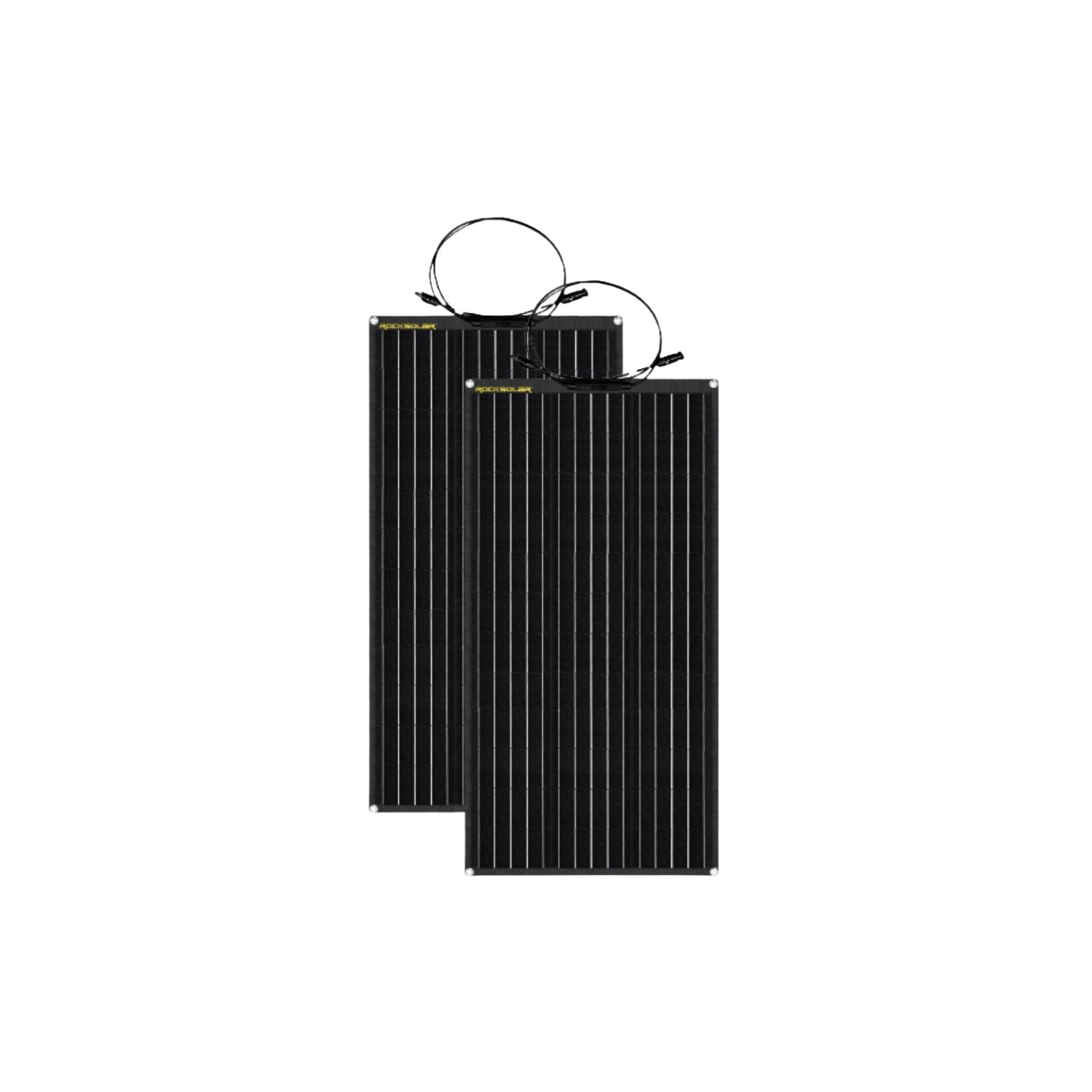

- Bundle: Includes 2x 100W panels.
- Warranty: 5-year coverage.
5-year Hassle Free
Unlock the potential of sustainable energy with ROCKSOLAR's 200W 2X100W 12V Flexible Monocrystalline Solar Panels. This bundle offers a combination of top-tier efficiency and adaptability, setting new standards in renewable energy solutions.
- Optimized Efficiency: Equipped with high-performance monocrystalline cells, these panels boast a conversion rate of over 22%, ensuring maximum energy harvesting.

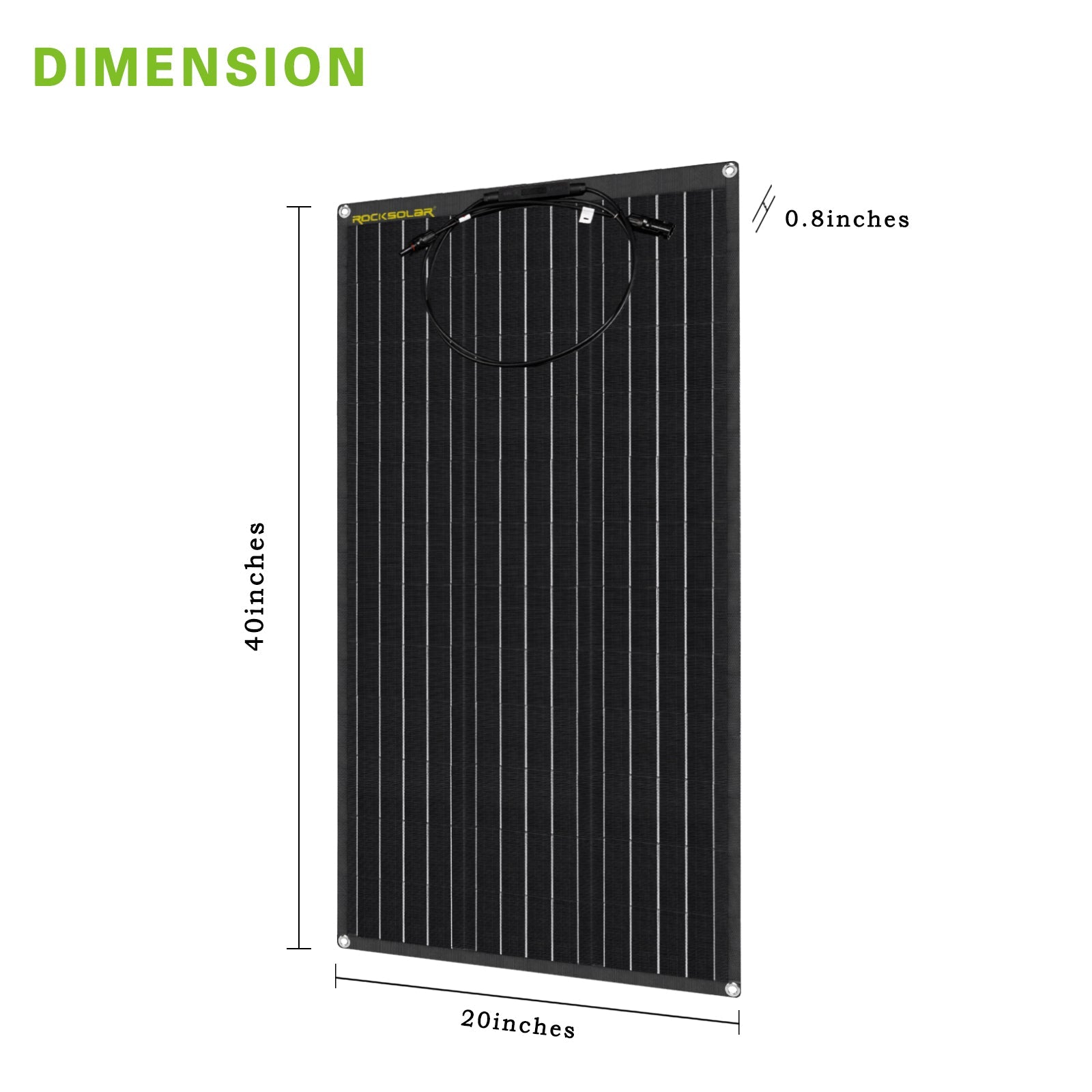

- Ultra-Light & Compact: With each panel weighing just 3.42 pounds and measuring 39.76in x 20.08in x 0.78in, they offer portability without compromising on power.

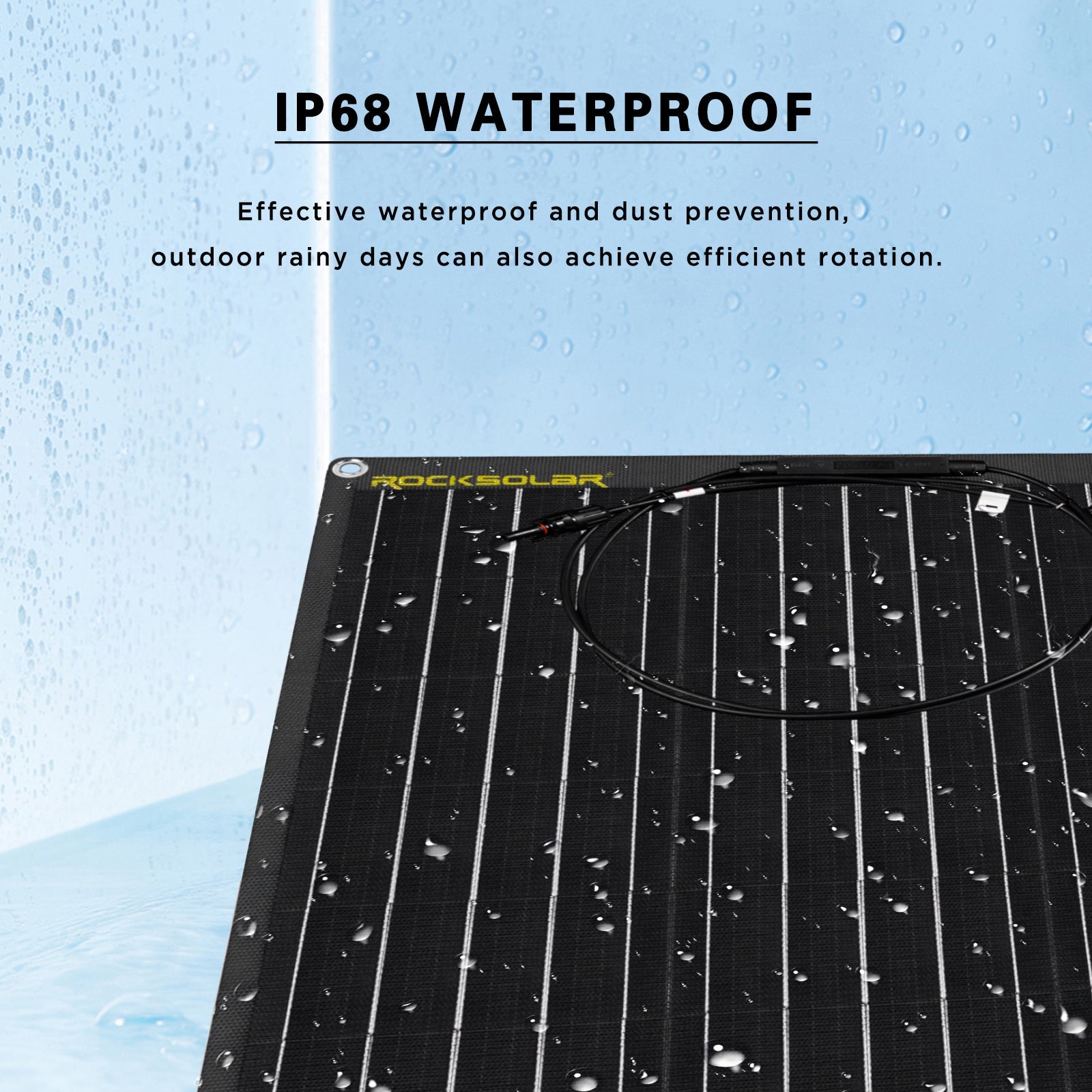

- Weather-Resilient Design: Crafted with a protective frosted PET film and IP68 rating, these panels promise unwavering performance in various weather conditions.
- Adaptable Flexibility: Designed to bend up to 30 degrees, they seamlessly integrate with contoured surfaces, perfect for RVs, boats, and more.

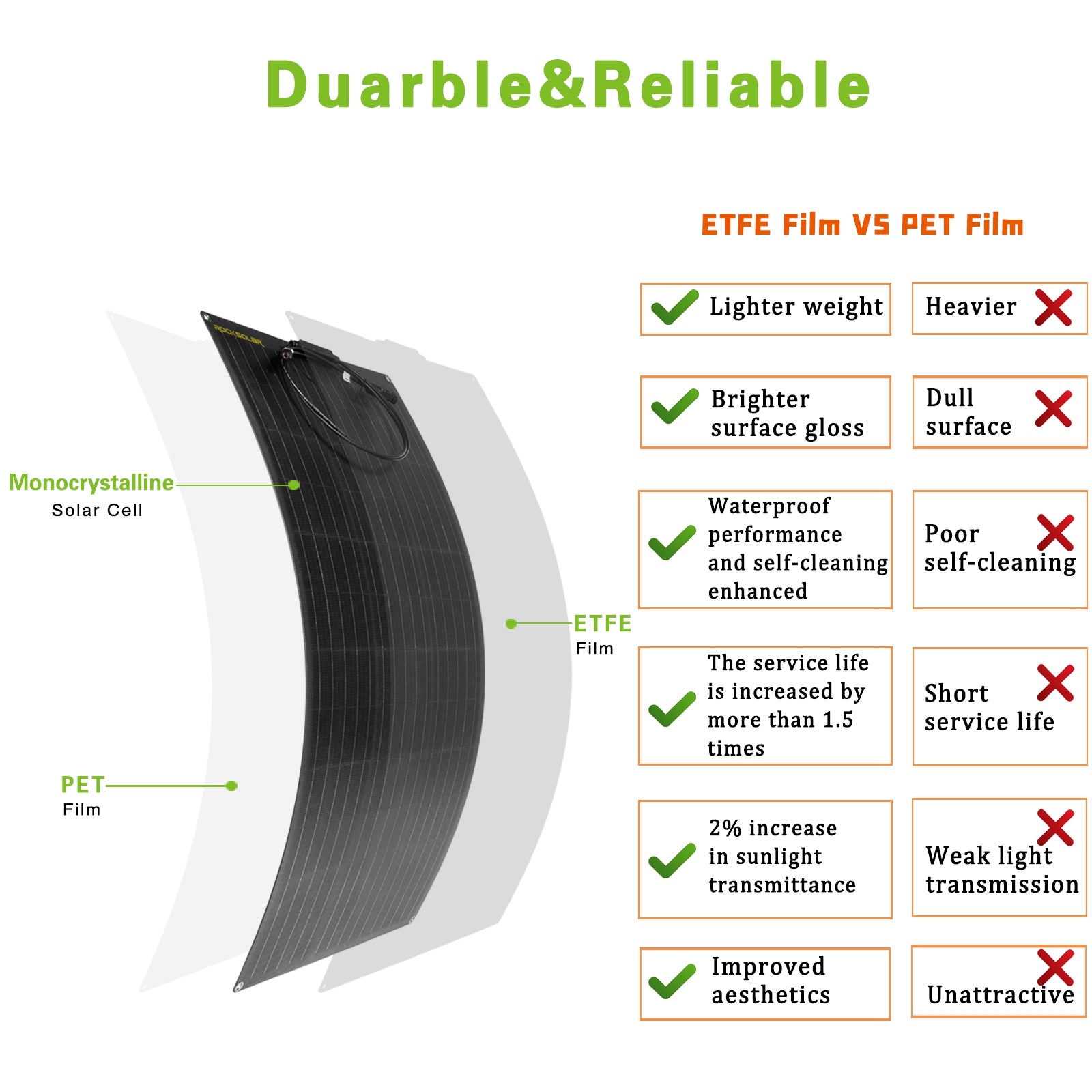

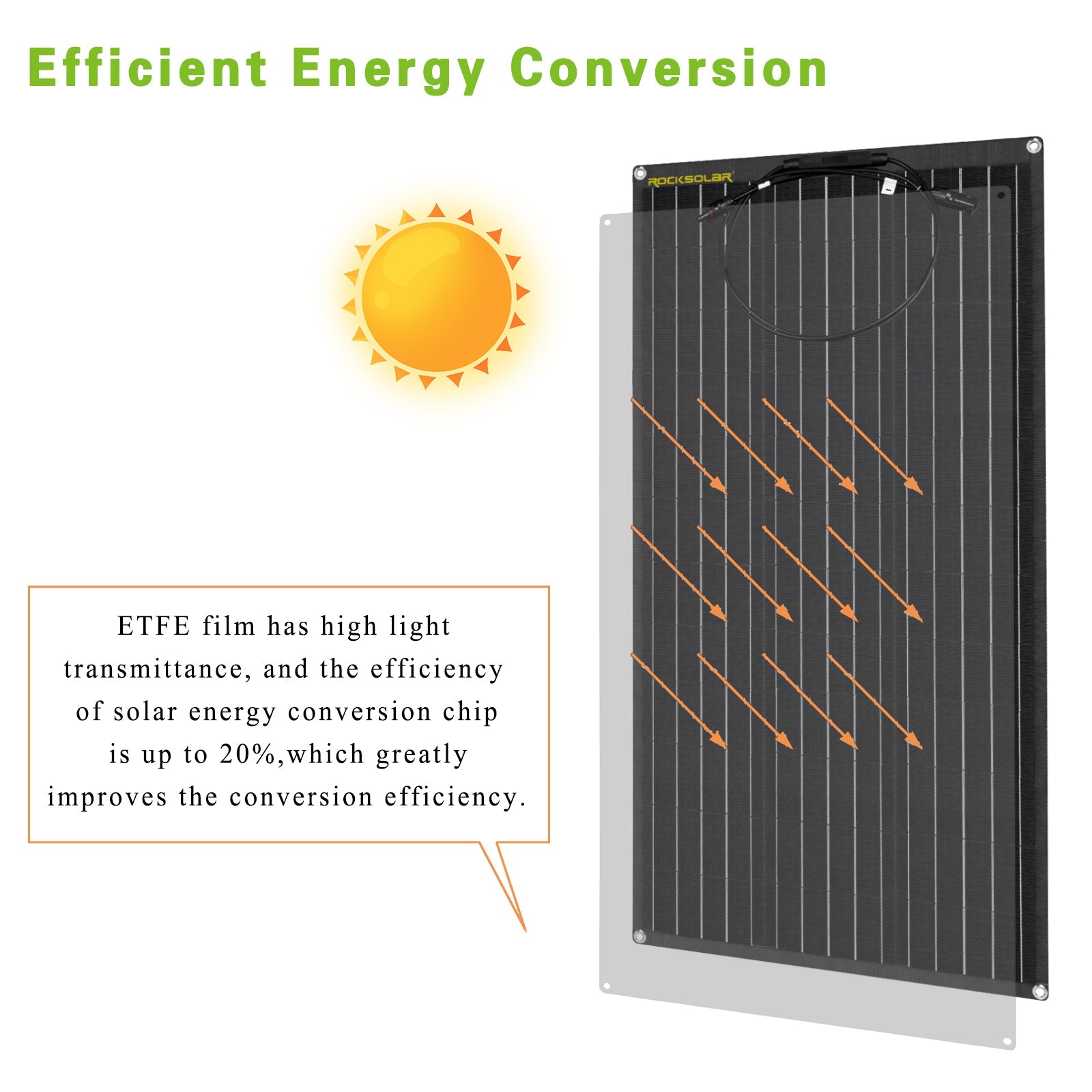

- ETFE Surface: Renowned for its durability and excellent light transmittance, ensuring prolonged efficiency and resilience.
- Multiple Connectors Included: A range of connectors and cables included, catering to a diverse array of charging requirements.
- Intuitive Charging: Simply place under direct sunlight and power your 12V-22V devices effortlessly and safely.
- Safe Device Charging: Ingeniously designed to prevent device overheating during the charging process.
- RVs & Marine Vessels
- Off-Grid & Fieldwork Charging
- Camping & Outdoor Expeditions
- Battery Maintenance & Trickle Charging
- Emergency Power Back-ups
- Green Energy Endeavors
Connecting Your Panels for 200W Output
Maximizing the power output of your ROCKSOLAR panels is simple. To harness the full 200W from the 2-pack bundle, follow these steps:
- Parallel Setup: Use MC4 Y-branch connectors to link both panels. This keeps voltage constant while increasing current for maximum power.
- Ensure Uniform Sunlight: Position panels to avoid shadows or obstructions for steady power generation.
- Controller Connection: Connect the panels to the solar charge controller with the supplied cables to regulate the energy sent to your devices or batteries.
- Regular Checks: Ensure secure connections and optimal panel angle for consistent sunlight exposure.
Note: Always refer to the user manual for specific guidelines and safety precautions when setting up and connecting your solar panels.

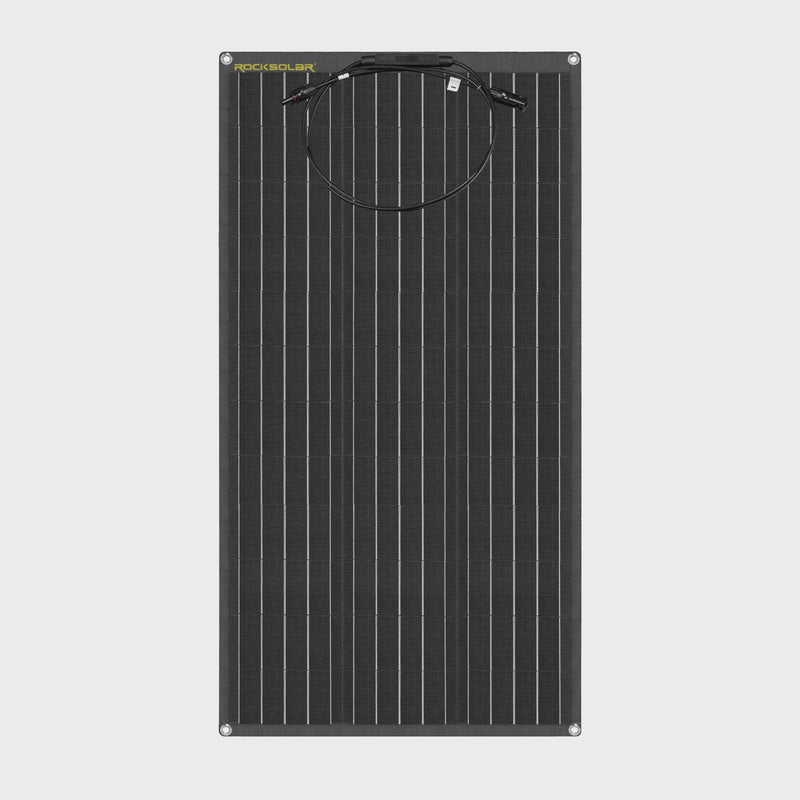

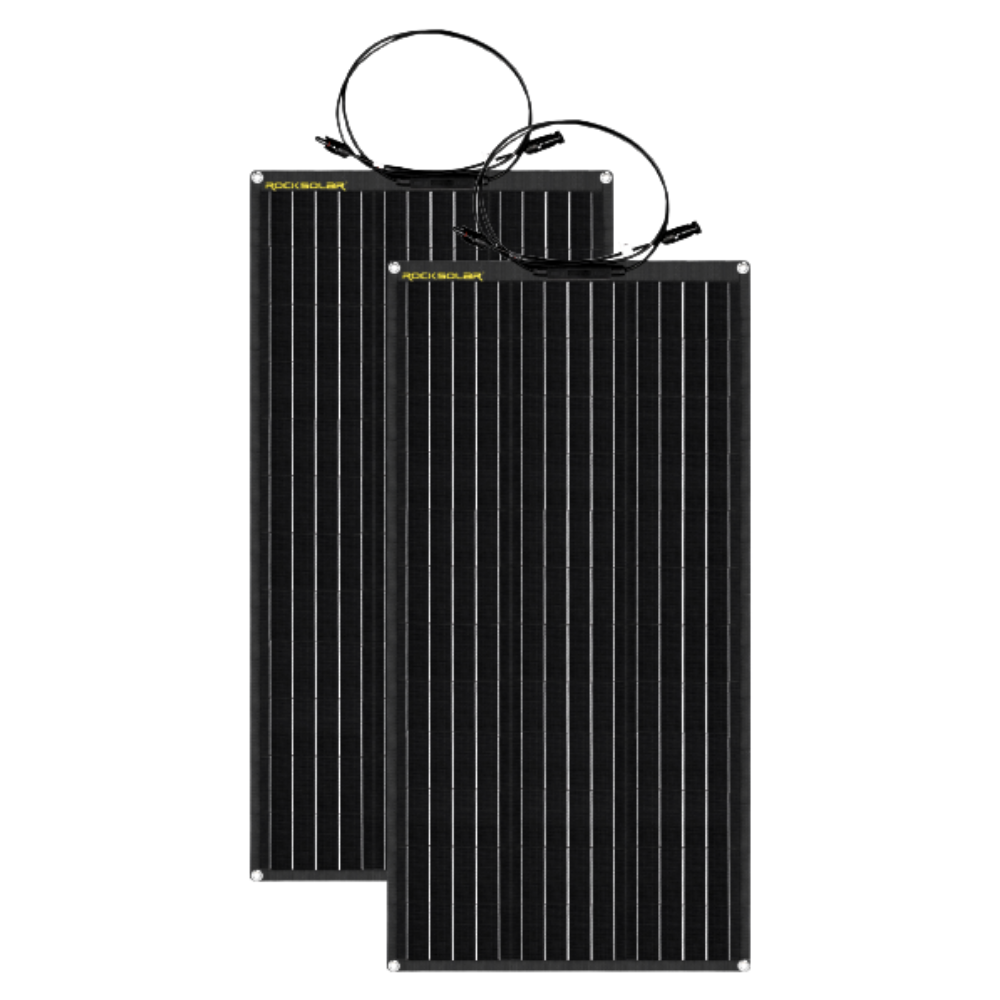

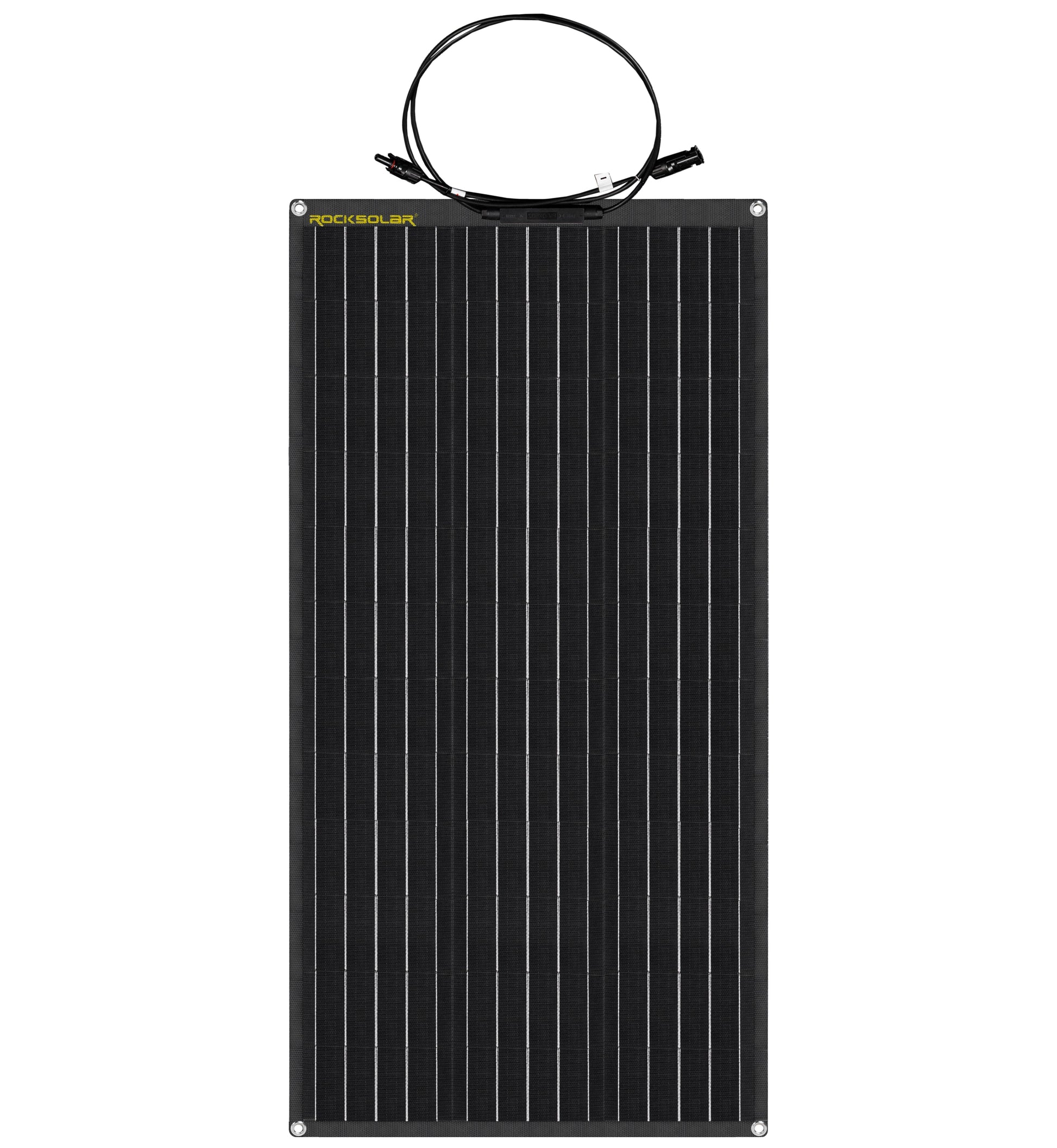

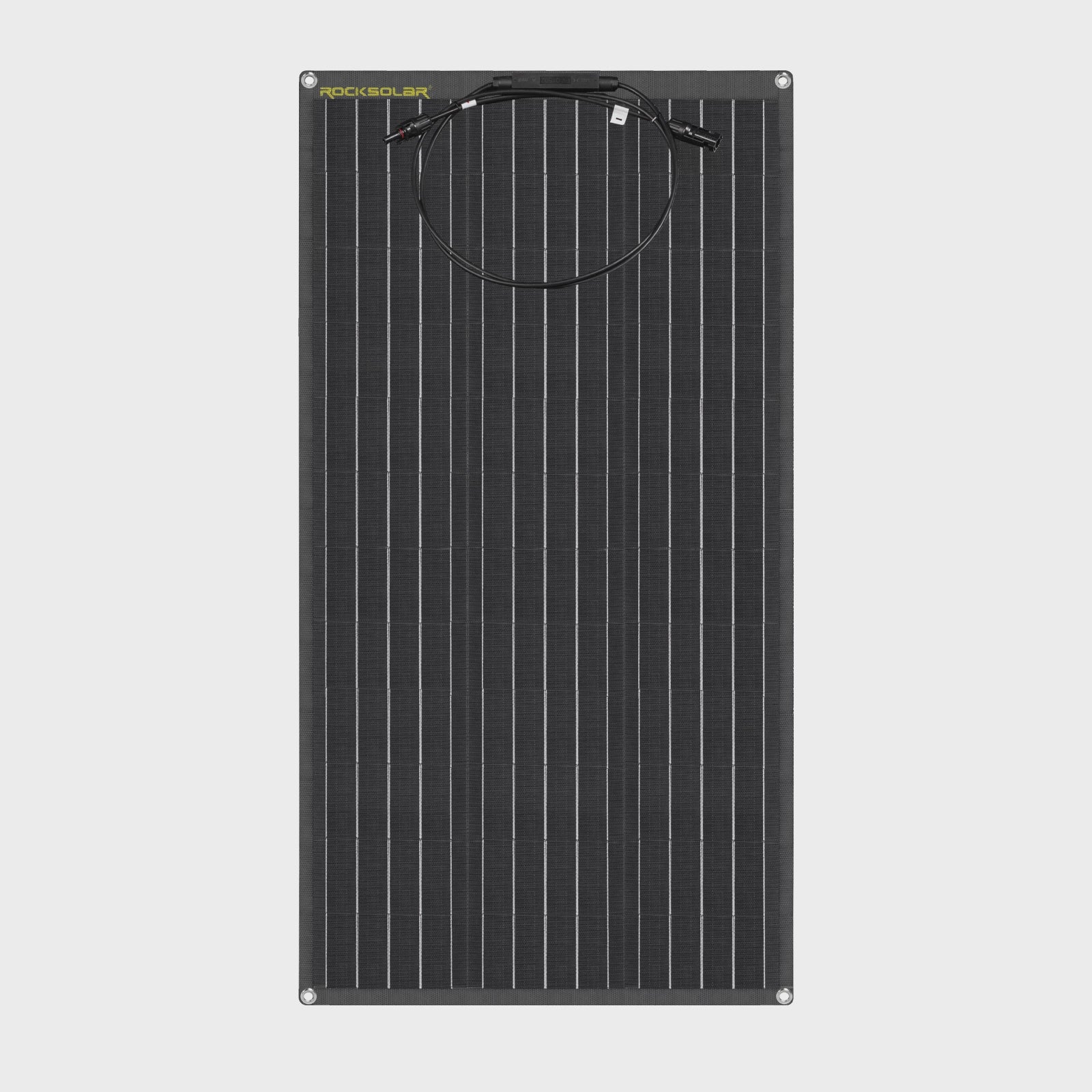

- 2 x ROCKSOLAR 100W 12V Flexible Monocrystalline Solar Panel

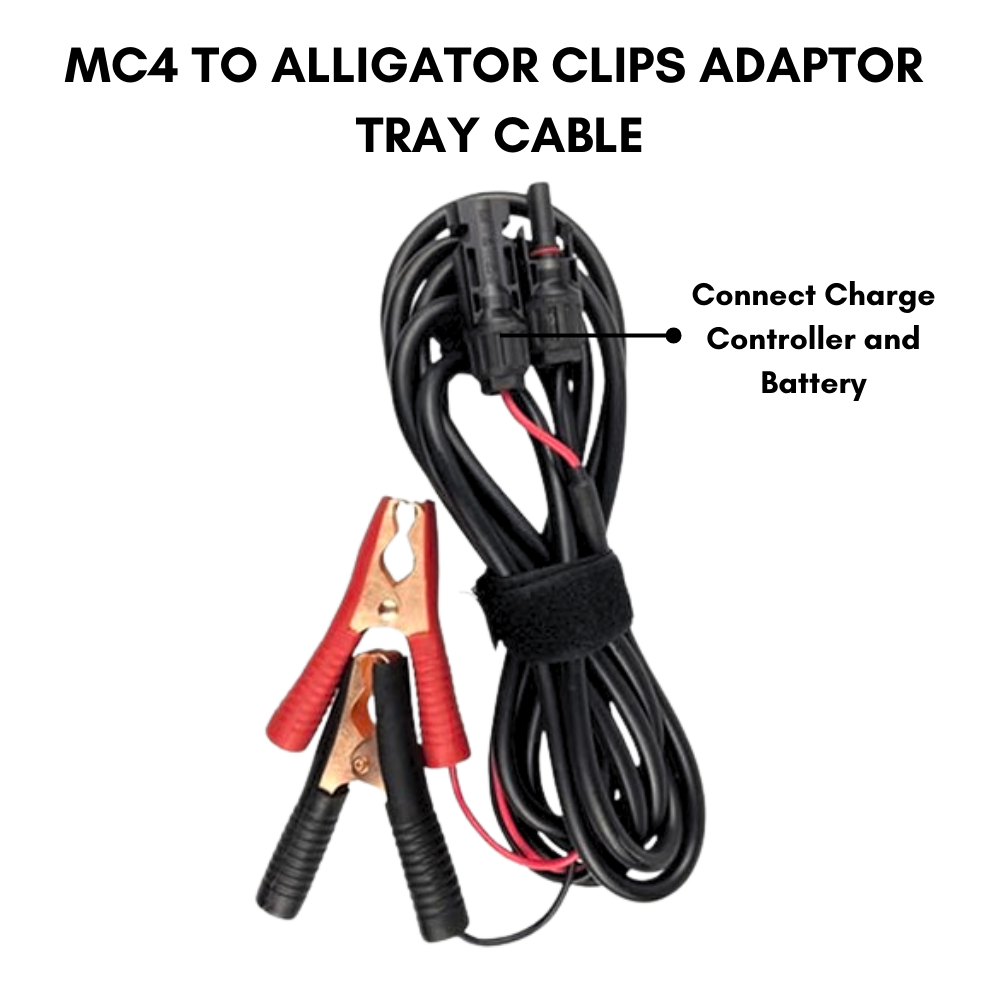

- 2 x 1m long MC4 to Battery Clips Cable

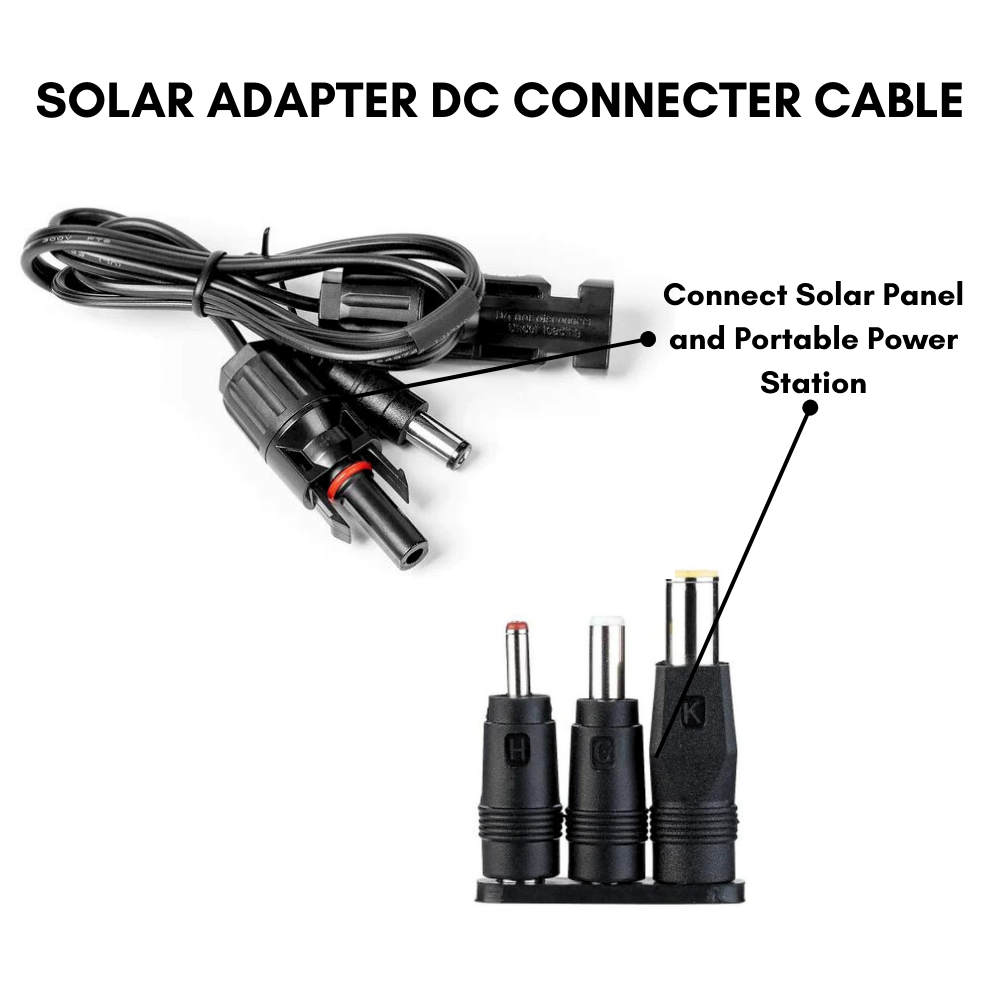

- 2 x 50cm long MC4 to DC5521 Cable

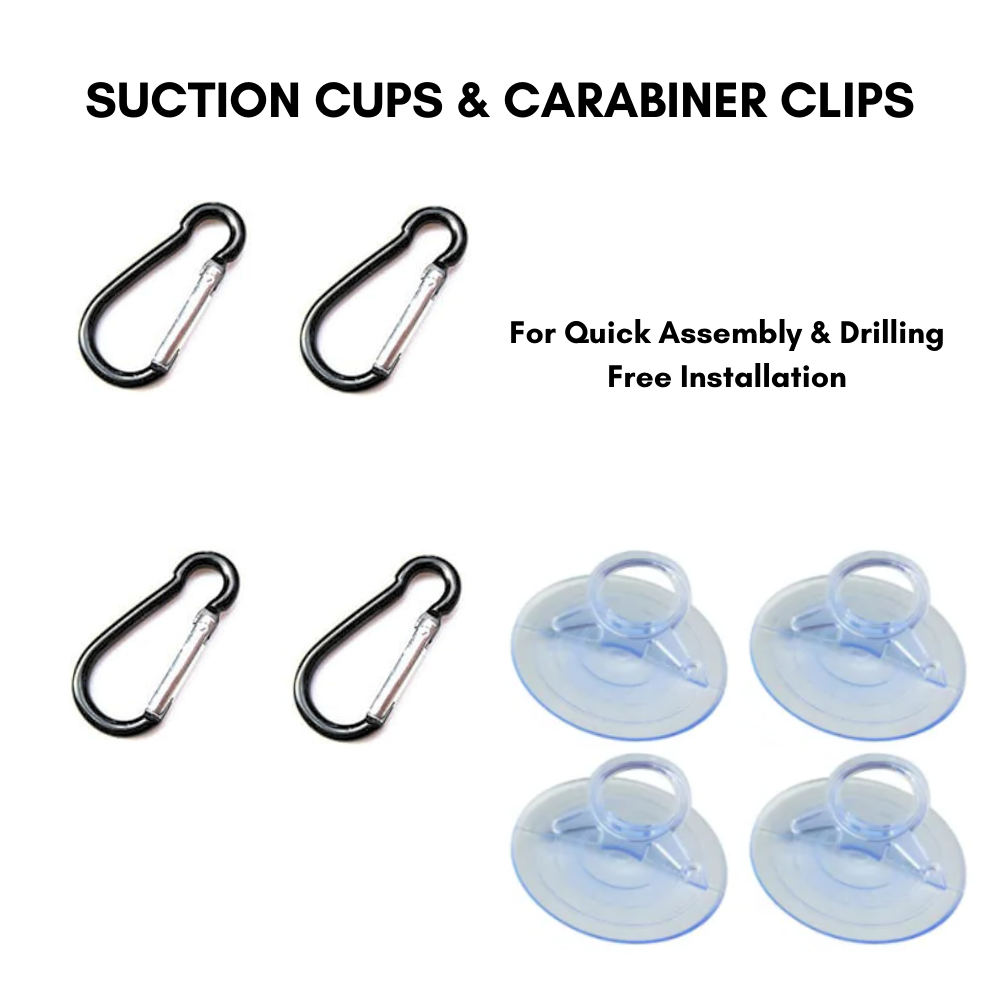

- 8 x Carabiners
- 8 x Cupulas/Suction Cups
- 2 x DC5.5/2.1 to DC3.5/1.35 Connector
- 2 x DC5.5/2.1 to DC5.5/2.5 Connector
- 2 x DC5.5/2.1 to DC8.0*5.5*0.8 Connector
- 1 x User Manual for the Solar Panel
|100W 12V Flexible Monocrystalline Solar Panel Specification||Details|
|Type||ETFE Monocrystalline silicon|
|Open Circuit Voltage(Voc)||23.4V|
|Peak Power Voltage(Vmp)||18V|
|Short Circuit Current(Isc)||6.1A|
|Current at Maximum Power (Imp)||5.56A|
|Weight||3.42 pounds (1.85kg)|
|Operating Temperature||-20~70 °C|
|Material||ETFE surface monocrystalline silicon integrated laminated solar panel|
These panels employ advanced high-efficiency monocrystalline silicon technology, ensuring top-tier energy conversion rates and maximizing solar absorption.
Both panels combined weigh 6.84 pounds (3.70kg) with dimensions of 1025x510x20 mm each, offering a perfect balance between portability and performance.
Absolutely. Each panel is crafted with a weather-resistant frosted PET film and has an IP68 rating, ensuring optimal operation from -20 to 70 °C, even in challenging weather conditions.
Yes, their flexible design allows installations on non-flat or curved surfaces, making them versatile for setups like boats, RVs, and irregular terrains.
The panels come with user-friendly MC4 connectors, as well as a diverse range of cables and adapters to ensure a smooth and efficient setup process. It's essential to verify compatibility when pairing with non-ROCKSOLAR systems.
By harnessing solar energy, these panels present an eco-conscious power solution. Using them aids in minimizing reliance on non-renewable energy, promoting a cleaner environment and sustainable living.
Both panels in the ROCKSOLAR 200W 2-Pack bundle come with a comprehensive 5-year warranty, showcasing our commitment to reliability and customer satisfaction.
