ROCKSOLAR 200W 12V Rigid Solar Panel Advanced Kit with MPPT Controller
ROCKSOLAR 200W 12V Rigid Solar Panel Advanced Kit with MPPT Controller

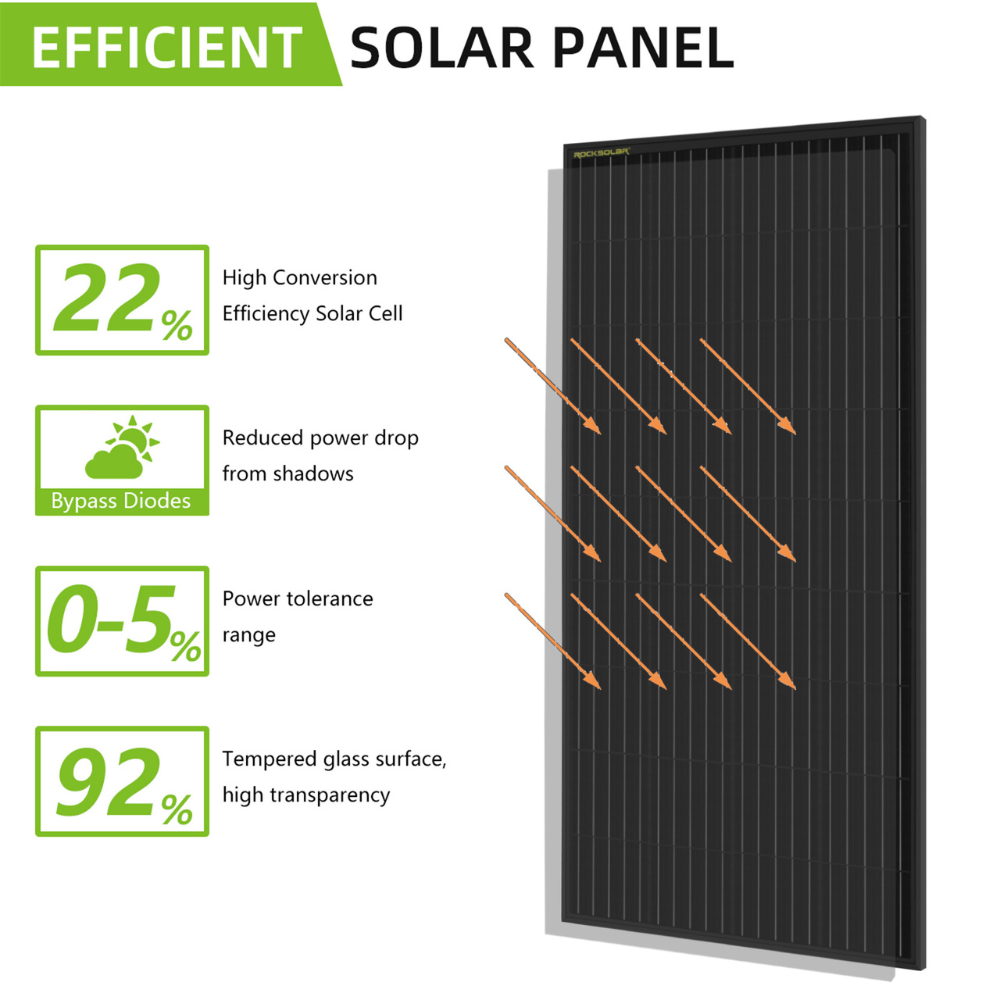

ROCKSOLAR 200W 12V Rigid Solar Panel Features:
- High Output: 200W monocrystalline panels, delivering 800-1000 Wh/day.
- Low-Light Performance: Integrated bypass diodes for reduced shade impact.
- Robust Build: Anti-corrosive frame, superior panel encapsulation.

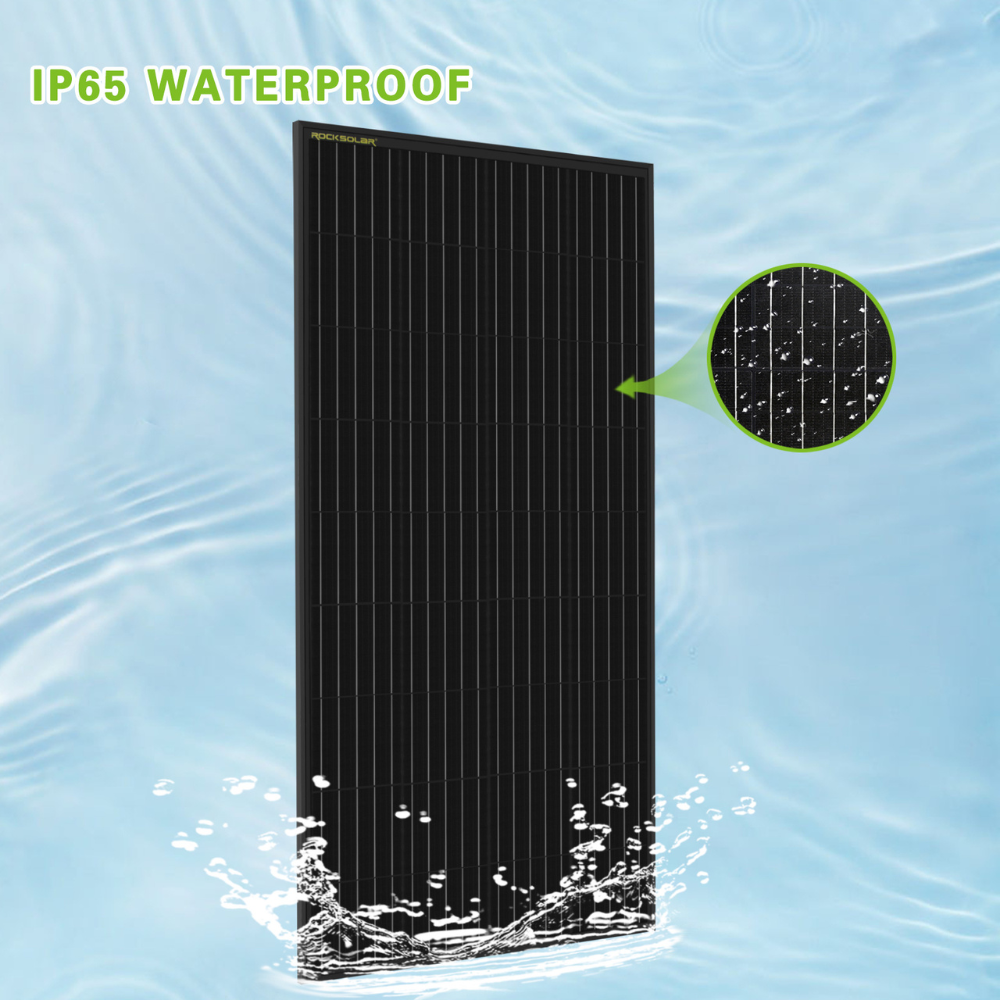

- All-Weather Ready: IP65 rating, works from -20°C to +50°C.
- Mounting Ease: Comes with pre-drilled holes for fast setup.
- Controller Sync: Ideal match for 12V 60A MPPT controllers.
- Diverse Uses: Great for RVs, boats, homes, and off-grid living.
- Green Power: Clean, renewable energy solution.
- Assured Quality: 10-year warranty, 90% output guarantee.
ROCKSOLAR 20A MPPT Charge Controller Features:
- Advanced MPPT: Optimizes solar harvesting.
- Powerful Capacity: 20A output for extensive solar arrays.
- Universal Fit: Works with various battery models.

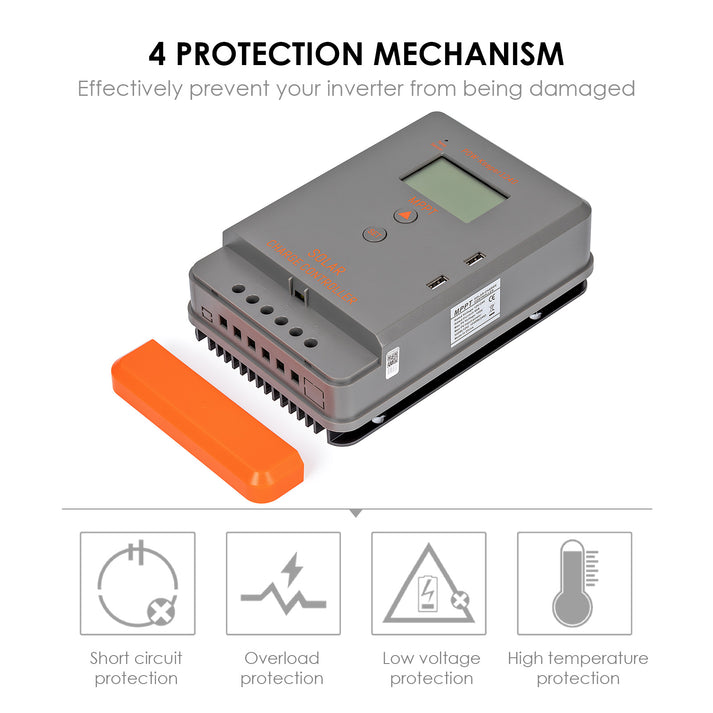

- Safe & Secure: Features overcharge and short-circuit protection.
- Efficient Tracking: Auto-adjusts for peak charging efficiency.
- User-Friendly Interface: Easy monitoring and control.
- Space-Saving: Compact, sleek design.
- Reliable Performance: 1-year warranty with a 90% efficiency promise.
10-year Hassle Free
ROCKSOLAR 200W 12V Rigid Solar Panel Kit with 20A MPPT Charge Controller

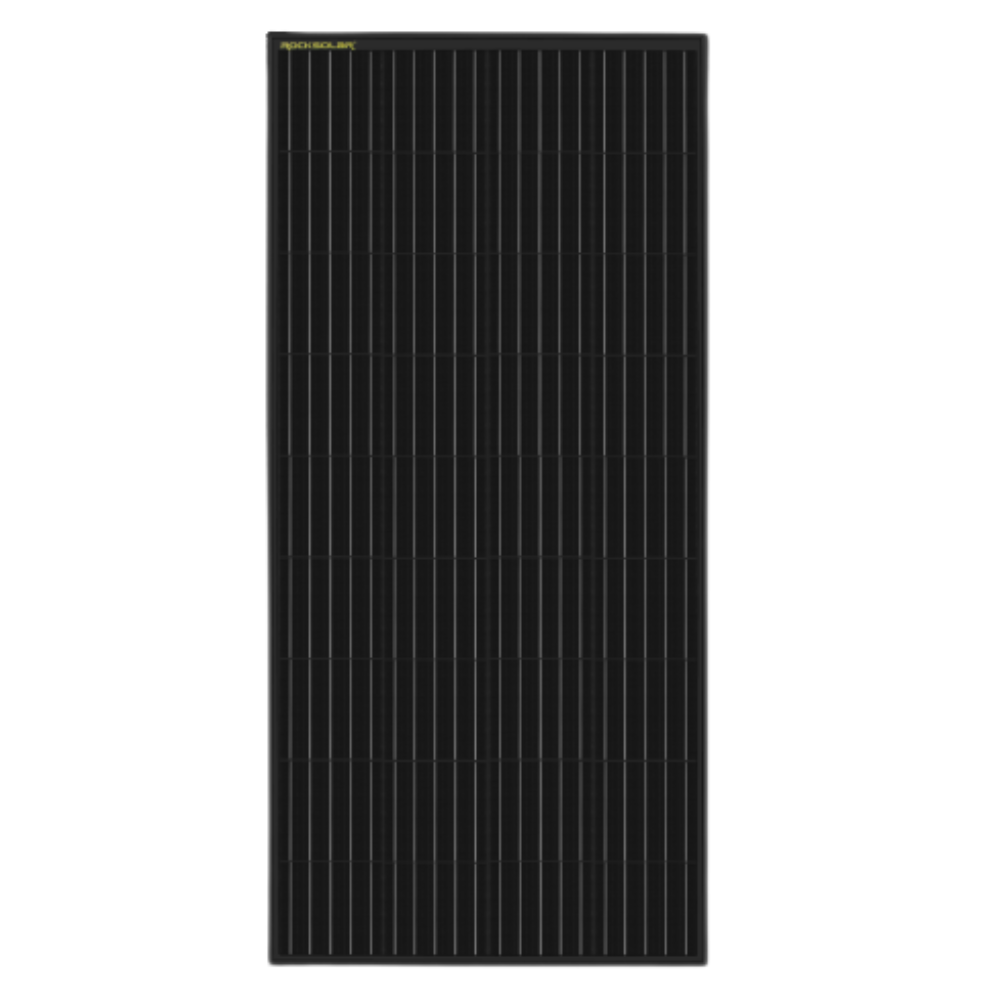

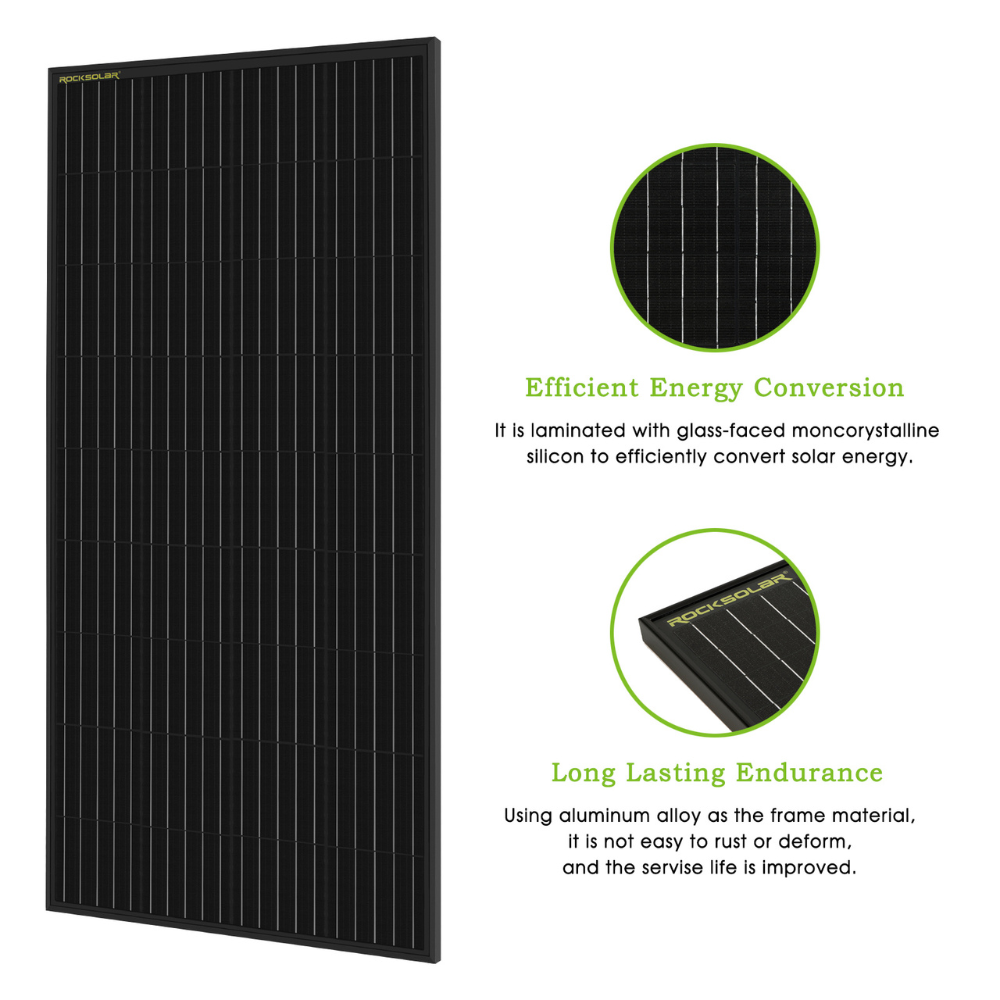

Introducing the ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel, a high-performance and eco-friendly solution for your energy needs. Designed with durability in mind, this solar panel features a rigid, weather-resistant aluminum frame and anti-reflective tempered glass to ensure maximum efficiency. The monocrystalline cells provide excellent performance, even in low-light conditions, making it a reliable energy source for off-grid living, camping, or emergency backup power. Easy to install and compatible with a wide range of applications, the ROCKSOLAR 200W 12V Solar Panel will help you harness the power of the sun and reduce your carbon footprint.

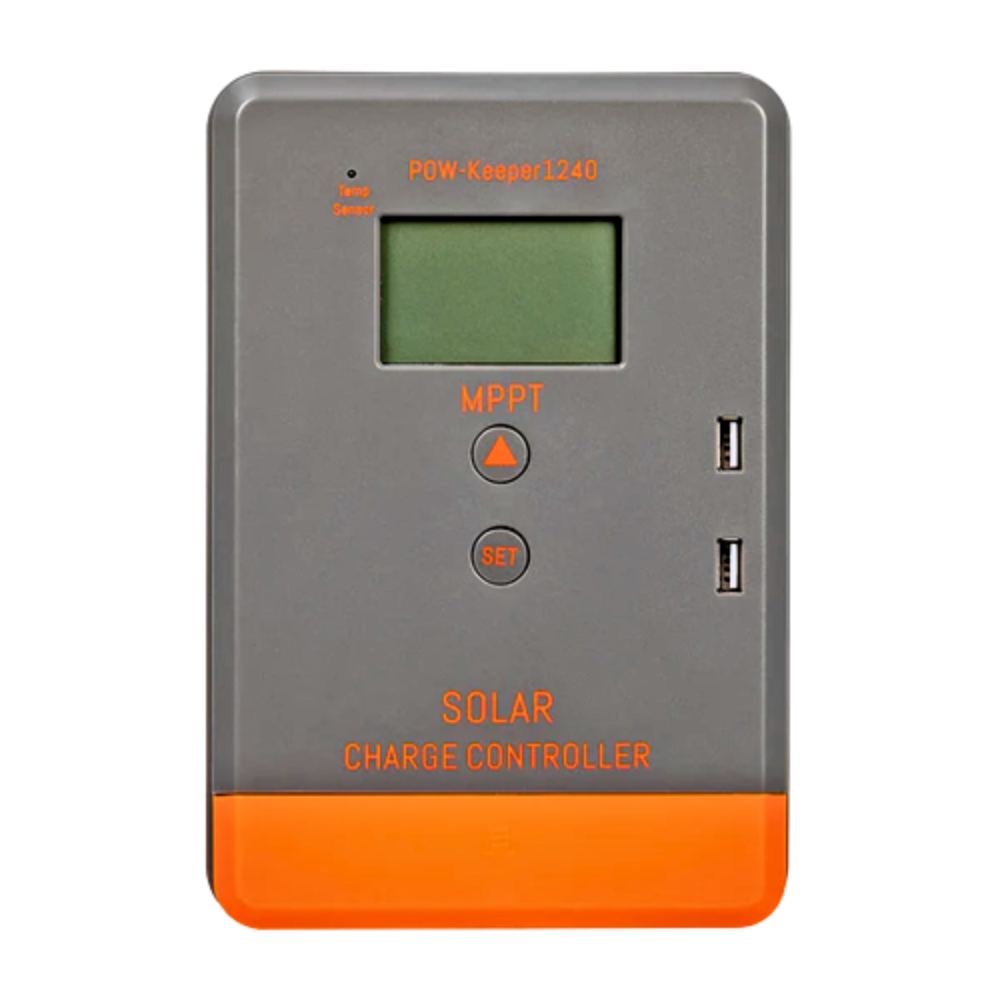

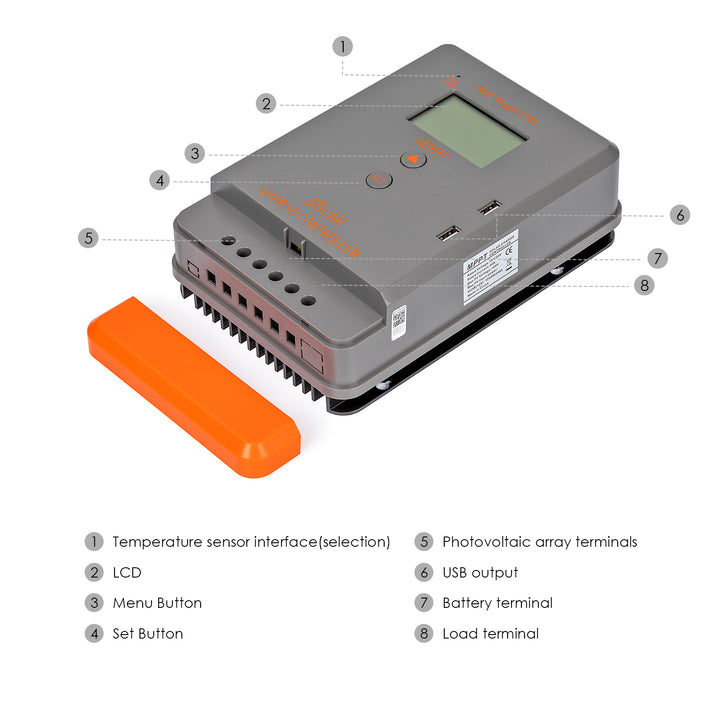

20A MPPT Solar Charge Controller Features
Explore the advanced features of the 20A MPPT Solar Charge Controller, a high-efficiency, IP30 rated device designed for optimizing your solar panel system. This controller not only promises compatibility with both Lithium and Lead Acid batteries but also boasts an impressive maximum open voltage of 75Vdc. Its state-of-the-art MPP tracking efficiency of 99.5% ensures that you get the most out of your solar energy.
- Advanced MPPT Technology: Delivers a maximum power point tracking efficiency of 99.5%, maximizing the energy harvested from the solar panels.
- Versatile Battery Compatibility: Seamlessly works with Lithium and Lead Acid batteries, catering to a broad spectrum of energy storage needs.
- Intelligent 3-Stage Charging: Implements a smart 3-stage charge algorithm, ensuring batteries are charged efficiently and safely.
- Optimal Voltage Capacity: Supports a nominal system voltage of 12/24V and operates efficiently across a battery voltage range of 8-32V.
- Secure Voltage Parameters: Features high voltage disconnection at 16V and low voltage disconnection at 10.8V, protecting your battery from overcharging and deep discharge.
- High Voltage Input: Accommodates a maximum open voltage of 75Vdc, allowing for flexible solar panel configurations and higher voltage inputs.

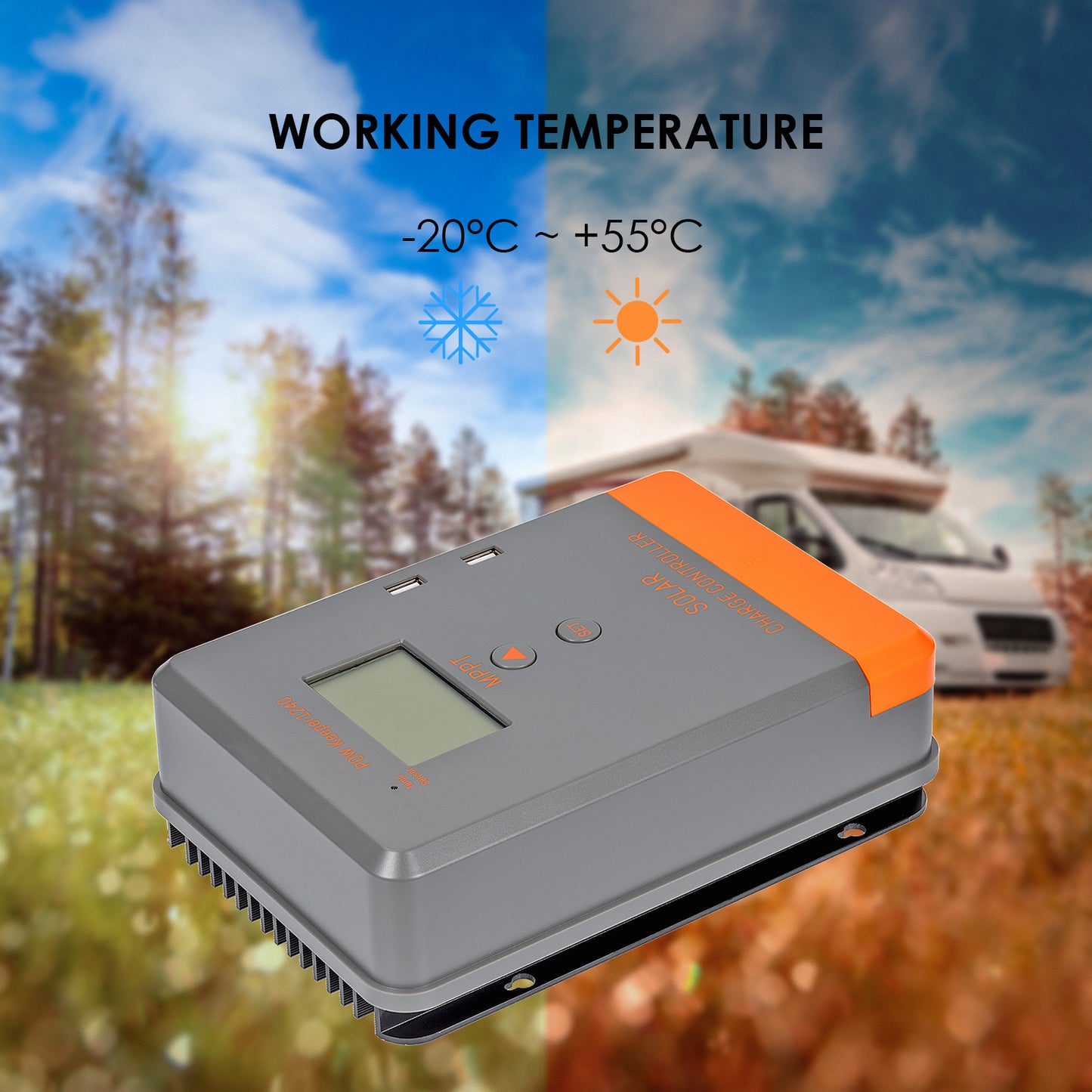

- Durable Operating Range: Reliable performance guaranteed with an operating temperature range of -20°C to 55°C, suitable for a variety of environmental conditions.
- Efficient Charge Control: Rated charging current of 20A for optimal control and maximization of solar energy usage.
- Environmentally Adaptable: Designed to withstand and perform consistently in diverse weather conditions with its IP30 rating.
- Compact & Practical Design: Sleek and user-friendly, this controller is ideal for both professional and DIY solar power setups.

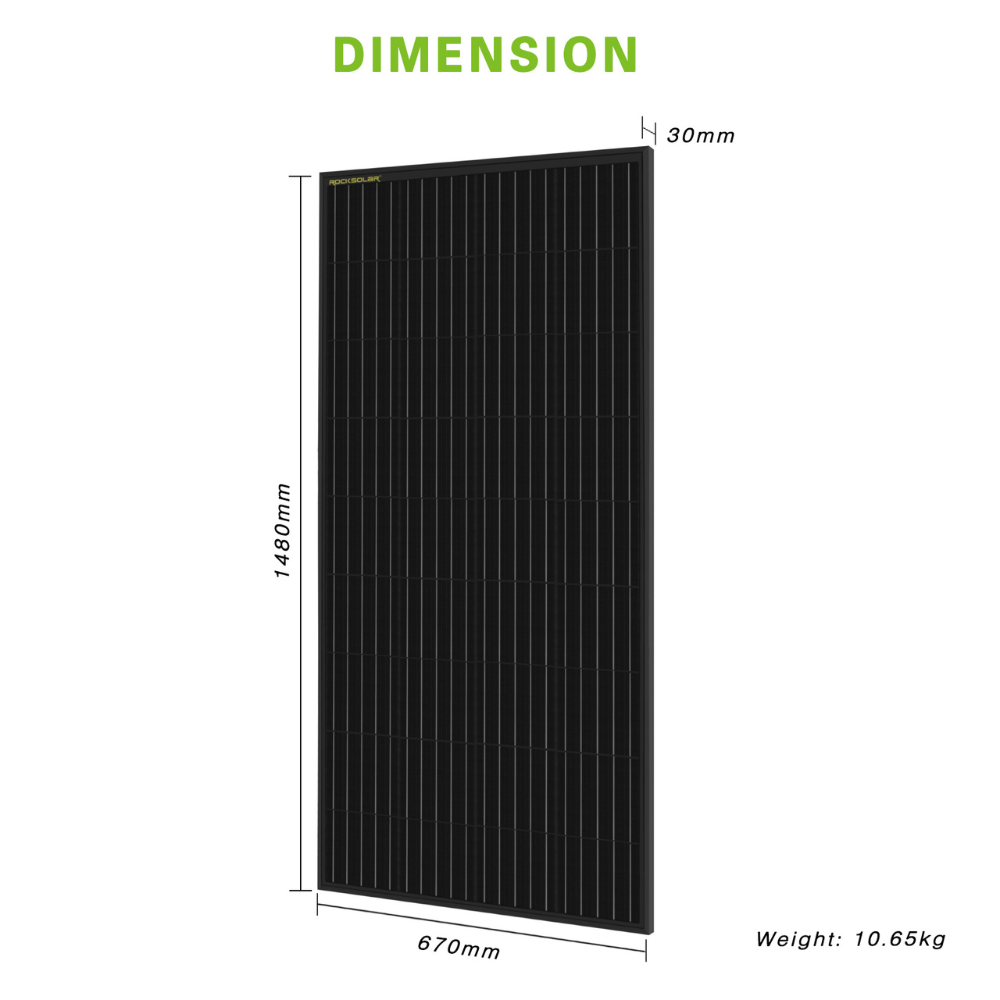

200W 12V Rigid Solar Panel: 1480mm x 670mm x 30mm; 10.65 Kilograms

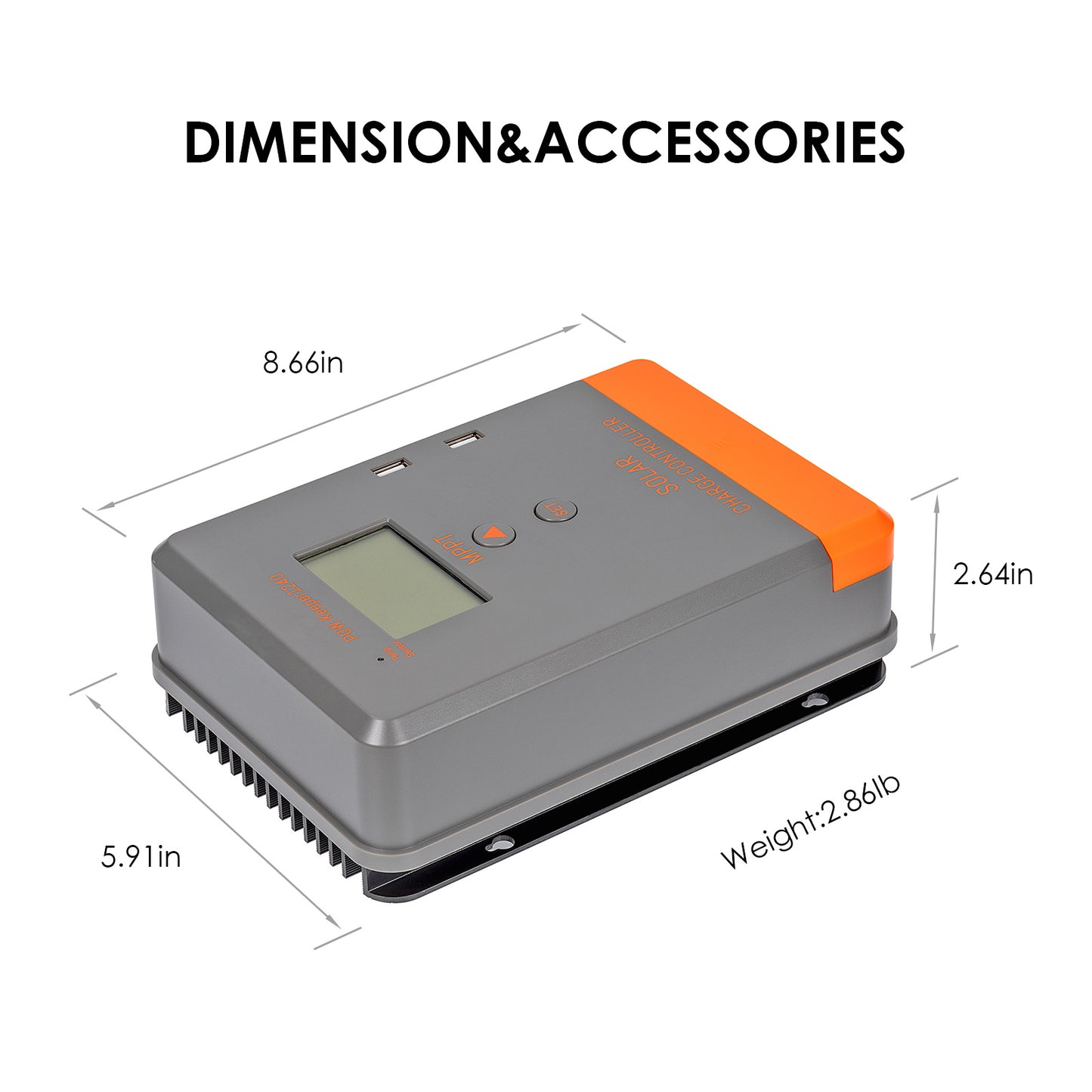

20A MPPT Solar Charge Controller: 123 x 178 x 48mm; Weight: 2.86 lbs.
- ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel
- 1 x 1 x ROCKSOLAR Black Diamond 200W 12V Monocrystalline Rigid Solar Panel

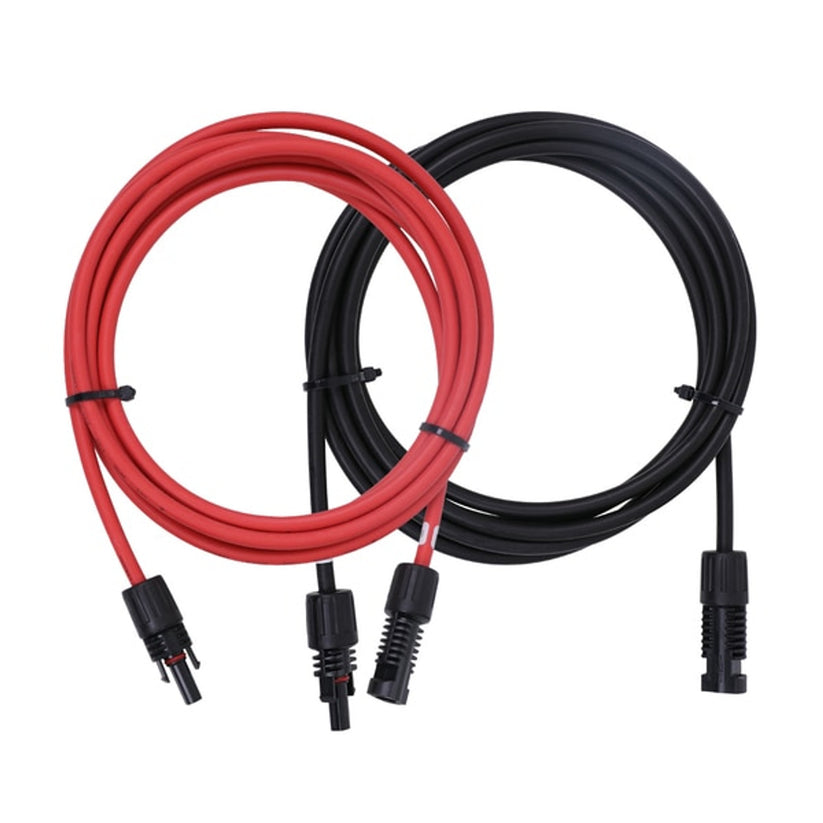

- 1 x MC4 Connectors
- 1 x User Manual for the Rigid Solar Panel
- ROCKSOLAR 20A MPPT Solar Charge Controller
- 1 x ROCKSOLAR 20A MPPT Solar Charge Controller
- 1 x User Manual for the Charge Controller

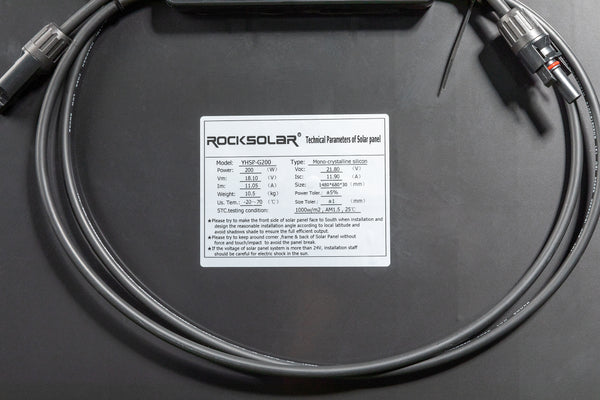

|ROCKSOLAR Black Diamond 200W 12V Monocrystalline Rigid Solar Panel Specification||Details|
|Dimensions||1480mm x 670mm|
|Weight||approx. 25-30 lbs|
|Operating Temperature||-40°C to +85°C|
|Front Glass||High light transmittance, low-iron tempered glass|
|Cable Length||Varies depending on the brand (approx. 3-6 ft)|

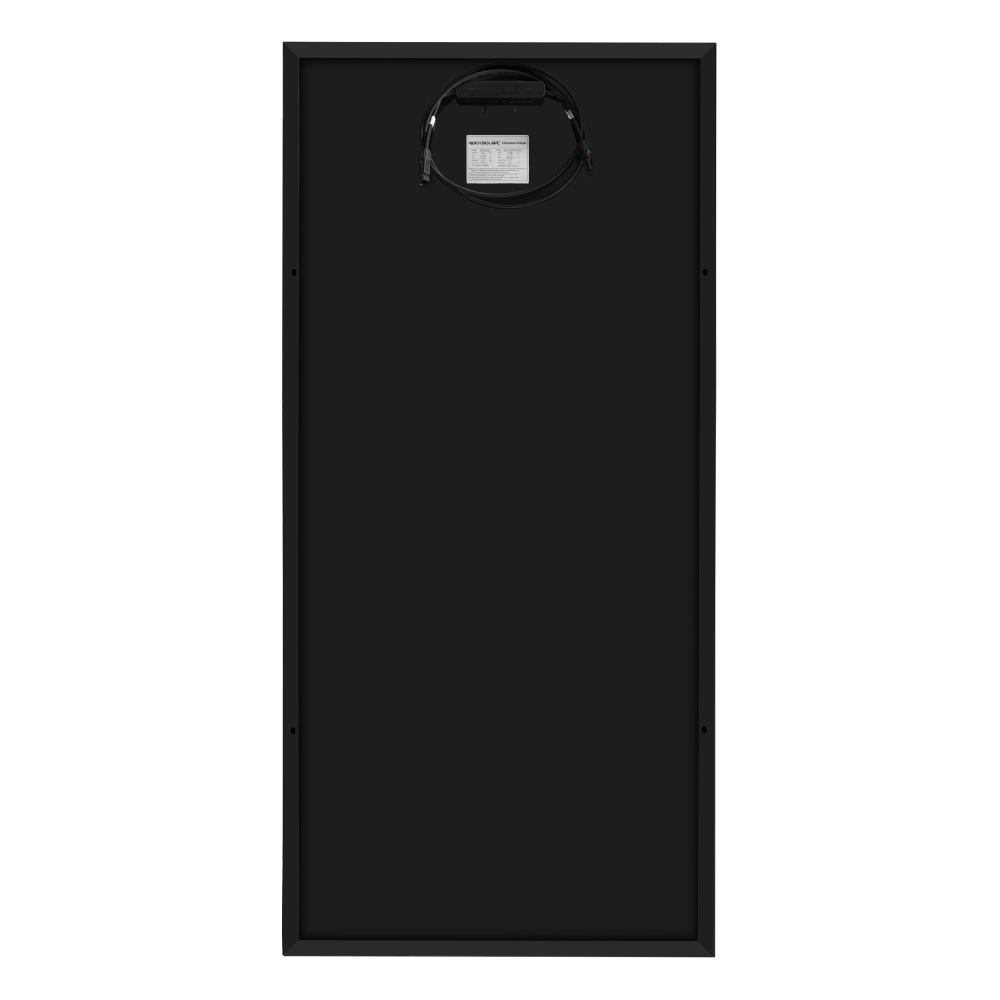

|Mounting Hole Locations||Pre-drilled|
|Service Life||25 years or more|
|20A MPPT Solar Charge Controller Specification||Details|
|PV Input||Max Open Voltage of PV Module: 75Vdc|
|MPP Tracking Efficiency||99.50%|
|Max PV Power||260W for 12V system, 520W for 24V system|
|Charge Mode||Charge Algorithm: 3 Stage|
|Battery Type||Lithium and Lead Acid Battery|
|Nominal System Voltage||12/24V|
|Rated Charging Current||20A|
|Battery Voltage Range||8~32V|
|High Voltage Disconnection||16V (24V x 2)|
|Duration for absorption charging||2 hours|
|Charge Loop Voltage Drop||≤0.29V|
|Self-consumption||≤ 9.2mA 12V; ≤ 11.7mA 24V|
|Equalized Charging Voltage||AGM: 14.6V; GEL: No; FLd: 14.8V|
|Absorption Charging voltage||AGM: 14.4V; GEL: 14.2; FLd: 14.6V|
|Floating Charging voltage||AGM/ GEL/ FLd: 13.8V|
|Low Voltage re-connection (LVR)||AGM/ GEL/ FLd: 12.6V|
|Low Voltage Disconnection (LVD)||AGM/ GEL/ FLd: 10.8V|
|Operating Temperature Range||-20℃~55℃|
|LCD Temperature Range||-20℃~70℃|
|Humidity Range||≤95% No condensation|
|Installation Hole||108*120 ∅5|

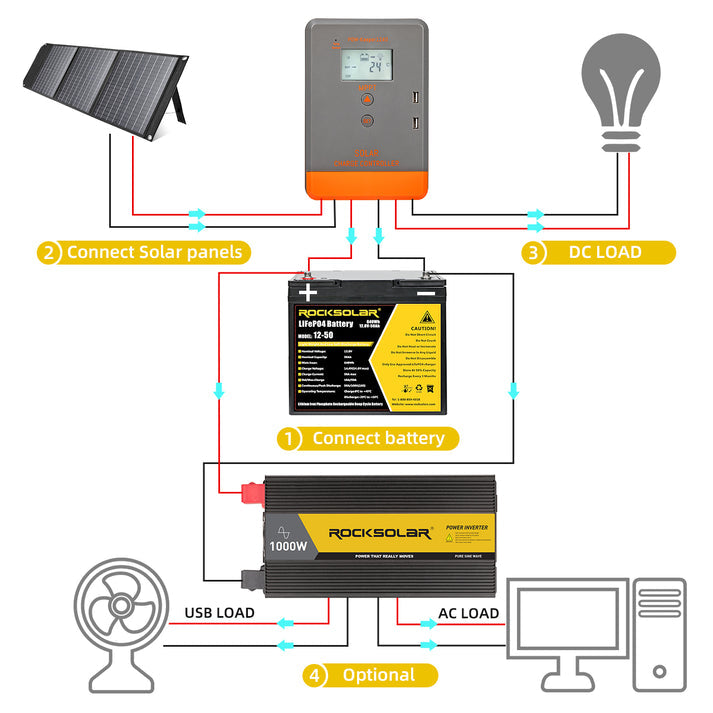

The kit contains a 200W 12V rigid solar panel, an MPPT solar charge controller, necessary connecting cables, and mounting hardware for a complete solar energy system.
Yes, the included MPPT controller is versatile, supporting a variety of battery types including Lithium, AGM, Gel, and lead-acid, providing flexibility in your energy storage solution.
The MPPT controller offers higher efficiency in solar energy conversion compared to PWM controllers. It optimizes the power output from the solar panel, ensuring maximum charge is delivered to the battery.
Yes, the 200W solar panel is built to endure various environmental conditions, including high temperatures, ensuring consistent performance and longevity.
The 200W solar panel typically requires a space around 1580mm x 808mm. It's essential to have a clear, unobstructed area for installation to maximize solar exposure.
Yes, the MPPT controller ensures the battery is charged in the most efficient way, which can help in extending the overall life of your battery.
Absolutely. This kit is an excellent choice for off-grid applications like remote cabins, RVs, and boats, providing a reliable power source in areas without grid access.
Maintenance generally involves regular cleaning of the panel's surface to keep it free of debris, dirt, and snow. Ensure the panel is not shaded to maximize efficiency.
The solar panel itself can last for more than 25 years with proper maintenance. The lifespan of the other components, like the MPPT controller, can vary but typically lasts several years.
Yes, the kit is designed for eco-friendly energy generation, helping to reduce carbon footprint by leveraging renewable solar power.
During installation, ensure all connections are secure and the panel is firmly mounted. Follow all guidelines in the manual, and consider professional assistance if you are unfamiliar with solar panel installations.
While solar panel efficiency decreases in cloudy conditions, the MPPT controller in this kit helps in extracting maximum possible energy from the panel during such conditions.
