12 KW Split Phase 120/240Vac Off-Grid Solar System
12 KW Split Phase 120/240Vac Off-Grid Solar System
- All-Inclusive Solar Power Kit: Features a 12kW inverter, dual 5kW batteries, and a robust 4000W solar panel array, offering a comprehensive solution for home energy needs.
- Enhanced Energy Storage: Boasts a total energy storage of 10kW with two high-capacity 5kW batteries, providing reliable power backup.
- Superior Solar Collection: The 4000W solar array, composed of 20x 200W high-efficiency panels, maximizes solar energy capture and conversion.
- Advanced Inverter Technology: The 12kW inverter ensures efficient power conversion and seamless integration with both lithium and lead-acid batteries.
- Scalable Storage Options: Modular battery design allows for easy system expansion to meet increasing energy demands.
- Long-lasting Components: Constructed with durability in mind, all kit components are designed to endure various environmental conditions.
- User-friendly Installation: Comes with complete installation gear, making setup adaptable to different mounting environments.
- Intelligent System Management: Optional WIFI/GPRS connectivity provides advanced monitoring and control capabilities.
- Guaranteed System Longevity: The solar panels and batteries offer extended service life, supported by comprehensive warranties for peace of mind.
- Sustainable Energy Production: Leveraging solar power reduces dependence on non-renewable energy sources, contributing to environmental conservation.
- Customizable Energy Solutions: Flexibility to add more solar panels or batteries as needed, ensuring the system grows with your energy requirements.
- Adaptable to All Environments: Designed to operate effectively in a wide range of weather conditions, ensuring consistent performance year-round.
Free
Local Shipping
10-year Hassle Free
Warranty
Lifetime Customer
Support
Couldn't load pickup availability
- Description
- Includes
- Specifications
- FAQ
- Downloads
- Reviews

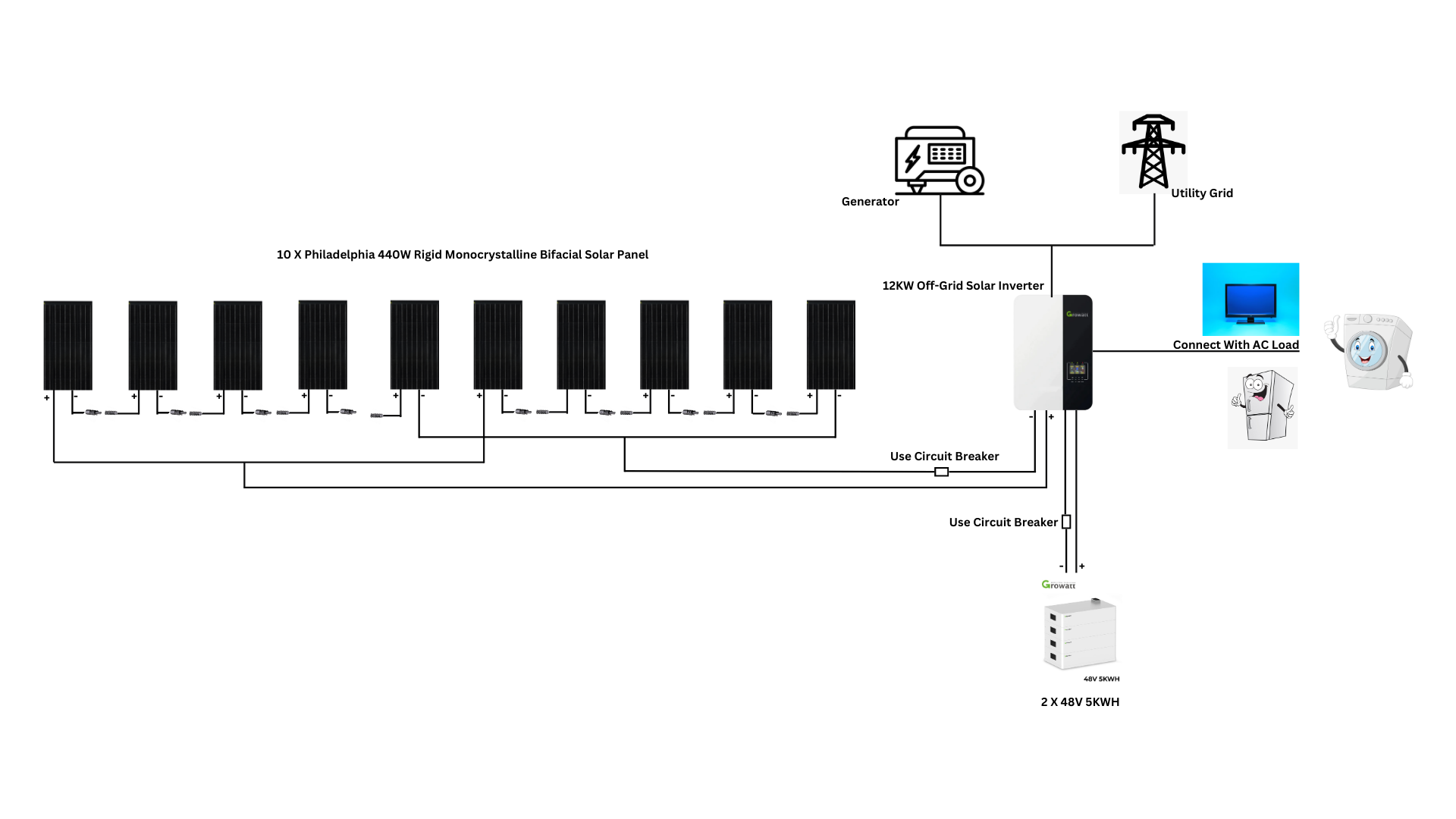

Introducing the Advanced Home Solar Storage Kit - 10kW Energy Storage with 12kW Inverter + 4000W Solar Array, a premium energy solution designed for those who demand efficiency, reliability, and high performance in their solar energy systems. This all-encompassing kit features GROWATT's SPF 12000T DVM-US MPV, a 12kW inverter known for its seamless energy integration and intelligent power management, alongside two 5kW batteries for a total energy storage of 10kW, and a robust 4000W solar panel array comprised of 20 high-efficiency 200W panels.
Key Highlights:
Growatt AXE 5.0L-C1 5kW Battery (x2):
- Modular 5kWh capacity, expandable in parallel for up to 400kWh
- Cobalt-free LiFePO4 battery cells for safety and longevity
- Quick, cable-free stacking installation
- Remote management for firmware updates and diagnostics
- Integrated BMS for real-time monitoring and protection
- 10-year warranty ensuring peace of mind
Growatt SPF 12000T DVM-US MPV Inverter:
- Robust 12kW power output, supporting both residential and commercial energy needs.
- Integrated MPPT technology ensures maximum efficiency in solar energy harvesting.
- Supports a maximum PV input voltage up to 250VDC, accommodating a broad array of solar panel configurations.
- Seamless operation with or without a battery, accommodating diverse energy strategies.
- Constructed to operate reliably in environments ranging from 0°C to 50°C, ensuring durability and performance under various conditions.
- Smart connectivity options for easy system monitoring and management.
- Quick transfer switching minimizes downtime during power source transitions.
- Pure sine wave output for powering sensitive electronics safely.
ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel (x20):
- High-efficiency monocrystalline cells for superior performance
- 200W power output per panel with a total array power of 4000W
- Durable aluminum frame and anti-reflective glass for weather resistance
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact on performance
- Over 25 years of service life with a 10-year manufacturer warranty
- Eco-friendly power generation to reduce carbon footprint
With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy the assurance of a reliable power supply. Experience the combined benefits of modern solar technology and battery storage in one seamless package.
- 1 x Growatt Off-Grid Storage Inverter SPF 12000T DVM-US MPV
- 20 x ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panels
- 2 x Growatt AXE 5.0L-C1 5kW Battery
- 1 x Set of Mounting Brackets for Solar Panels
- 1 x Set of Cables for Solar Panel to Inverter Connection
- 1 x Set of Cables for Battery to Inverter Connection
- 1 x User Manual for the Inverter
- 1 x User Manual for the Battery
- 1 x User Manual for the Solar Panels
- 1 x Warranty Card for the Complete System
Technical Specifications
| Growatt AXE 5.0L-C1 5kW Battery | Details |
|---|---|
| Model | Growatt AXE 5.0L-C1 |
| Energy Capacity | 5.0kWh |
| Max Charge/Discharge Power | 3kW |
| Max Charge/Discharge Current | 60A |
| Dimensions | 650 x 350 x 165mm (W x D x H) |
| Weight | 42kg |
| Nominal Voltage | 51.2V |
| Warranty | 10 years |
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
| Operating Voltage Range | 48 - 57.6V |
| Installation | Floor installation |
| Operation Temperature | 0°C-50°C/32-122°F |
| DoD | 92% |
| Parallel Capability | Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh) |
| Communication Port | CAN/RS485 |
| Performance Warranty | 10 years |
| Certification | CE, ROHS, UL1973+FCC, UN38.3 + IP65 |
| Growatt Off-Grid Storage SPF 12000T DVM-US | Details |
|---|---|
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid |
| Inverter Output (Rated Power) | 12KW |
| Surge Rating | 36KW |
| Waveform | Pure sine wave/ same as input (bypass mode) |
| Nominal Output Voltage RMS | 104-110-115-120/208-220-230-240VAC(optional) |
| Output Frequency | 50Hz/60Hz +/-0.5 Hz |
| Inverter Efficiency (Peak) | 88% |
| Transfer Time | 10ms |
| Solar Charger (Maximum PV Charge Current) | 60A |
| Maximum PV Array Power | 7000W |
| AC Input Voltage | 240VAC |
| Max. Charging Current | 100A |
| Protection Degree | IP20 |
| Dimensions (W/H/D) | 360/650/225mm |
| Weight | 75kg |
| Operating Environment (Temperature Range) | 0°C to 50°C |
| Warranty | Complies with UL STD.1741, CSA STD CSA C22.2 No.107.1 |
| ROCKSOLAR Black Diamond 200W 12V Monocrystalline Rigid Solar Panel | Details |
|---|---|
| Panel Type | Monocrystalline |
| Power Output | 200W |
| System Voltage | 12V |
| Cell Efficiency | 20-22% |
| Frame Material | Aluminum |
| Dimensions | 1480mm x 670mm |
| Weight | approx. 25-30 lbs |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
| Warranty | 10 years |
The kit includes a 12kW inverter, two 5kW batteries for a total of 10kW energy storage, and a solar panel array capable of producing 4000W of power.
Yes, this kit is designed for both off-grid and on-grid functionality, offering unparalleled versatility for various living situations and energy needs.
Absolutely, the kit's modular nature allows for easy expansion. Additional batteries and solar panels can be integrated to enhance the system's storage capacity and power generation, respectively.
Maintenance needs are minimal, primarily involving regular checks to ensure component functionality and cleaning the solar panels to maintain optimal energy production.
The 12kW inverter utilizes intelligent power management to allocate solar energy effectively between immediate use and storage, supplementing with grid power as necessary to ensure a constant energy supply.
Yes, the system supports optional WIFI/GPRS connectivity, allowing for remote monitoring and management. This feature enables you to oversee and adjust your energy usage conveniently from any location.
Each component of the kit is backed by its own warranty, providing comprehensive protection and assurance for your investment over the long term.
While the kit is designed for user-friendly installation, it is recommended that installation be carried out by professionals to ensure the system's optimal performance and safety.
