Growatt 3.8-6kW Partial Home Backup Power System
Growatt 3.8-6kW Partial Home Backup Power System
Regular price
$7,999.99 CAD
Regular price
$18,999.99 CAD
Sale price
$7,999.99 CAD
Unit price
per
Shipping calculated at checkout.
Bulk Order Inquiry
Bulk Order Inquiry
Interested in ordering in bulk? We offer competitive pricing and flexible terms for large orders.
Free
Local Shipping
10-years Hassle Free
Warranty
Lifetime Customer
Support
Couldn't load pickup availability
- Description
- 3.8kW Power System
- 6kW Power System 1
- 6kW Power System 2
- Downloads
- Reviews
Introducing the Growatt Partial Home Backup Power System, an all-in-one solution for seamless energy storage and management. This system is designed for both off-grid and grid-tie applications, ensuring that your home remains powered and efficient, regardless of grid status. The kit includes the Growatt hybrid inverter, a high-capacity APX Battery, and the ATS-XH-US automatic transfer switch, providing a comprehensive energy storage solution.
Ideal for households with daily electricity consumption. This system is particularly beneficial for homes with high-power loads such as electric vehicles and swimming pools. It maximizes self-consumption of solar energy, significantly reduces electricity bills, and ensures energy independence during power outages.
System Key Features:
- Energy Independence: Generate and store your own renewable energy to reduce reliance on the grid.
- Self-Consumption Optimization: Store excess solar energy during the day and use it during peak evening hours to lower electricity bills.
- Off-Grid Capability: Automatically switch to off-grid mode during power outages, ensuring continuous power supply.
- Flexible Energy Management: Supports multiple energy management modes including self-consumption, zero export, TOU, and off-grid.
- High Efficiency: The Growatt inverter boasts up to 98.4% efficiency with 3 MPP trackers.
- Easy Monitoring: Built-in 4G/WiFi communication for real-time monitoring via mobile app or web portal.

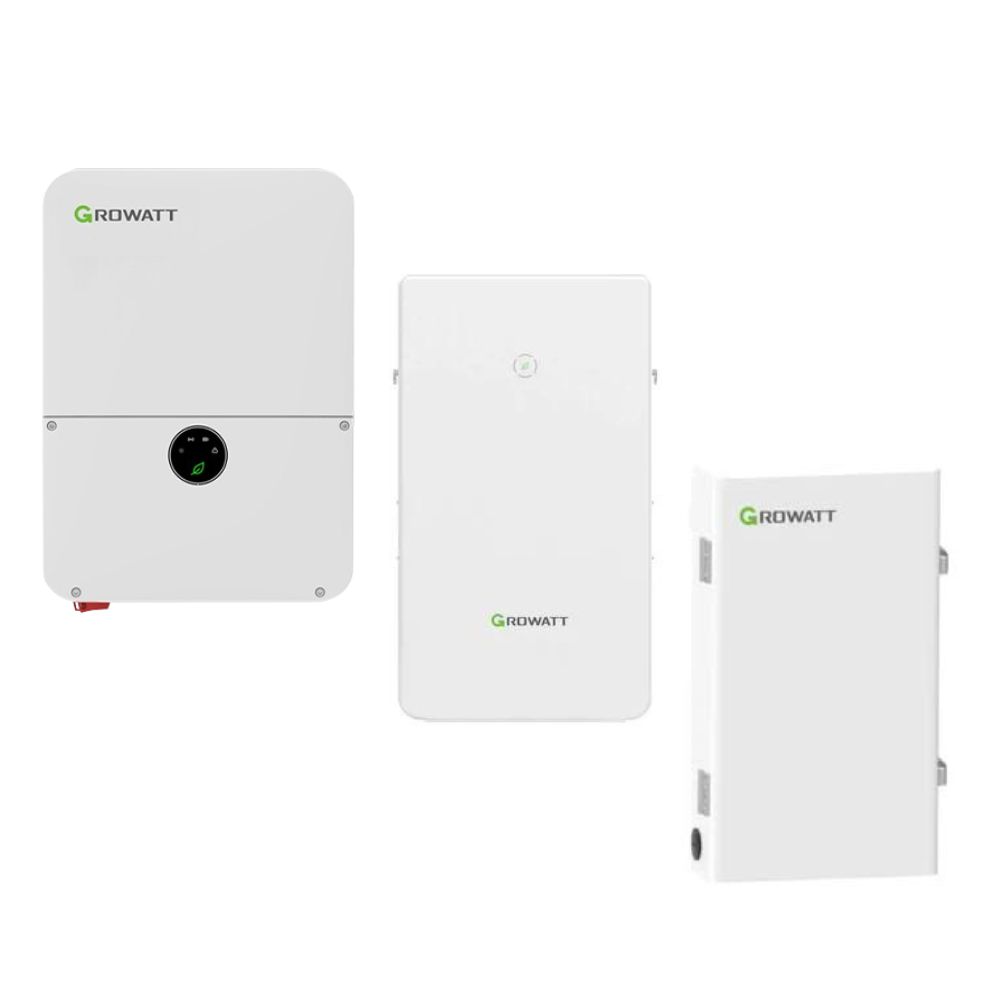

Growatt 3.8kW Partial Home Backup Power System Includes:
- 1 x Growatt 3.8kW MIN 3800TL-XH-US Grid-Tie | Battery Storage Solar Inverter
- 1 x Growatt APX 5kWh pre-assembled high voltage battery with BMS
- 1 x Growatt ATS-XH-US 5kW transfer switch and US split-phase transformer for 120V/240V output
- 1 x ATS-XH-US 5kW Backup Box

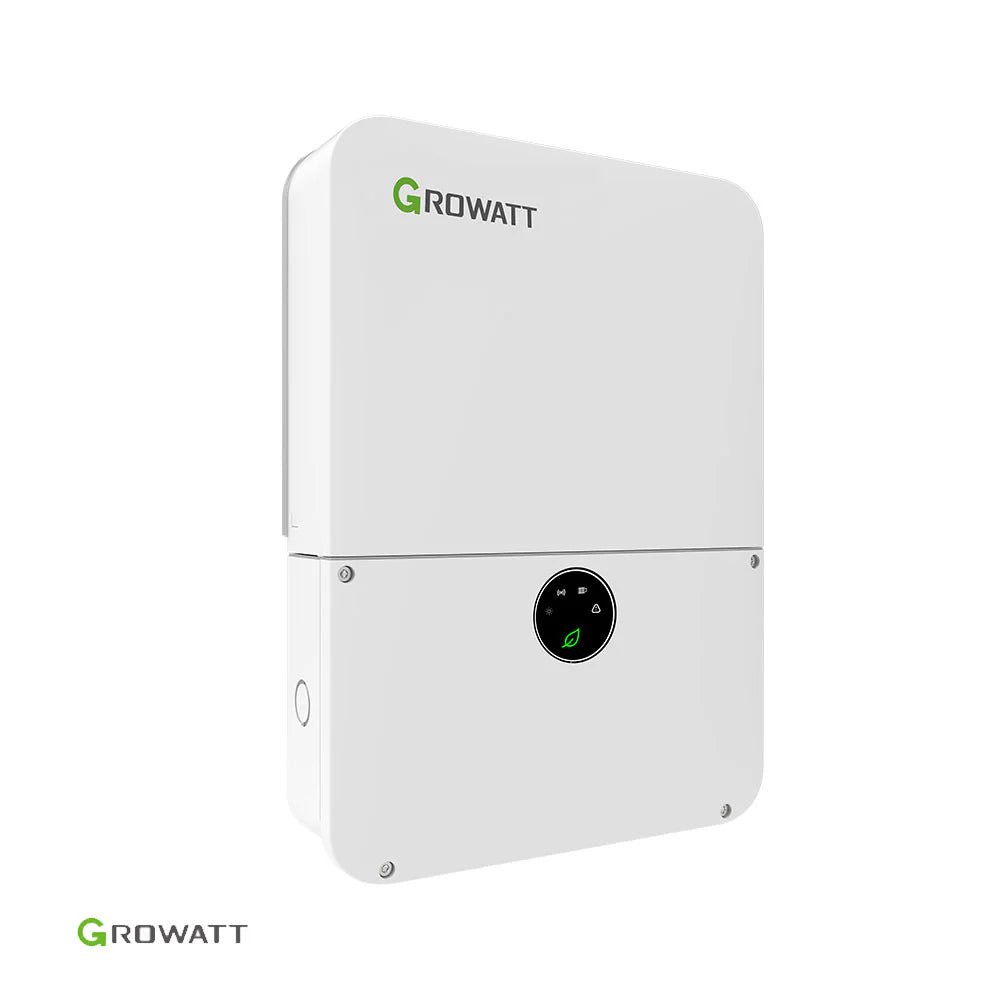

Growatt 3.8kW MIN 3000TL-XH-US Grid-Tie | Battery Storage Solar Inverter
- DC/AC Compatibility: Supports both coupling types for flexibility.
- Backup & Dark Start: Ensures power continuity and reliability.
- Energy Modes: Offers Self-consumption, Zero Export, TOU, Off-grid.
- Battery Flexibility: Compatible with multiple battery brands for storage options.
- 97% Efficiency: Maximizes conversion of solar energy.
- Smart Monitoring: Optional communication for easy system control.
- Safety Features: Includes RSD and AFCI for system protection.
- Compact: Easy installation with sleek design.
- 10-Year Warranty: Standard with extension options available.
- Compliance: Meets key standards for safety and compatibility.

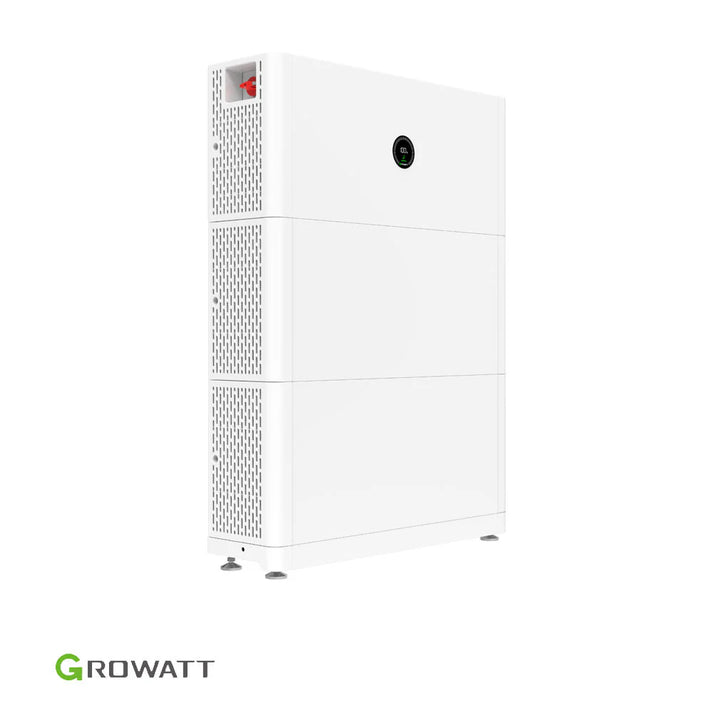

Growatt APX 5kWh High Voltage Battery:
- 5kWh Capacity: Compact, efficient energy storage.
- LFP Safety: Cobalt-free, environmentally friendly.
- Flexible Install: Wall or floor options for any space.
- IP66 Rated: Ready for all weather conditions.
- Smart BMS: Optimal performance, extended life.
- Efficient Cooling: Maintains peak operation.
- High Voltage: Superior power efficiency.
- 10-Year Warranty: Guaranteed support and reliability.C.
- Versatile Integration: Fits on-grid and off-grid setups.

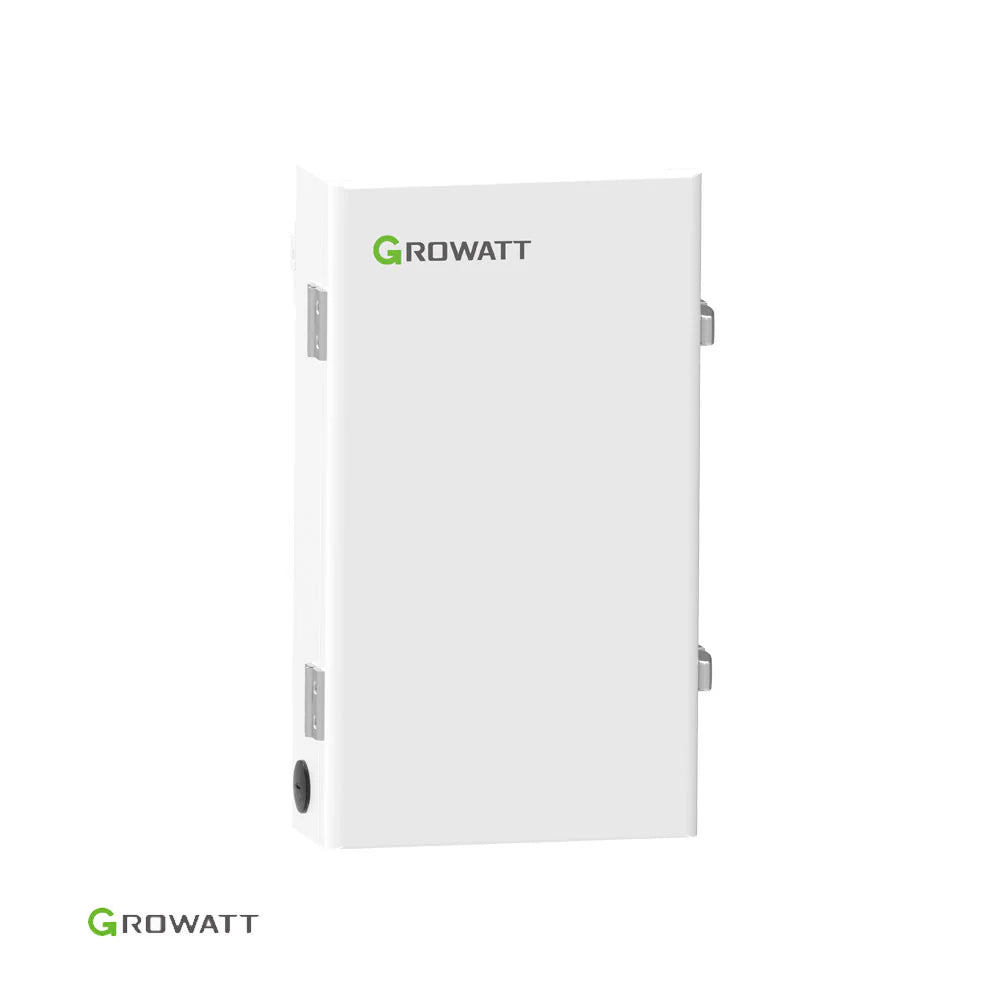

Growatt ATS-XH-US 5kW Backup Box:
- Partial home load backup capability
- Built-in split-phase transformer for 120V/240V output
- Seamless operation during power outages
- 10-Year Warranty
With the Growatt Hybrid Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.
Technical Specifications
| Growatt 3.8kW MIN 3800TL-XH-US Grid-Tie | Battery Storage Solar Inverter | Details |
|---|---|
| Manufacturer | Growatt |
| Model | MIN 3800TL-XH US (WIFI/LAN+TIGO) |
| Rated Power Output [W] | 3800 |
| Length [mm (in)] | 569 mm (22.41 in) |
| Width [mm (in)] | 400 mm (15.75 in) |
| Depth [mm (in)] | 170.5 mm (6.98 in) |
| Weight [kg (lb)] | 17.4 kg (38.36 lb) |
| Wormanship Warranty Period [Years] | 10 |
| Inverter Type | Hybrid inverter |
| Maximum/Peak Efficiency [%] | 98 |
| CEC weighted efficiency @ 240V [%] | 97 |
| Transformer / Transformerless | Transformerless |
| DC Power Rating [W] | 7600 |
| Nom. DC Voltage [V] | 360 |
| Max. Input Power [W] | 7600 |
| Max. Input Voltage [V] | 600 |
| Min. DC voltage / start voltage [V] | 50 |
| Number of DC String Inputs (Inlets) | 4 |
| Number of MPP Trackers | 2 |
| Max. Input Power per MPPT [W] | 3800 |
| Max. Input Voltage per MPPT [V] | 600 |
| Max. Input Current per MPPT [A] | 16.9 |
| Voltage Lower Limit for MPP Range [V] | 50 |
| Voltage Upper Limit for MPP Range [V] | 550 |
| DC Disconnection Type | Integrated |
| Reverse-Polarity Protection | Yes |
| Ground-Fault Isolation Detection | Yes |
| AC Power Rating [W] | 3800 |
| Nominal AC Power [W] | 3800 |
| Max. AC Power [W] | 3800 |
| AC voltage range [V] | 208V: 183-229V / 240V: 211-264V |
| AC grid frequency [Hz] | 60 |
| Max. output current [A] | 16 |
| Nominal AC Voltage [V] | 208/240 |
| Maximum AC Voltage Range [V] | 264 |
| Nominal AC Frequency [Hz], range [Hz-Hz] | 60 |
| AC Connection Type | L1/L2/N/PE |
| AC Current Distortion [THD%] | <3% |
| AC Input Wire Gauge Range [AWG] | 6 AWG - 8 AWG |
| Sleep (Night) Consumption [W] | <5W |
| NEMA Enclosure Rating | NEMA4X (IP65) |
| Cooling Method | Natural Convection |
| Ambient Temperature Range [°C(°F)] | -25°C to +60°C (-13°F to +140°F) |
| Operating Humidity [%] | 0~95% |
| Operating Altitude [ft/m] | 9843ft (3000m) |
| Display | OLED |
| Communication | RS485 included, WiFi/4G Optional |
| Basic Warranty [Years] | 10 |
| Warranty Extension Options [Years] | 15,20 |
| Compliances | IEEE1547, CA Rule21, Rule14 (HECO Compliant), FCC Part15 Class B, UL1741, UL1741SA,CSA C22.2, UL1699B, UL1741 CRD |
| AC grid range [Hz] | 45-65 |
| Max. recommended PV power (@ module STC) | 7600 |
| Growatt APX 5kWh 330V-450V Battery Module | Details |
|---|---|
| Module | APX 5.0P-B1 |
| Nominal Capacity/Energy | 100Ah/5kWh |
| Rated Usable Capacity/Energy | 100Ah/4.5kWh |
| Rated Voltage | 385V |
| Operating Voltage | 330-450V |
| Rated Current (25℃) | 7.6A |
| Maximum Current (25℃) | 12.5A |
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
| Operating Temperature Range | -10~50℃ |
| Storage Conditions | -20℃~50℃/7 days; -20℃~40℃/6 months; 5%-95%RH |
| Cooling | Natural cooling |
| Dimensions (W/D/H) | 690/185/295mm±2mm |
| Weight | 50±1kg |
| Model (Power Module) | APX 55027-P0 |
| B+/B- Voltage Range | 330V-450V |
| BAT+/BAT- Voltage Range | 380-550V |
| Temperature Range | -10~50℃ |
| IP Rating | IP66 |
| Warranty | 10 years |
| Communication Method | CAN2.0 |
| Certification & Licensing | IEC62040/IEC62619/IEC62477/CE/UKCA/UN38.3 |
| Environment Requirements | RoHS |
| Growatt ATS-XH-US 5kW Backup Box | Details |
|---|---|
| Backup Capability | Partial home load backup |
| Output | 120V/240V |
| Max Output Power | 5kW |
| Dimensions | 15.75 x 22.41 x 6.98 inches (400 x 569 x 170.5 mm) |
| Weight | 32.3 lbs (14.65 kg) |
| Warranty | 10 Years |
Growatt 6kW Partial Home Backup Power System Includes:
- 1 x Growatt MIN 6000TL-XH-US 6 kW Split-phase hybrid inverter with rapid shutdown solution (Tigo), 4G/WiFi integrated
- 1 x Growatt APX 5kWh pre-assembled high voltage battery with BMS
- 1 x Growatt ATS-XH-US 5kW transfer switch and US split-phase transformer for 120V/240V output
- 1 x ATS-XH-US 5kW Backup Box
Growatt 6.0kW MIN 6000TL-XH-US Grid-Tie | Battery Storage Solar Inverter
- 98.4% Efficiency: Peak energy conversion.
- Hybrid Use: For grid-tie, off-grid, and battery storage.
- 3 MPPTs: Maximizes solar input.
- Flexible Energy Modes: Includes TOU and Zero Export.
- Wide Battery Support: Compatible with Growatt and LG batteries.
- WiFi Monitoring: Easy system tracking.
- Safety Features: RSD and AFCI included.
- Standards Compliant: Meets major regulatory standards.
- Indoor/Outdoor Installation: Versatile placement.
-
10-Year Warranty: Long-term reliability.
Growatt APX 5kWh High Voltage Battery:
- 5kWh Capacity: Ample storage for diverse energy demands.
- Safe & Stable: Cobalt-free LiFePO4 technology.
- Expandable: Easy scalability for growing needs.
- 5kW Continuous Power: With 8kW peak capability.
- Weatherproof: IP66 rated protection.
- Intelligent BMS: Enhances battery efficiency and life.
- Wide Temp Range: Functional from -10°C to 50°C.
- 10-Year Warranty: Assured quality and support.
- Versatile Integration: Fits on-grid and off-grid setups.
Growatt ATS-XH-US 5kW Backup Box:
- Partial home load backup capability
- Built-in split-phase transformer for 120V/240V output
- Seamless operation during power outages
- 10-Year Warranty
With the Growatt Hybrid Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.
Technical Specifications
| Growatt 6kW MIN 6000TL-XH-US Grid-Tie | Battery Storage Solar Inverter | Details |
|---|---|
| Manufacturer | Growatt |
| Type | Grid-Tied/ Battery Storage |
| AC Power | 6.0kW |
| Max PV Input Power | 12 kW |
| MPP Trackers | 3 |
| MPPT Voltage Range | 50~550V |
| Max Efficiency | 98.4% |
| Compatible Battery | Growatt ARO/APX HV Battery, LG Prime(Gen3) Battery |
| Warranty | 10 years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
| PV INPUT - Max Input Voltage | 600V |
| PV INPUT - Full load Voltage Range | 210~500V |
| PV INPUT - Max Input Current per MPTT | 13.5A |
| PV INPUT - Max Short-circuit Current per MPTT | 16.9A |
| Battery Connection - Battery Voltage Range | 360~550V |
| Battery Connection - Rated Battery Voltage | 400V |
| Battery Connection - I/O DC Current | 14.3A |
| Battery Connection - I/O DC Power | 5.0kW |
| AC OUTPUT (GRID) - Nominal Power | 6.0kW |
| AC OUTPUT (GRID) - Max Output Current | 25A |
| AC OUTPUT (GRID) - Nominal AC Voltage | 208/240V |
| GENERAL DATA - Dimensions(W*H*D) | 15.75*22.4*6.98 inch (400*569*170.5mm) |
| GENERAL DATA - Weight | 32.3lbs (14.65kg) |
| Installation | Indoor, Outdoor, Wall-mounted |
| Monitoring Module | WiFi+ LAN, 4G(Optional) |
| Growatt APX 5kWh 330V-450V Battery Module | Details |
|---|---|
| Module | APX 5.0P-B1 |
| Nominal Capacity/Energy | 100Ah/5kWh |
| Rated Usable Capacity/Energy | 100Ah/4.5kWh |
| Rated Voltage | 385V |
| Operating Voltage | 330-450V |
| Rated Current (25℃) | 7.6A |
| Maximum Current (25℃) | 12.5A |
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
| Operating Temperature Range | -10~50℃ |
| Storage Conditions | -20℃~50℃/7 days; -20℃~40℃/6 months; 5%-95%RH |
| Cooling | Natural cooling |
| Dimensions (W/D/H) | 690/185/295mm±2mm |
| Weight | 50±1kg |
| Model (Power Module) | APX 55027-P0 |
| B+/B- Voltage Range | 330V-450V |
| BAT+/BAT- Voltage Range | 380-550V |
| Temperature Range | -10~50℃ |
| IP Rating | IP66 |
| Warranty | 10 years |
| Communication Method | CAN2.0 |
| Certification & Licensing | IEC62040/IEC62619/IEC62477/CE/UKCA/UN38.3 |
| Environment Requirements | RoHS |
| Growatt ATS-XH-US 5kW Backup Box | Details |
|---|---|
| Backup Capability | Partial home load backup |
| Output | 120V/240V |
| Max Output Power | 5kW |
| Dimensions | 15.75 x 22.41 x 6.98 inches (400 x 569 x 170.5 mm) |
| Weight | 32.3 lbs (14.65 kg) |
| Warranty | 10 Years |
Growatt 6kW Partial Home Backup Power System With Double Battery Includes:
- 1 x Growatt MIN 6000TL-XH-US 6 kW Split-phase hybrid inverter with rapid shutdown solution (Tigo), 4G/WiFi integrated
- 2 x Growatt APX 5kWh pre-assembled high voltage battery with BMS
- 1 x Growatt ATS-XH-US 11.4kW transfer switch and US split-phase transformer for 120V/240V output
- 1 x ATS-XH-US 5kW Backup Box
Growatt 6.0kW MIN 6000TL-XH-US Grid-Tie | Battery Storage Solar Inverter
- 98.4% Efficiency: Peak energy conversion.
- Hybrid Use: For grid-tie, off-grid, and battery storage.
- 3 MPPTs: Maximizes solar input.
- Flexible Energy Modes: Includes TOU and Zero Export.
- Wide Battery Support: Compatible with Growatt and LG batteries.
- WiFi Monitoring: Easy system tracking.
- Safety Features: RSD and AFCI included.
- Standards Compliant: Meets major regulatory standards.
- Indoor/Outdoor Installation: Versatile placement.
-
10-Year Warranty: Long-term reliability.
Growatt APX 10kWh High Voltage Battery:
- 10kWh Capacity: Ample storage for diverse energy demands.
- Safe & Stable: Cobalt-free LiFePO4 technology.
- Expandable: Easy scalability for growing needs.
- 5kW Continuous Power: With 8kW peak capability.
- Weatherproof: IP66 rated protection.
- Intelligent BMS: Enhances battery efficiency and life.
- Wide Temp Range: Functional from -10°C to 50°C.
- 10-Year Warranty: Assured quality and support.
- Versatile Integration: Fits on-grid and off-grid setups.

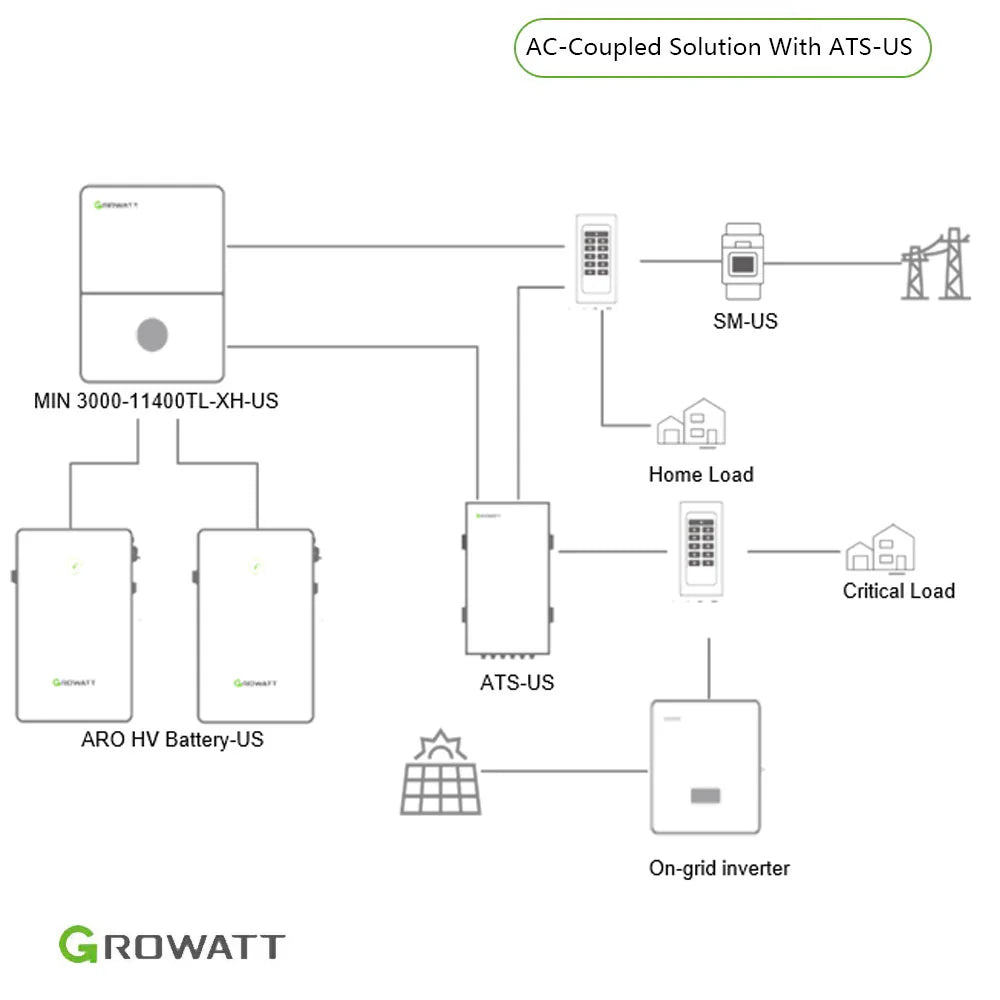

Growatt ATS-XH-US 5kW Backup Box:
- Partial home load backup capability
- Built-in split-phase transformer for 120V/240V output
- Seamless operation during power outages
- 10-Year Warranty
With the Growatt Hybrid Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.
Technical Specifications
| Growatt 6kW MIN 6000TL-XH-US Grid-Tie | Battery Storage Solar Inverter | Details |
|---|---|
| Manufacturer | Growatt |
| Type | Grid-Tied/ Battery Storage |
| AC Power | 6.0kW |
| Max PV Input Power | 12 kW |
| MPP Trackers | 3 |
| MPPT Voltage Range | 50~550V |
| Max Efficiency | 98.4% |
| Compatible Battery | Growatt ARO/APX HV Battery, LG Prime(Gen3) Battery |
| Warranty | 10 years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
| PV INPUT - Max Input Voltage | 600V |
| PV INPUT - Full load Voltage Range | 210~500V |
| PV INPUT - Max Input Current per MPTT | 13.5A |
| PV INPUT - Max Short-circuit Current per MPTT | 16.9A |
| Battery Connection - Battery Voltage Range | 360~550V |
| Battery Connection - Rated Battery Voltage | 400V |
| Battery Connection - I/O DC Current | 14.3A |
| Battery Connection - I/O DC Power | 5.0kW |
| AC OUTPUT (GRID) - Nominal Power | 6.0kW |
| AC OUTPUT (GRID) - Max Output Current | 25A |
| AC OUTPUT (GRID) - Nominal AC Voltage | 208/240V |
| GENERAL DATA - Dimensions(W*H*D) | 15.75*22.4*6.98 inch (400*569*170.5mm) |
| GENERAL DATA - Weight | 32.3lbs (14.65kg) |
| Installation | Indoor, Outdoor, Wall-mounted |
| Monitoring Module | WiFi+ LAN, 4G(Optional) |
| Growatt APX 10.0P-S0-US 10kWh Battery Module | Details |
|---|---|
| Model | APX 10.0P-S0-US |
| Power Module | APX 98020-P1 |
| Battery Module | APX 5.0P-B1 |
| Battery Module Capacity | 5kWh |
| Number of Battery Modules | 2 |
| Total Energy Capacity | 10kWh |
| Max. Output Power For Each Battery | 5kW |
| Peak Output Power For Each Battery | 8kW for 60s |
| Dimensions (W/D/H) | 690/185/955mm |
| Weight | 118kg |
| Nominal Voltage (Three-phase System) | 650V |
| Battery Voltage Range (Three-phase System) | 600V~980V |
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
| Protection Class | IP66 |
| Installation | Wall-mounting or Floor Installation |
| Operating Temperature | -10°C~50°C |
| Allowed Humidity | 5%~95% |
| Cooling | Natural Convection |
| Altitude | <4000m |
| Warranty | 10 Years |
| Communication | CAN/RS485 |
| Certification & Licensing | IEC62040, IEC62619, IEC62477, CE, UKCA, UN38.3 |
| Environment Requirements | RoHS Compliant |
| Growatt ATS-XH-US 11.4kW Backup Box | Details |
|---|---|
| Backup Capability | Partial home load backup |
| Output | 120V/240V |
| Max Output Power | 11.4kW |
| Dimensions | 15.75 x 22.41 x 6.98 inches (400 x 569 x 170.5 mm) |
| Weight | 32.3 lbs (14.65 kg) |
| Warranty | 10 Years |
BEST SELLERS
-
Sail Away Solar Kit III
Regular price $4,159.99 CADRegular priceUnit price per$4,999.99 CADSale price $4,159.99 CADSale -
Sail Away Solar Kit II
Regular price $3,099.99 CADRegular priceUnit price per$3,699.99 CADSale price $3,099.99 CADSale -
Sail Away Solar Kit I
Regular price $1,669.99 CADRegular priceUnit price per$1,769.99 CADSale price $1,669.99 CADSale
