6 KW Split phase 120/240Vac Off-Grid Solar System
6 KW Split phase 120/240Vac Off-Grid Solar System
- Complete Solar Solution: Combines a 6000W inverter, 2x 5kW batteries, and a 2400W solar panel array for a fully integrated home energy system.
- Substantial Energy Storage: 10kW total battery capacity provided by two 5kW batteries, ensuring ample power supply and backup.
- Efficient Solar Harvesting: 2400W solar panel array designed for maximum energy capture and conversion.
- Powerful Inverter Technology: 6000W inverter supports efficient energy conversion, offering reliability and high performance.
- Modular Battery System: Provides the flexibility to expand energy storage capacity as needs grow.
- Durable and Reliable Components: All system components are built to withstand environmental challenges, ensuring longevity.
- Easy and Flexible Installation: The kit includes everything needed for setup, catering to a variety of mounting scenarios.
- Smart Energy Management: Features like WIFI/GPRS connectivity allow for comprehensive monitoring and control.(WIFI Module Included)
- Extended System Life: Durable solar panels and batteries designed for long-term use, with warranties supporting reliability.
- Eco-friendly Energy Solution: Reduces reliance on fossil fuels, lowering carbon emissions and promoting sustainability.
- Adaptable and Expandable: Designed to accommodate additional panels or batteries, making it suitable for scaling up.
- Robust Performance Across Climates: Engineered to perform under diverse weather conditions, from sunny to overcast skies.
Free
Local Shipping
10-year Hassle Free
Warranty
Lifetime Customer
Support
- Description
- Includes
- Specifications
- FAQ
- Downloads
- Reviews

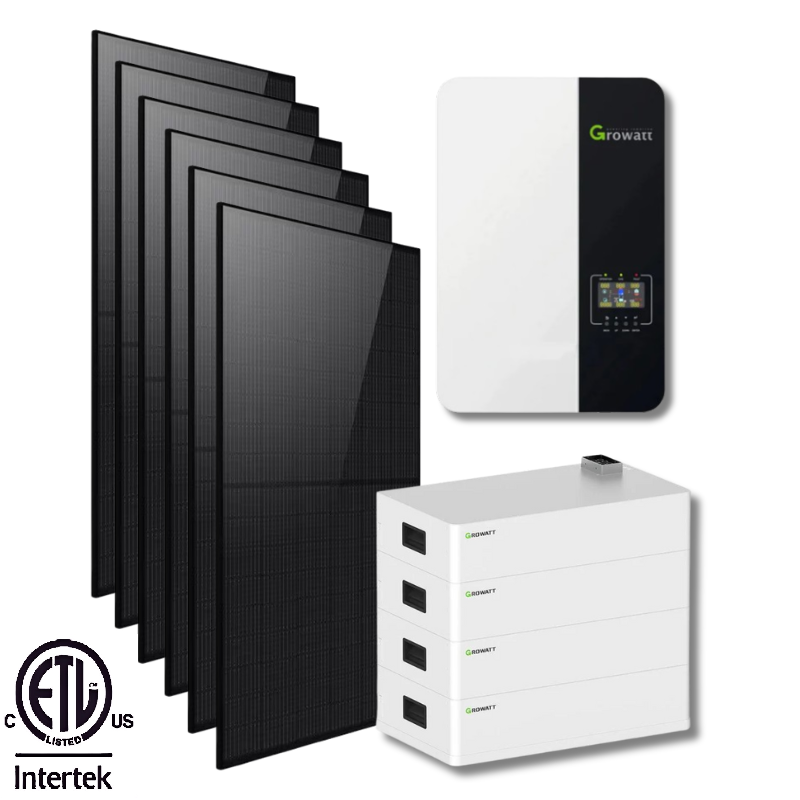

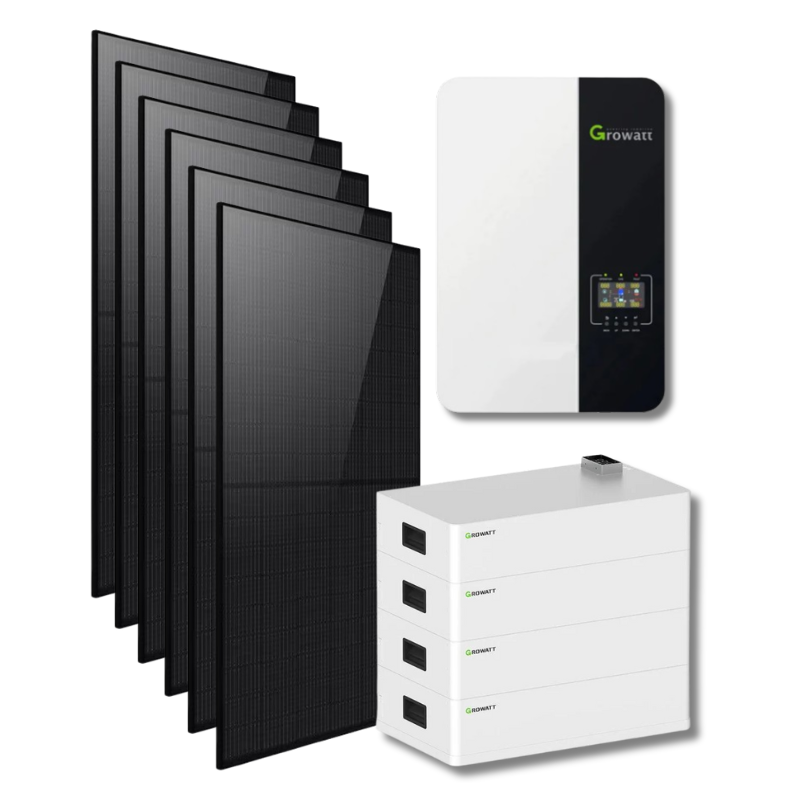

Introducing the Growatt Ultimate Home Solar Storage Kit - 10kW Energy Storage with 6kW Inverter + 2400W Solar Array, a comprehensive and powerful solution for residential solar energy needs. This robust system combines the efficiency of the Growatt Off-Grid Storage Inverter SPF 6000T DVM-US MPV, the reliability of the Growatt 2X AXE 5.0L-C1 5kW Battery, and the high-performance 2400W Rigid Solar Panels to provide an unrivaled off-grid experience. With a power capability of up to 10kW, this system is designed to meet the energy demands of most residential homes.
Engineered for seamless integration, the system ensures that your home can run independently of the grid, whether as a primary power source or as a backup during outages. It's an ideal setup for environmentally conscious homeowners looking to reduce their carbon footprint and harness the power of the sun.
Product Features
Growatt AXE 5.0L-C1 5kW Battery (x2):
- Modular 5kWh capacity, expandable in parallel for up to 400kWh
- Cobalt-free LiFePO4 battery cells for safety and longevity

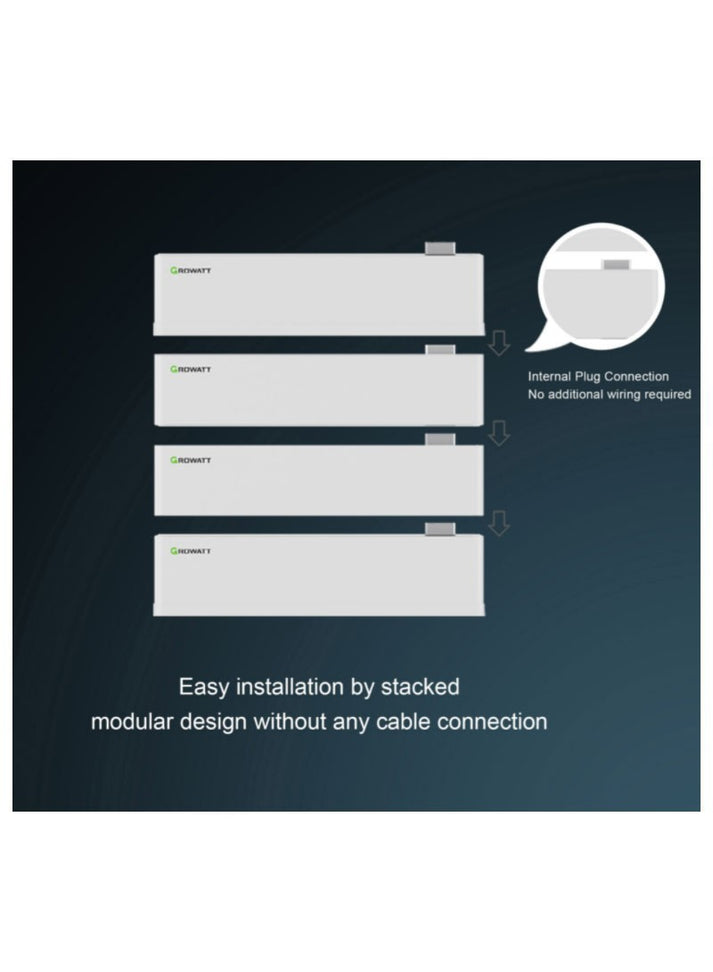

- Quick, cable-free stacking installation
- Remote management for firmware updates and diagnostics via WiFi or GPRS
- Integrated BMS for real-time monitoring and protection
- 10-year warranty ensuring peace of mind

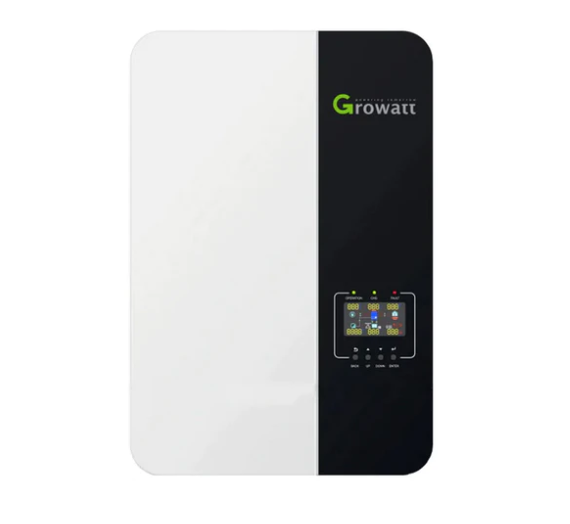

Growatt SPF 6000T DVM-US MPV Inverter:
- Robust power output, supporting both residential and commercial energy needs.
- Integrated MPPT technology ensures maximum efficiency in solar energy harvesting.
- Supports a maximum PV input voltage up to 250VDC, accommodating a broad array of solar panel configurations.
- Seamless operation with or without a battery, accommodating diverse energy strategies.
- Constructed to operate reliably in environments ranging from 0°C to 50°C, ensuring durability and performance under various conditions.
- Smart connectivity via WiFi or GPRS for easy system monitoring and management (WiFi module included).
- Quick transfer switching minimizes downtime during power source transitions.
- Pure sine wave output for powering sensitive electronics safely.
ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel (x12):
- High-efficiency monocrystalline cells for superior performance
- 200W power output per panel with a total array power of 2400W
- Durable aluminum frame and anti-reflective glass for weather resistance
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact on performance
- Over 25 years of service life with a 10-year manufacturer warranty
- Eco-friendly power generation to reduce carbon footprint
With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy the assurance of a reliable power supply. Experience the combined benefits of modern solar technology and battery storage in one seamless package.
- 1 x Growatt Off-Grid Storage Inverter SPF 6000T DVM-US MPV
- 12 x ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panels
- 2 x Growatt AXE 5.0L-C1 5kW Battery
- 1 x Set of Mounting Brackets for Solar Panels
- 1 x Set of Cables for Solar Panel to Inverter Connection
- 1 x Set of Cables for Battery to Inverter Connection
- 1 x User Manual for the Inverter
- 1 x User Manual for the Battery
- 1 x User Manual for the Solar Panels
- 1 x Warranty Card for the Complete System
- 1 x Wifi Module Included
Technical Specifications

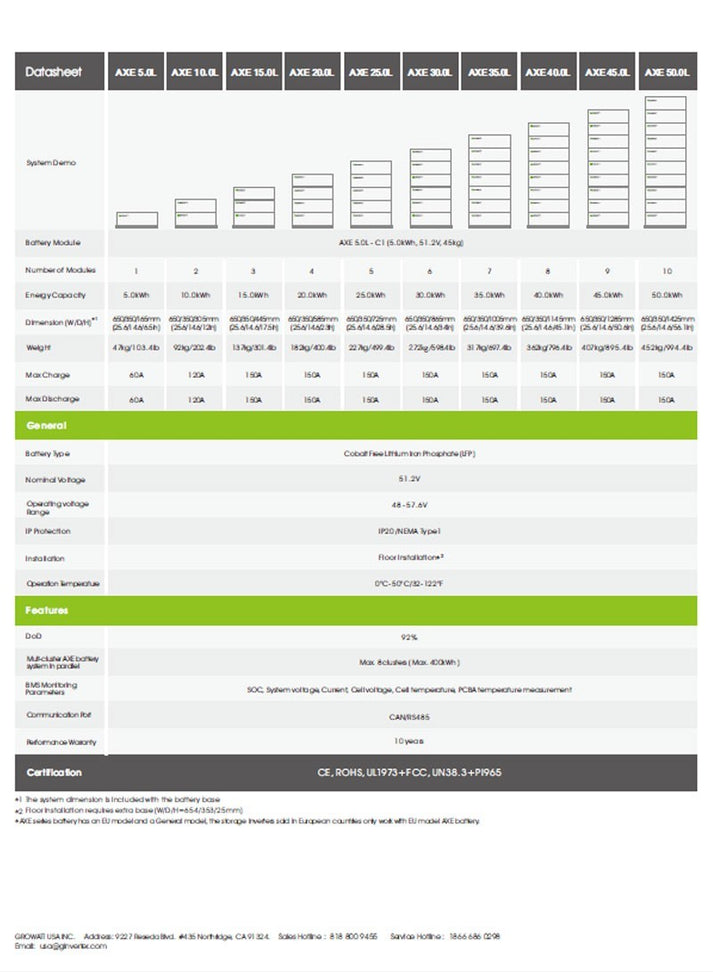

Growatt AXE 5.0L-C1 5kW Battery | Details |
---|---|
Model | Growatt AXE 5.0L-C1 |
Energy Capacity | 5.0kWh |
Max Charge/Discharge Power | 3kW |
Max Charge/Discharge Current | 60A |
Dimensions | 650 x 350 x 165mm (W x D x H) |
Weight | 42kg |
Nominal Voltage | 51.2V |
Warranty | 10 years |
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
Operating Voltage Range | 48 - 57.6V |
Installation | Floor installation |
Operation Temperature | 0°C-50°C/32-122°F |
DoD | 92% |
Parallel Capability | Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh) |
Communication Port | CAN/RS485 |
Performance Warranty | 10 years |
Certification | CE, ROHS, UL1973+FCC, UN38.3 + IP65 |
Growatt Off-Grid Storage SPF 6000T DVM-US | Details |
---|---|
Battery Voltage | 48VDC |
Battery Type | Lithium/Lead-acid |
Inverter Output (Rated Power) | 6KW |
Surge Rating | 18KW |
Waveform | Pure sine wave/ same as input (bypass mode) |
Nominal Output Voltage RMS | 104-110-115-120/208-220-230-240VAC(optional) |
Output Frequency | 50Hz/60Hz +/-0.5 Hz |
Inverter Efficiency (Peak) | 88% |
Transfer Time | 10ms |
Solar Charger (Maximum PV Charge Current) | 80A |
Maximum PV Array Power | 5000W |
AC Input Voltage | 240VAC |
Max. Charging Current | 120A |
Protection Degree | IP20 |
Dimensions (W/H/D) | 360/540/218mm |
Weight | 52kg |
Operating Environment (Temperature Range) | 0°C to 50°C |
Warranty | Complies with UL STD.1741, CSA STD CSA C22.2 No.107.1 |
ROCKSOLAR Black Diamond 200W 12V Monocrystalline Rigid Solar Panel | Details |
---|---|
Panel Type | Monocrystalline |
Power Output | 200W |
System Voltage | 12V |
Cell Efficiency | 20-22% |
Frame Material | Aluminum |
Dimensions | 1480mm x 670mm |
Weight | approx. 25-30 lbs |
Operating Temperature | -40°C to +85°C |
Waterproof Rating | IP65 |
Front Glass | High light transmittance, low-iron tempered glass |
Bypass Diodes | Integrated |
Connectors | MC4 |
Cable Length | Varies depending on the brand (approx. 3-6 ft) |
Mounting Hole Locations | Pre-drilled |
Service Life | 25 years or more |
Warranty | 10 years |
The kit includes a 6000W inverter, two 5kW batteries for a total of 10kW energy storage, and a solar panel array capable of producing 3000W of power.
Yes, the kit is designed to function both off-grid and on-grid, making it versatile for different energy needs and preferences.
Yes, the system's modular design allows for expansion. You can add more batteries or solar panels to increase storage capacity and energy production.
The system requires minimal maintenance, mainly involving periodic checks to ensure all components are functioning correctly and keeping the solar panels clean for optimal performance.
The inverter intelligently manages power by prioritizing renewable solar energy for immediate use and storage, with the capability to draw from the grid when solar power is insufficient.
Yes, with the optional WIFI/GPRS connectivity, the system allows for remote monitoring and management, giving you control and insights into your energy usage from anywhere.
The components of the kit come with their individual warranties, ensuring long-term reliability and peace of mind for your investment.
Installation is straightforward, designed for ease of setup with detailed instructions provided. However, professional installation is recommended to ensure optimal performance and safety.
