ROCKSOLAR HydraPower Intermediate Kit
ROCKSOLAR HydraPower Intermediate Kit
Superior Power Generation and Efficiency
- Set includes two 200W monocrystalline solar panels, each providing 800-1000 Wh of electricity per day (depending on sun availability), for a total of 1600-2000 Wh.
- High-performance brushless motor of the Rocksolar 24V Solar DC Brushless Water Pump ensures reliable and efficient operation.
Optimized for Solar Use
- Solar panel has built-in bypass diodes that minimize power drops due to shade for optimal performance even in low-light conditions.
- Water pump is designed specifically for solar power, optimized for use with ROCKSOLAR solar panels and systems.
Introducing the ROCKSOLAR HydraPower Kit, an All-in-One Kit that's poised to transform your off-grid energy needs. This kit combines the highest quality components to create a powerful, efficient, and long-lasting energy system that's perfect for a variety of applications.
It features a 24V brushless DC water pump that is highly efficient, reducing energy consumption and extending the life of the pump. To power your water pump, the HydraPower Ultra comes equipped with a ROCKSOLAR 400W Rigid Solar Panel Kit. These two high-efficiency 200W monocrystalline solar panels provide excellent performance, even in low-light conditions. Their durable aluminum frames and weather-resistant design ensure they can withstand the harshest of environments, while their high light transmittance glass improves energy output, ensuring consistent power to your system.
Power storage is handled by the ROCKSOLAR 12V 50Ah Deep Cycle LiFePO4 Battery, equipped with a state-of-the-art BMS system. Despite its high capacity, this battery is surprisingly lightweight and compact, making it ideal for mobile applications. With a lifespan of over 3500+ cycles, this battery not only delivers reliable power but is also a fantastic long-term investment.
To effectively manage the energy between your solar panels and battery, the HydraPower Ultra includes the ROCKSOLAR 20A MPPT Solar Charge Controller. This versatile device is compatible with both lithium and lead-acid batteries, featuring a high MPP tracking efficiency and a three-stage charge algorithm. Its broad operating temperature range makes it suitable for use in a variety of environments.

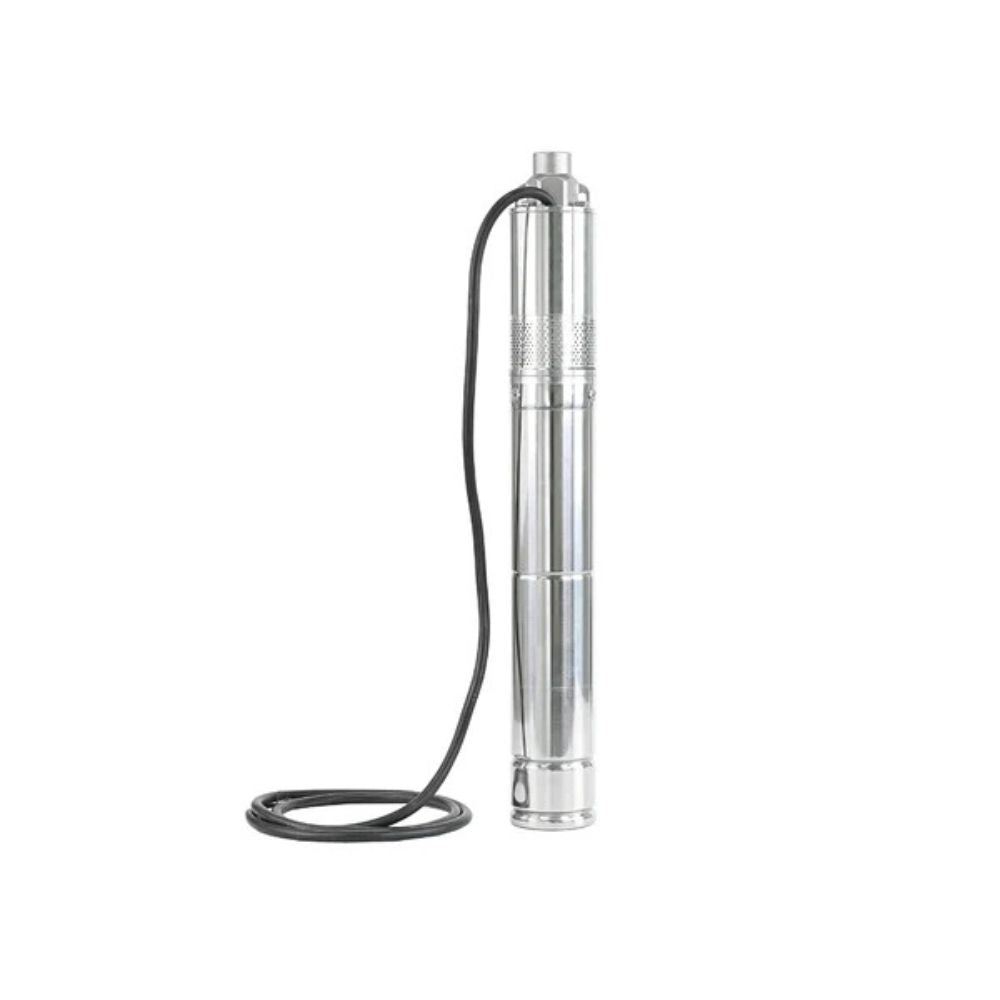

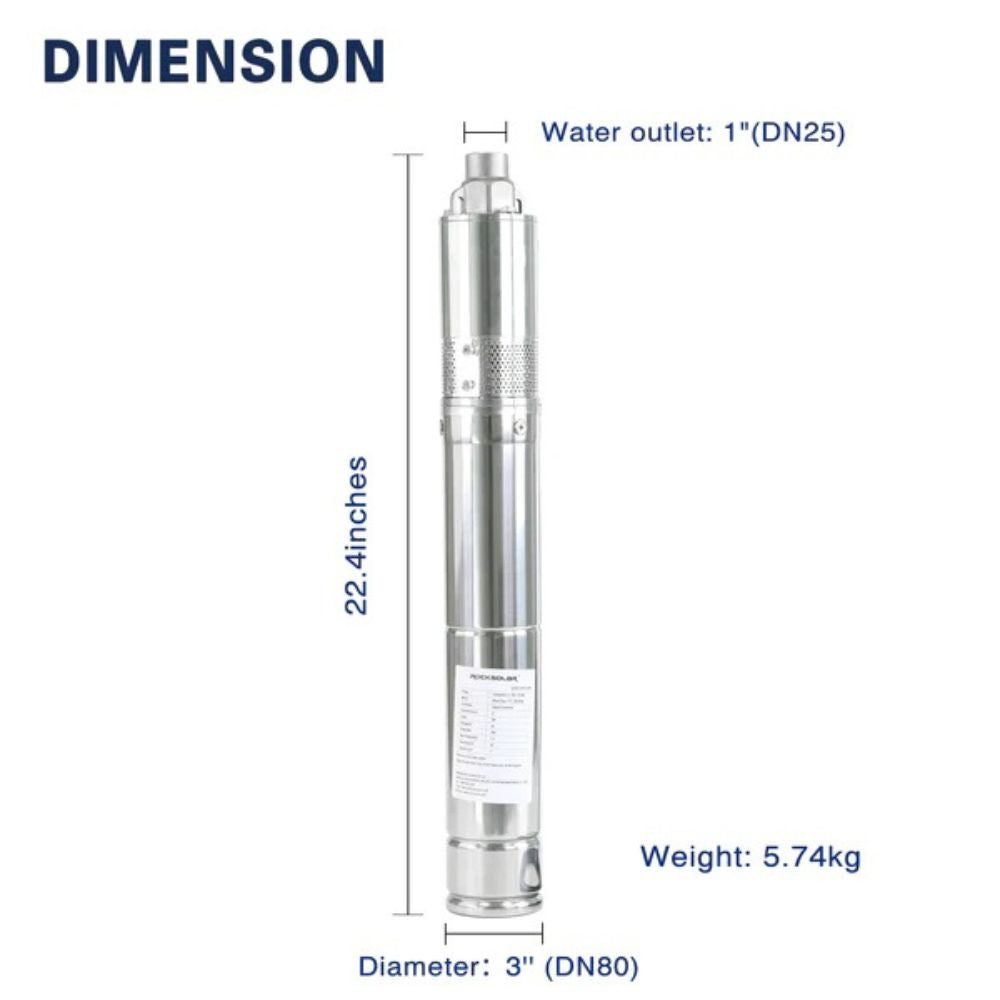

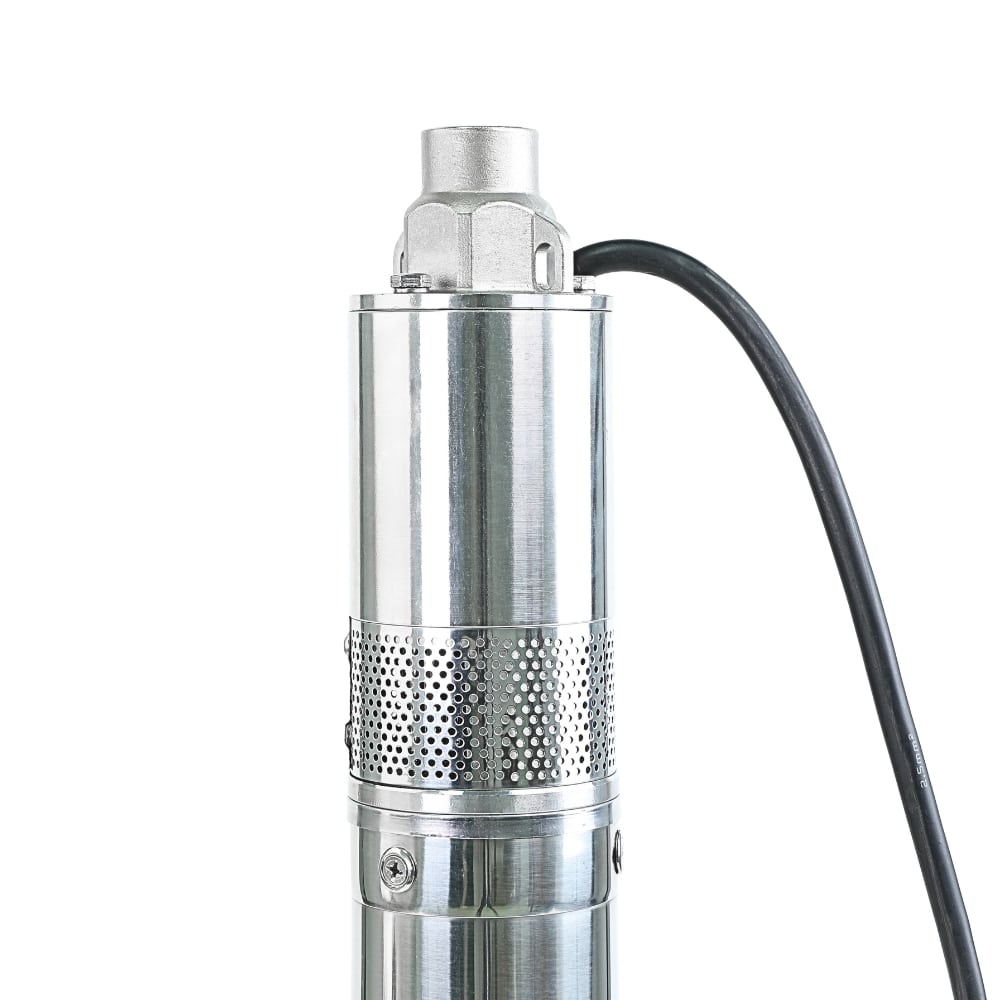

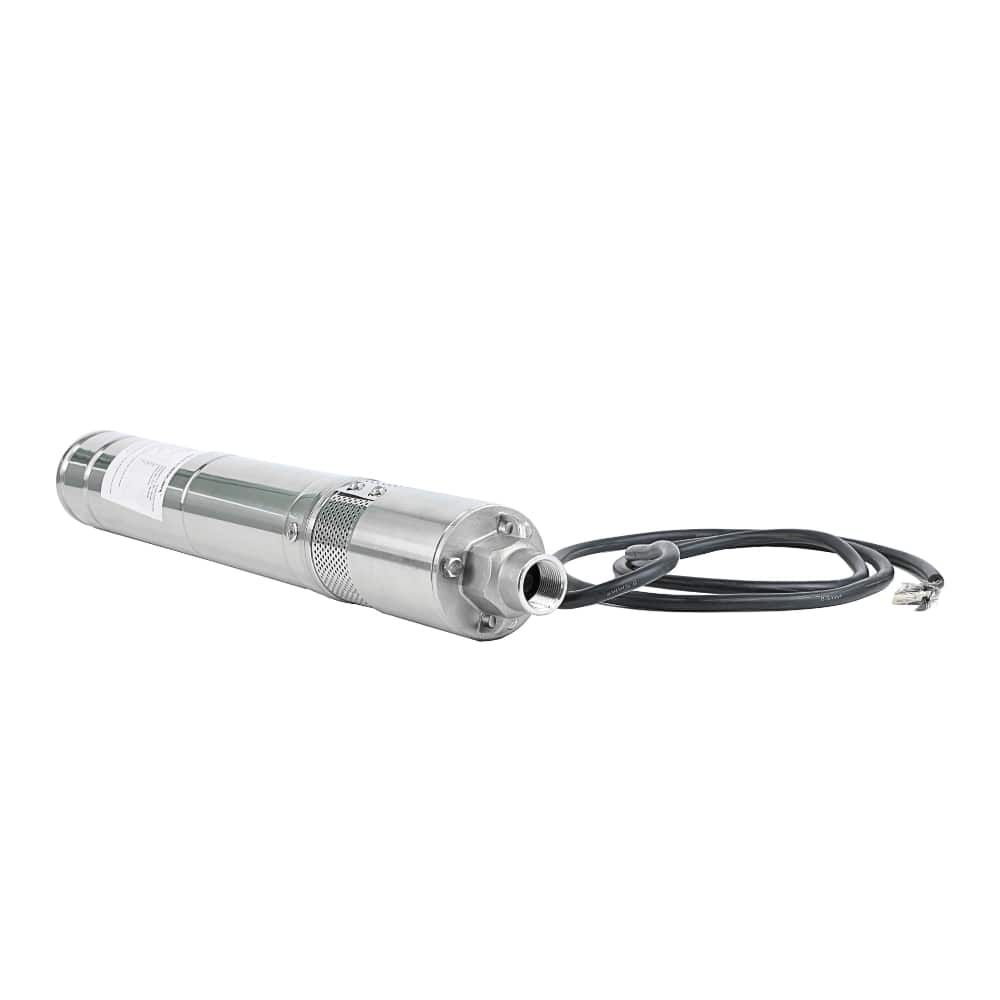

ROCKSOLAR 24V Brushless Solar DC Water Pump:
- High-Performance Brushless Motor: Reliable and efficient operation, designed specifically for solar power applications.
Durable Construction: The pump features complete stainless steel (S.S. 304) construction, with a motor brass cap and S.S. 304 body for long-lasting use.
Inbuilt Controller: The pump comes with an inbuilt controller for ease of operation.
- Powerful: The 250W power provides a maximum flow rate of 1.3m3/h and a maximum head of 70m.
- User-friendly: Easy to install and operate with minimal maintenance requirements. Quiet operation and low vibration for an unobtrusive addition to your solar setup.
- Adequate Cable Length: Comes with a 2M cable for flexible installation.
- Optimized for Solar: Works seamlessly with ROCKSOLAR solar panels and systems.
- Outlet: The pump features a 1" outlet for easy connection to your water supply system.

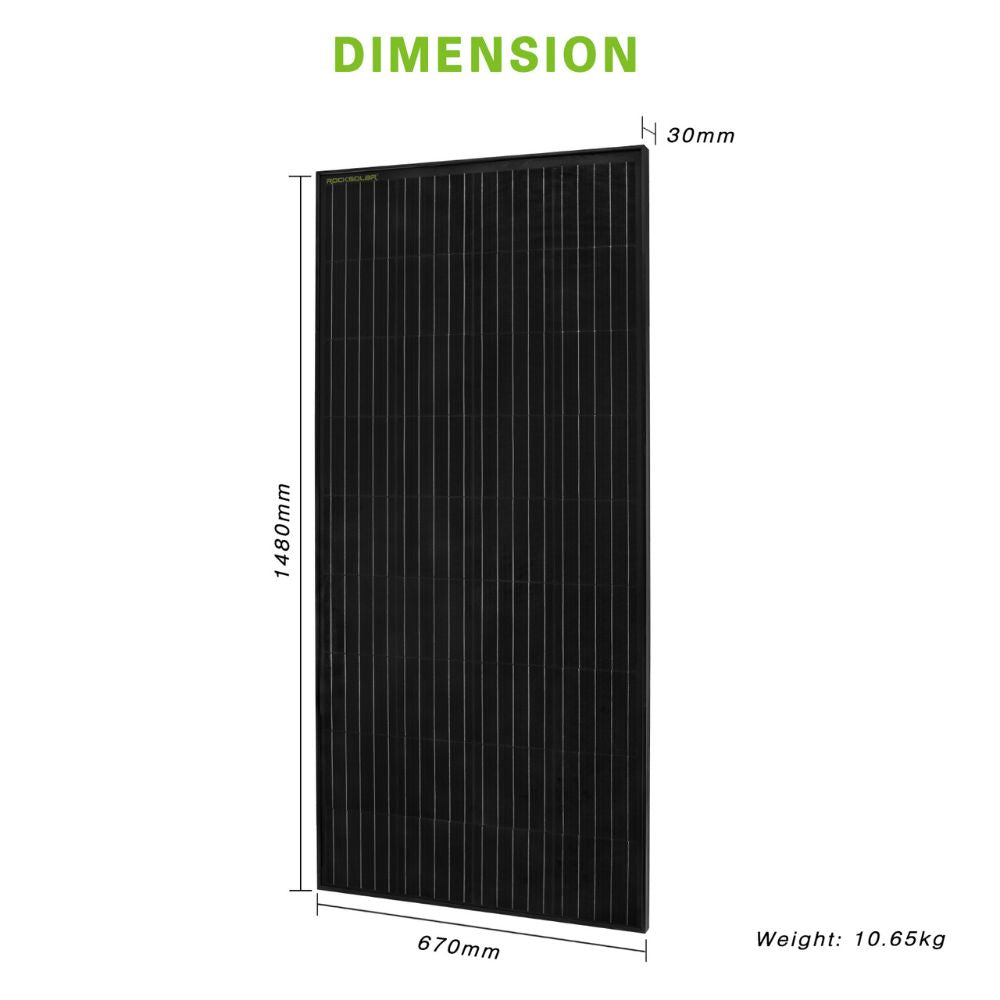

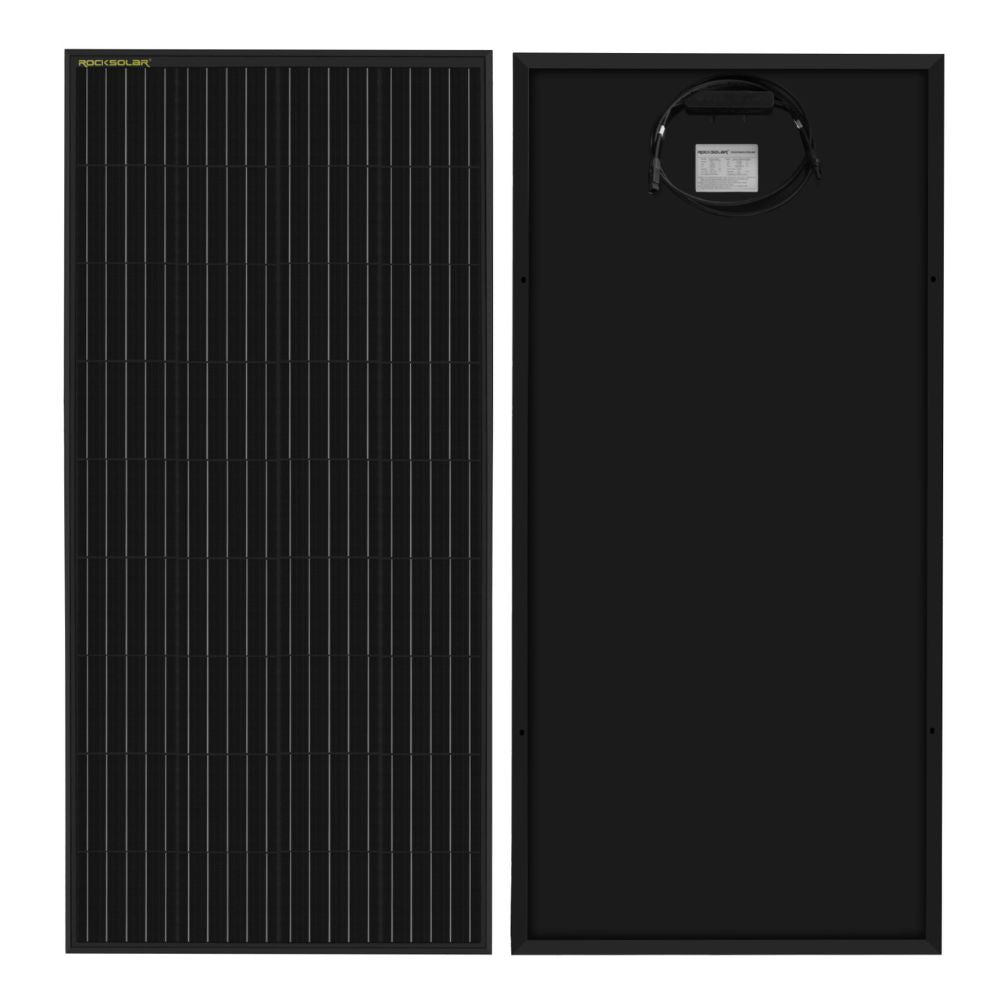

ROCKSOLAR 400W Rigid Solar Panel Kit (2x 200W Panels):
- High-efficiency monocrystalline cells for excellent performance even in low light conditions.
- Total power output of 400W, suitable for a range of applications.
- 12V system compatibility, ideal for remote or off-grid locations.
- Durable, corrosion-resistant aluminum frame for longevity and easy mounting.
- Weather-resistant design to withstand harsh environmental conditions.
- High light transmittance glass for improved energy output.
- Pre-drilled mounting holes for easy installation.
- Integrated bypass diodes for consistent energy output.
- Equipped with industry-standard MC4 connectors for secure connections.
- Long service life of 25 years or more with proper maintenance.
- Eco-friendly power source, reducing your carbon footprint.
ROCKSOLAR 12V 50Ah Deep Cycle LiFePO4 Battery with BMS System:
- 12V 50Ah capacity
- Service life: 3500+ cycle life and 100% discharge rate for ultra-long service life
- Consistent power: Flat voltage curve ensures steady power output, with no dramatic drop in output like SLA batteries
- Deep Cycle LiFePO4 Battery Technology
- Patented Smart Battery Management System
- Lightweight: Only 13 pounds for easy portability and installation
- Ideal for harsh environments: Patented BMS offers protection from temperature, short circuits, over-discharge, over current, and overcharge, as well as battery cell balancing.
- Operating temperature range of charging: 0C∽45C, discharging: -20~-60. BMS auto-shuts off the battery outside the working temperature.
- Warranty: 11-year warranty and 10+ year service life

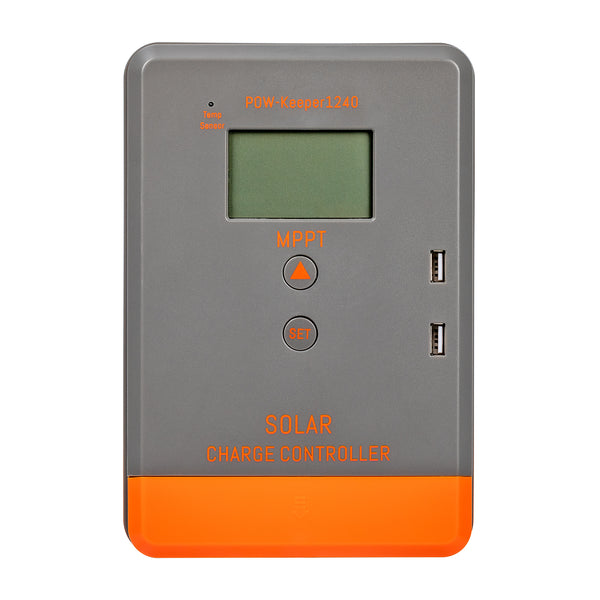

ROCKSOLAR 20A MPPT Solar Charge Controller:
- Compatible with Lithium and Lead Acid batteries
- The maximum open voltage of 75Vdc and MPP tracking efficiency of 99.5%
- Rated charging current of 20A and battery voltage range of 8-32V
- 3-stage charge algorithm and 12/24V nominal system voltage.
- High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V
- Operating temperature range of -20°C to 55°C
|24V Brushless Solar DC Water Pump||Details|
|Product||Rocksolar 24V Brushless Solar DC Water Pump|
|Pump Model||Complete S.S. 304 + Screw|
|Motor||Brass Cap + S.S. 304 Body|
|200W 12V Rigid Solar Panel||Details|
|Dimensions||65" x 39"|
|Weight||approx. 25-30 lbs|
|Operating Temperature||-40°C to +85°C|
|Front Glass||High light transmittance, low-iron tempered glass|
|Cable Length||Varies depending on the brand (approx. 3-6 ft)|
|Mounting Hole Locations||Pre-drilled|
|Service Life||25 years or more|
|12V 50Ah LiFePO4 Battery
|Combination structure of battery||23140160-4S1P|
|End of discharge voltage||10.8V|
|Standard charge voltage||14.6±0.2V|
|Float charge voltage||13.8V|
|Standard charge current||10A|
|Recommended charge current||≤20A|
|Allowed Max. charge current||50A|
|Peak discharge current||150A,10Sec|
|Ex-factory capacity||Approx.50% SOC|
|Operation temperature||Discharge: -20°C~60°C; Charge: 0°C~45°C|
≤1Month:-20~+60°C、5~75%RH; ≤6Month: -10~+45°C、5~75%RH; Recommend environment: 15~+35°C、5~75%RH
|20A MPPT Solar Charge Controller||Details|
|Max Open Voltage of PV Module||75Vdc|
|MPP Tracking Efficiency||99.50%|
|Light Control Voltage||5V|
|Charge Algorithm||3 Stage|
|Battery Type||Lithium and Lead Acid Battery|
|Nominal System Voltage||12/24V|
|Rated Charging Current||20A|
|Battery Voltage Range||8~32V|
|High Voltage Disconnection||16V (24V x 2)|
|Duration for absorption charging||2 hours|
|Charge Loop Voltage Drop||≤0.29V|
|Self-consumption||≤ 9.2mA 12V; ≤ 11.7mA 24V|
|Equalized Charging Voltage||AGM: 14.6V; GEL: No; FLd: 14.8V|
|Absorption Charging voltage||AGM: 14.4V; GEL: 14.2; FLd: 14.6V|
|Floating Charging voltage||AGM/ GEL/ FLd: 13.8V|
|Low Voltage re-connection (LVR)||AGM/ GEL/ FLd: 12.6V|
|Low Voltage Disconnection (LVD)||AGM/ GEL/ FLd: 10.8V|
|Operating Temperature Range||-20℃~55℃ (To run at full rated current continuously)|
|LCD Temperature Range||-20℃~70℃|
|Humidity Range||≤95% No condensation|
|Installation Hole||108*120 ∅5|
The HydraPower Ultra Kit includes a ROCKSOLAR 24V Solar DC Water Pump, a 400W Rigid Solar Panel Kit, a 12V 50Ah Deep Cycle LiFePO4 Battery with BMS system, and a 20A MPPT Solar Charge Controller. All these components work together to create a complete off-grid power system.
The 24V Solar DC Water Pump is powered by the 400W Rigid Solar Panel Kit included in the HydraPower Ultra package. The panels convert sunlight into electricity, which then powers the pump.
The battery has a lifespan of over 2000+ cycles, ensuring reliable and sustained power for a long time. It’s a great long-term investment for your off-grid power needs.
The 20A MPPT Solar Charge Controller manages the energy flow between the solar panels and the battery. It maximizes the energy harvested from the panels and ensures the battery is charged in an efficient and safe manner.
Yes, all the components in the HydraPower Ultra kit are built to withstand harsh conditions. The solar panels have a weather-resistant design, and the battery is made to endure extreme temperatures, making the kit suitable for a variety of environments.
