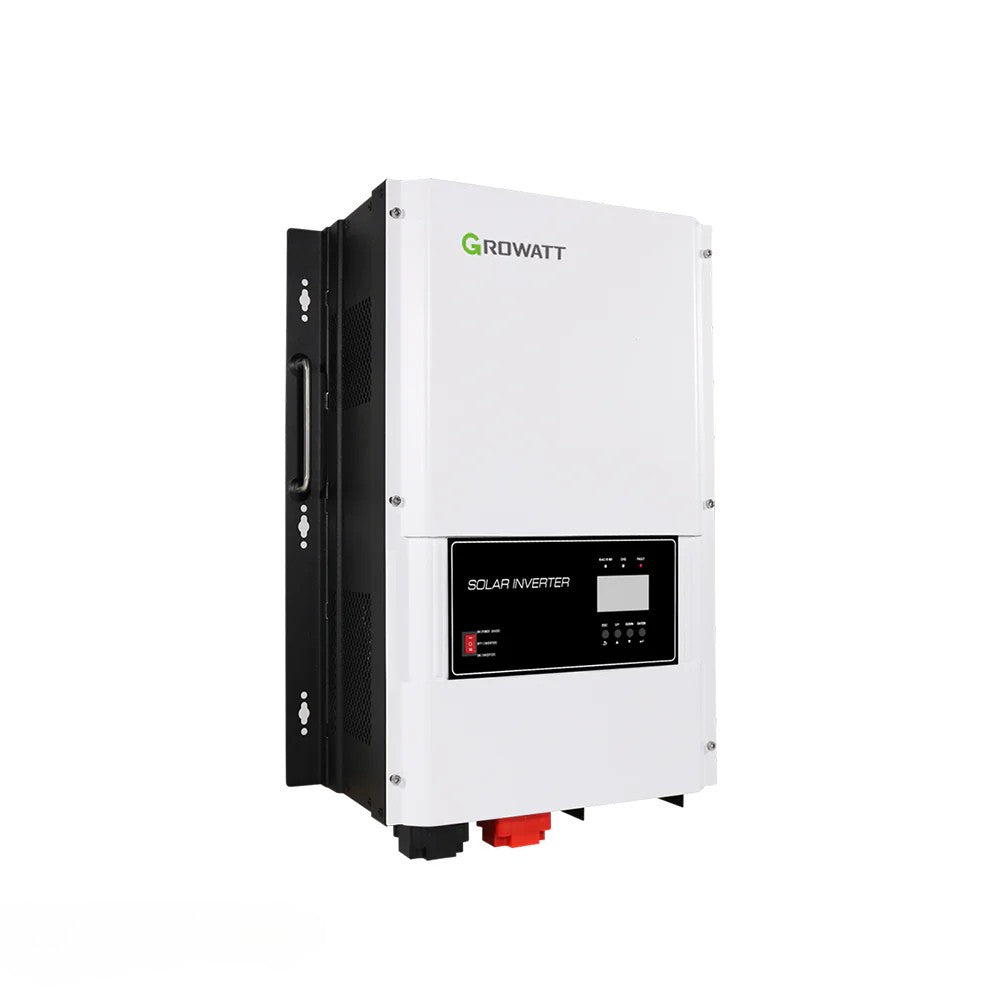

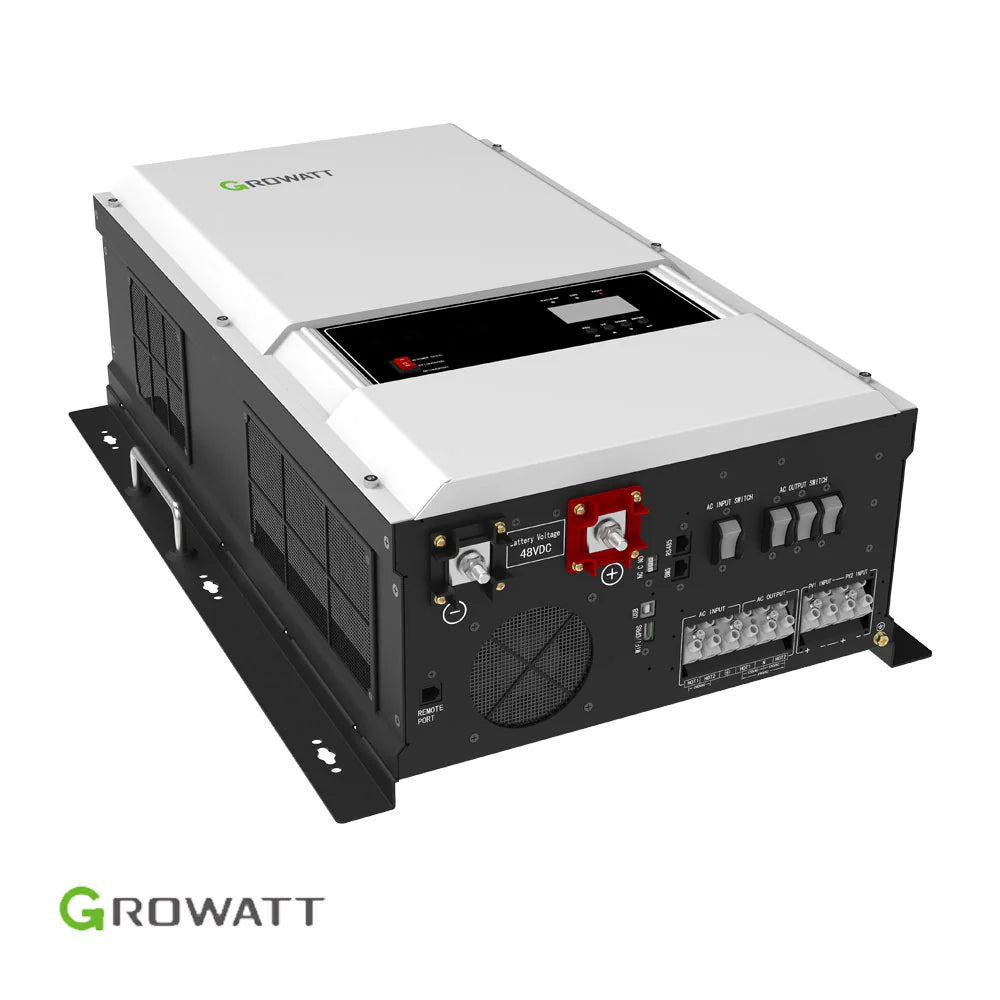

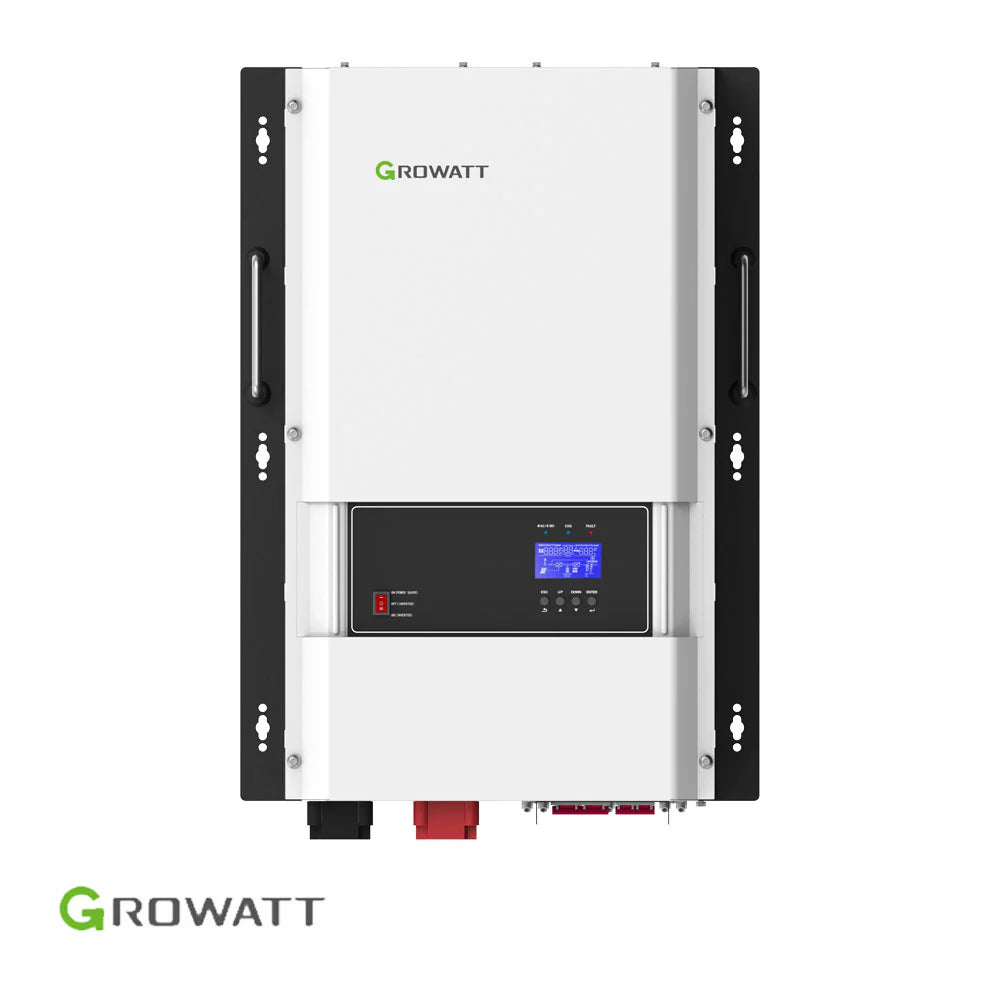

Growatt 6KW Split phase 120/240Vac Off-Grid Solar Inverter

Growatt 6KW Split phase 120/240Vac Off-Grid Solar Inverter

Regular price $2,399.99 CAD
Regular price $5,299.99 CAD Sale price $2,399.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • Advanced MPPT: Maximize solar efficiency with integrated charge controller.
  • Flexible Use: Works with or without batteries, adaptable to your energy strategy.
  • Smart Monitoring: Optional WIFI/GPRS for easy system management from anywhere.
  • Efficient Design: Up to 97% efficiency with pure sine wave output for reliable power.
  • Durable: Built to last in various conditions, ensuring energy independence.
Shipping

Free
Local Shipping

Warranty

2-year Hassle Free
Warranty

Support

Lifetime Customer
Support



View full details



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Seamless Energy Integration: The Growatt 6KW Off-Grid Solar Inverter is your advanced solution for seamless energy management. Equipped with a low-frequency inverter and a high-capacity integrated MPPT charge controller, this model offers unmatched versatility, working impeccably with both lithium and lead-acid batteries.

High-Capacity and Flexible Input: With a robust PV input up to 250VDC and support for a substantial solar array power of 5000W, the Growatt 6KW Off-Grid Solar Inverter facilitates a flexible approach to energy accumulation and utilization. The ability to configure grid or solar input priority allows for a tailored energy management strategy to suit your specific needs.

Smart Connectivity and Expansion: The Growatt 6KW Off-Grid Solar Inverter supports WIFI/GPRS for effortless remote monitoring, ensuring you're always connected to your power system. Furthermore, with a rated power of 6KW and surge capabilities, this unit can meet the demands of larger homes or commercial spaces.

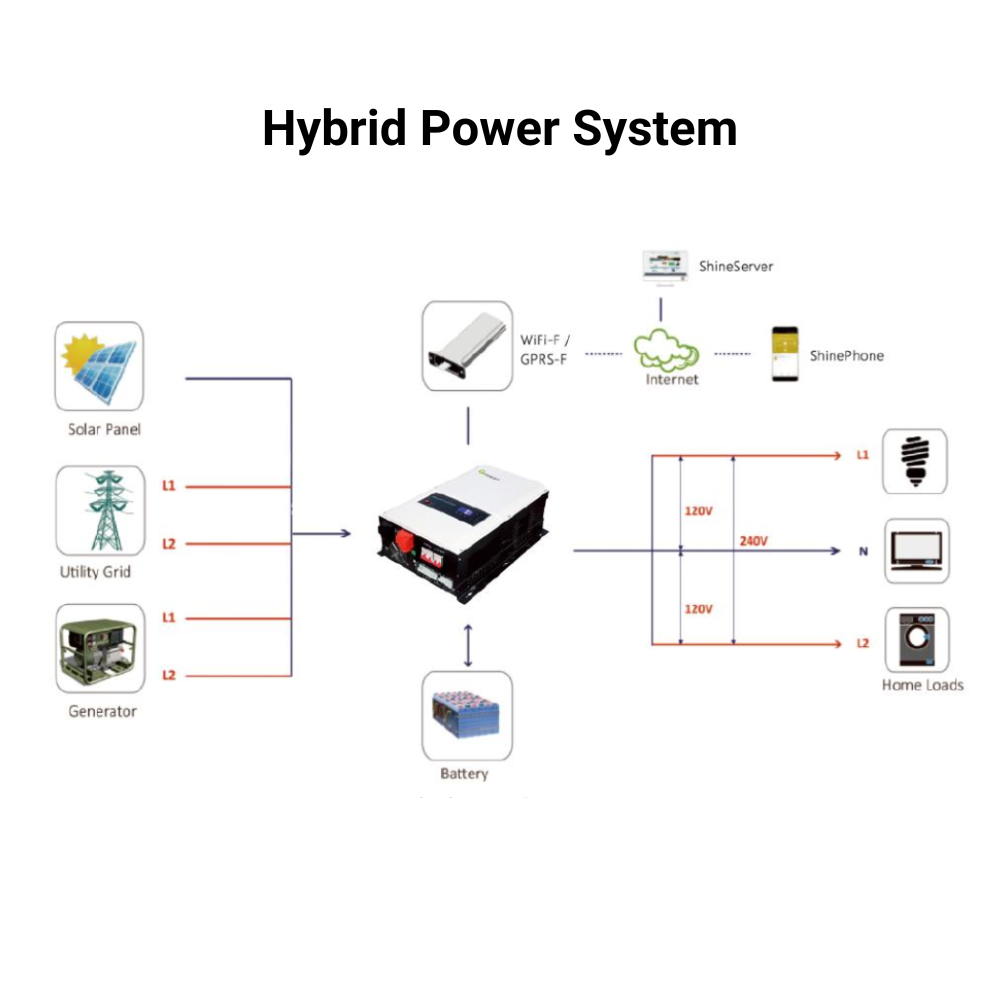

Intelligent Power Management: This inverter intelligently manages power distribution, prioritizing renewable sources while maintaining the ability to tap into the grid as necessary. This ensures an uninterrupted power supply, optimizing energy usage and minimizing reliance on traditional power sources.

Robust and Efficient Design: Designed to deliver excellence, the Growatt 6KW Off-Grid Solar Inverter provides pure sine wave output with peak efficiencies up to 97%. Its durable design, combined with a built-in pure copper low-frequency transformer, ensures reliability in various environments, operating efficiently in temperatures ranging from 0°C to 50°C.

What Can It Power?

  • Residential and Commercial Needs: Power everything from essential household appliances to demanding commercial equipment with ease.
  • Reliable Backup: Ensure critical systems like medical devices, security systems, and communication networks remain operational during power outages.
  • Renewable Energy Projects: Ideal for solar installations, providing a greener, cost-effective energy solution for homes and businesses.
  • Outdoor and Emergency Power: Suitable for RVs, camping, and emergency power supply, ensuring comfort and safety in any situation.
  • Workshops and DIY Projects: Power tools and machinery receive stable and reliable power, enabling uninterrupted work and productivity.

Embark on a journey towards sustainable and efficient energy management with the Growatt 6KW Off-Grid Solar Inverter. This inverter is not just a power source; it's a gateway to energy independence, adaptability, and resilience.

  • 1x Growatt 6KW Off-Grid Solar Inverter: An advanced energy management solution with integrated MPPT charge controller for efficient solar energy harvesting.
  • 1x User Manual: Detailed instructions for easy installation, operation, and maintenance of your inverter system.
  • 1x Wi-Fi Module: Enables remote monitoring and management of your energy system through Growatt's ShinePhone or ShineServer platforms.
  • 1x Warranty Card: Provides details on the warranty terms, coverage, and how to proceed with claims for your inverter.

Technical Specifications


Specification Growatt 6KW Off-Grid Solar Inverter Details
Battery Voltage 51.2VDC
Battery Type Lithium/Lead-acid
Inverter Output (Rated Power) 6KW
Surge Rating 18KW
Waveform Pure sine wave/ same as input (bypass mode)
Nominal Output Voltage RMS 104-110-115-120/208-220-230-240VAC(optional)
Output Frequency 50Hz/60Hz +/-0.5 Hz
Inverter Efficiency (Peak) 88%
Transfer Time 10ms
Solar Charger (Maximum PV Charge Current) 80A
Maximum PV Array Power 5000W
AC Input Voltage 240VAC
Max. Charging Current 120A
Protection Degree IP20
Dimensions (W/H/D) 360/540/218mm
Weight 52kg
Operating Environment (Temperature Range) 0°C to 50°C
Warranty 2 Years
Certifications UL STD.1741, CSA STD CSA C22.2 No.107.1


The Growatt 6KW Off-Grid Solar Inverter has a rated power of 6KW, making it suitable for a wide range of residential and commercial applications.

Yes, the Growatt 6KW Off-Grid Solar Inverter is designed to work with battery systems for energy storage but can also function without a battery, directly utilizing solar panels or grid power for immediate energy needs.

The maximum PV array open circuit voltage for the Growatt 6KW Off-Grid Solar Inverter is 250VDC, allowing for a versatile and robust solar array configuration.

For specific details on parallel operation capabilities of the Growatt 6KW Off-Grid Solar Inverter, it's recommended to consult the manufacturer's documentation or support services, as capabilities can vary between models.

Yes, the Growatt 6KW Off-Grid Solar Inverter supports WIFI/GPRS for remote monitoring, allowing users to easily monitor and manage their energy system remotely for optimal performance and troubleshooting.

The Growatt 6KW Off-Grid Solar Inverter measures 360x540x218mm and weighs 52kg, suitable for various installation environments.

The Growatt 6KW Off-Grid Solar Inverter allows configurable grid or solar input priority via settings, empowering users to optimize energy consumption according to their needs and maximize the use of renewable energy sources.

The Growatt 6KW Off-Grid Solar Inverter operates within a temperature range of 0°C to 50°C, ensuring reliable performance in a variety of environmental conditions.

It is important to check with the retailer or manufacturer for the warranty terms specific to the Growatt 6KW Off-Grid Solar Inverter, as warranties can provide peace of mind and protection for your investment.
