ROCKSOLAR Solar Water Pump Kit – 800W Solar + 100Ah Battery

Harness the power of the sun with the ROCKSOLAR Solar Water Pump Kit – 800W Solar + 100Ah Battery, your ultimate solution for independent water supply at the cottage. Central to this system is the high-efficiency 24V Brushless Solar DC Water Pump, designed to provide reliable water flow for various needs, including irrigation, livestock, or household use.

Complemented by 1x 24V 100AH LiFePO4 Batteries and a suite of 2x 400W Rigid Solar Panels, this system captures and stores solar energy efficiently using a 60A MPPT Solar Charge Controller. Thoughtfully engineered for scalability, the system allows easy upgrades to meet growing water or power demands.

With a 10-year warranty on batteries and solar panels and a 1-year warranty on supplementary components, ROCKSOLAR ensures a secure and sustainable investment.

Features

ROCKSOLAR 24V 100Ah Deep Cycle LiFePO4 Battery with BMS System

• 24V 100AH capacity per battery

• 3500+ cycle life at 100% depth of discharge

• Consistent power with a flat voltage curve

• Advanced LiFePO4 technology for deep cycling

• Smart BMS for safety and long life

• Lightweight at 55 lbs for easy handling

• Operating temp: Charging 0°C–45°C / Discharging -20°C to 60°C

• BMS auto-shuts off outside safe temps

• 11-year warranty, 10+ year service life

ROCKSOLAR 400W Rigid Monocrystalline Solar Panel

• 400W output per panel

• Waterproof and corrosion-resistant aluminum frame

• 22% high-efficiency monocrystalline cells

• Pre-drilled for easy installation

ROCKSOLAR 60A MPPT Solar Charge Controller

• Rated current: 60A

• Voltage: 12/24V system compatible

• 99.5% MPP tracking efficiency

• Open voltage max: 100Vdc

• Supports lithium and lead-acid batteries

• Operating temp: -20°C to 55°C

• IP30 protection rating

ROCKSOLAR 24V Brushless Solar DC Water Pump

• High-performance brushless motor for solar use

• Stainless steel (S.S. 304) body and brass motor cap

• Built-in controller for plug-and-play functionality

• 250W power, max flow rate: 1.3m³/h, max head: 70m

• Quiet, low-maintenance design

• 2-meter cable included

• Optimized for ROCKSOLAR solar panel systems

• 1" outlet connection

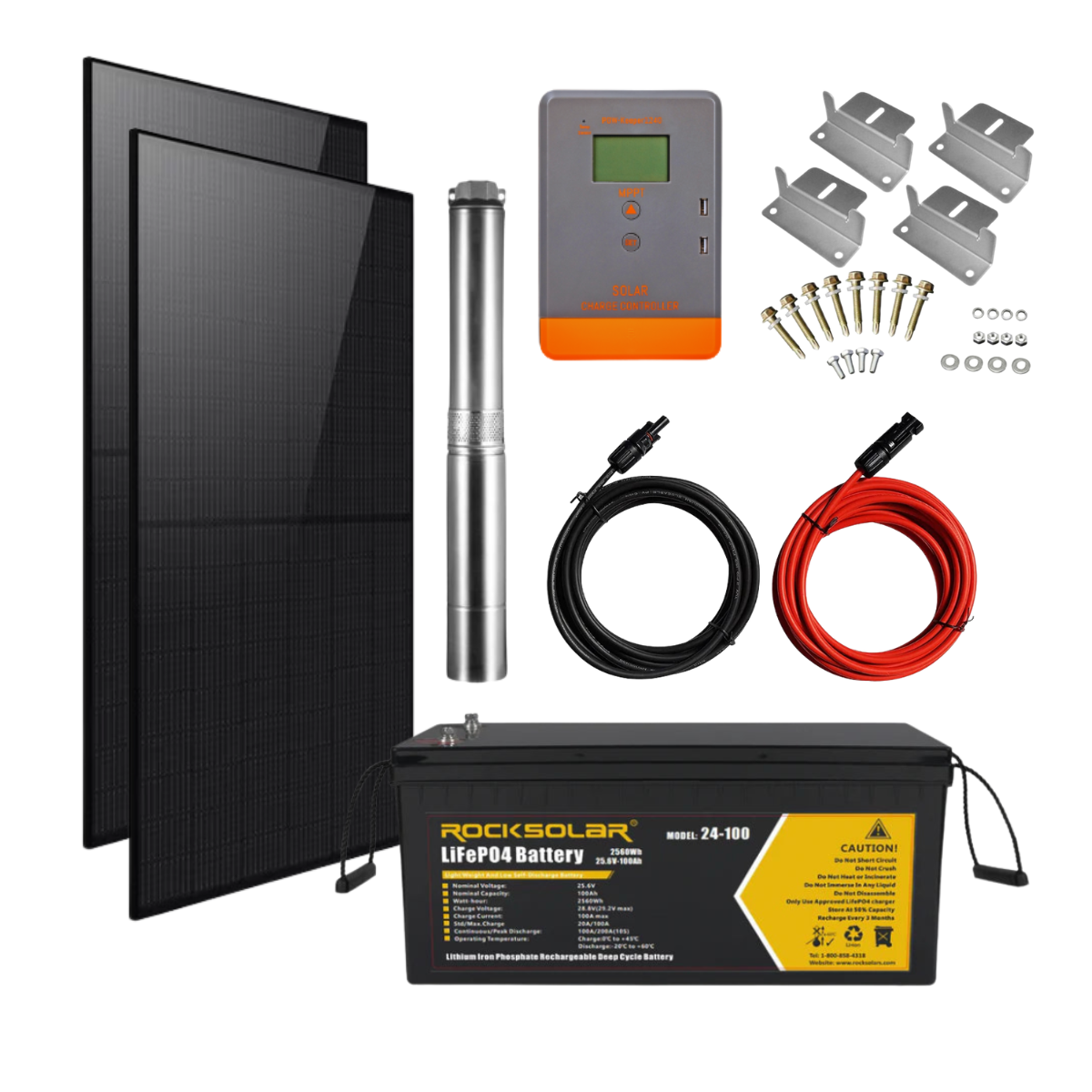

Package Includes

• 1 × 24V 100Ah Deep Cycle LiFePO4 Battery

• 1 × 24V Brushless Solar DC Submersible Well Pump

• 2 × 400W Rigid Monocrystalline Solar Panel

• 1 × 60A MPPT Solar Charge Controller

• 1 × 10 Ft 10AWG Extension Cables with MC4 Connectors (Red + Black)

• 2 × Z-Bracket Mount Systems (4 per set)

• 1 × Y-Branch Connector Set (MMF + FFM)

• 1 × User Manual

Download User Manuals

• Solar Panel Manual (PDF)

• Solar Water Pump Manual (PDF)

• LiFePO4 Battery Manual (PDF)
