ROCKSOLAR 1000W 12V RV Solar System (Flexible Panels)
ROCKSOLAR 1000W 12V RV Solar System (Flexible Panels)
- Complete Kit: 12V 100Ah LiFePO4 Battery, two 100W Solar Panels, 20A Controller, 1000W Inverter.
- Powerful Battery: 12V 100Ah LiFePO4, robust BMS for excellent storage.
- Efficient Panels: Two 100W Flexible Panels, weather-resistant.
- Pure Sine Inverter: 1000W for smooth power.
- MPPT Controller: 40A for efficient charging and protection.
- Rugged Design: Durable, weather-resistant panels.
- Safe Operations: BMS for battery safety and longevity.
- Versatile: Powers various devices, ideal for off-grid use.
- Long Warranty: 11 years for Battery, 5 years for Panels.
- Upgradeable: Easy future power upgrades.
- Temperature Tolerant: Battery -20°C to 60°C, Controller -20°C to 55°C.
- Excellent Support: Exceptional customer service.
11-year Hassle Free
Experience ultimate freedom and power on your road trips with the ROCKSOLAR 1000W 12V RV Solar System (Flexible Panels). This comprehensive kit combines high-performance components to provide you with reliable and sustainable energy wherever your adventures take you. The kit includes two ROCKSOLAR 100W 12V Flexible Monocrystalline Solar Panels, designed to be ultra-lightweight and ultra-thin for easy installation and portability. These flexible panels maximize sunlight absorption and allow for versatile mounting options on your RV or camping setup. Accompanying the panels is the ROCKSOLAR 12V 100Ah Deep Cycle LiFePO4 Battery with BMS System, ensuring ample power storage for all your devices and appliances. With the ultra-powerful ROCKSOLAR 1000W 12-Volt Sine Wave Inverter, you can effortlessly convert DC power from the battery into clean and stable AC power to run multiple devices simultaneously. Completing the kit is the ROCKSOLAR 40A MPPT Solar Charge Controller, which optimizes solar charging efficiency and protects the battery from overcharging.
ROCKSOLAR 12V 100Ah Deep Cycle LiFePO4 Battery with BMS System:

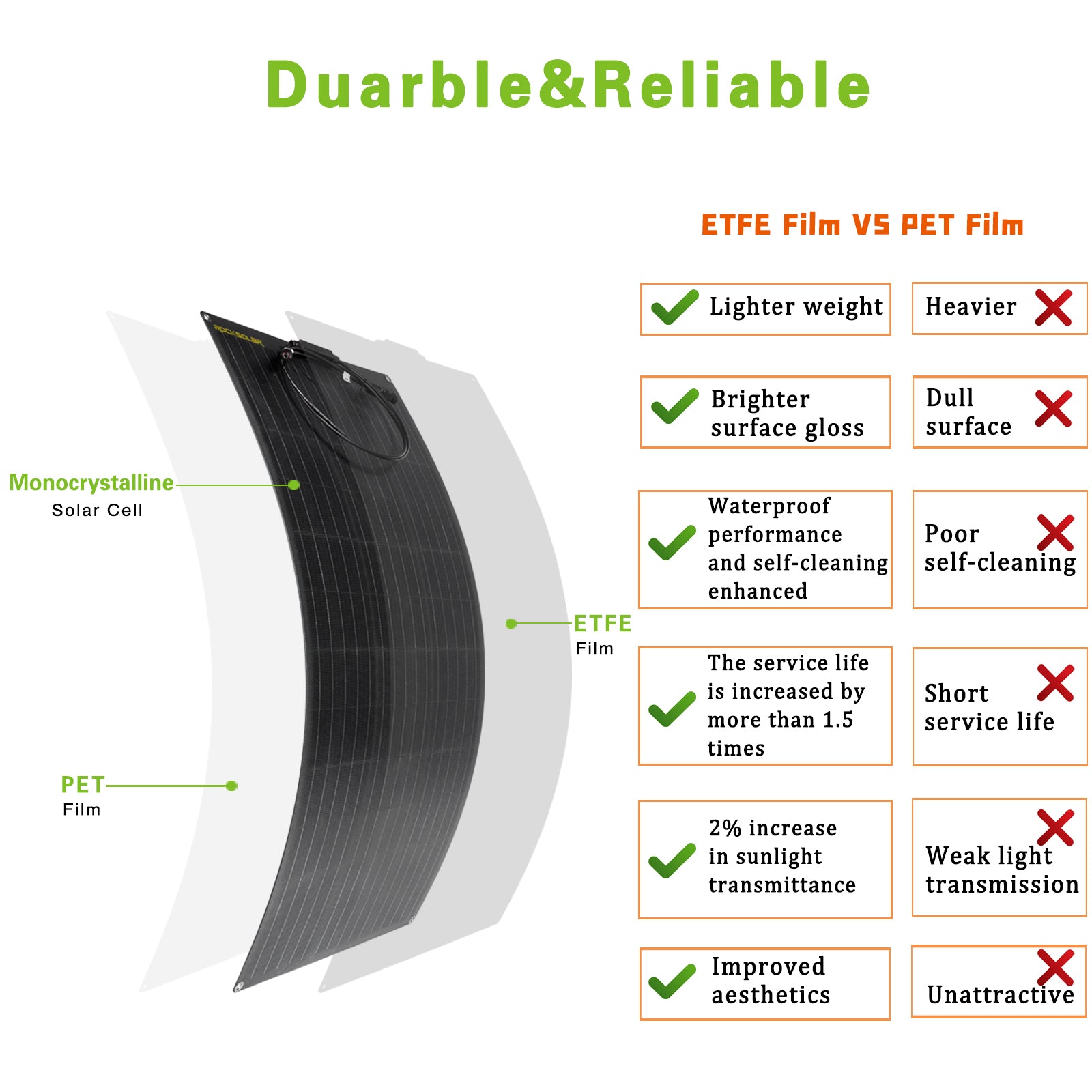

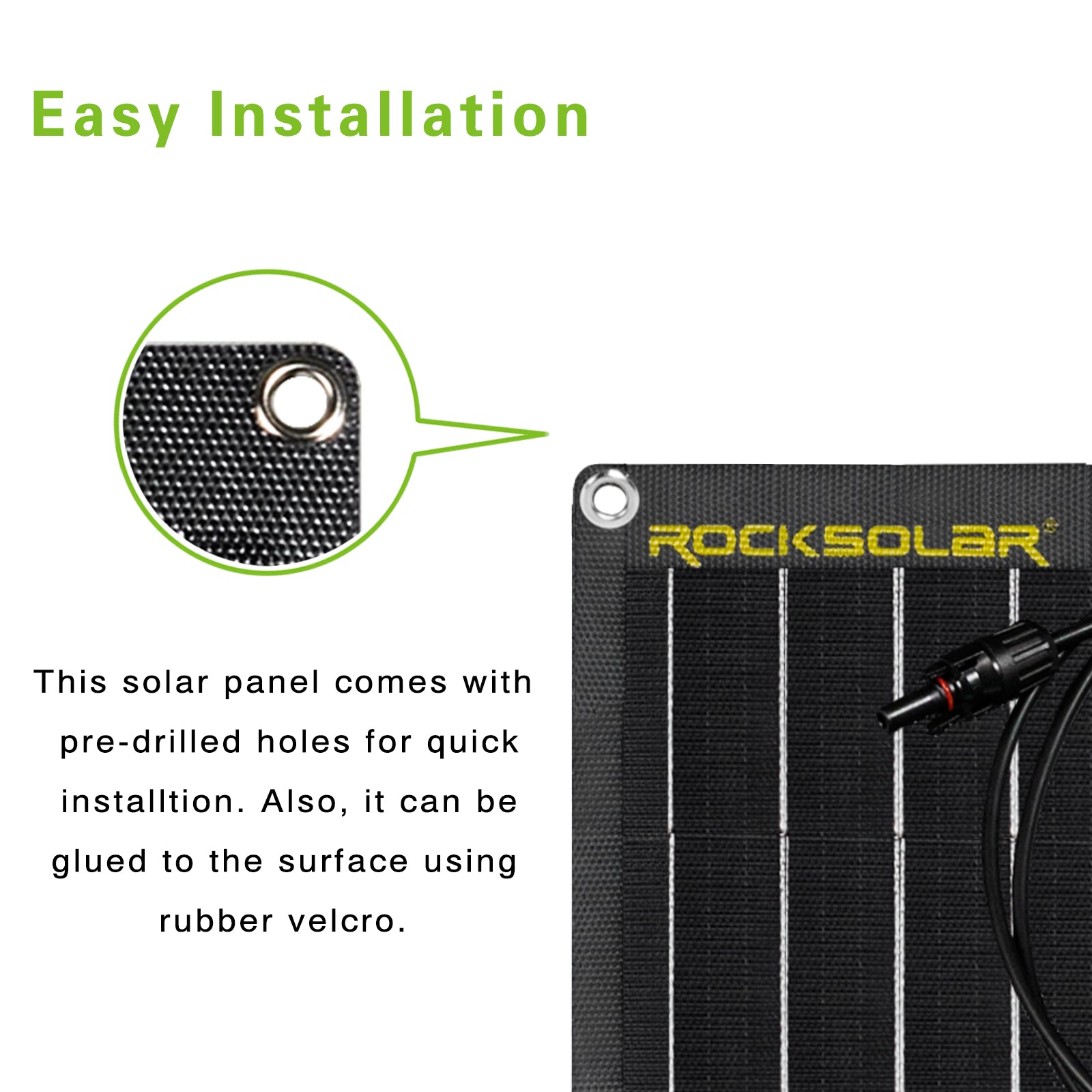

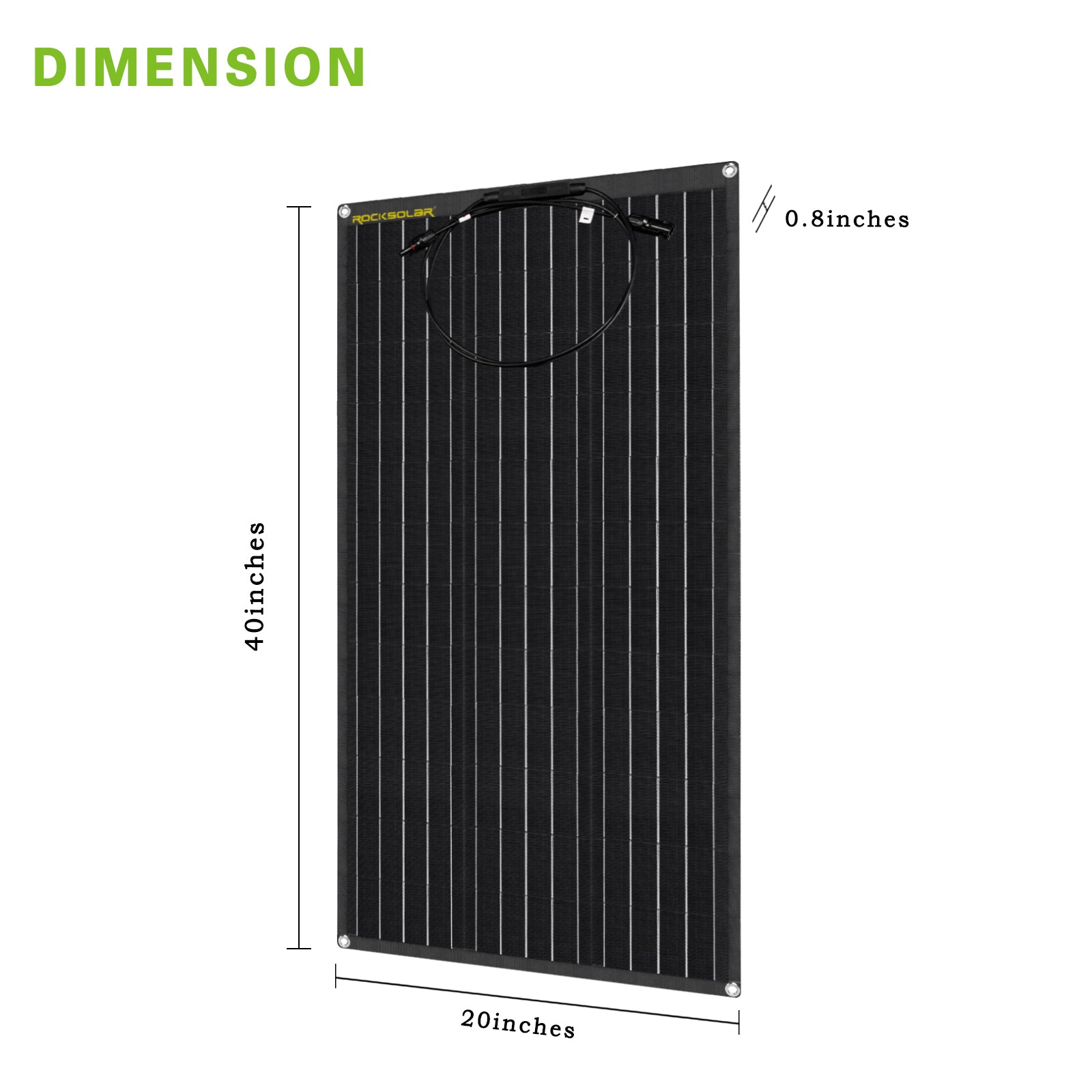

ROCKSOLAR 100W 12V Flexible Monocrystalline Solar Panel - Ultra-Lightweight, Ultra-Thin (2 Pieces):
ROCKSOLAR 40A MPPT Solar Charge Controller:

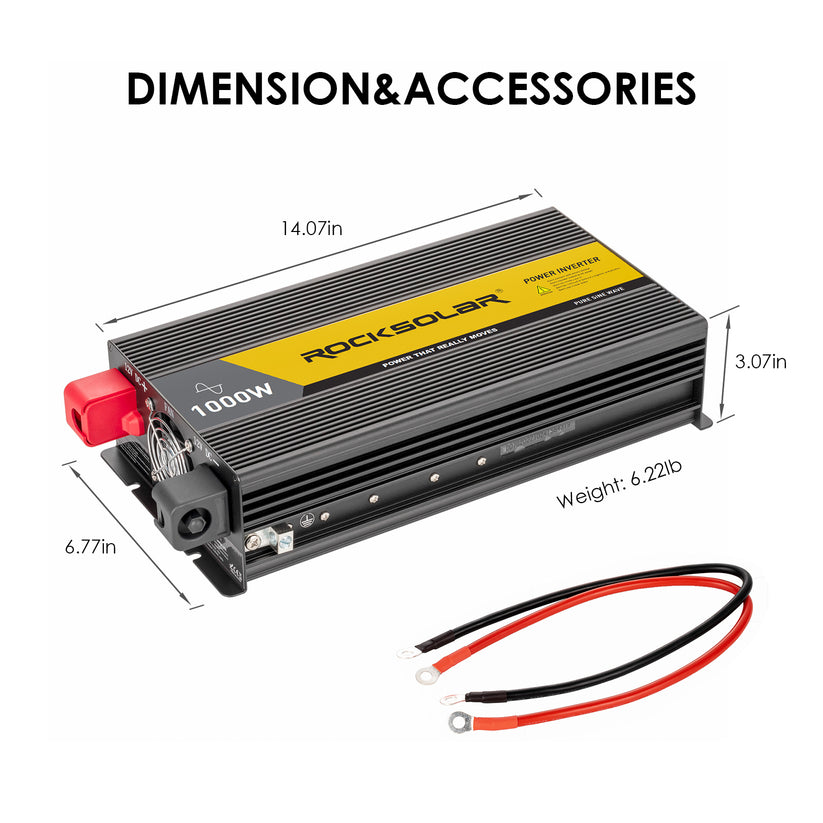

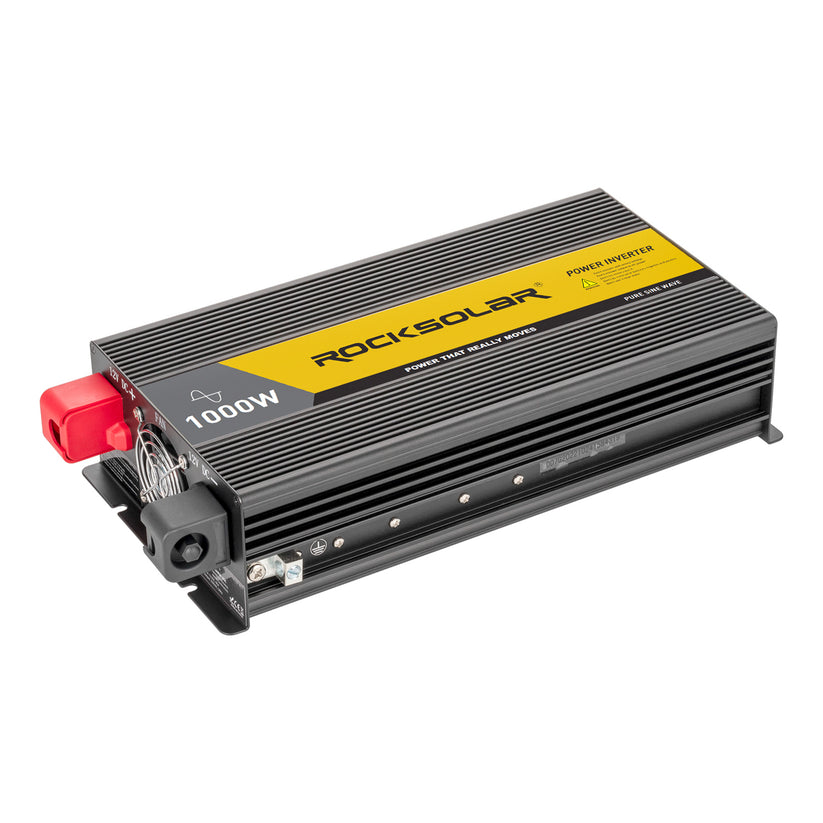

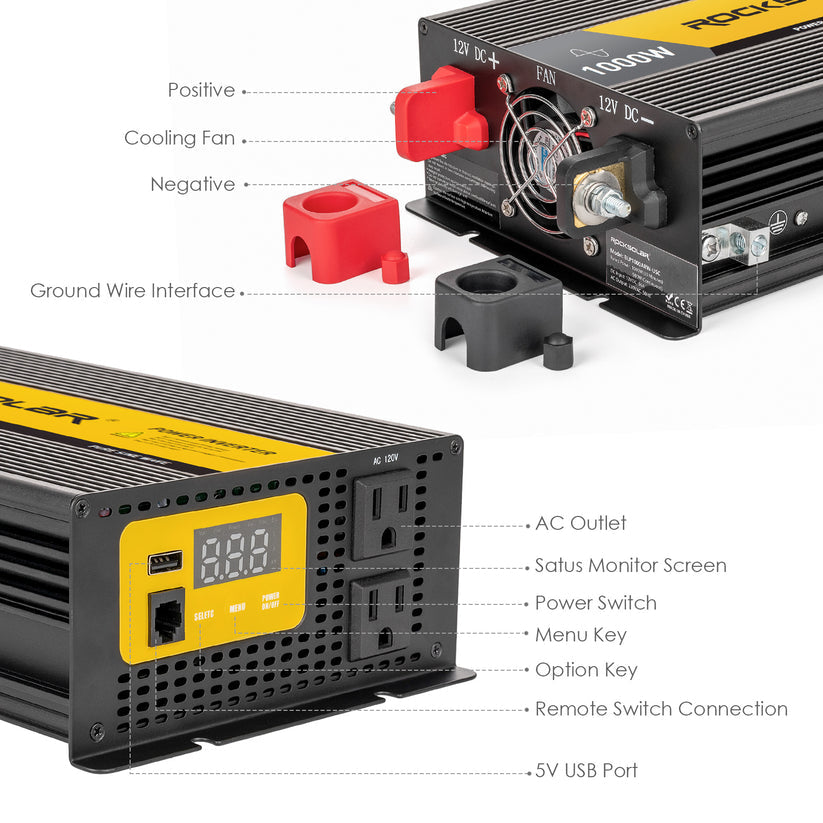

ROCKSOLAR 1000W Pure Sine Wave Power Inverter:

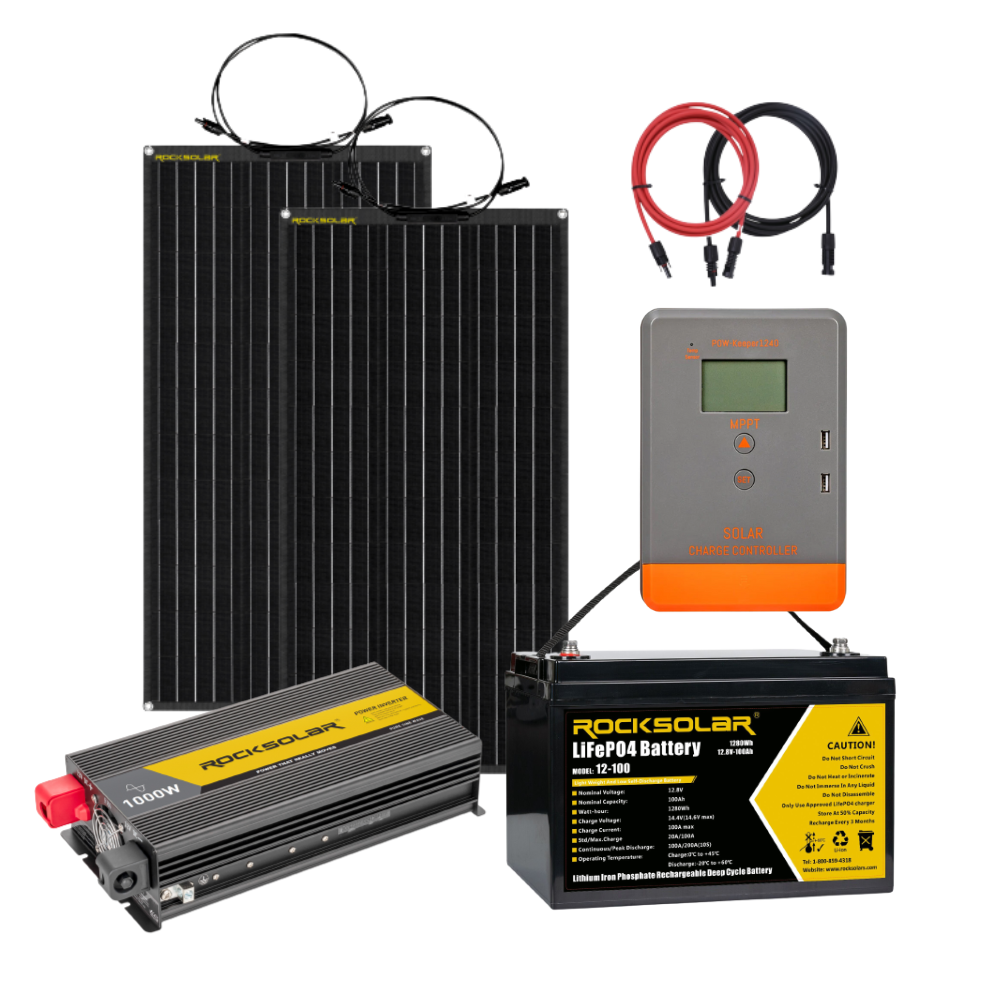

- 1 x 12V 100 Ah Deep Cycle LiFePO4 Battery
- 2 x 100W 12V Flexible Monocrystalline Solar Panel
- 1 x 1000W Pure Sine Wave Power Inverter
- 1 x 40A MPPT Solar Charge Controller
- 1 x 20 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black
- 1 x Y Branch Connectors for Solar Panels MMF+FFM Pair
- 1 x User Manual

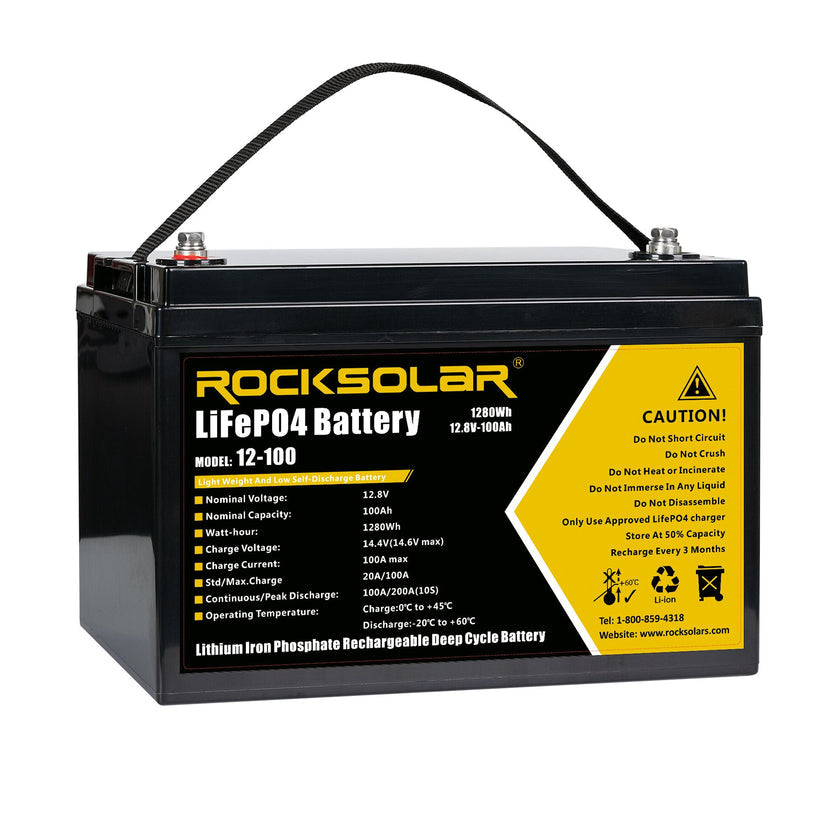

|12V 100Ah Deep Cycle LiFePO4 Battery||Details|

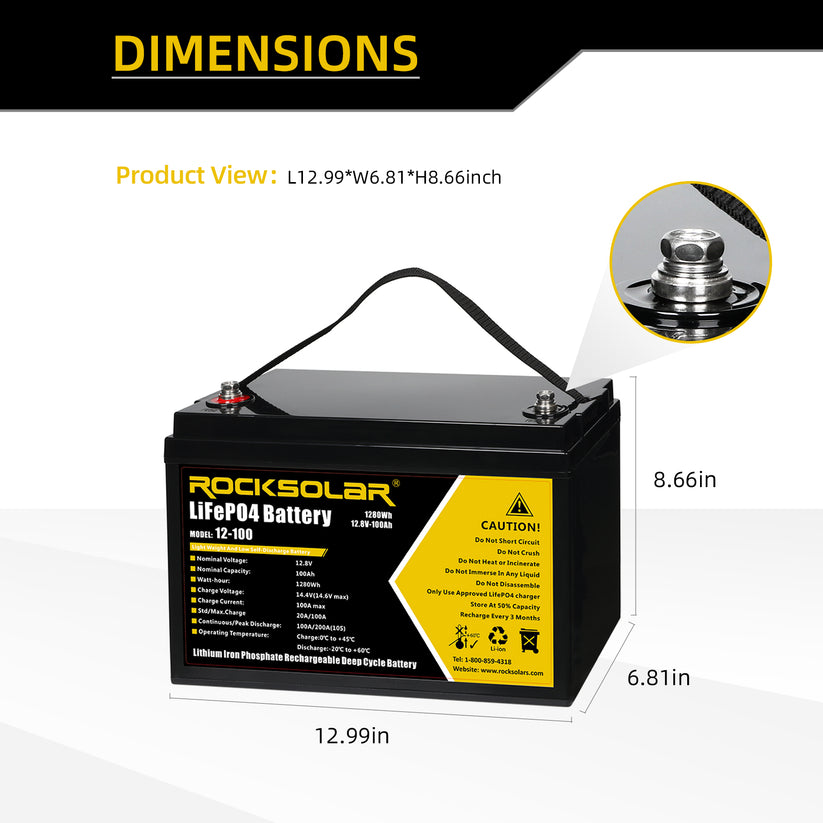

|Product Dimensions||12.99 x 6.81 x 8.66 Inches|
|Item model number||RSLIPO12-100AH|
|Batteries||1 Lithium Ion battery (included)|
|Voltage||12 Volts (DC)|
|Item Weight||12.5 kg|
|100W 12V Flexible Monocrystalline Solar Panel||Details|
|Open Circuit Voltage(Voc(V))||21.60V|
|Peak Power Voltage(Vmp(V))||18.00V|
|Short Circuit Current(Isc(A))||6.00A|

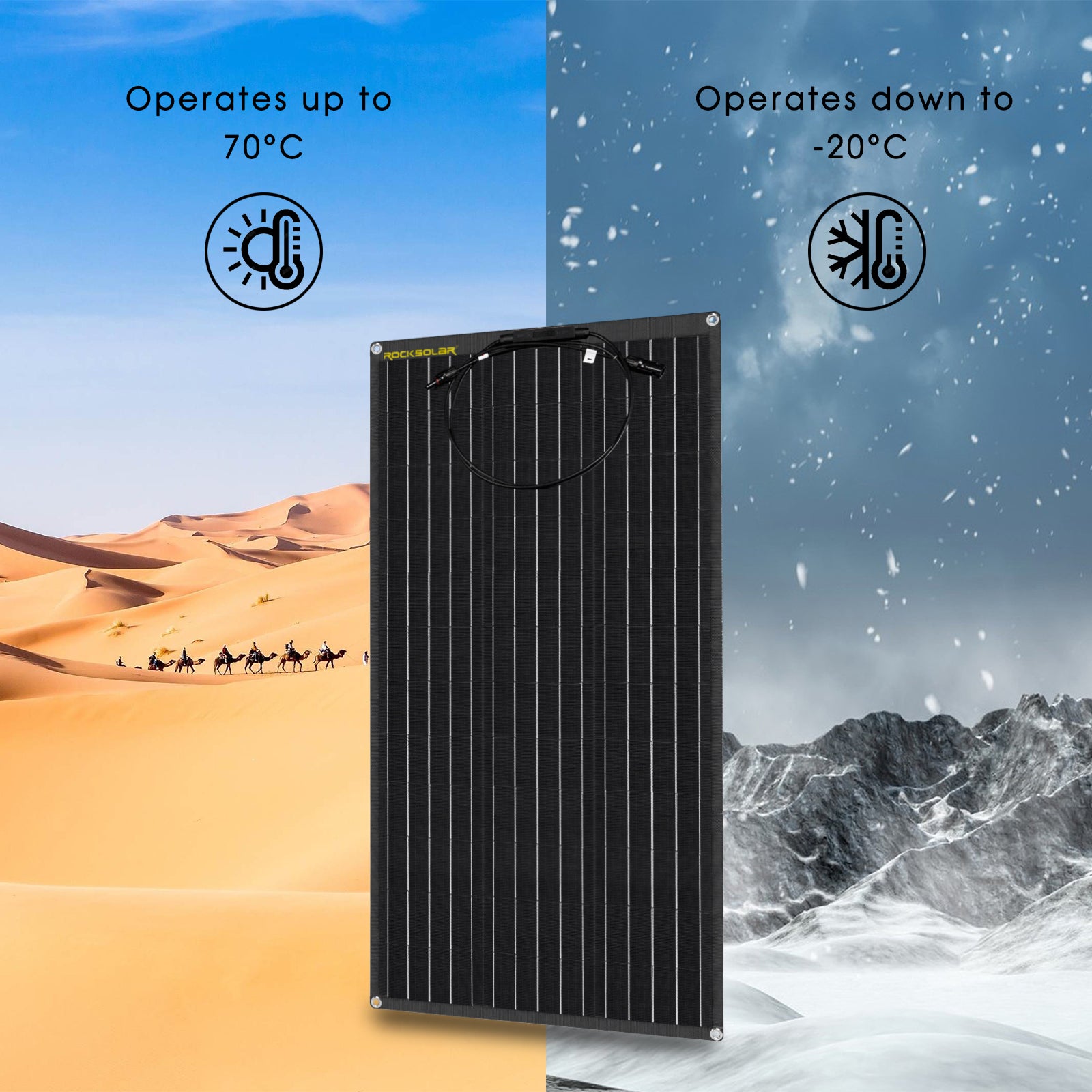

|Us. Tem||-20~70 °C|

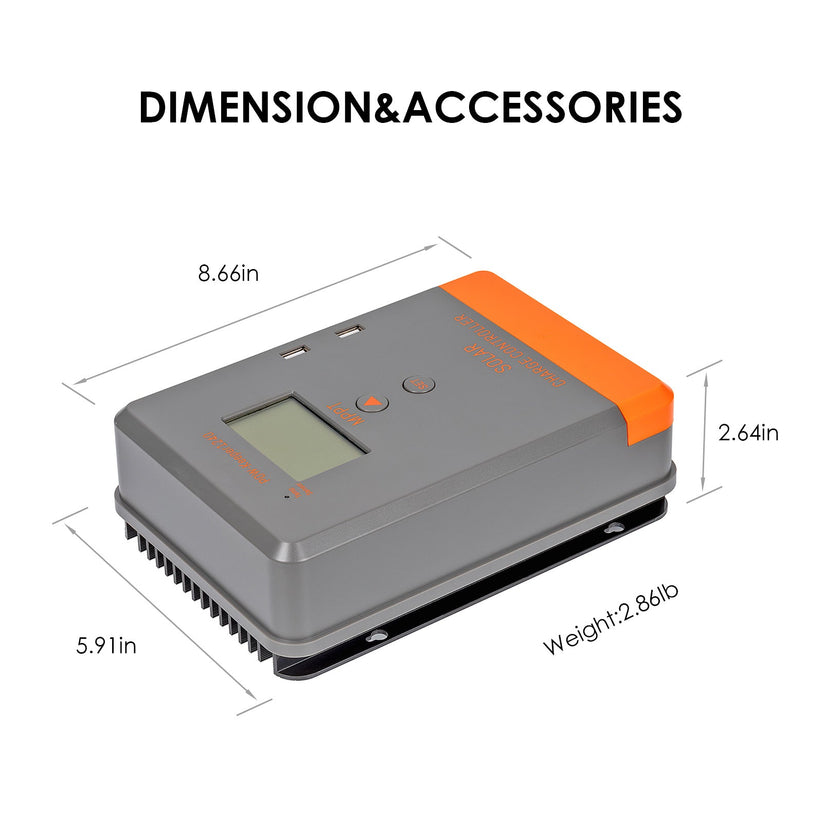

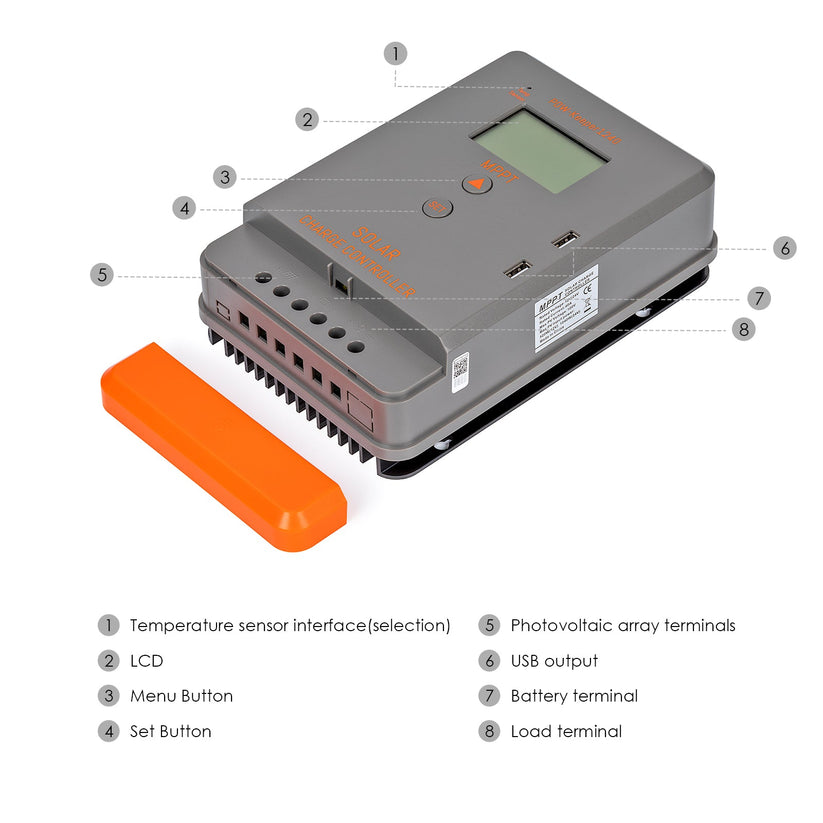

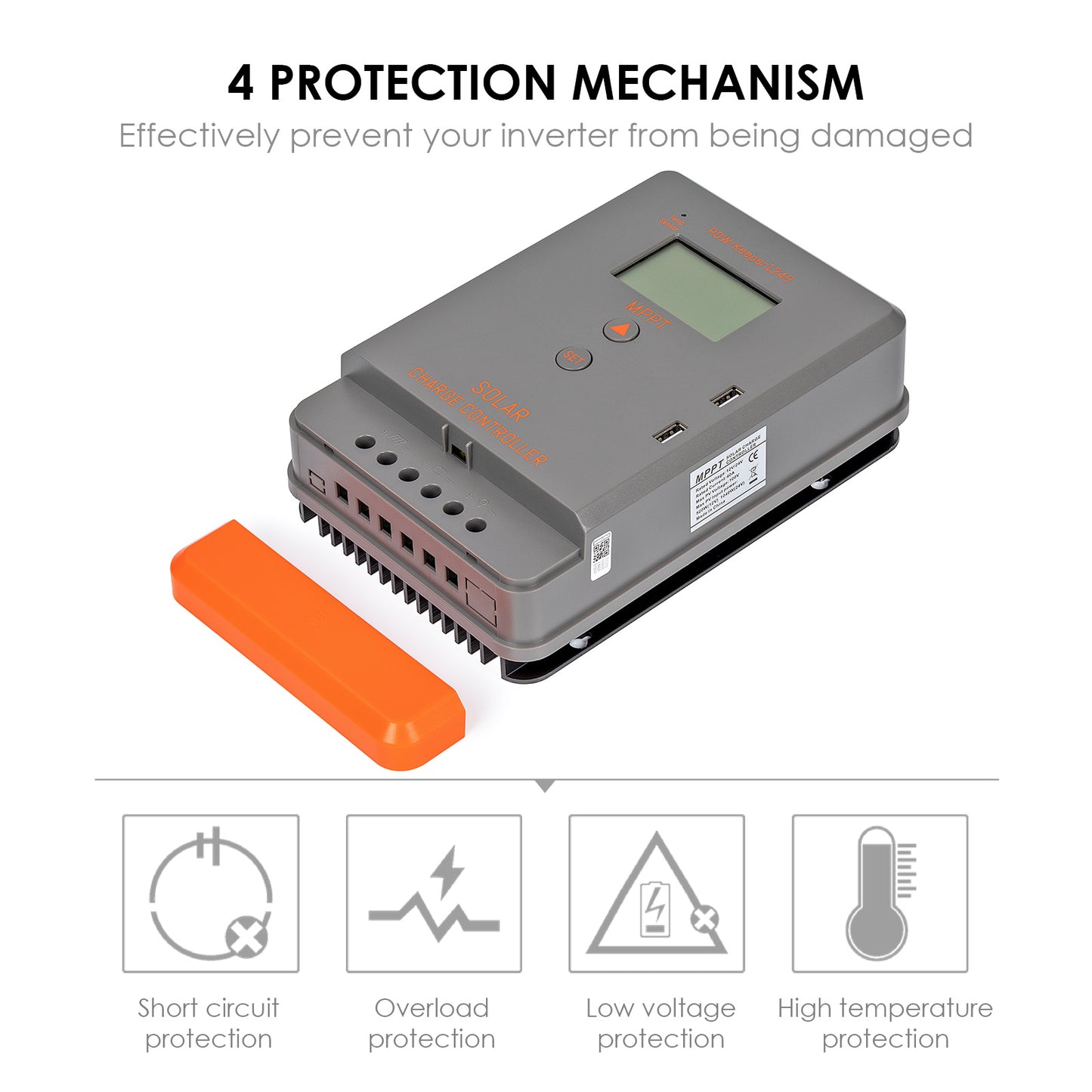

|40A MPPT Solar Charge Controller||Details|
|Max Open Voltage of PV Module||75Vdc|
|MPP Tracking Efficiency||99.50%|
|Light Control Voltage||5V|
|Charge Algorithm||3 Stage|
|Battery Type||Lithium and Lead Acid Battery|
|Nominal System Voltage||12/24V|
|Rated Charging Current||40A|
|Battery Voltage Range||8~32V|
|High Voltage Disconnection||16V (24V x 2)|
|Duration for absorption charging||2 hours|
|Charge Loop Voltage Drop||≤0.29V|
|Self-consumption||≤ 9.2mA 12V; ≤ 11.7mA 24V|
|Equalized Charging Voltage||AGM: 14.6V; GEL: No; FLd: 14.8V|
|Absorption Charging voltage||AGM: 14.4V; GEL: 14.2; FLd: 14.6V|
|Floating Charging voltage||AGM/ GEL/ FLd: 13.8V|
|Low Voltage re-connection (LVR)||AGM/ GEL/ FLd: 12.6V|
|Low Voltage Disconnection (LVD)||AGM/ GEL/ FLd: 10.8V|
|Operating Temperature Range||-20℃~55℃ (To run at full rated current continuously)|
|LCD Temperature Range||-20℃~70℃|
|Humidity Range||≤95% No condensation|
|Installation Hole||108*120 ∅5|
|1000W Pure Sine Wave Power Inverter||Details|
|Resistive Load Continuous Output Power||1000W|
|Inductive Load Continuous Output Power||1000W The pump can start normally (beyond which protection may be possible without damaging the inverter)|
|Capacitive Load Continuous Output Power||420±20W，PF：0.6 Tri-color energy saving lamp, beyond may be protected, but will not cause damage to the inverter)|
|Waveform||Pure Sine Wave|
|DC Current||98A（Load 1000W when entering 12Vdc）|
|No Load Loss||≤0.8 A(input 12Vdc)|
|Shutdown mode static current||1mA|
|Battery type||All 12V batteries|
|Battery Low Voltage Alarm||9.5/10/10.5/11/11.5/12/12.5V，Buzzer alarm, LED display E06|
|Battery Low Voltage Alarm Recovery||10/10.5/11/11.5/12/12.5/13V|
|Battery Low Voltage Protection||9/9.5/10/10.5/11/11.5/12V(Set through menu)，LED display shows E01, automatic shutdown after 30S|
|Battery Low Voltage Protection Recovery||Recovery voltage within 30S：11/11.5/12/12.5/13/13.5/14V|

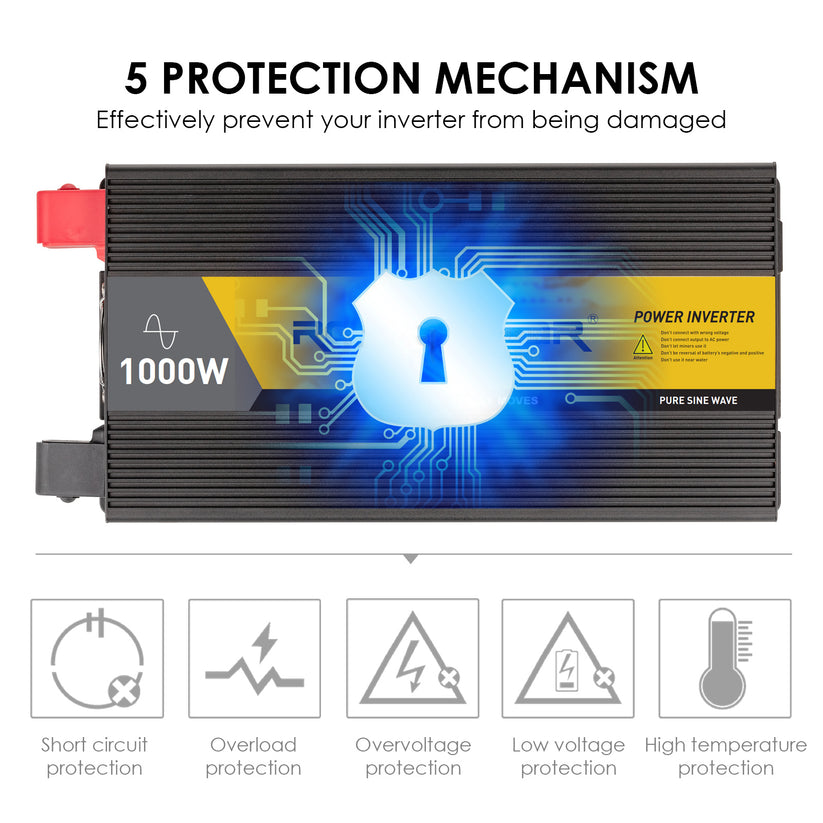

|Battery High Voltage Protection||17V，LED display shows E02, automatic shutdown after 30S|
|Battery High Voltage Protection Recovery||Recovery voltage within 30S：16.5V|
|Over Temperature||Buzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted output|
|Output Short Circuit||Buzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30S|
|USB Output Voltage||5V|
|USB Output Current||2.1A|
|Storage temperature, humidity||-30℃～70℃,10～95%RH|
|Weight||Net weight：2.82 kg|
Yes, the kit is expandable. You can add additional solar panels to increase the charging capacity and maximize energy generation.

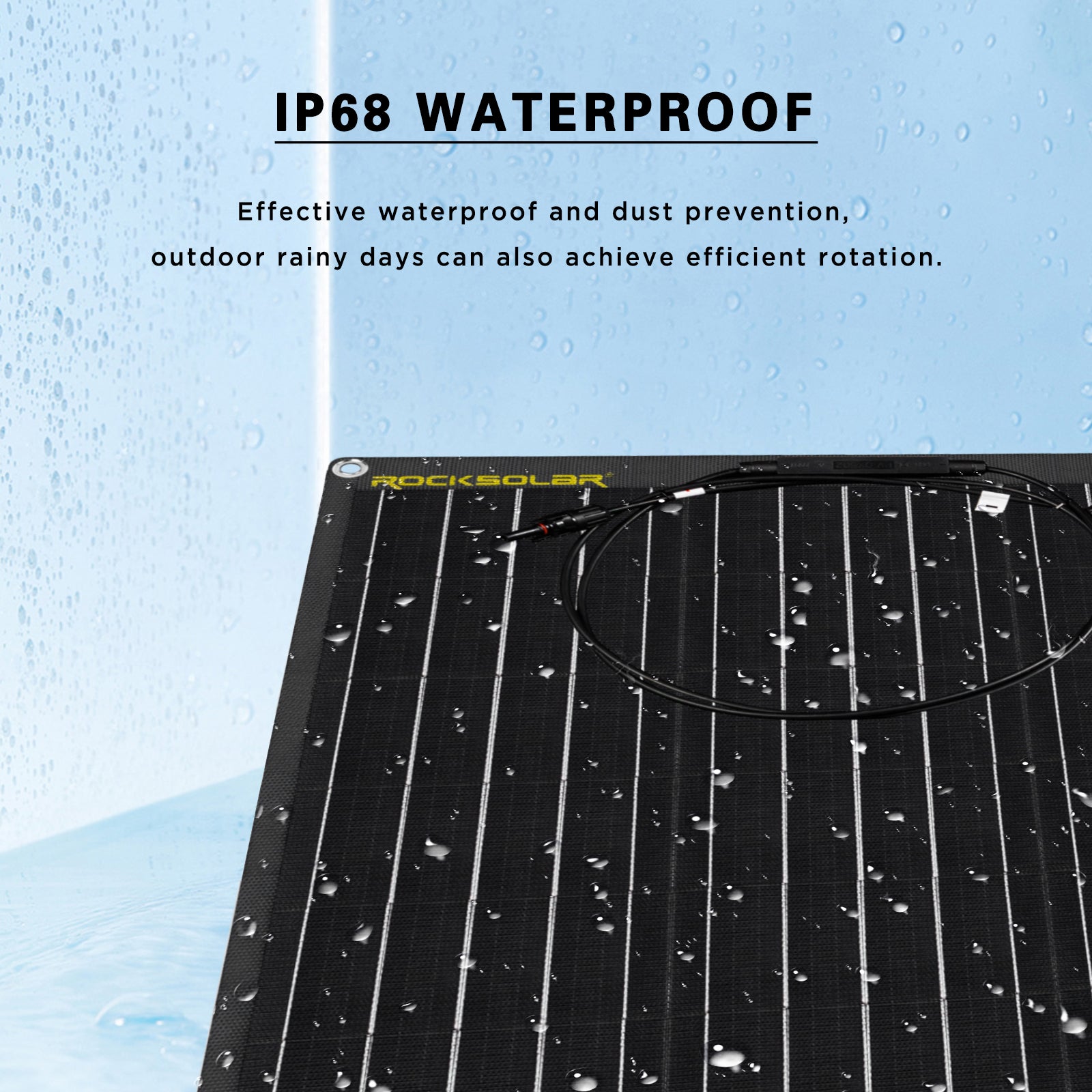

Absolutely! The ROCKSOLAR 100W 12V Flexible Monocrystalline Solar Panels are designed to be weather-resistant and can withstand rain, snow, and wind.
The charging time may vary depending on the available sunlight, but on average, it takes around 5-8 hours of direct sunlight to fully charge the battery.
Yes, the 1000W 12-Volt Sine Wave Inverter is capable of powering various appliances such as laptops, TVs, small kitchen appliances, and more.
Yes, the ROCKSOLAR 40A MPPT Solar Charge Controller is compatible with various battery types, including gel, AGM, flooded, and LiFePO4 batteries.

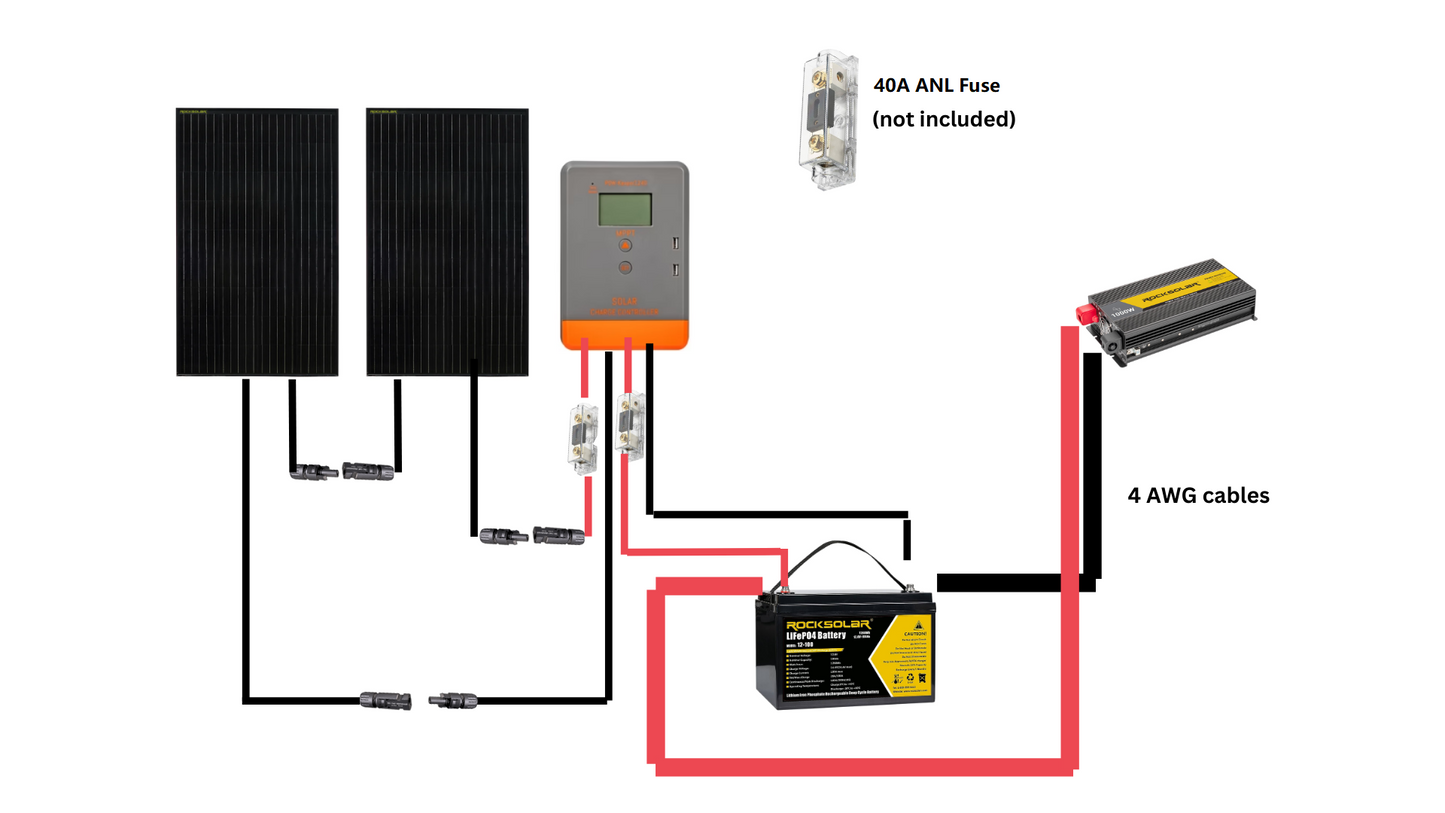

No, it is essential to connect the solar panels to the charge controller, which then regulates the charging process and ensures the battery is charged safely and efficiently.
Yes, the ROCKSOLAR Road Trip Off Grid Solar Kit II can be used to power your RV's appliances while driving, providing you with a sustainable and independent power source.
The 12V 100Ah Deep Cycle LiFePO4 Battery is engineered for longevity and can last for thousands of charge cycles, providing reliable power storage for your adventures.
Yes, the 1000W Inverter produces a pure sine wave, making it safe and compatible with sensitive electronics such as laptops, smartphones, and audiovisual equipment.
The solar panels, battery, charge controller, and inverter come with a 10-year warranty, ensuring peace of mind and reliable performance throughout your adventures.
