WHAT IS A SOLAR CHARGE CONTROLLER?

A solar charge controller is used to keep the battery from overcharging by regulating the voltage and current coming from the solar panel to the battery.
Solar charge controllers are an essential element of any solar electric panel system. At a most basic level, charge controllers prevent batteries from being overcharged and prevent the batteries from discharging through the solar panel array at night.

View Products

ROCKSOLAR Solar Charge Controllers

APPLICATIONS

Suitable for solar setups using AGM, GEL, Lithium-ion, LiFePo4 batteries. Our controller properly connects your solar panels to your batteries to provide the most efficient charging process

LCD DISPLAY

A Clear LCD display with all the solar charging and battery information displayed on it allowing you to avoid the guesswork. Easily program your desired setup.

SAFETY

Our controller provides short-circuit, reverse, over-load, overcharge, and low voltage protections for ensuring maximum safety for your solar setup. 1 Year warranty for all our ROCKSOLAR products.

Choose your MPPT Solar Charger Controller

ROCKSOLAR 10A PWM Solar Charge Controller

ROCKSOLAR 20A PWM Solar Charge Controller

ROCKSOLAR 30A PWM Solar Charge Controller

ROCKSOLAR 30A PWM Solar Charge Controller

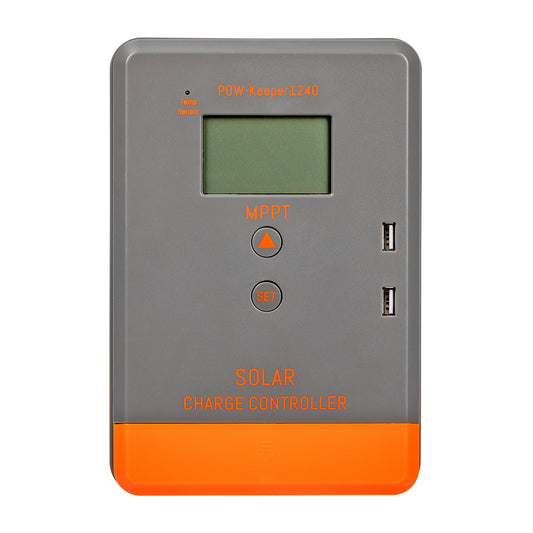

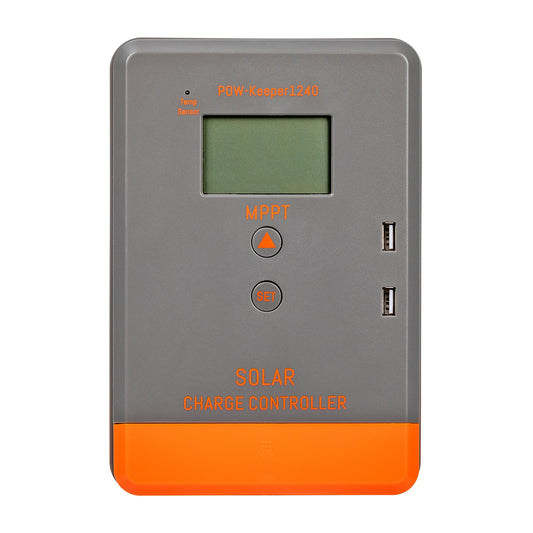

Model POW-Keeper1220 POW-Keeper1330 POW-Keeper1240 POW-M60-PRO
Max Open Voltage of PV Module 55Vdc 55Vdc 55Vdc 55Vdc
MPP Tracking Efficiency 99.5% 99.5% 99.5% 99.5%
Light Control Voltage 5V 5V 5V 5V
Charge Algorithm 3 Stage 3 Stage 3 Stage 3 Stage
Battery Type Lithium and Lead Acid Battery Lithium and Lead Acid Battery Lithium and Lead Acid Battery Lithium and Lead Acid Battery
Nominal System Voltage 12/24V 12/24V 12/24V 12/24V
Rated Charging Current 20A 30A 40A 60A
Battery Voltage Range 8~32V 8~32V 8~32V 8~32V
High Voltage Disconnection 16V (24V x 2) 16V (24V x 2) 16V (24V x 2) 16V (24V x 2)
Duration for absorption charging 2 hours 2 hours 2 hours 2 hours
Charge Loop Voltage Drop ≤0.29V ≤0.29V ≤0.29V ≤0.29V
Self-consumption ≤ 9.2mA 12V; ≤ 11.7mA 24V ≤ 9.2mA 12V; ≤ 11.7mA 24V ≤ 9.2mA 12V; ≤ 11.7mA 24V ≤ 9.2mA 12V; ≤ 11.7mA 24V
Equalized Charging Voltage AGM: 14.6V; GEL: No; FLd: 14.8V AGM: 14.6V; GEL: No; FLd: 14.8V AGM: 14.6V; GEL: No; FLd: 14.8V AGM: 14.6V; GEL: No; FLd: 14.8V
Absorption Charging voltage AGM: 14.4V; GEL: 14.2; FLd: 14.6V AGM: 14.4V; GEL: 14.2; FLd: 14.6V AGM: 14.4V; GEL: 14.2; FLd: 14.6V AGM: 14.4V; GEL: 14.2; FLd: 14.6V
Floating Charging voltage AGM/ GEL/ FLd: 13.8V AGM/ GEL/ FLd: 13.8V AGM/ GEL/ FLd: 13.8V AGM/ GEL/ FLd: 13.8V
Low Voltage re-connection (LVR) AGM/ GEL/ FLd: 12.6V AGM/ GEL/ FLd: 12.6V AGM/ GEL/ FLd: 12.6V AGM/ GEL/ FLd: 12.6V
Low Voltage Disconnection (LVD) AGM/ GEL/ FLd: 10.8V AGM/ GEL/ FLd: 10.8V AGM/ GEL/ FLd: 10.8V AGM/ GEL/ FLd: 10.8V
Operating Temperature Range -20℃~55℃ (To run at full rated current continuously) -20℃~55℃ (To run at full rated current continuously) -20℃~55℃ (To run at full rated current continuously) -20℃~55℃ (To run at full rated current continuously)
LCD Temperature Range -20℃~70℃ -20℃~70℃ -20℃~70℃ -20℃~70℃
Humidity Range ≤95% No condensation ≤95% No condensation ≤95% No condensation ≤95% No condensation
Protection Class IP30 IP30 IP30 IP30

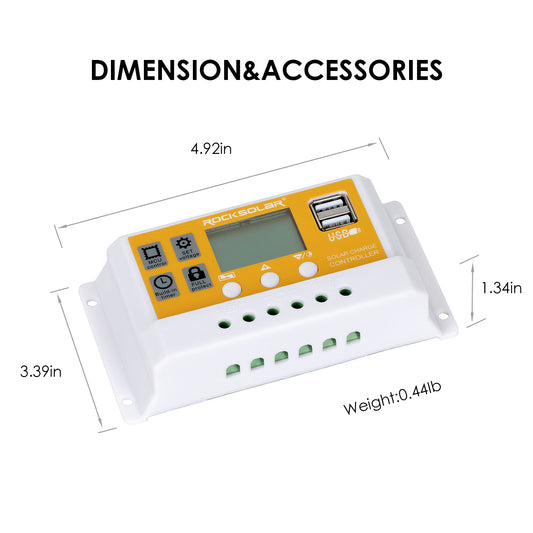

Dimension 123*178*48 123*178*48 123*178*48 123*178*48
Installation Hole 108*120 ∅5 108*120 ∅5 108*120 ∅5 108*120 ∅5

high-efficiency-10a-pwm-solar-charge-controller

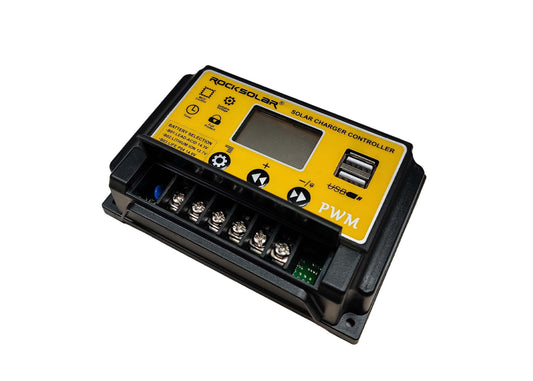

ROCKSOLAR 10A PWM Solar Charge Controller

$31.00 USD
$53.00 USD $31.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Steps to Install Your Solar Charge Controller

Compare & Buy

ROCKSOLAR 10A PWM Solar Charge Controller

ROCKSOLAR 20A PWM Solar Charge Controller

ROCKSOLAR 30A PWM Solar Charge Controller
Model POW-Keeper1220 POW-Keeper2220 Model-W88-C
Max Open Voltage of PV Module 55Vdc 55Vdc 55Vdc
MPP Tracking Efficiency 99.5% 99.5% 99.5%
Light Control Voltage 5V 5V 5V
Charge Algorithm 3 Stage 3 Stage 3 Stage
Battery Type Lithium and Lead Acid Battery Lithium and Lead Acid Battery Lithium and Lead Acid Battery
Nominal System Voltage 12/24V 12/24V 12/24V
Rated Charging Current 20A 20A 20A
Battery Voltage Range 8~32V 8~32V 8~32V
High Voltage Disconnection 16V (24V x 2) 16V (24V x 2) 16V (24V x 2)
Duration for absorption charging 2 hours 2 hours 2 hours
Charge Loop Voltage Drop ≤0.29V ≤0.29V ≤0.29V
Self-consumption ≤ 9.2mA 12V; ≤ 11.7mA 24V ≤ 9.2mA 12V; ≤ 11.7mA 24V ≤ 9.2mA 12V; ≤ 11.7mA 24V
Equalized Charging Voltage AGM: 14.6V; GEL: No; FLd: 14.8V AGM: 14.6V; GEL: No; FLd: 14.8V AGM: 14.6V; GEL: No; FLd: 14.8V
Absorption Charging voltage AGM: 14.4V; GEL: 14.2; FLd: 14.6V AGM: 14.4V; GEL: 14.2; FLd: 14.6V AGM: 14.4V; GEL: 14.2; FLd: 14.6V
Floating Charging voltage AGM/ GEL/ FLd: 13.8V AGM/ GEL/ FLd: 13.8V AGM/ GEL/ FLd: 13.8V
Low Voltage re-connection (LVR) AGM/ GEL/ FLd: 12.6V AGM/ GEL/ FLd: 12.6V AGM/ GEL/ FLd: 12.6V
Low Voltage Disconnection (LVD) AGM/ GEL/ FLd: 10.8V AGM/ GEL/ FLd: 10.8V AGM/ GEL/ FLd: 10.8V
Operating Temperature Range -20℃~55℃ (To run at full rated current continuously) -20℃~55℃ (To run at full rated current continuously) -20℃~55℃ (To run at full rated current continuously)
LCD Temperature Range -20℃~70℃ -20℃~70℃ -20℃~70℃
Humidity Range ≤95% No condensation ≤95% No condensation ≤95% No condensation
Protection Class IP30 IP30 IP30
Dimension 123*178*48 123*178*48 123*178*48
Installation Hole 108*120 ∅5 108*120 ∅5 108*120 ∅5
